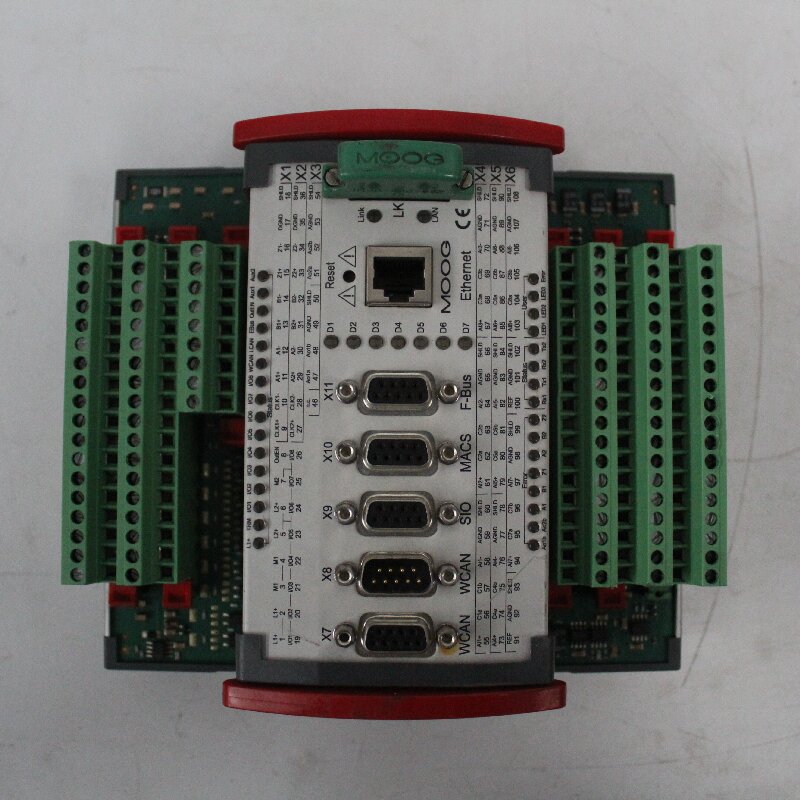

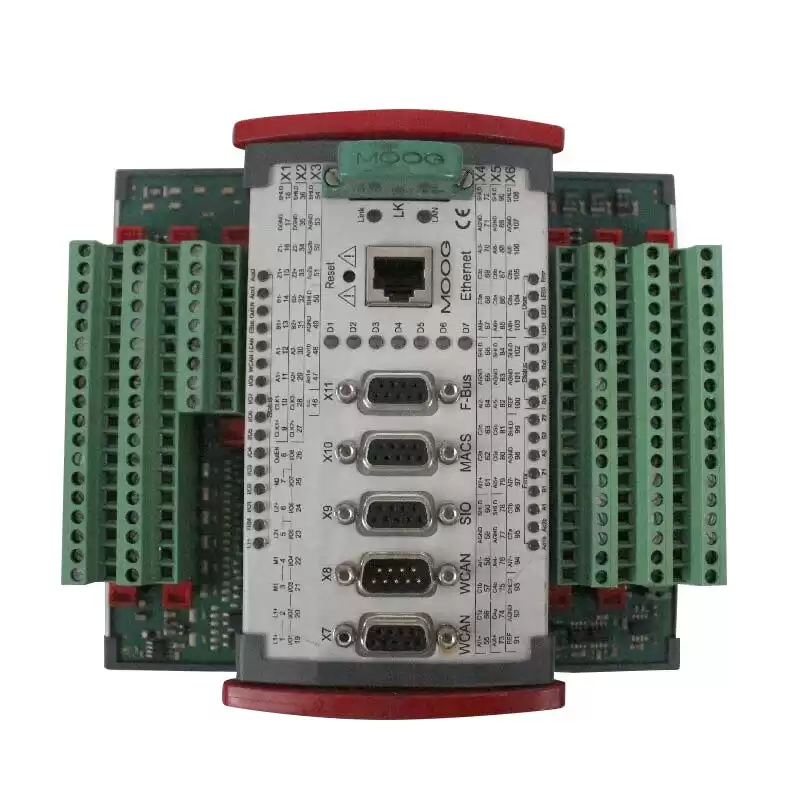

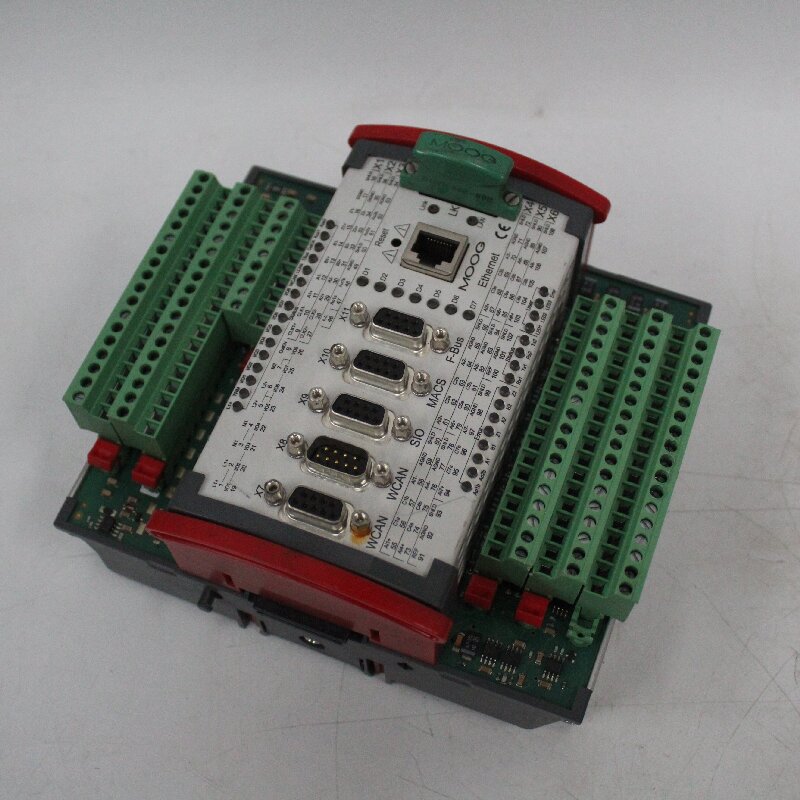

Designation:Moog Servo Controller (MSC)

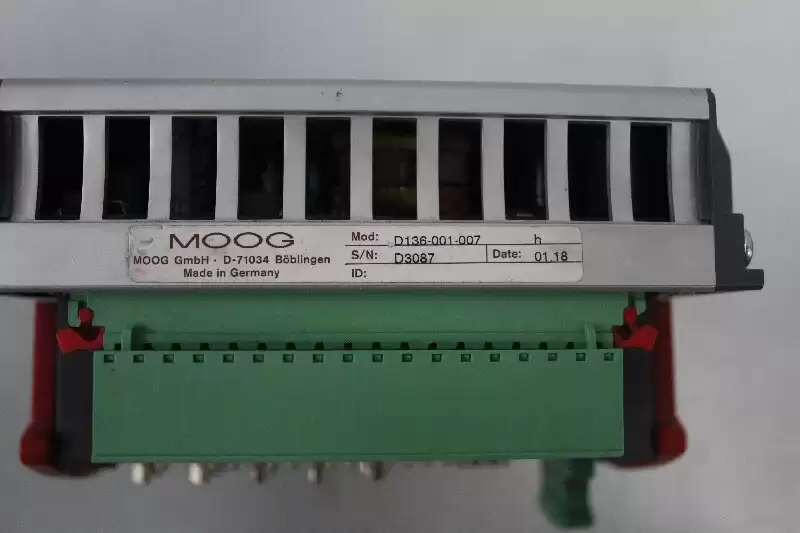

Order number:D136-001-008 4 MB RAM D136-001-007 4 MB RAM, Profibus-DP slave interface
Connection technique:Plug-in terminal strips for screwing or clamping
Assembly:NS 35/7.5 mounting rail pursuant to EN 50022 (DIN top-hat rail)
Dimensions WxDxH (mm):160 x 170 x 85.5 (attachment dimension: W = 149/154.5)
Temperature range:+5°C (+41°F) to 55°C (+131°F) (operation) and
-25°C (-13°F) to +70°C (+158°F) (storage)
Mean temperature in operation for 24 hrs.: max. +50°C (+122°F)
Relative air humidity:10 % to 95 % (non-condensing)
Operation height:Max. 2000 m (6500 feet); storage/transport max. 3000 m (9800 feet)
Processor:PowerPC Processor, 32 Bit, RISC architecture with floating point unit
Memory:4 MB Flash EEPROM; data maintenance: typically 10 years
