D60 Ring Lock Shoring Scaffolding Diagonal Braces

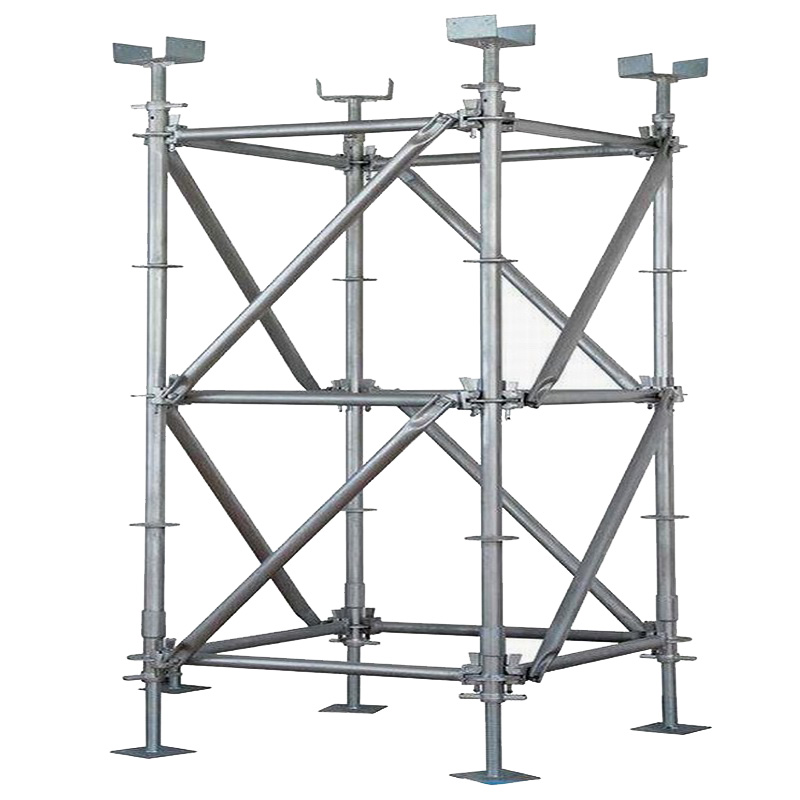

D60 Ring Lock High Load Shoring Scaffolding: It is used in Heavy Duty Load Requirement Construction Support, Including Infrastructure Scaffolding Like Bridge, High Speedway Construction, Industrial Scaffolding like Offshore Construction and High Load Concrete Formwork Temporary Scaffolding. The Vertical is made by O.D60x3.5mm high grade steel tube for heavy duty shoring purpose.



Scaffolding Components: Standard, Ledger, Diagonal Brace.

Facebook Twitter Pinterest LinkedIn 分享

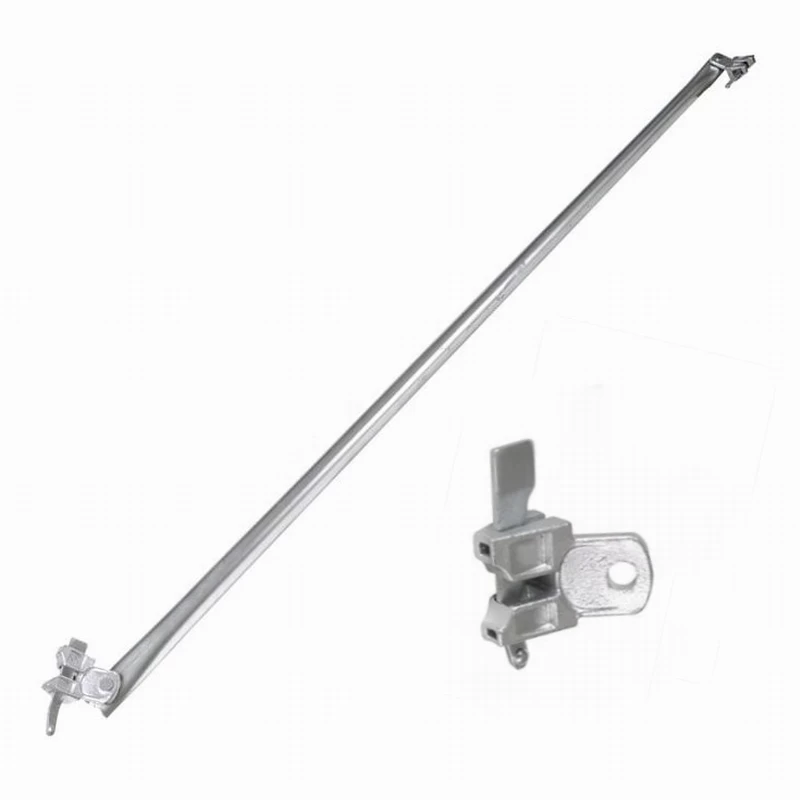

D60 Ring Lock High Load Shoring Scaffolding Diagonal Brace / Bay Brace


Product Details:

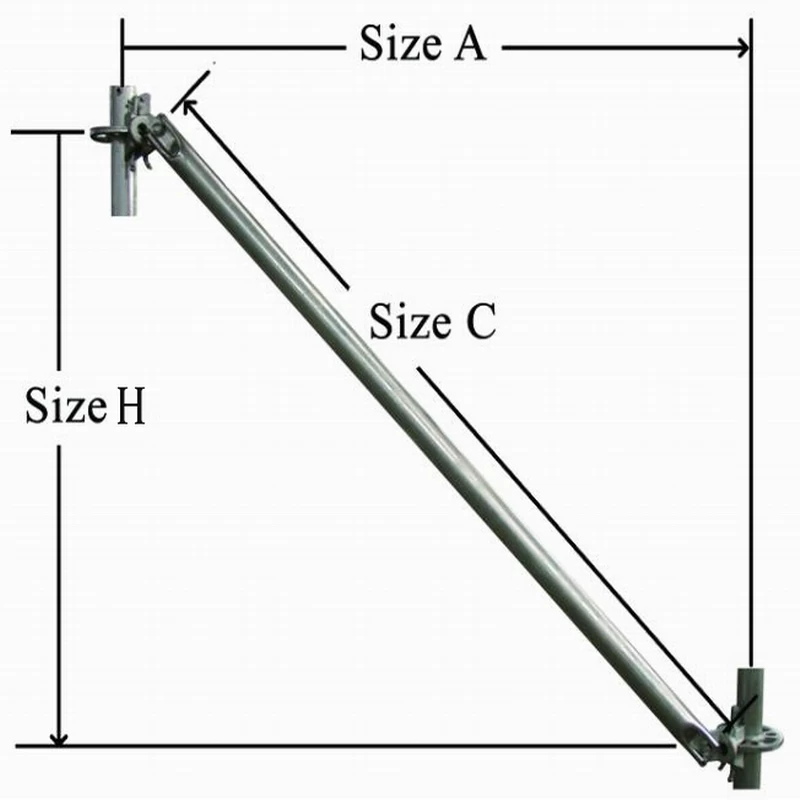

Code Description Material Size Weight(kg) Weight(lbs)
D60RS.DB.240150 2.40x1.5M Diagonal Brace Ø42x2.5mm; Q235 A: 2400mm; H: 1500mm; C: 2689mm 8.18  18.04
D60RS.DB.180150 1.80x1.5M Diagonal Brace A: 1800mm; H: 1500mm; C: 2216mm 7.02  15.48
D60RS.DB.150150 1.50x1.5M Diagonal Brace A: 1500mm; H: 1500mm; C: 2006mm 6.51  14.35
D60RS.DB.120150 1.20x1.5M Diagonal Brace A: 1200mm; H: 1500mm; C: 1820mm 6.05  13.34
D60RS.DB.090150 0.90x1.5M Diagonal Brace A: 900mm; H: 1500mm; C: 1669mm 5.68  12.52
D60RS.DB.060150 0.60x1.5M Diagonal Brace A: 600mm; H: 1500mm; C: 1561mm 5.41  11.93



Features:

Tube Dimension: O.D 42x2.5mm. Other tube thickness 3.0mm/2.75mm/2.2mm/2.0mm is also available by request.

Steel Tube Grade: Q235

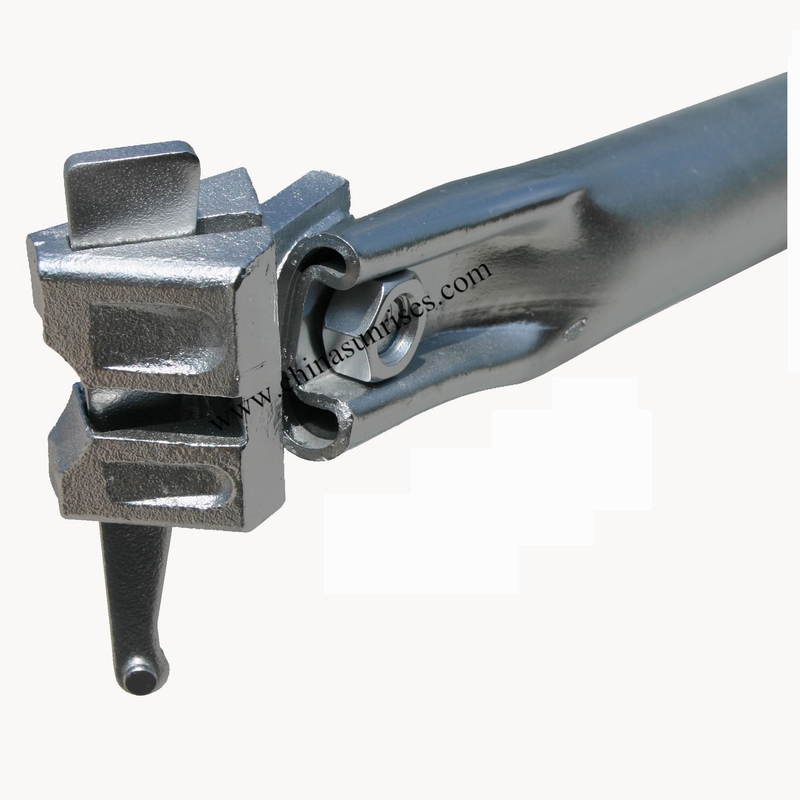

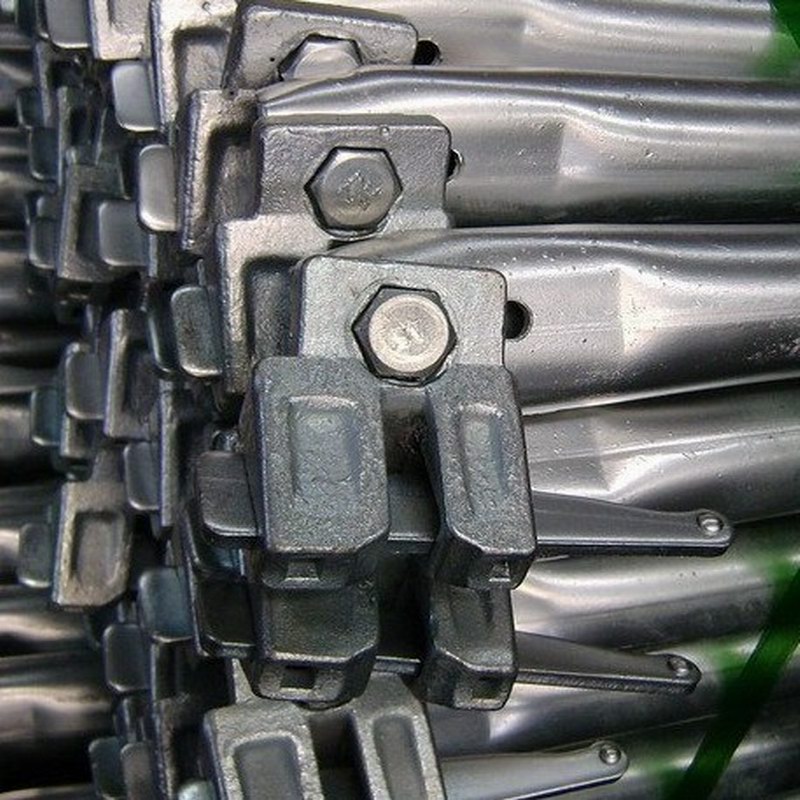

Brace Fitting: Casting Steel

Ledger Wedge Pin: 6mm

Suface Finishing: Hot Dip Galvanized; Powder Coated, Painted


Quality Standard: EN12810

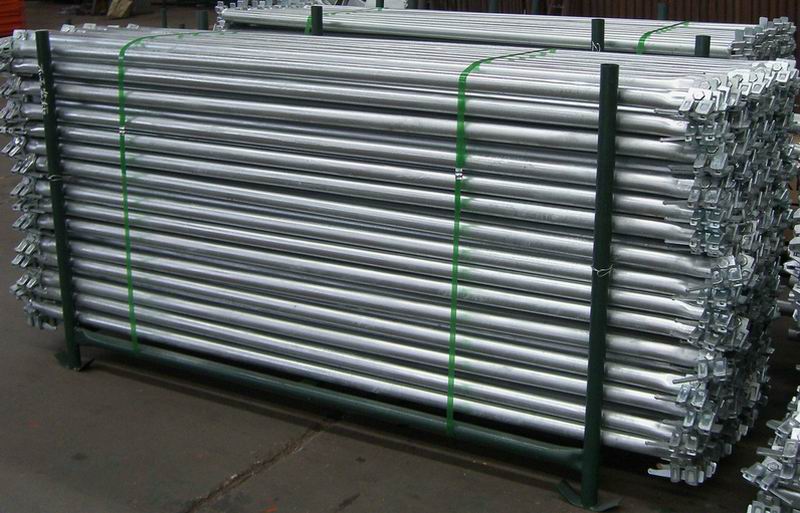

Packing and Loading: On Steel Racks
