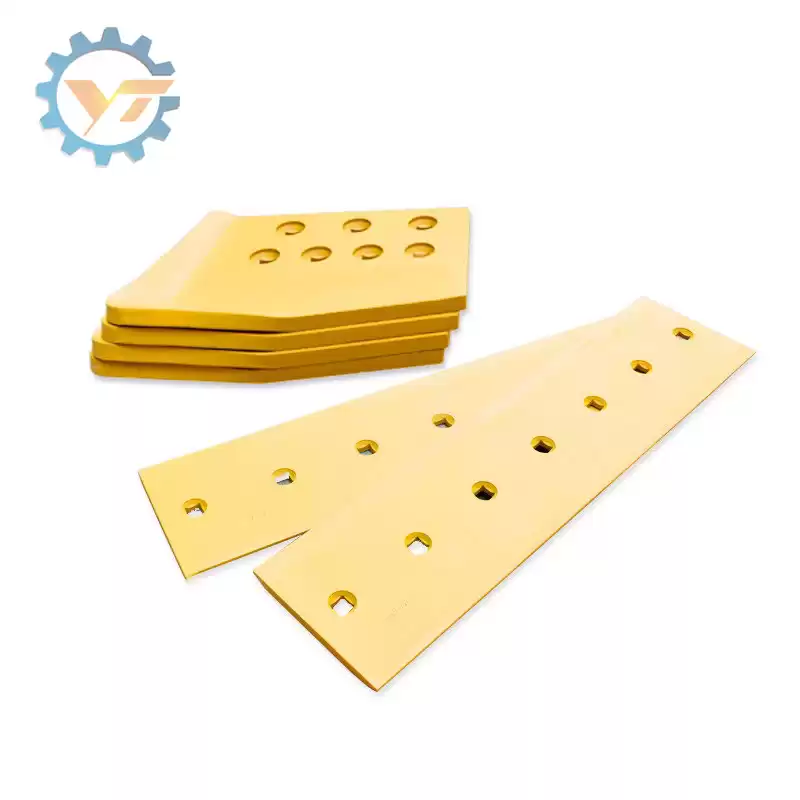

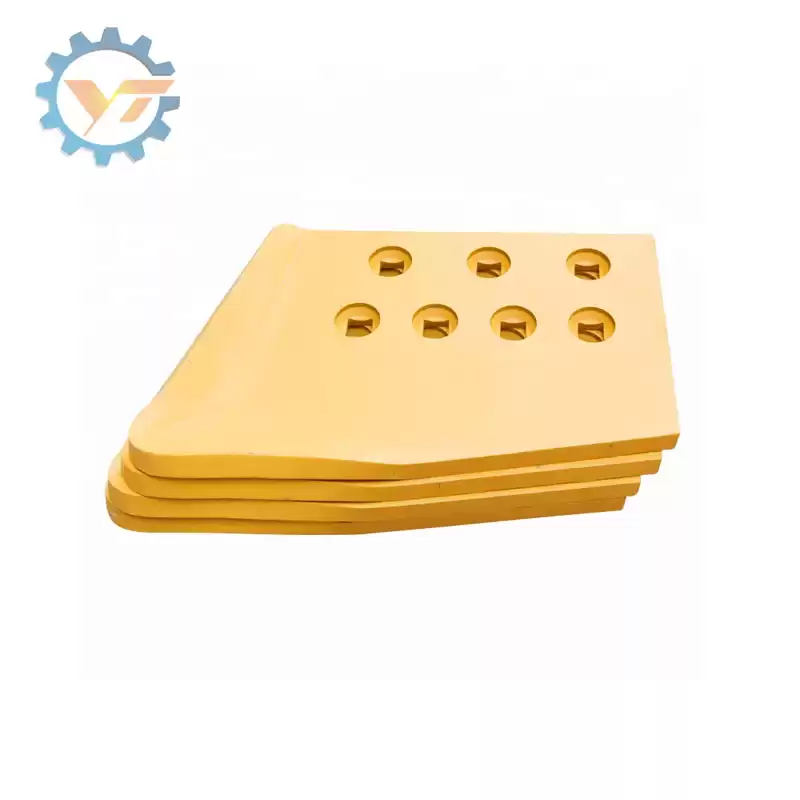

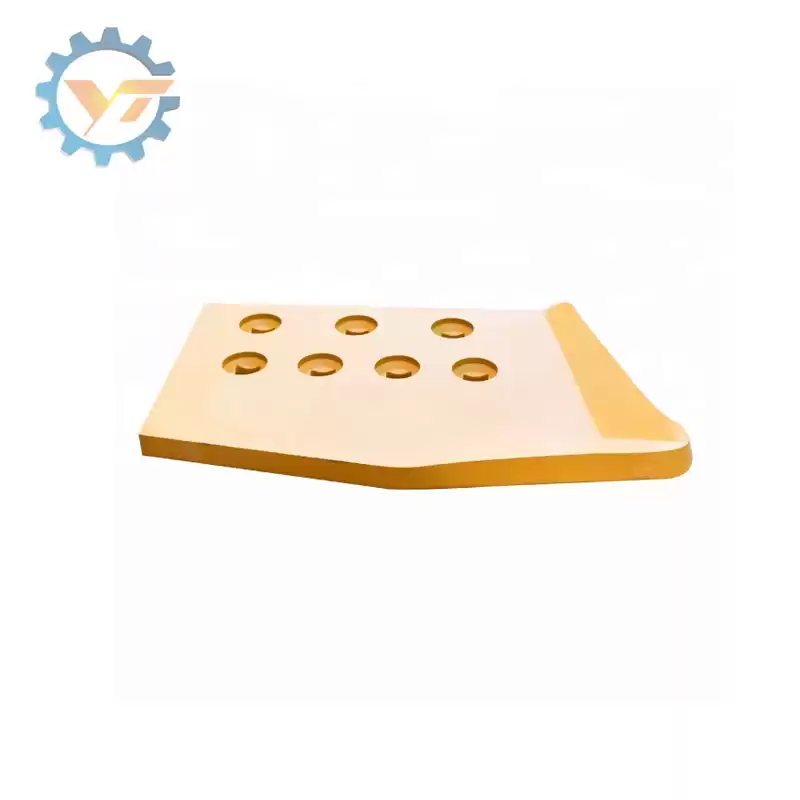

D9N D9R End Bit RH 8E4539 Cutting Edge for Bulldozer

Our bulldozer end bit are made from both high carbon and boron steel that are heat-treated and hardened to. improve the lifespan.


  • PackingWooden Pallet Packing

D9N D9R Bucket End Bit RH 8E4539 Casting End Bit


1. Description


Our end bit and cutting edge  provide the best balance of abrasion and impact resistance. They are designed as a balanced system to move more material over a longer period with less downtime.



2. End Bit Production Processes


 End Bit Production Processes


3. Our Advantages


  • Through professional quench-tempering processes to guarantee excellent mechanical properties,high strength and superior wear resistance to bending and breakage.Meet OEM and industry standard for earthmoving machinery and equipment.
  • Optional material with high carbon steel or heat treated boron steel for different application.
  • Available dimensions for all standard grader blades or customized dimensions.
  • Our quality control is strictly performed from sourcing raw materials and different machining procession to final packing.
  • One-stop purchasing service.



4. Main Dimensions



Part No. Length X WidthXThickness No.of Holes Part No. Length X WidthXThickness No.of Holes
5D9557 2133×152×19 15 4T2242 2133×203×25 15
7T1644 4T2237 2438×203×25 17
9W2334 1828×152×19 13 4T2231 1828×203×25 13
4Z8785 2133×152×19 15 4T2233 2133×203×25 15
9W2335 4T2236 2438×203×25 17
5D9562 1828×203×16 13 232-70-12143 1828×152×16 13
7T1636 234-70-12193 2133×152×16 15
5D9561 2133×203×16 15 234-70-12550 2133×203×16 9
7T1643 234-70-12710 2133×203×16 15
5D9731 2438×203×16 17 232-70-52850 1828×203×19 13
7T1631 234-70-12670 2133×203×19 15
9J7701 1828×203×16 13 235-70-12140 2438×203×19 17
7T1639 7D1158 2133×203×16 15

The models above are just for reference, we can't list all models here. We can supply more products as your requirements. Please feel free to send us your inquiry.
