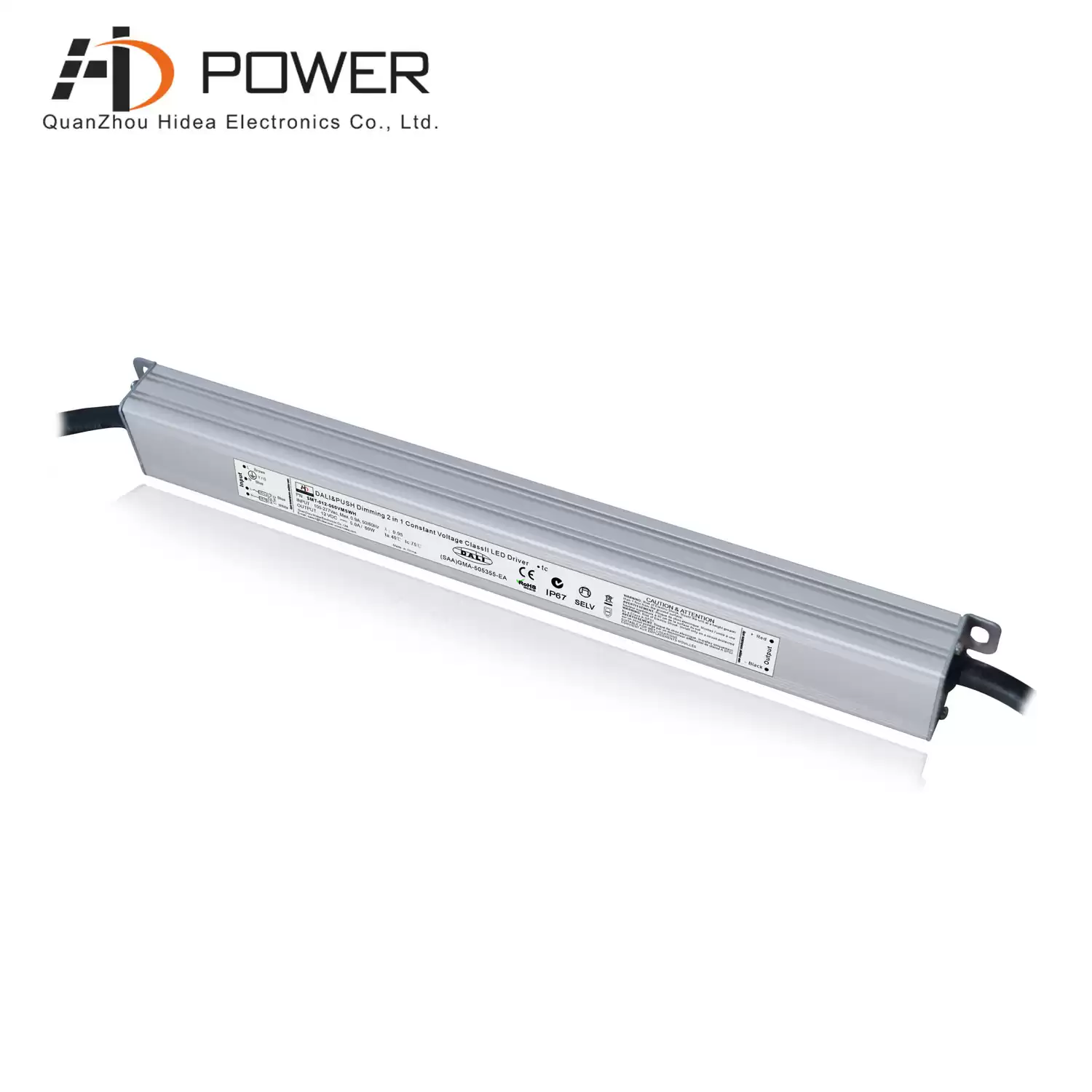

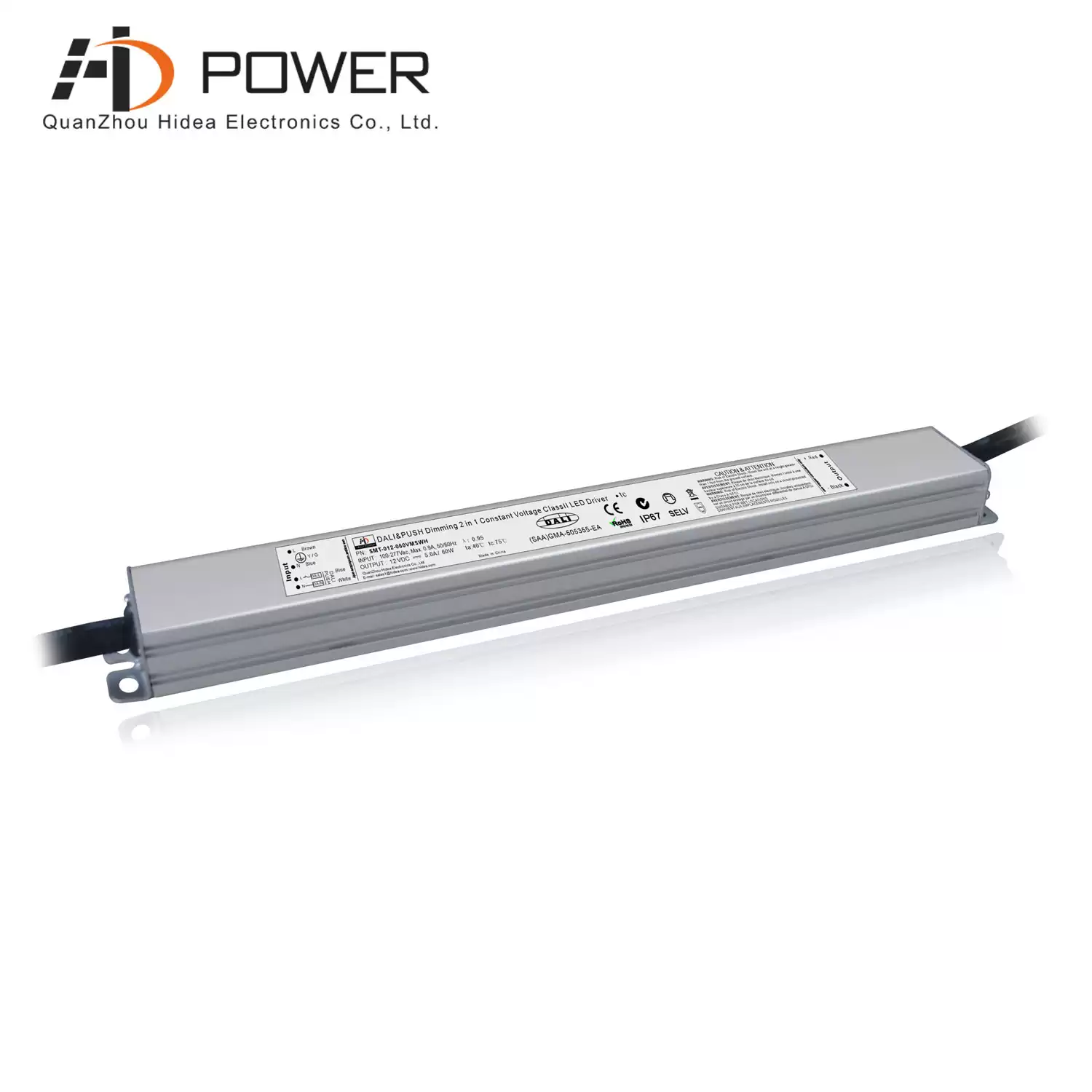

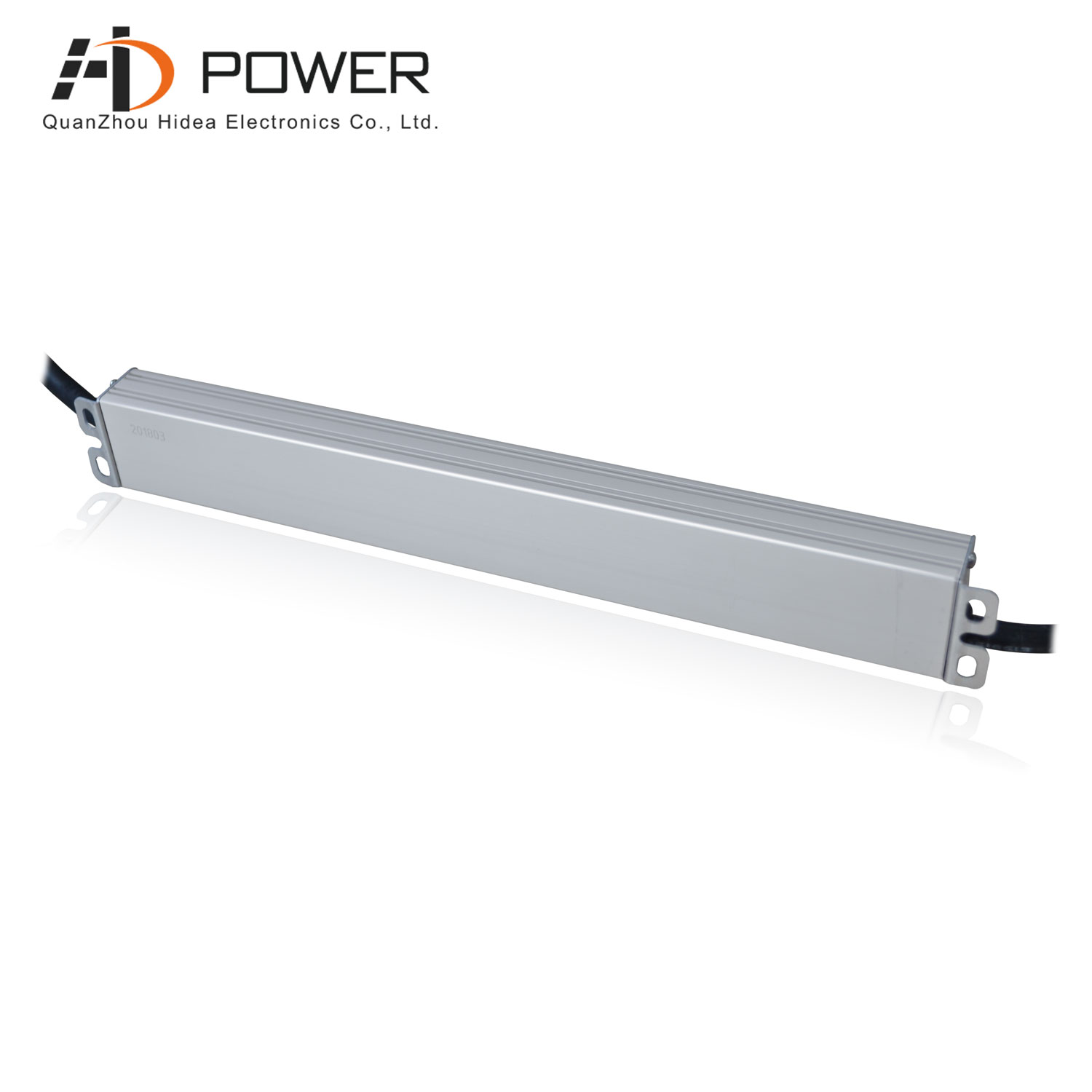

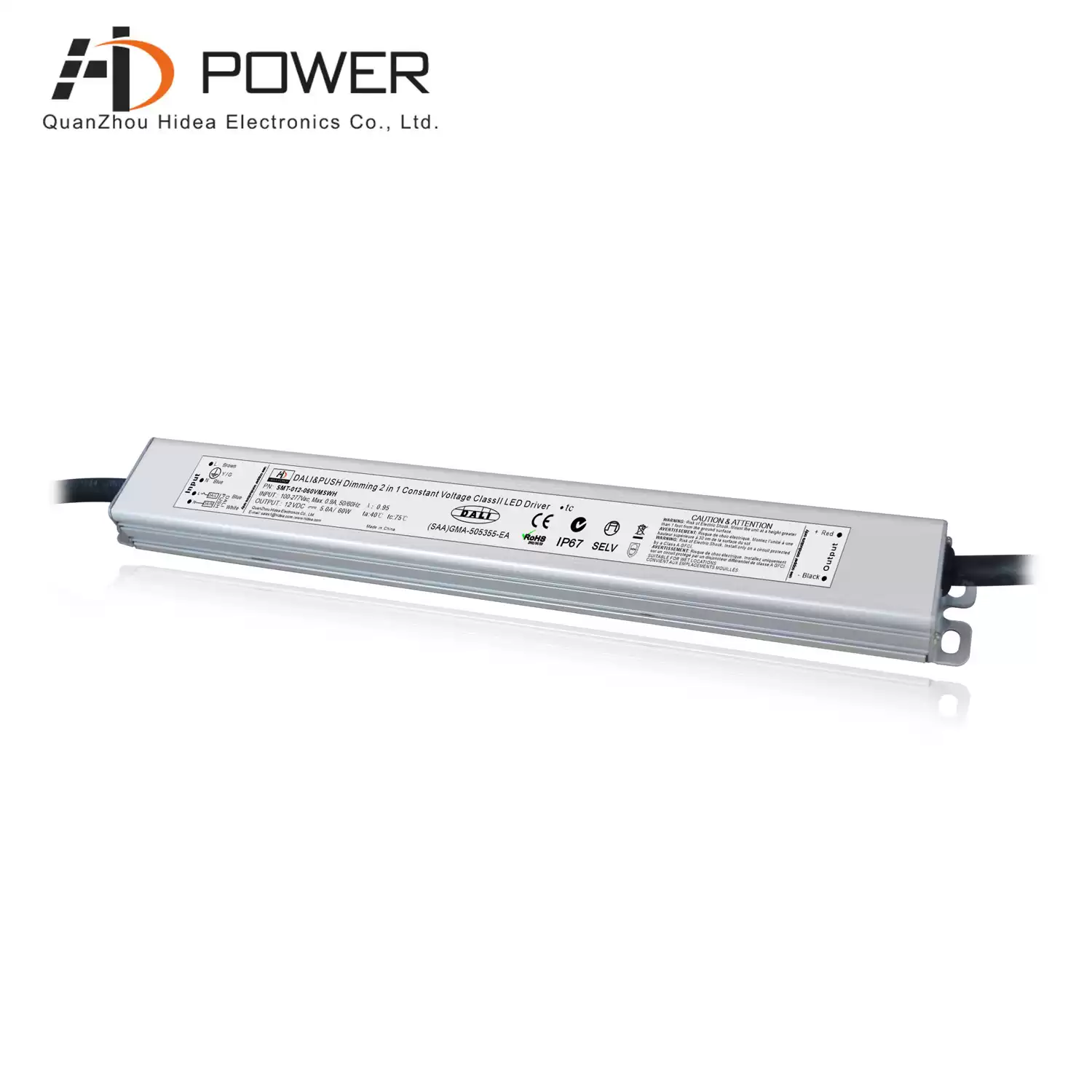

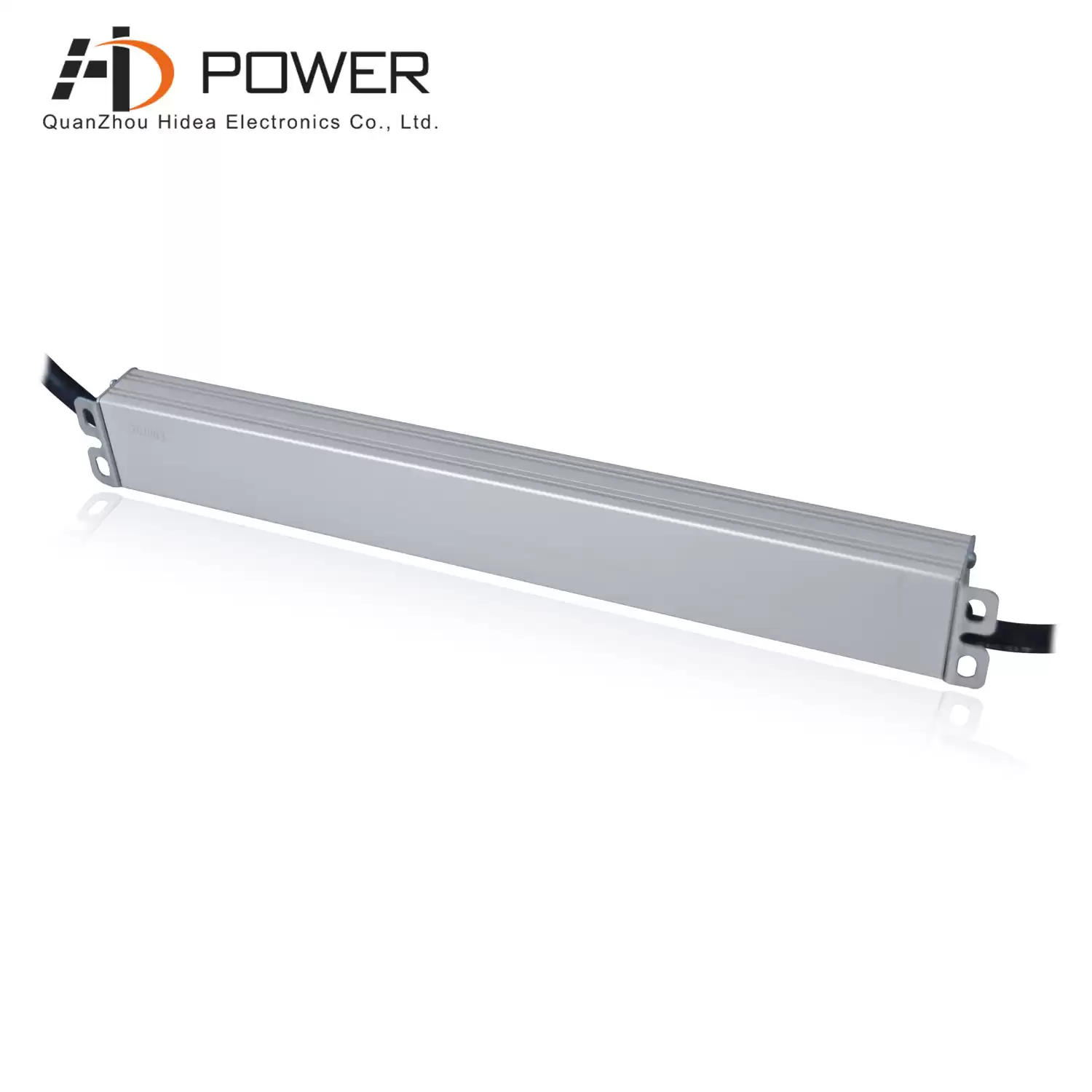

DALI 12v 60w waterproof led dimming driver
SMT-012-060VMSWH is constant voltage type DALI dimmable and push dimming 12v 60w led driver, conforms to CE, ROHS standrd, able to work with MEIGER LED tape lights 12v.

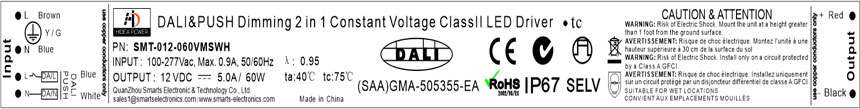

Label
Specification
|
model
|
SMT-012-060VMSWH
|
SMT-024-060VMSWH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Rated current
|
5.0Amp
|
2.5Amp
|
|
Rated power
|
60W
|
60W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC
|
0.98@120VAC
|
|
Efficiency(Typ.)@ full load(Typ.)
|
>86%
|
>88%
|
|
AC Current(Max.)
|
0.73A@100VAC
|
|
THD(Typ. ) @ full load
|
10%@120VAC
|
10%@120VAC
|
|
Inrush Current(Typ.)
|
3A (twidth=220us) @120VAC ; 34A (twidth=121us) @230VAC ;12.4A (twidth=680us) @277VAC ;
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Load
|
≤120% Hiccup mode ,recovers automatically after fault condition is removed or shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Protection Class
|
I
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 (EU) and UL8750 (US)
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC (EU) and I/P-O/P:1.88KVAC (US)
|
|
Isolation resistance
|
I/P-O/P:100M Ohms/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|
|
Others
|
Net Weight
|
0.43Kg
|
|
Size
|
300*32*23mm(L*W*H)
|
|
packing
|
330*270*311mm/30PCS/CTN G.W.:13.9KG/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
DALI dimmable led driver 12vdc are competible with most of the DALI system and DALI dimmers in the market, folllows flicker free, able to work with LED EDMONTON fixtures 12v.
Related Products
|

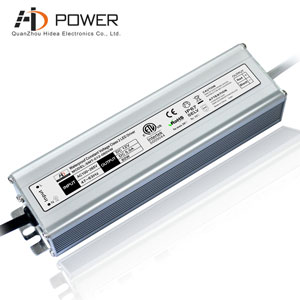

 12v waterproof led driver 60w in 100-265vac, 3 years warranty, aluminum IP67 case design.
