DALI 12v led dimming driver 24w led power supply

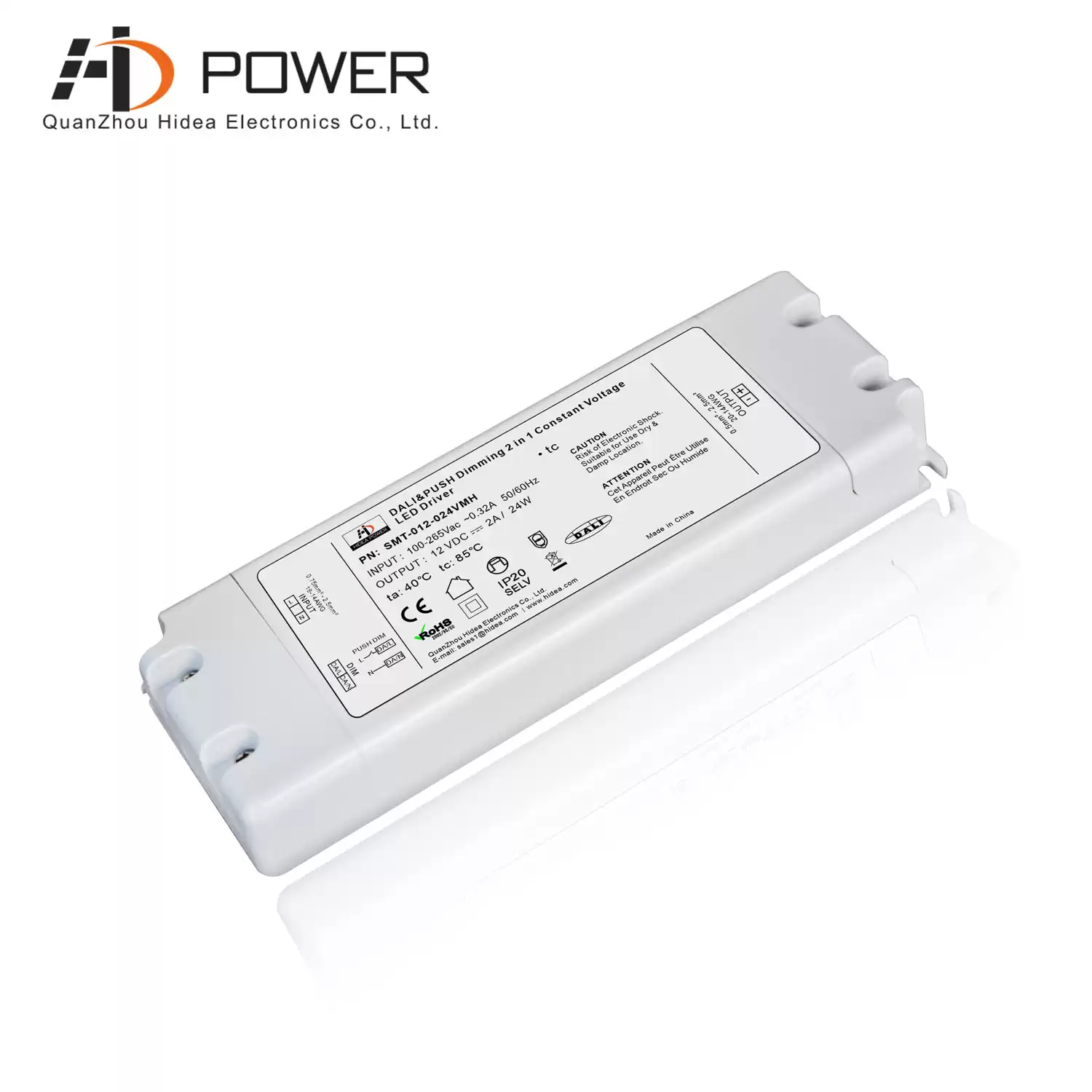

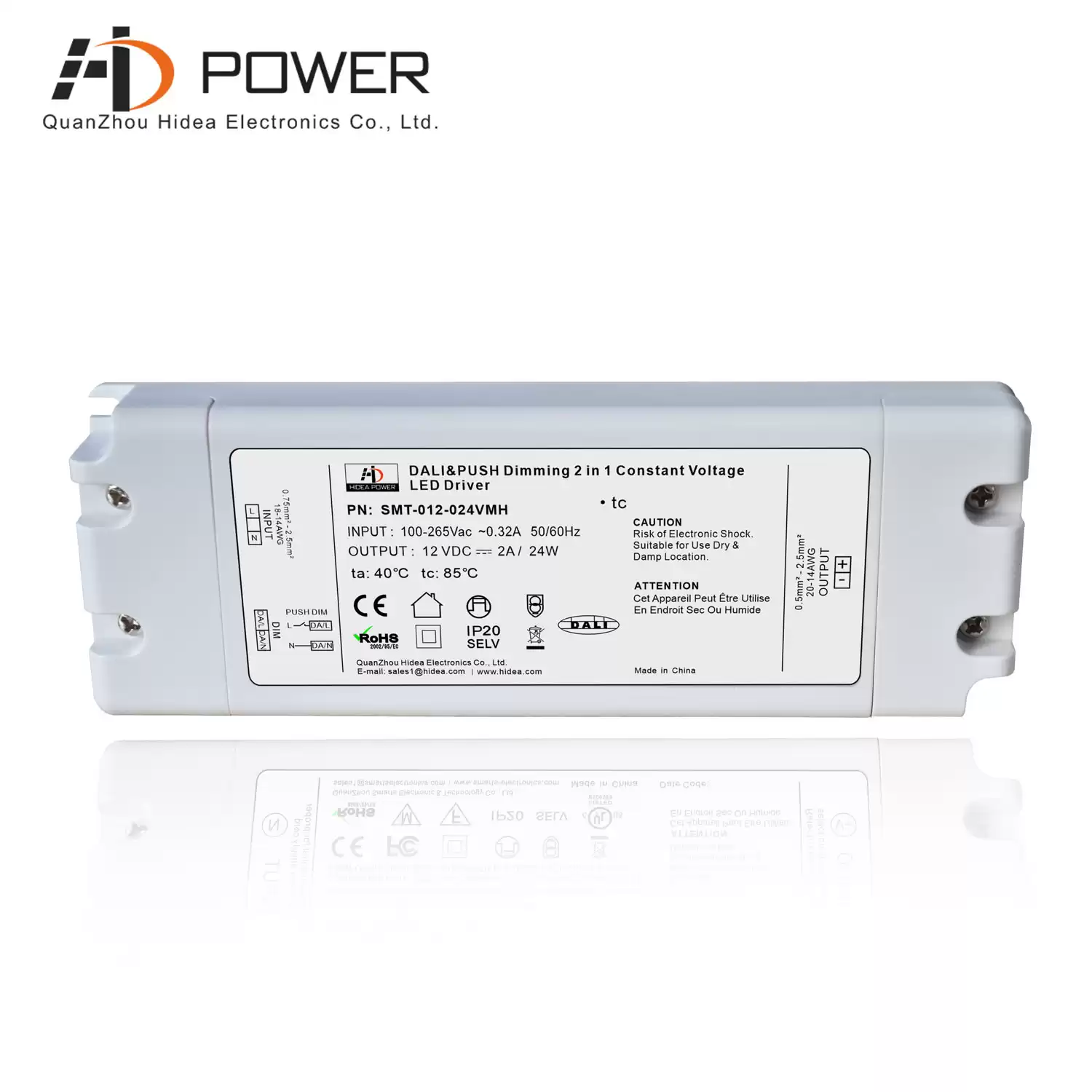

DALI dimmable 12v 2A 24w led power supply is plastic IP20 case, with output voltage adj from 11v to 13v, compatible with TRIDONIC dali led drivers 12v.
Specification
|
Model
|
SMT-012-024VMH
|
SMT-024-024VMH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
2A
|
1A
|
|
Rated power
|
24W
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor(Typ.)@full load
|
PF≥0.96 / 120VAC PF≥0.9/ 230VAC (Full loading)
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
77%
|
82%
|
|
AC Current(Max.)
|
0.33A
|
0.31A
|
|
Inrush Current (Typ.)
|
1.48A/120VAC 16A/230VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
constant current mode, recover automatically after fault condition is removed
|
|
Over Load
|
≤120% constant current limiting, recover automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ Shut down o/p voltage, recovers automatically after temperature goe down
|
|
Protection Class
|
II
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH ,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1:2015 EN61347-2-13:2014 EN62493:2010 IP20
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 EN61000-3-3
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6 ,11, EN61547
|
|
Others
|
Weight
|
0.21Kg
|
|
Dimension
|
155*54*20mm(L*W*H)
|
|
packing
|
350*240*130mm/40pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type

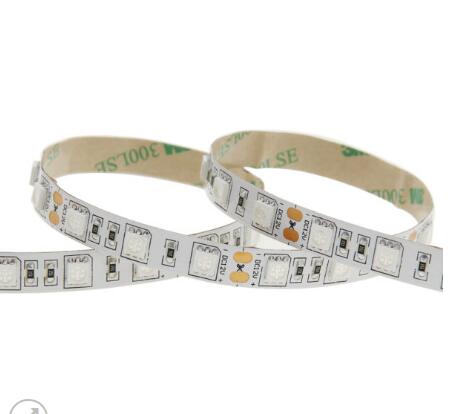

Dimming led driver 12v is constant voltage mode, wattage avaliable in 24w max.to 300w, IP20 and IP67 rated option for selection, work with ROLL LIGHTS UV Purple Light Bar 12vdc.
Related Products
|

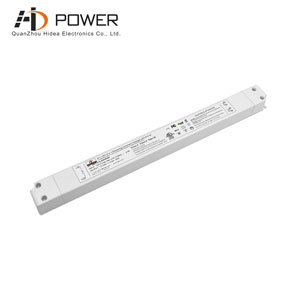

 12v 30w slim led DALI power supply 2.5amp, universal input 100-277vac, max.height 18mm.
Mode：SMT-012-030VMSP
Dimming Mode : DALI Dimming
Output Power : 30W
intput voltage：100~277V AC
Size：260*30*18MM （L*W*H）
|
