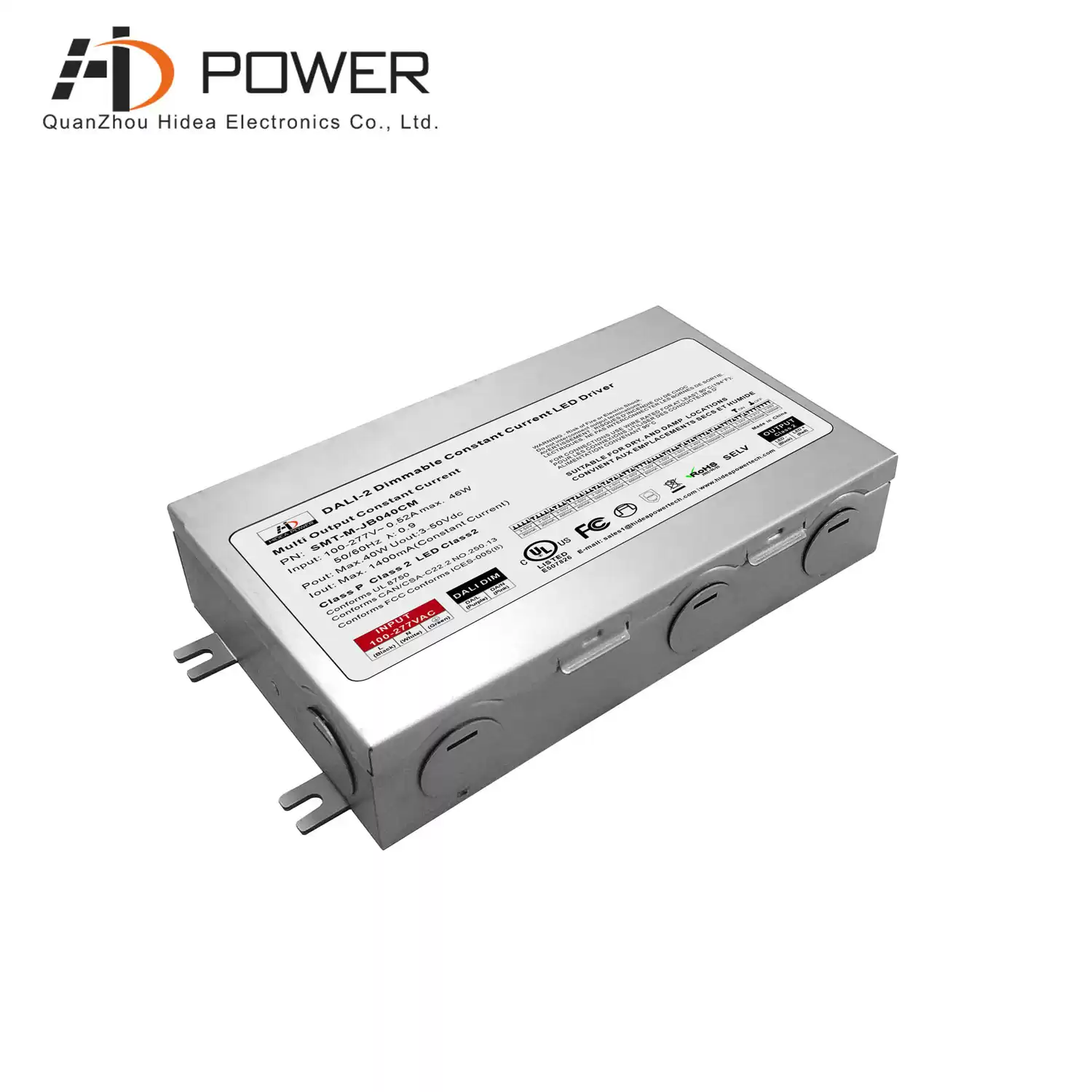

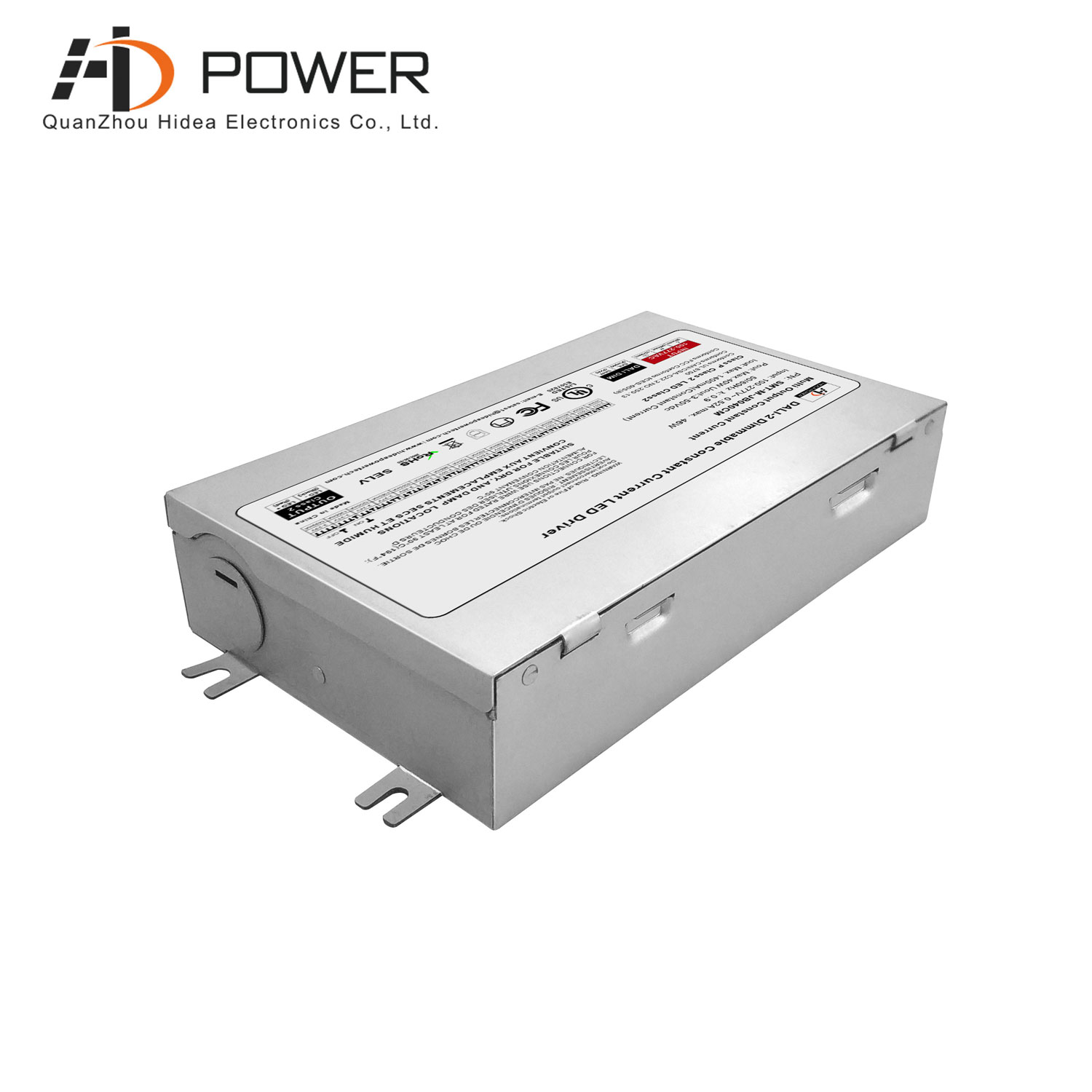

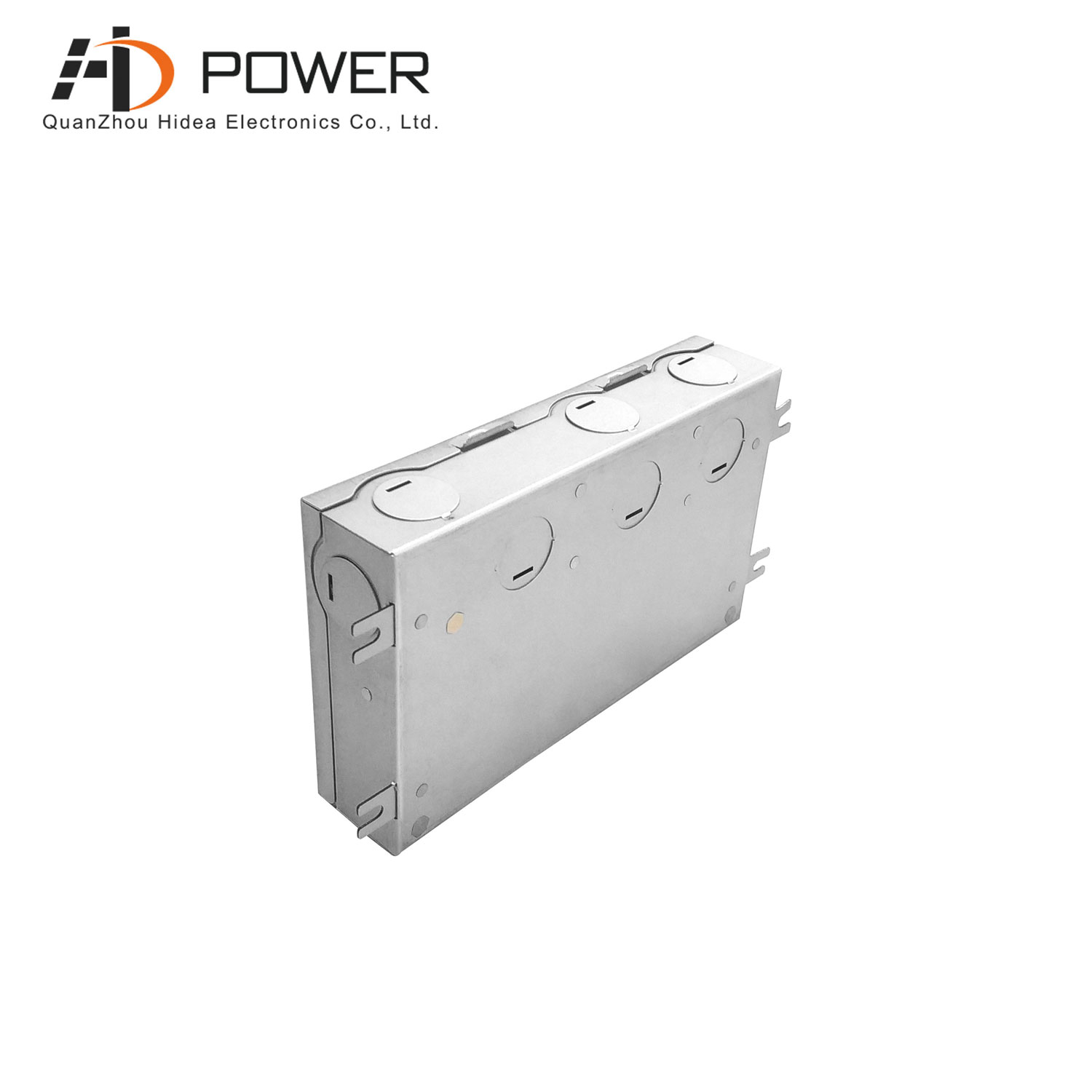

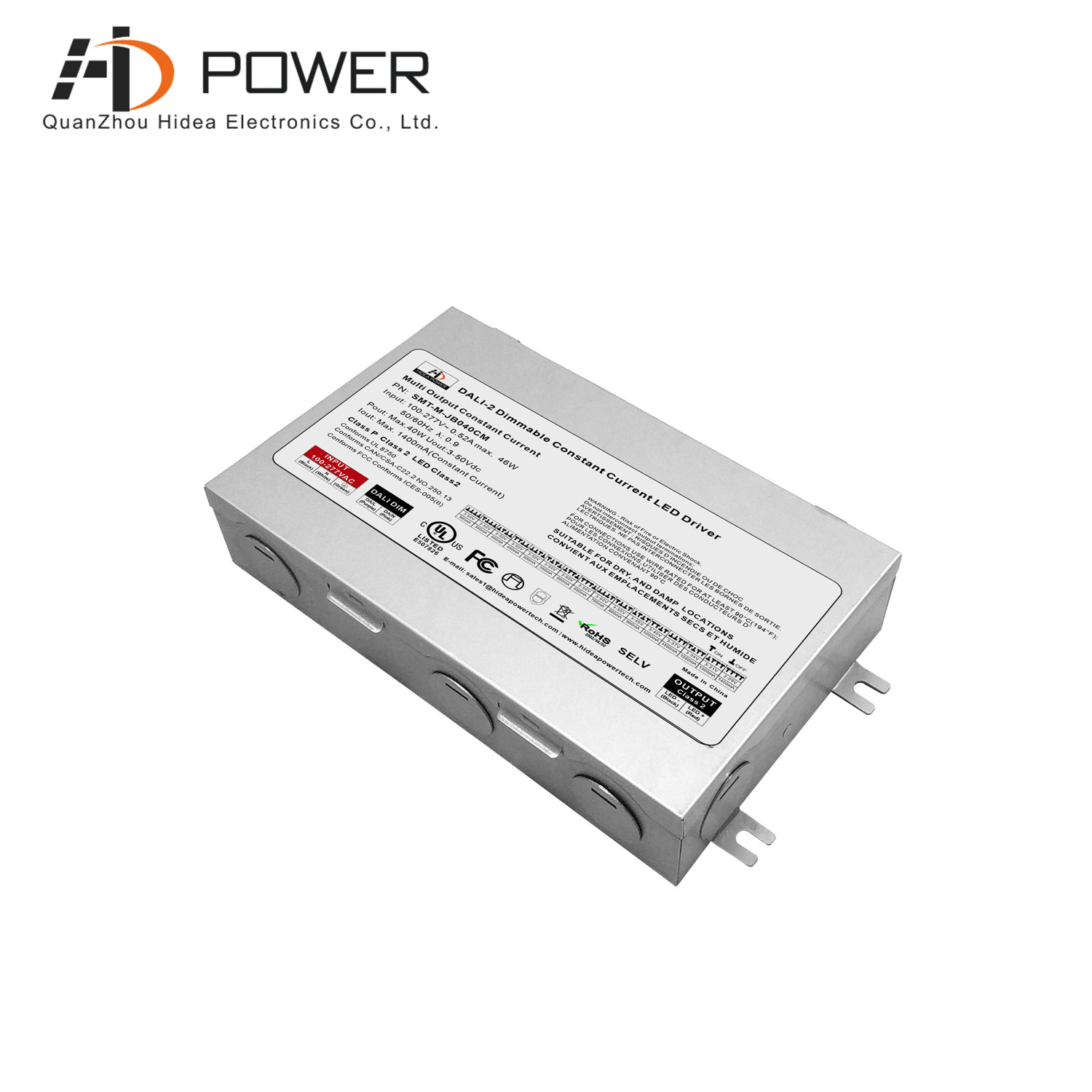

dali-2 & push dimmable constant current led driver 300ma-1400ma 40w manufacturers

hideapowertech's new product dali-2 dimmable led driver is easy and quick to install. The aluminum shell design can effectively dissipate heat and protect the power supply. It can be perfectly connected with Acuity Brands' 40W LED downlight to achieve smooth dimming

Dimming ModeDALI Dimming
Working ModeMulti-Output Current Driver
Input Voltage100-277Vac
Output Power(Watt)40W
Output Voltage
Shape & SizeMini Size
Output Current300mA-1400mA
Size190*104*36mm
Weight0.25KG
CertificationUL/cUL
Warranty7 years warranty

Facebook Twitter Pinterest LinkedIn 分享

Description

dali-2 & push dimmable constant current led driver 300ma-1400ma 40w manufacturers

100-277VAC Multi-output current Selectable Led Driver through the Dali-2 Lighting Agreement IEC62386, constant voltage working mode, the working efficiency is as high as 86%.7 -year warranty

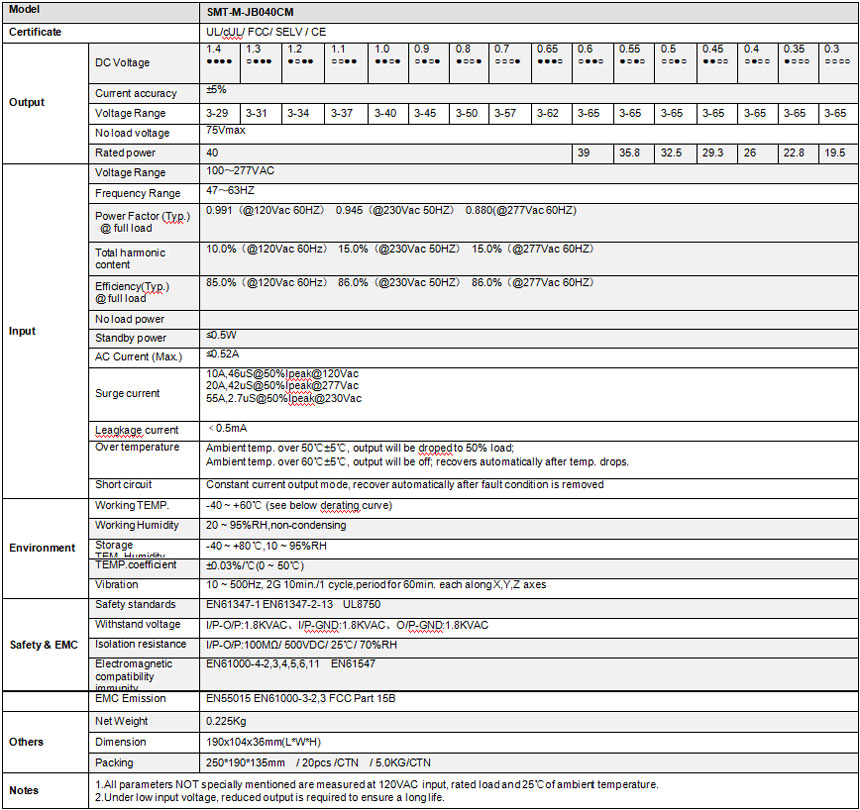

Specification

Related Products

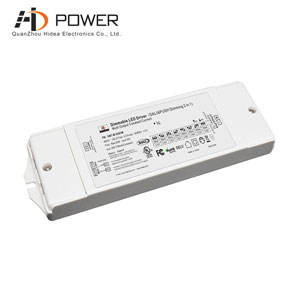

Plastic shell design waterproof level IP20 40W LED driver dimmable mode is Dali-2 & Push Dimmable, UL certification, which is in line with the global safety lighting rule. The output current is 300mA-1400MA. It has 7 years warranty.

Mode：SMT-M-040CM

Dimming Mode : DALI-2 & PUSH dimming

Output Power : 40W

Output current：300ma-1400ma

Size：172*54*20mm （ L*W*H）
