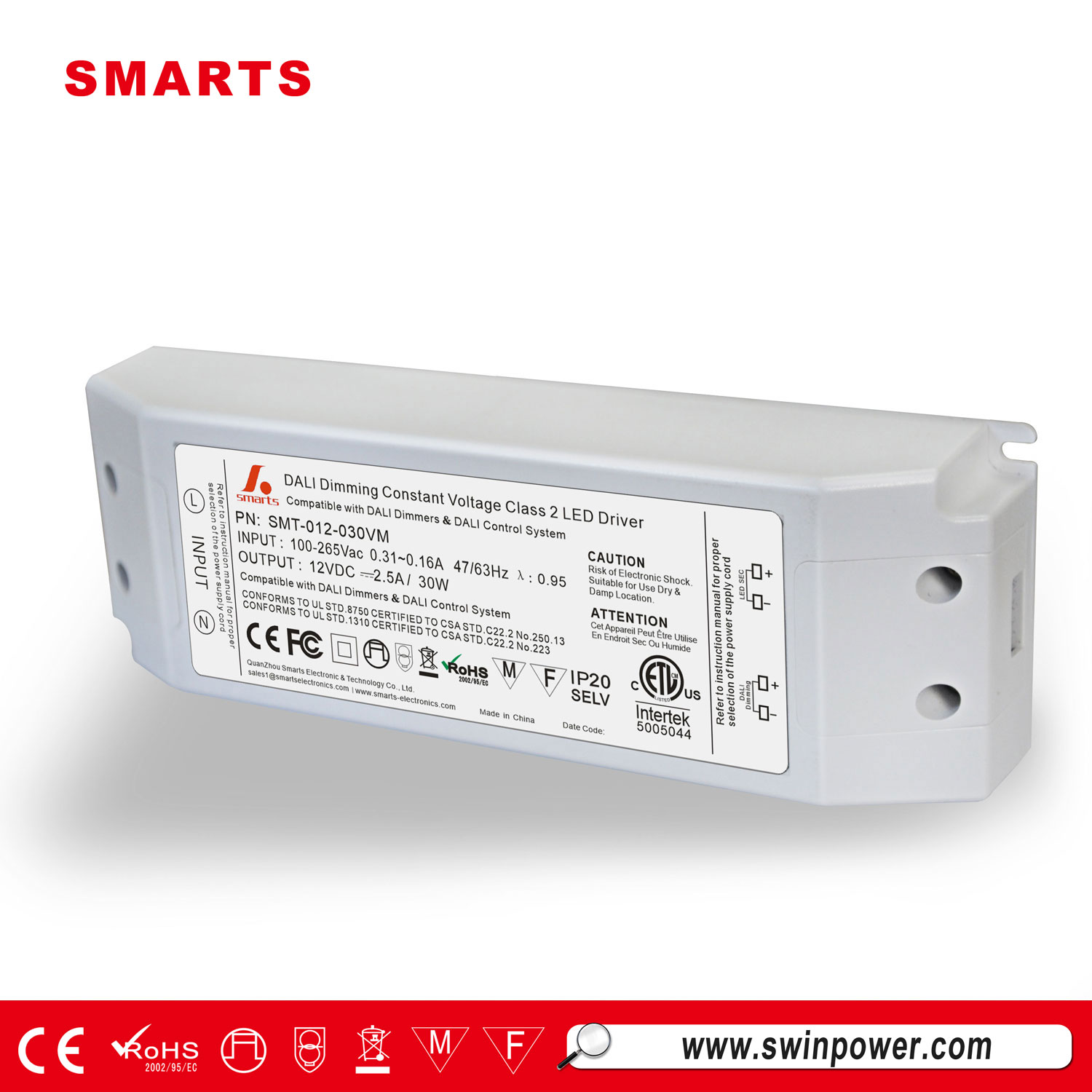

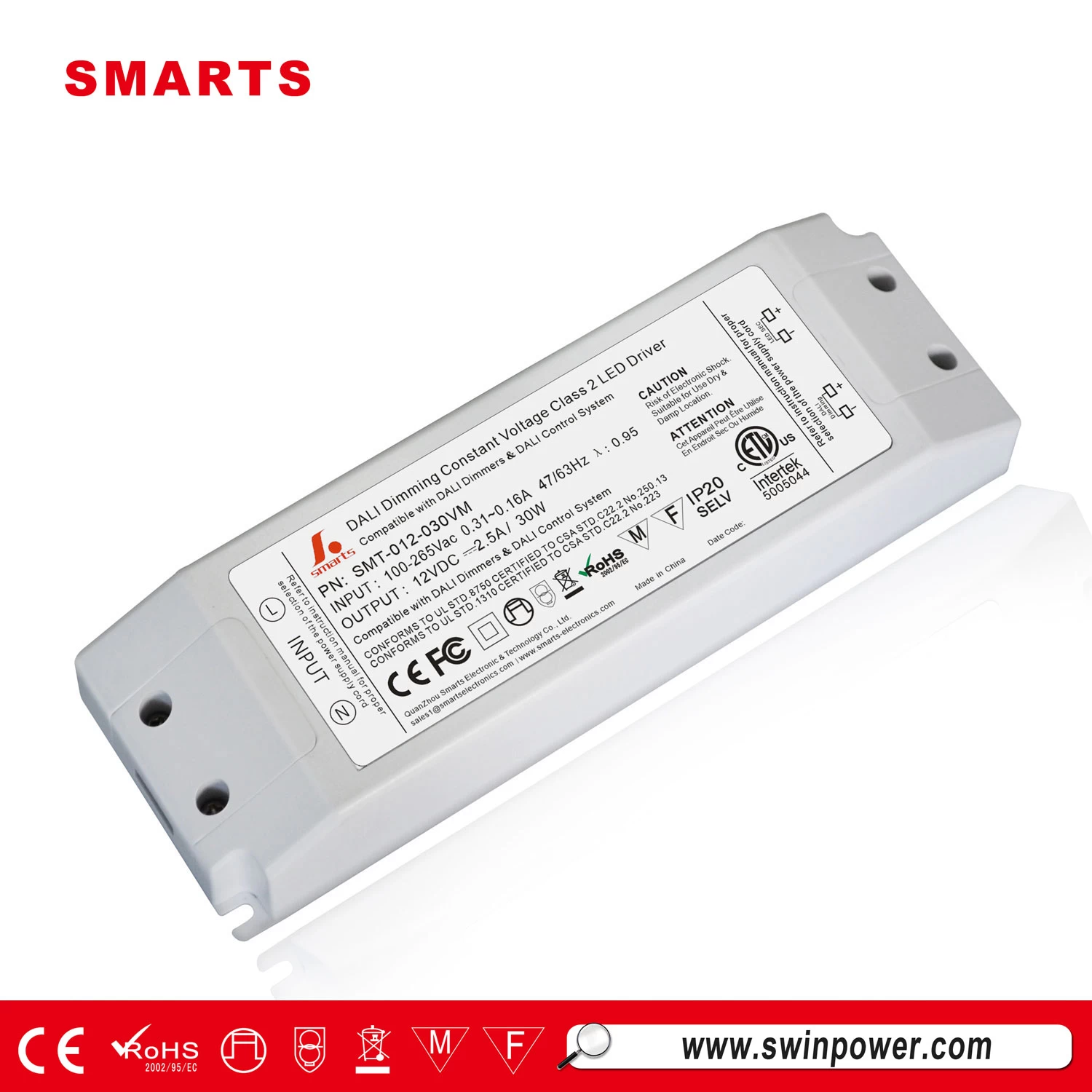

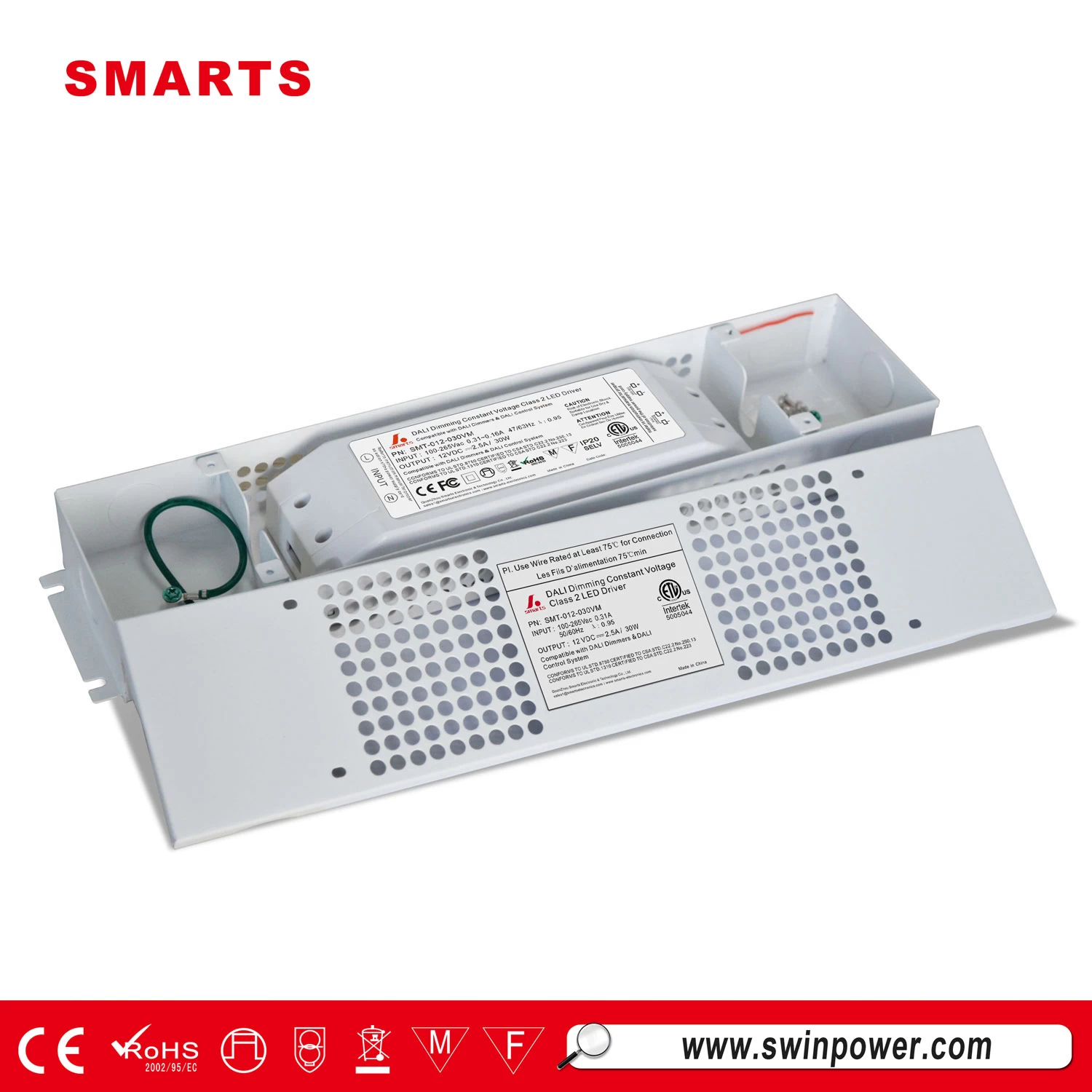

dali dimmable led driver 12 volt power supply for led strips
Automatic protection for Short circuit / overload / over voltage / over current / over temperature.
Protection type: Hiccup mode, auto-recovery after fault condition is removed
Wide Range of LED Power Supply : Suitable for LED strip lights, led light bulbs ,Computer Project,Industrial,Outdoor Light and any 12V DC led lights.
Specification:
|
Model
|
SMT-012-030VM
|
SMT-024-030VM
|
SMT-036-030VM
|
SMT-048-030VM
|
|
output
|
DC Voltage
|
12V
|
24V
|
36V
|
48V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
0～2.5A
|
0～1.25A
|
0～0.833A
|
0～0.625A
|
|
Rated power
|
30W
|
|
input
|
Voltage Range
|
100~130VAC, 170~265VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor （Typ.）
|
PF≧0.90/110V / PF≧0.90/220V
|
|
Efficiency（Typ.）
|
>88%
|
>88%
|
>88%
|
>88%
|
|
AC Current（Typ.）
|
0.34A@110VAC
|
0.17A@220VAC
0.15A
|
|
Leakage current
|
﹤0.40mA/110VAC / ﹤0.50mA/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Loading
|
≦120%
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH, non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015,EN61000-3-2,3 (≧50%loading)
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11(Surge 4KV）
|
|
Others
|
Net.Weight
|
0.55Kg
|
|
Size
|
180*60*34mm（L*W*H）
|
|
packing
|
355*215*215mm/20pcs/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load
and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again
|
Mechanical Specification:
※Input with Live Wire(L) Neutral Wire (N)
※Output LED SEC output Positive(LED+),output negative(LED-).Connected to LED Lamps.
※Signal Dimming （DA1）, (DA2） DALI Non polar！Connected to the BUS of the DALI Master.
※ When installing the LED driver and making input and output connections, cross-section area of conductor for input and output terminal block:0.75mm²(cord type: H03VVH2-F or H03VV-F).
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Opreation reference:
■Instruction:
1)This driver should be installed by qualified and professional person;
2)Please make sure the transformer is installed with adequate ventilation around it to allow for heat dissipation.
3)Ensure that wiring is correct before test in order to avoid light and power supply damage;
4)If driver Cannot work normally, don’t maintain privately; Have any question, please contact: sales1@smarts-electronics.com Thanks.
FAQ:
What is the efficiency?
For power supply installed in the structure of the lamp is particularly important because the LED luminous efficiency with the LED temperature rise and down, so the LED heat is very important. High efficiency, its power consumption is small, the heat in the lamp is small, it will reduce the temperature rise of the lamp, to delay the LED light failure beneficial.
