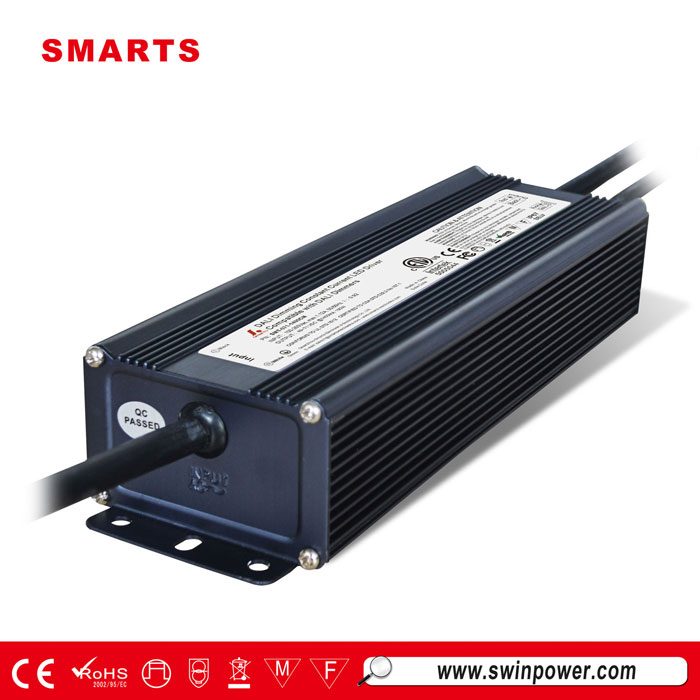

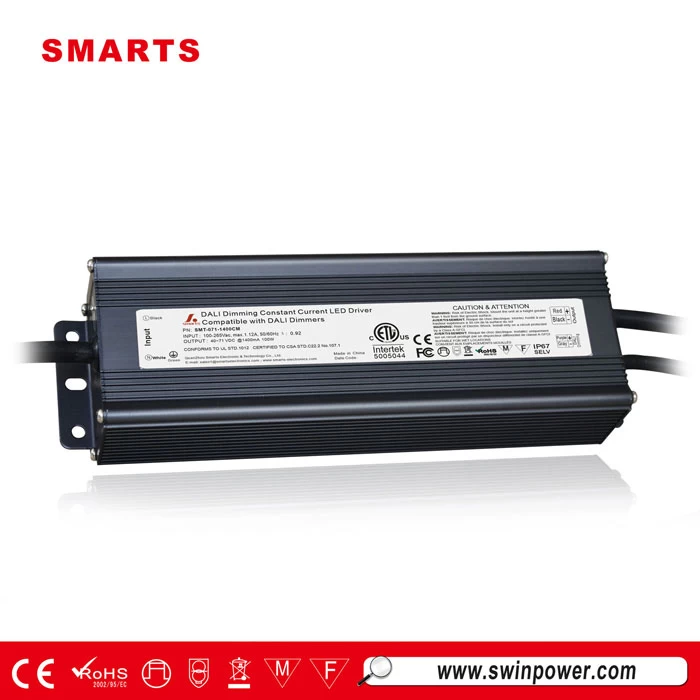

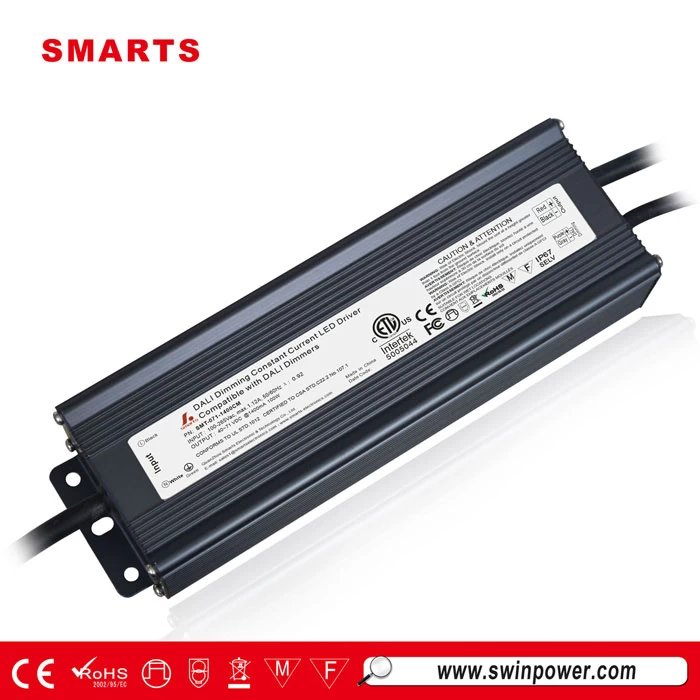

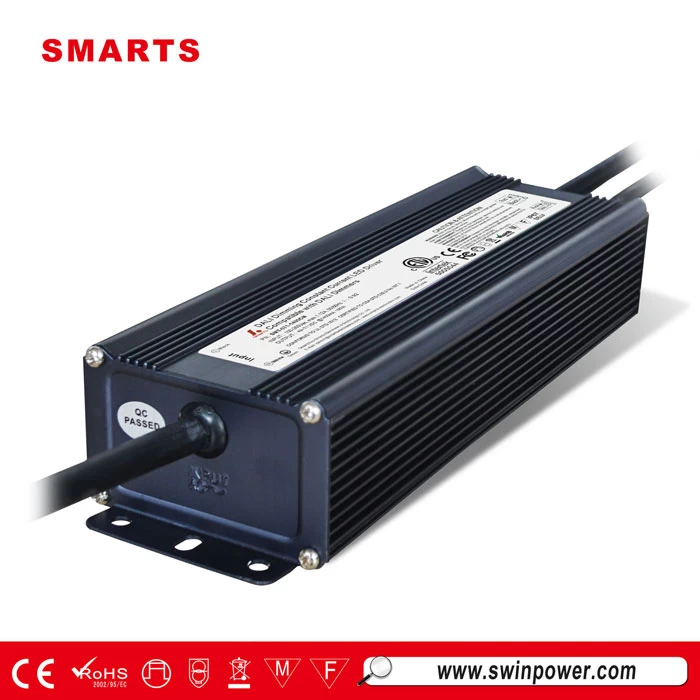

Dali dimmable led driver 1400mA 100w constant current led power supply

Dali dimmable led driver are suitable for indoor & outdoor led illuminating lights.it is installed with EMI filter,minimum wave.



  • Size230*68*45
  • Dimming modeDali dimmable
  • Working ModeConstant current
  • Output Current1400mA
  • Output Voltage40-71vDC
  • Input Voltage100-265Vac/ 170-305Vac
  • CertificationETL CE ROHS

Dali dimmable led driver 1400mA 100w constant current led power supply



led driver 1400mA 100w  is a model for Dali dimmable constant current led driver. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.


 Specification

Model

SMT-100-1050CM

SMT-071-1400CM

SMT-060-1750CM

SMT-050-2000CM

SMT-042-2400CM

Output

DC Voltage

50~100V

40~71V

40~60V

30~50V

25~42V

Voltage Accuracy

±0.5V

Rated current

01050mA

01400mA

01750mA

02100mA

0~2400mA

Rated power

105W

98W

105W

100.8W

100w

Input

Voltage Range

100-265VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF0.95/100V, 220V

Full Load EfficiencyTyp.

>89%(110,220V)

>88%(110,220V)

>88%(110,220V)

>88%(110,220V)

>88%(110,220V)

AC

CurrentTyp.

0.960A(110,220V)

1.042A(110,220V)

1.031A(110,220V)

1.038A(110,220V)

1.037A(110,220V)

Leakage current

0.75mA/110, 220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition

is removed

Over Current

1.4*I out

Over temperature

100±10 shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+50

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+801095%RH

TEMP.coefficient

±0.03%/050

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13 IP66

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry

level surge4KV

Others

Weight

1.3Kg

Size

230*69*45mmL*W*H

packing

355*215*215mm/10pcs/CTN    240*70*50 mm for inner box

Not

es

1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and

   25of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .


Dali dimmable led driver



dali dimmable led driver
