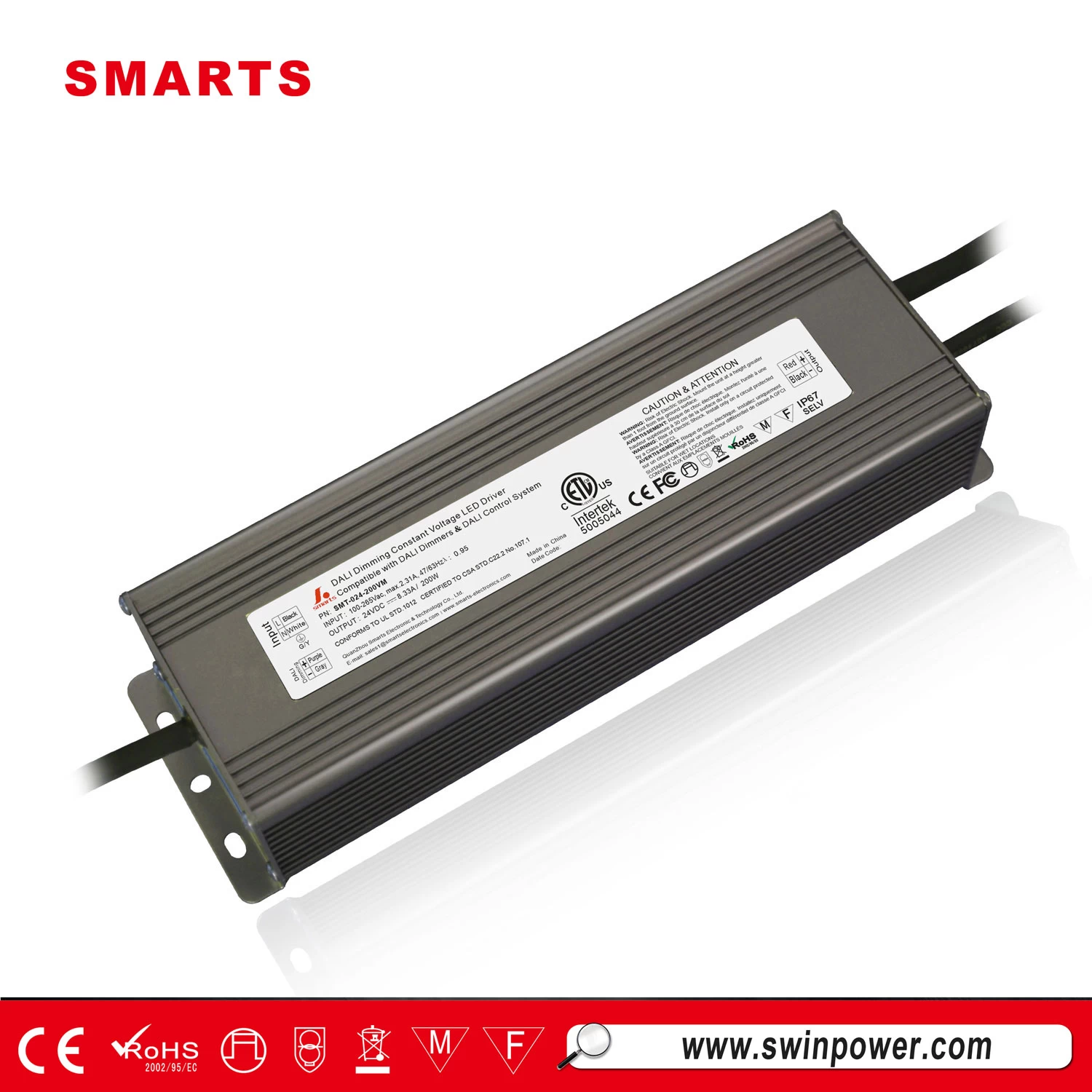

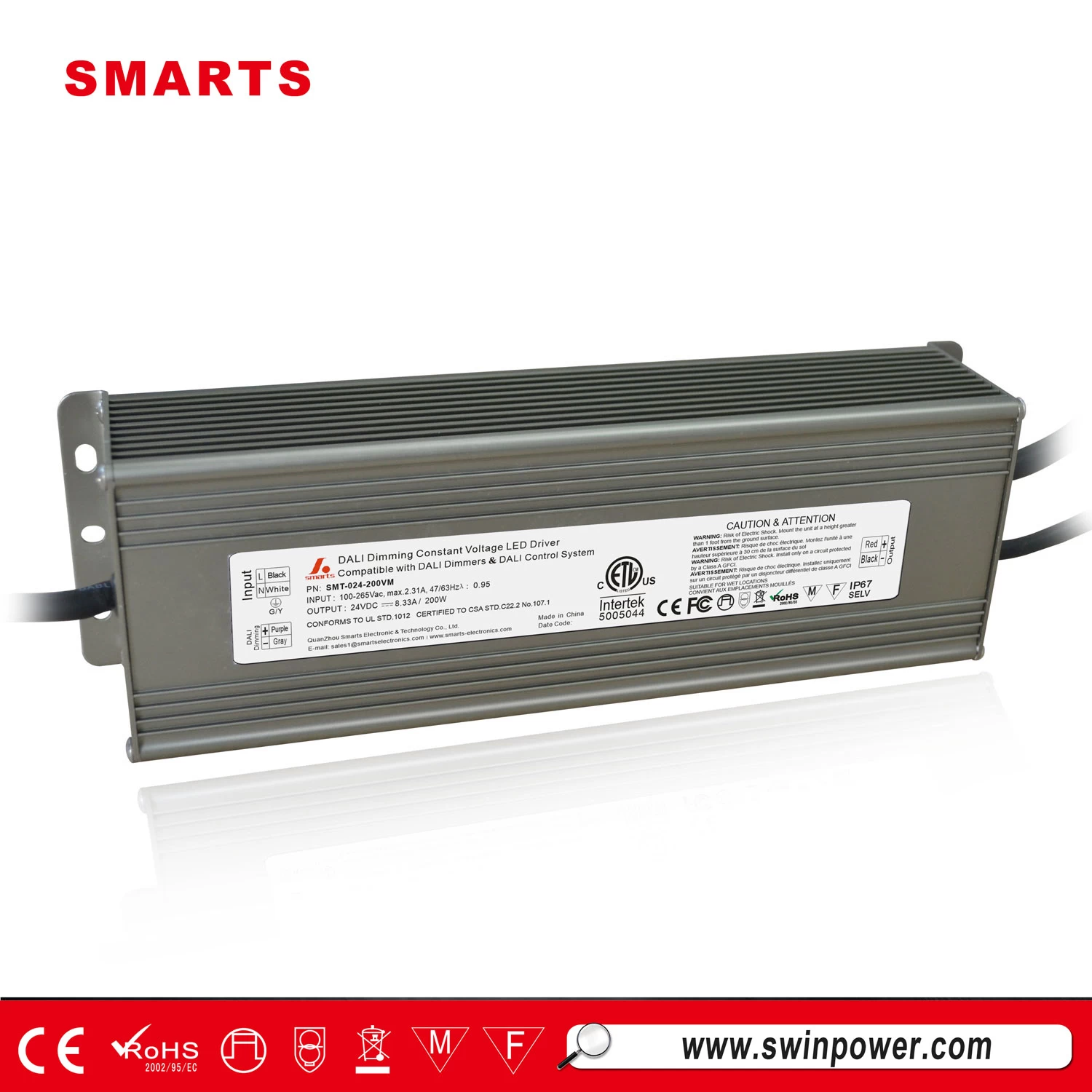

Dali dimmable led driver 24v 200w power supply for led lighting
Our dali dimmable led driver 24v power supplies are commonly used in many LED indoor and outdoor lighting applications such as, LED flood lighting, LED spot lighting, LED display, LED strip, LED decorative.
Feature
·Voltage Range 100-265VAC
·Built-in PFC function, PF>0.90
·Efficiency>88%
·Protections:short circuit/over current/over temperature
·Cooling by free air convection
·IP67 design for indoor or outdoor installation .
·Dimming function:better compatibility DALI dimming
·Suitable for LED lighting applications by PWM output
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp/wet locations
·3 years warranty
Specification
|
Model
|
SMT-012-200VM
|
SMT-024-200VM
|
SMT-036-200VM
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
36VDC
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0～16.67A
|
0～8.33A
|
0～5.55A
|
|
Rated power
|
200W
|
200W
|
200W
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.90/100V, PF≧0.90/220V
|
|
Full Load Efficiency（Typ.）
|
>88%/110, 220V
|
>88%/110, 220V
|
|
AC
Current（Typ.）
|
2.30A/110VAC
|
1.15A@220VAC
|
|
Leakage current
|
﹤0.72mA/110VAC, ﹤0.74mA/220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition
is removed
|
|
Over Current
|
≦1.4*I out
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40～+50℃
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry
level （surge4KV）
|
|
Others
|
Weight
|
1.8Kg
|
|
Size
|
250*79*52mm（L*W*H）
|
|
packing
|
355*215*215mm/10pcs/CTN / 240*70*50 mm for inner box
|
|
Not
es
|
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation.
|
