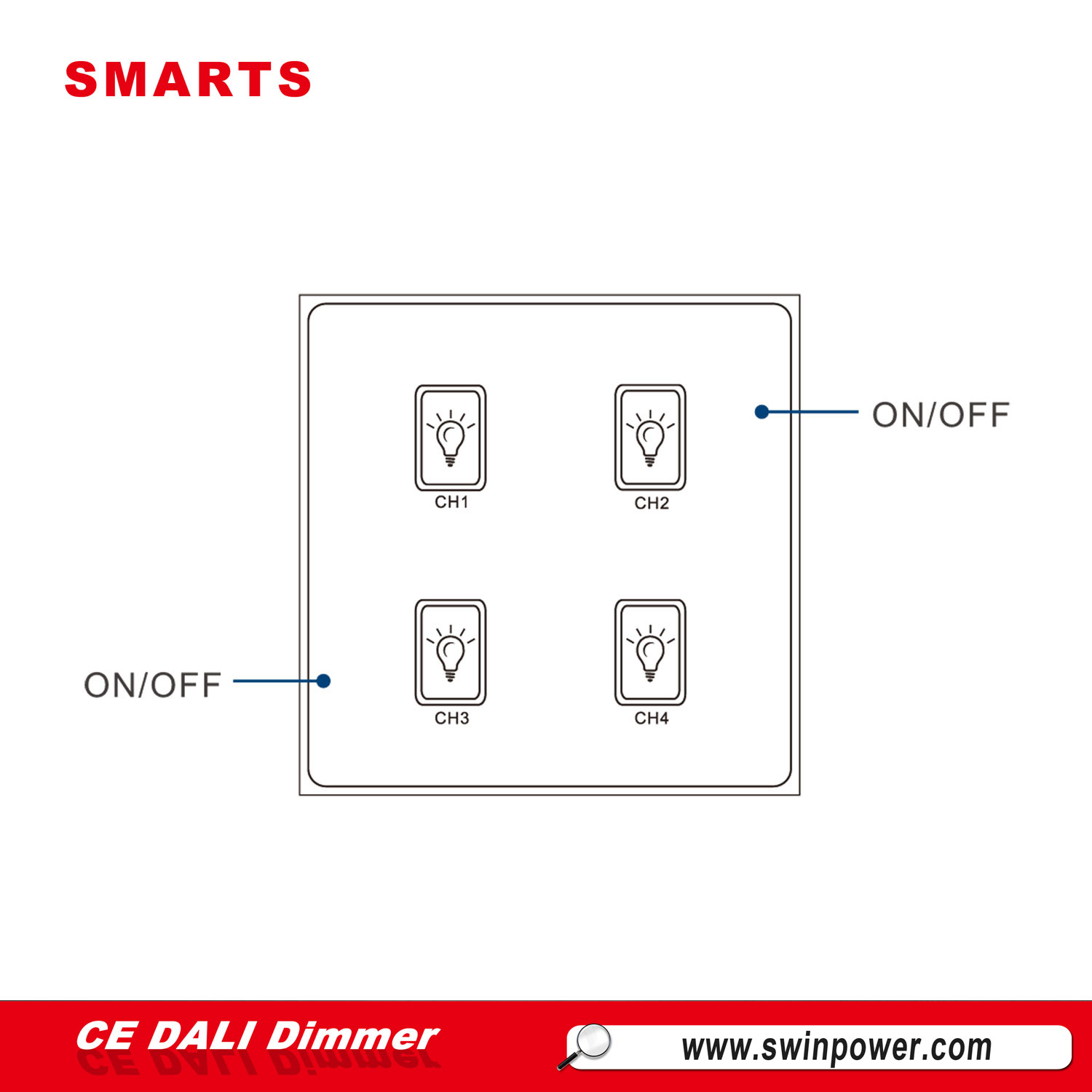

Dali dimmer control for led lights with CE ROHS listed

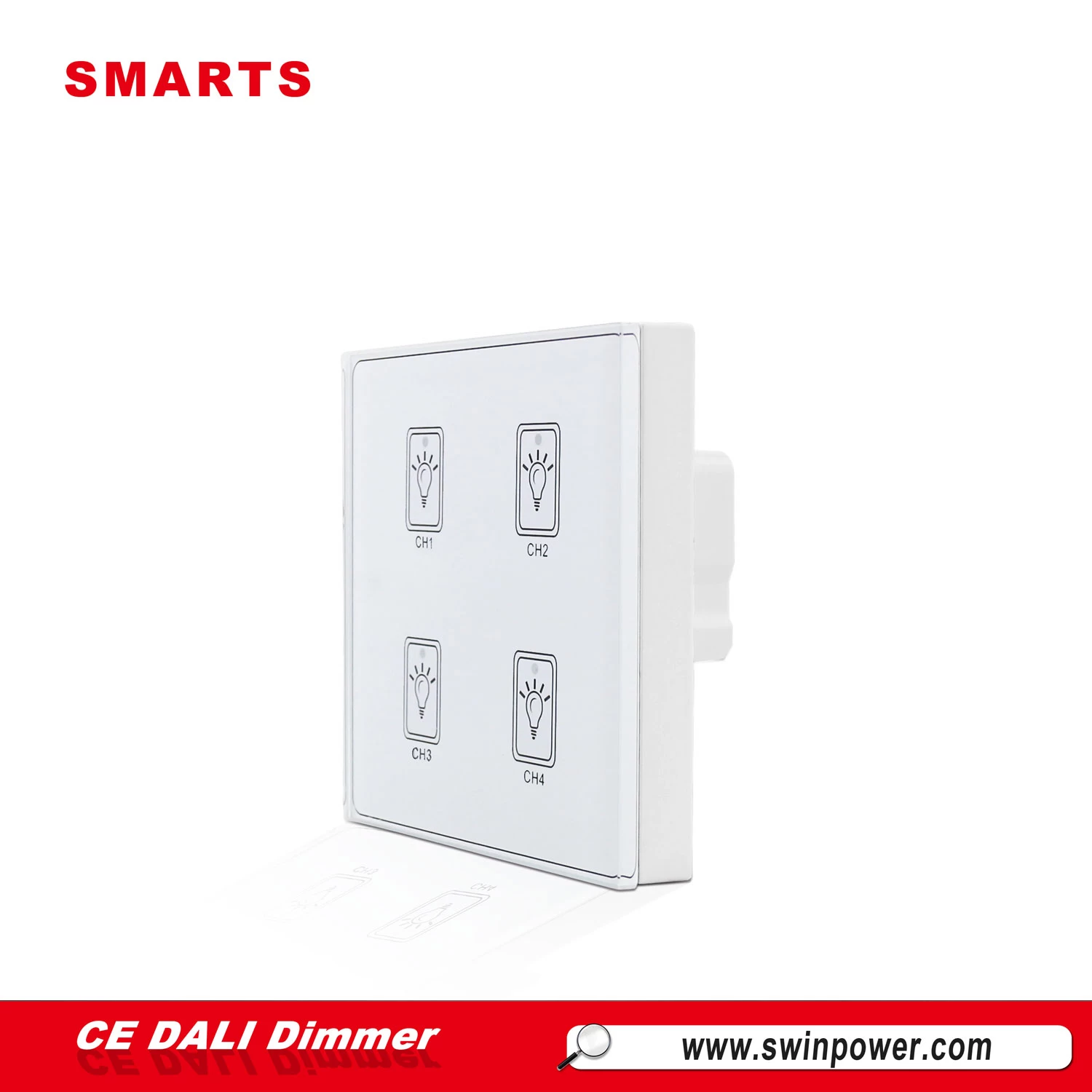

The SMT-M4 is dali dimmer control for led lights with CE,ROHS approval .The size is
86*86*40mm.Manual control:touch of a finger touch panel,you can control the lights on and off.
1.Technical Parameters:
Power Supply :Provided by DALI Bus
Output Signal:DALI Signal
Static power:<0.5W
Current Consumption:25mA±10%
Output channel:1 channel
Product dimension:L86*W86*H38mm
Packing size:L116*W110*H51.5mm
Working temperature:-20℃-60℃
Net weight:170g
Gross weight:228g

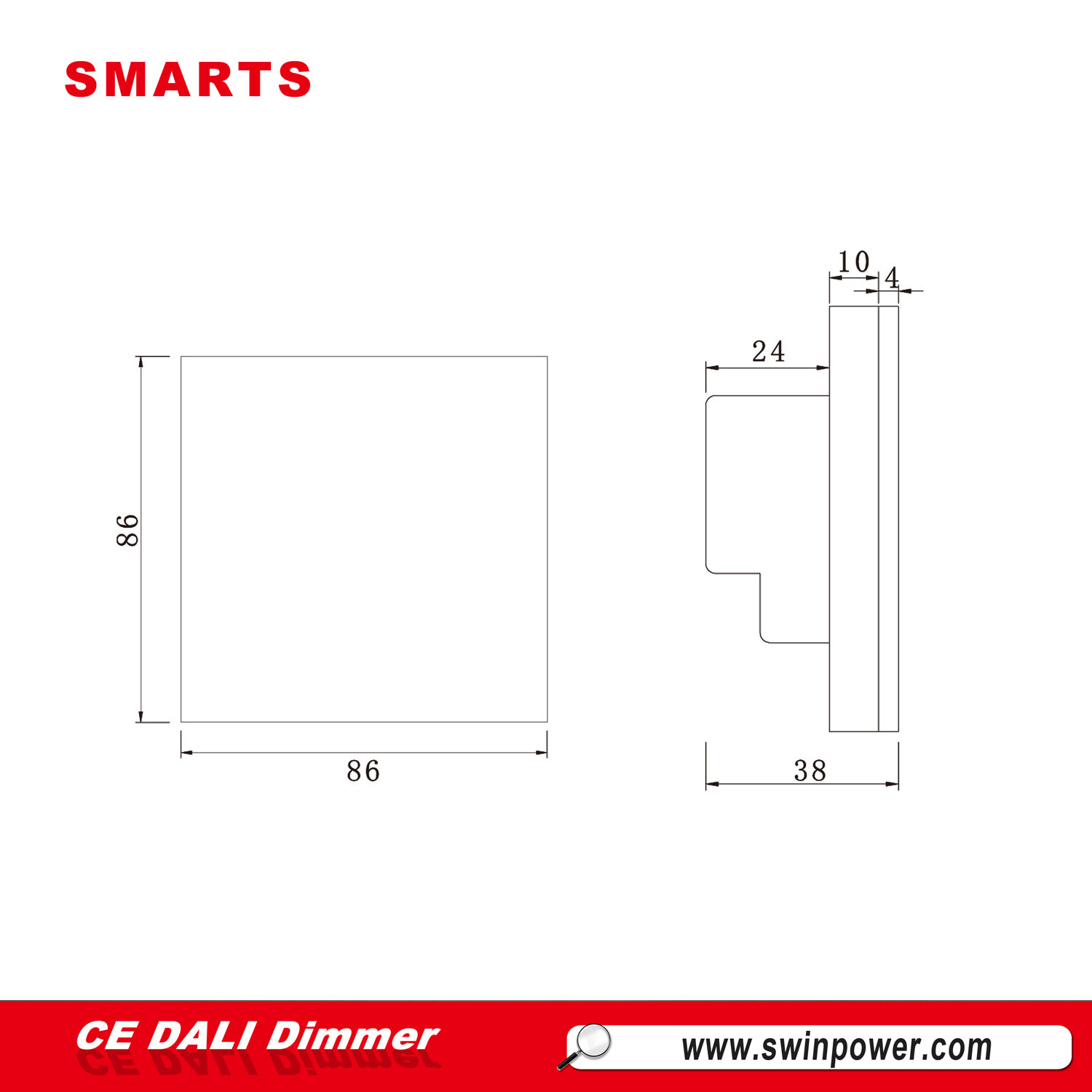

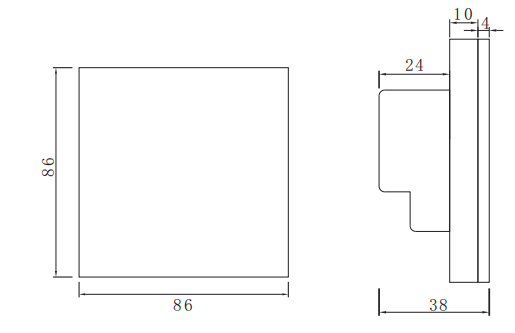

2.Product Size

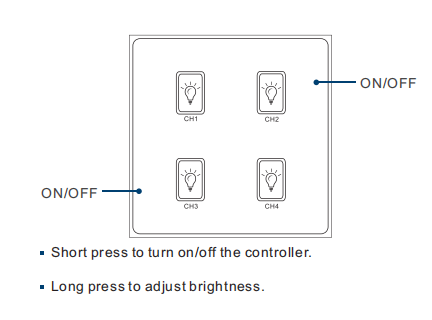

3.Funtion Description:

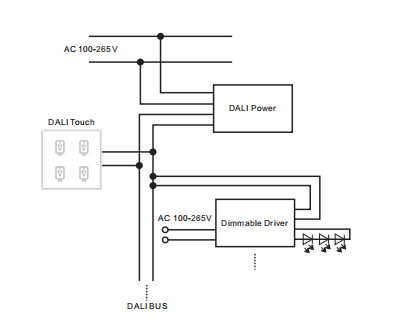

4.Typical Application:

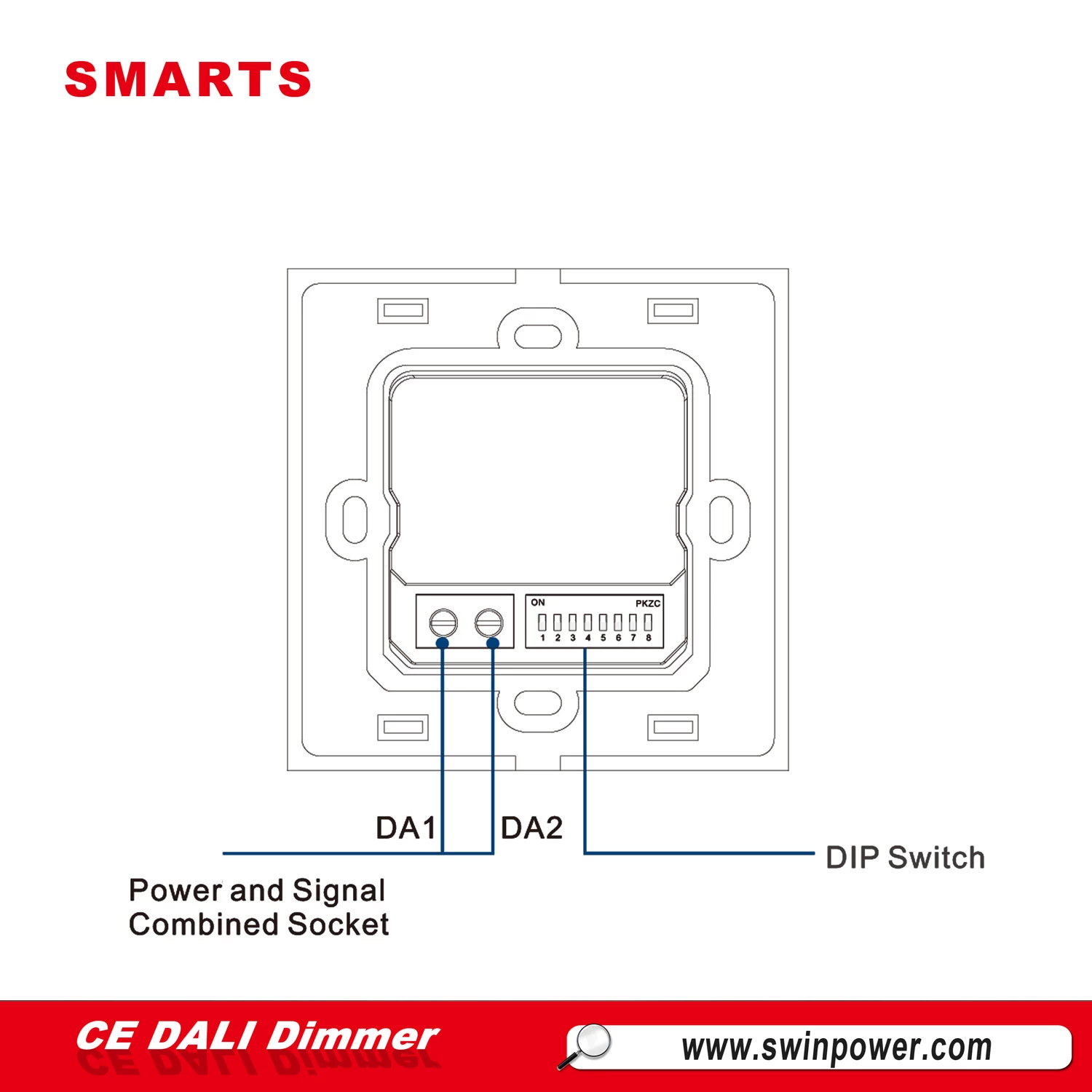

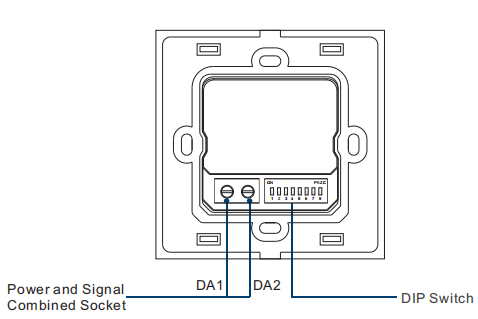

5.Interface Introduction
6.DIP Switch Operation

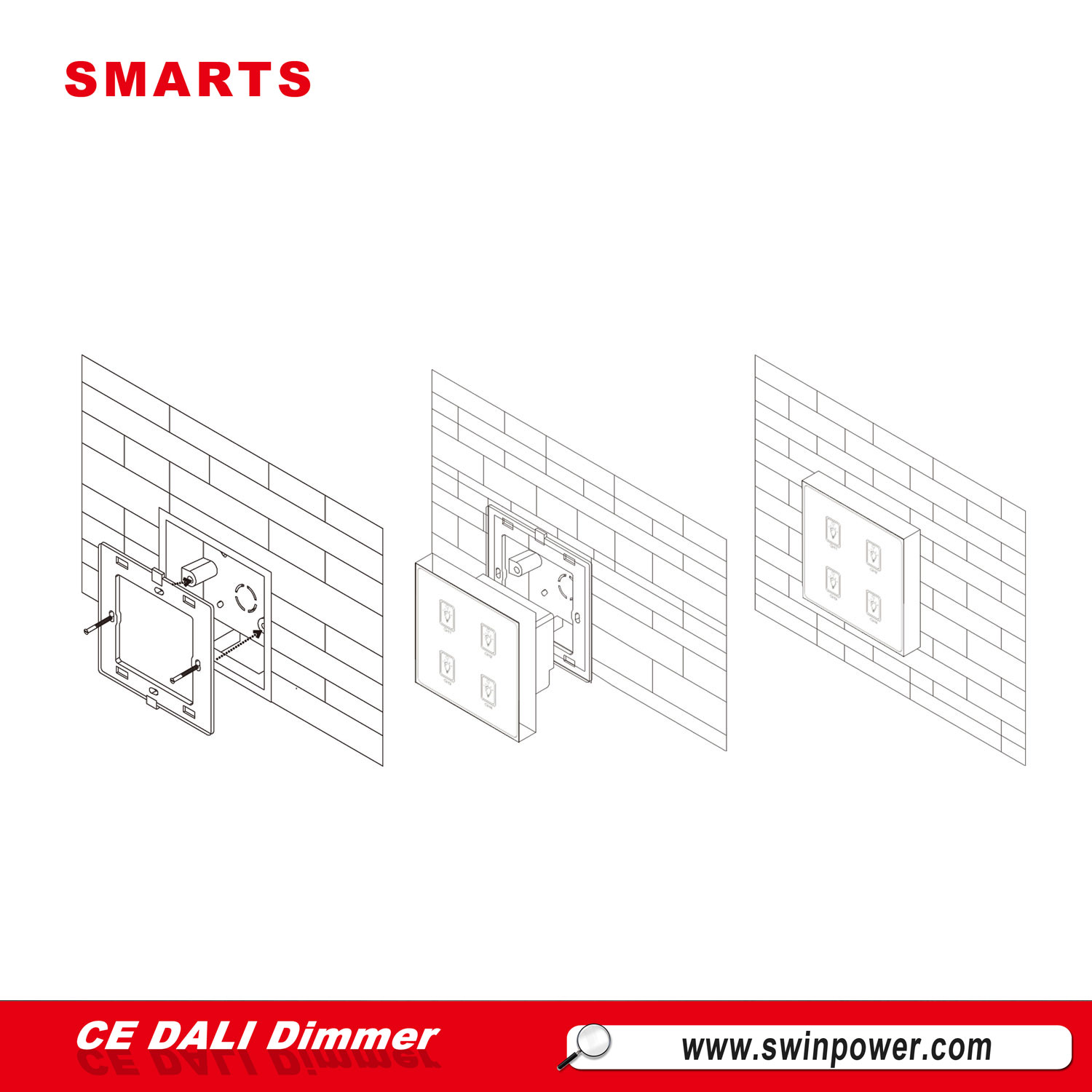

7.Installation Instruction:
Question:
Static power: <0.5W Why is this set, how much power does it have to control how many power supplies it can control?
Answer:
The magnitude of the static power depends on the circuit design of the dimmer and the circuit scheme chosen. The most straightforward explanation is that most of its power consumption is consumed by the chip and various components, and a small part is consumed by heat. The static power is not related to how many power supplies it can control. Of course, its power will rise correspondingly when it is loaded. This is determined by the law of conservation of energy. The more you work, the more it will consume.
