Features
·Output constant Current
·Range 100-265VAC
·Built-in active PFC function, PF>0.9
·Efficiency >84%
·IP20 design for indoor installation.
·Protections:short circuit/over load/ over voltage/over temperature
·Cooling by free air convection
·Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386
·Dimming range from 1% to 100%
·Suitable for intelligent LED lighting
·Compliance to worldwide safety regulations for lighting
·Suitable for dry locations
Specification
|

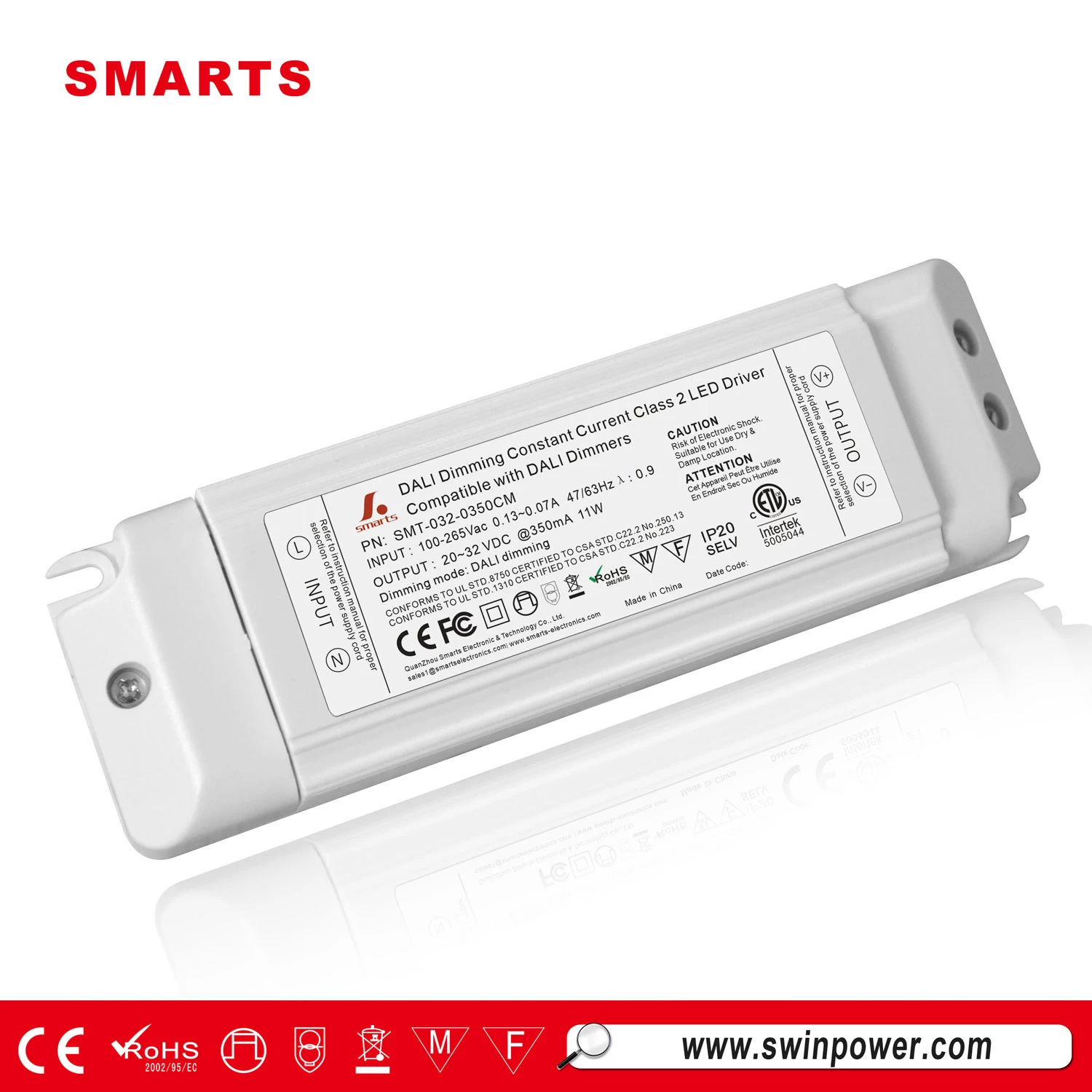

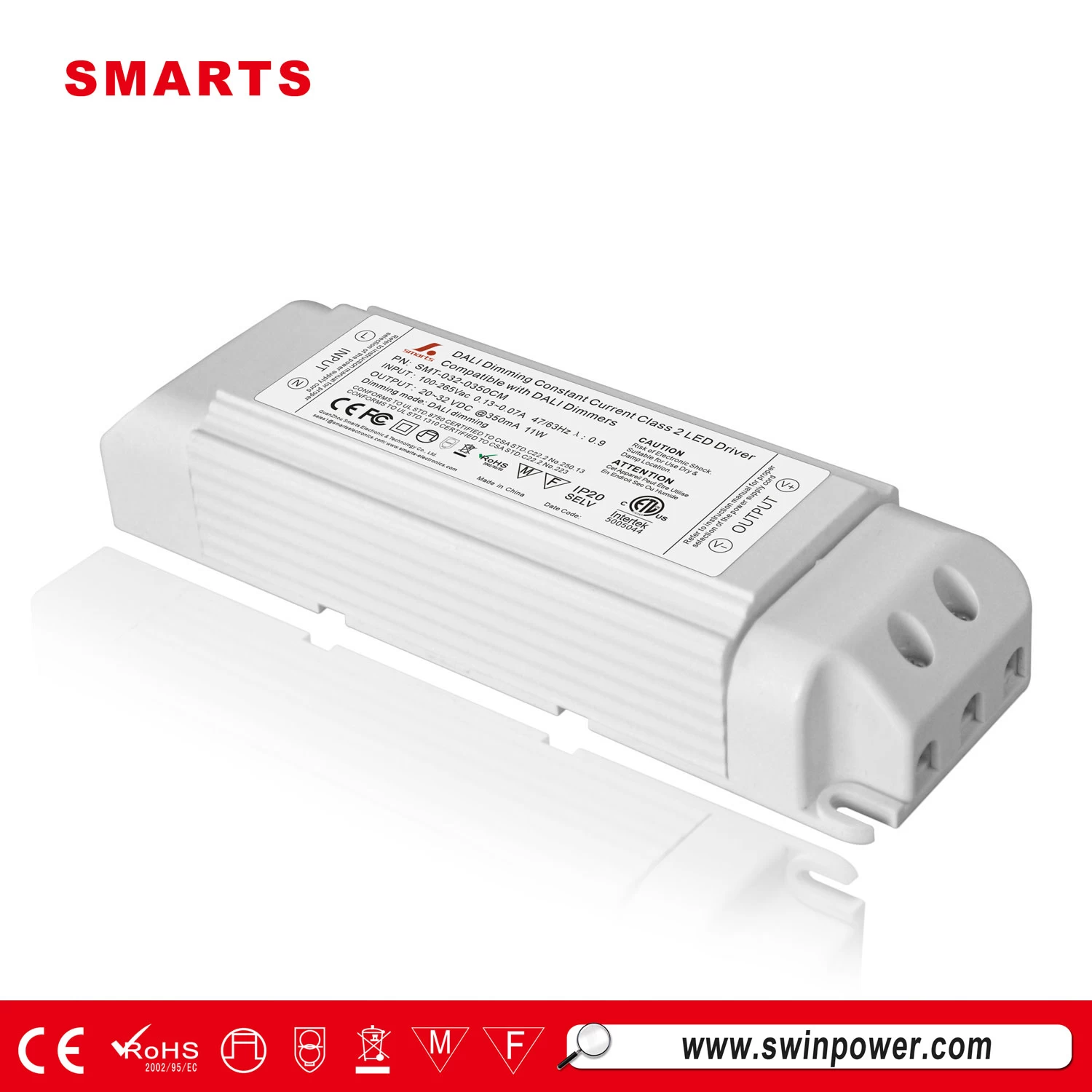

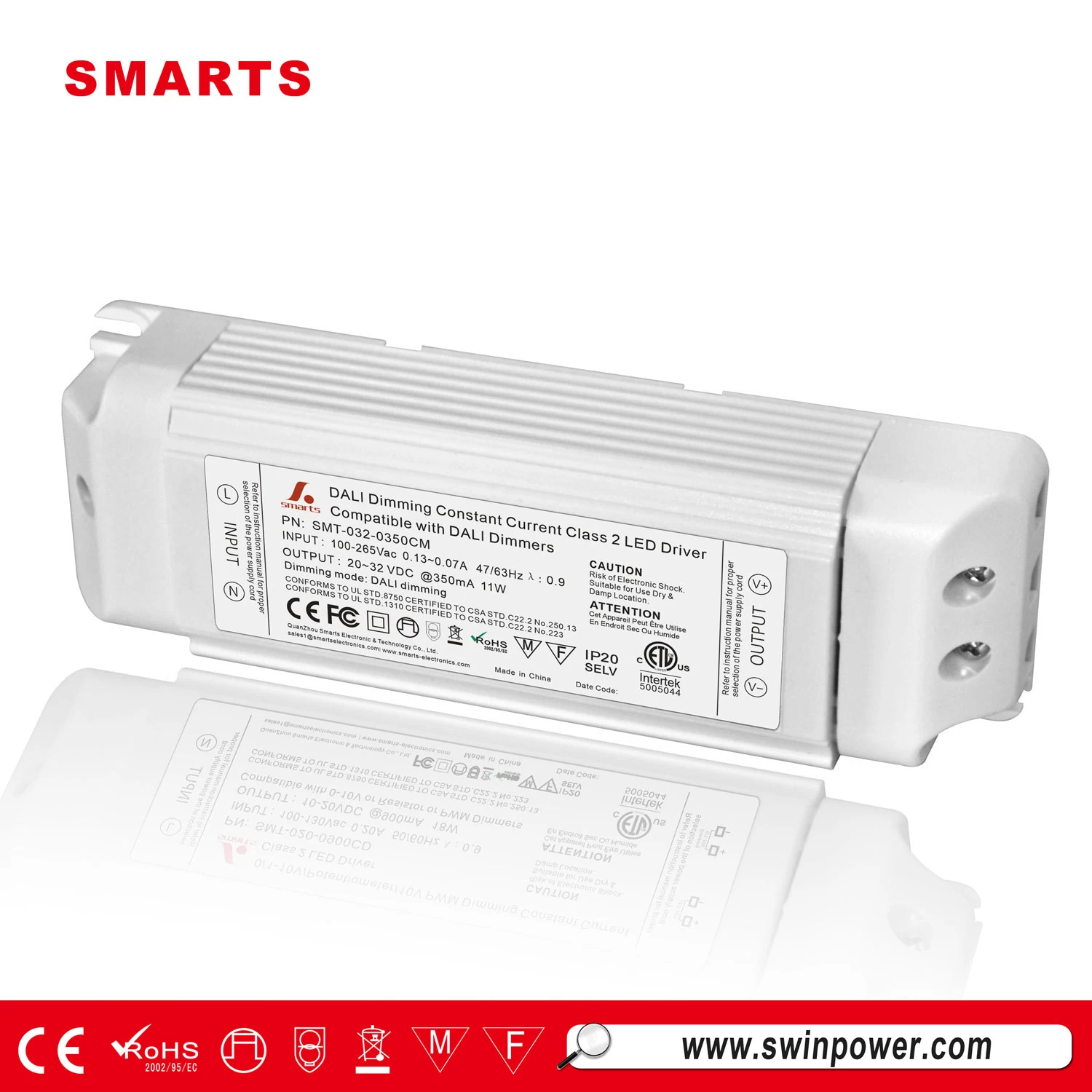

Model： SMT-040-0500CM
|
Smarts Electronics DALI dimmable drivers 10~20W (adjustable current)
|
|
Output
|
Rated current
|
700mA
|
600mA
|
550mA
|
500mA
|
450mA
|
400mA
|
350mA
|
250mA
|
|
Current Tolerance
|
±5%
|
|
DC Voltage
|
3-28V
|
3-32V
|
3-36V
|
3-40V
|
3-45V
|
3-50V
|
3-50V
|
3-50V
|
|
Open Circuit Voltage (Max.)
|
55V
|
|
Rated power
|
20W
|
20W
|
20W
|
20W
|
20W
|
20W
|
17.5W
|
12.5W
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor
|
PF≥0.95/110VAC PF≥0.90/220VAC PF≥0.85/265VAC（Full loading）
|
|
Full Load Efficiency (Typ.)
|
>82%
|
>83%
|
>82%
|
>82%
|
>84%
|
>84%
|
>82%
|
>80%
|
|
AC Current（Max.）
|
0.22A
|
0.22A
|
0.22A
|
0.22A
|
0.22A
|
0.22A
|
0.20A
|
0.15A
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Voltage
|
55V
|
|
Over Load
|
≤ 120%
|
|
Protection Class:
|
Class II / Class 2
|
|
Environment
|
Working TEMP.
|
-40 - +60℃
|
|
Working Humidity
|
20 - 90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃，10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0 - 50℃）
|
|
Vibration
|
10 - 500Hz, 2G 12min./1 cycle, period for 72min.each along X,Y,Z axes.
|
|
Safety & EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP20
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015,EN61000-3-2 (≥60%load)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV）
|
|
Others
|
Weight
|
0.19Kg
|
|
Size
|
140*45*27mm（L*W*H）
|
|
packing
|
320*280*215（50PCS/CTN ）
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120V/220VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|

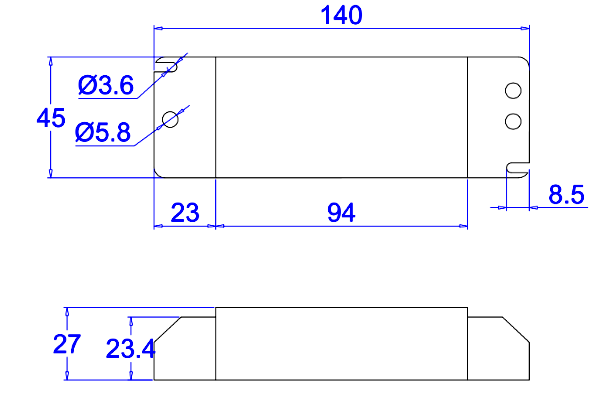

Mechanical Dimension
1) Input with Live Wire(L) Neutral Wire (N)
2) Output LED SEC output Positive(LED+),output negative(LED-).Connected to LED Lamps.
3) Signal Dimming DA1, DA2 ( No polar ) connected to the BUS of the DALI Master.
4) Suggested wire diameter: Input 0.75-2.5mm2; Output: 0.5-2.5mm2
5) Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
6) Note: Any other requests we can customized.
