dali & push 100w rgb best 12v led driver power supply transformer for led strip

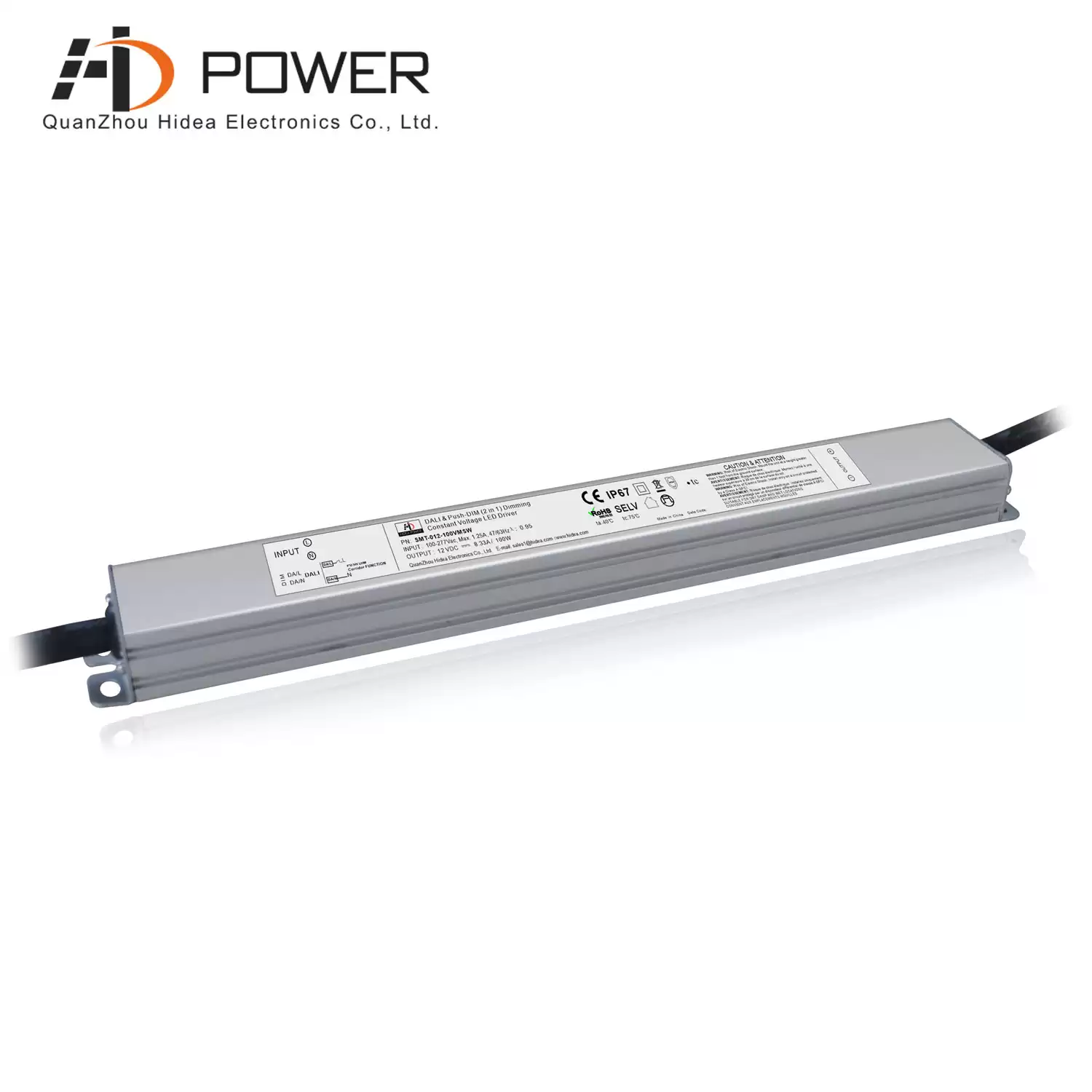

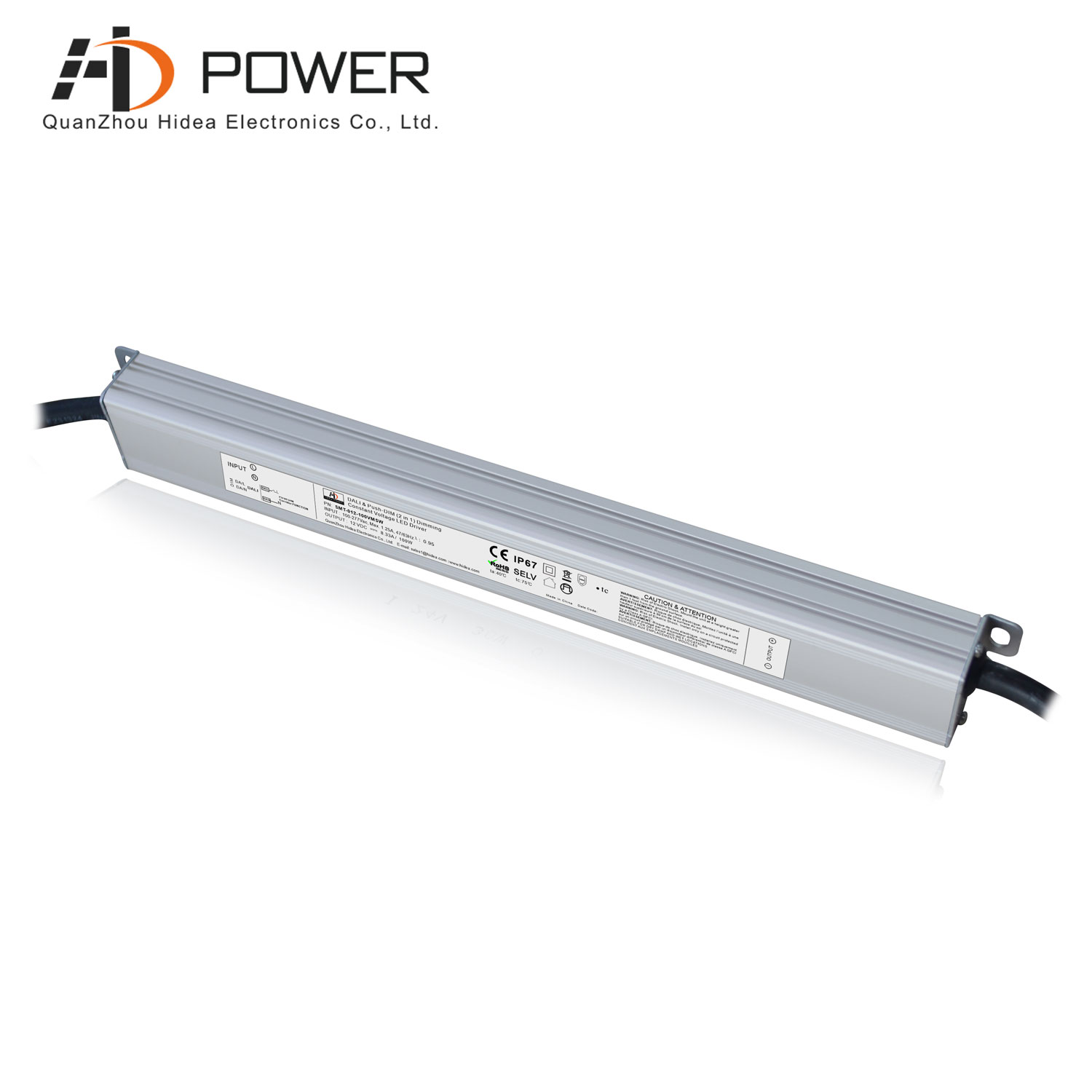

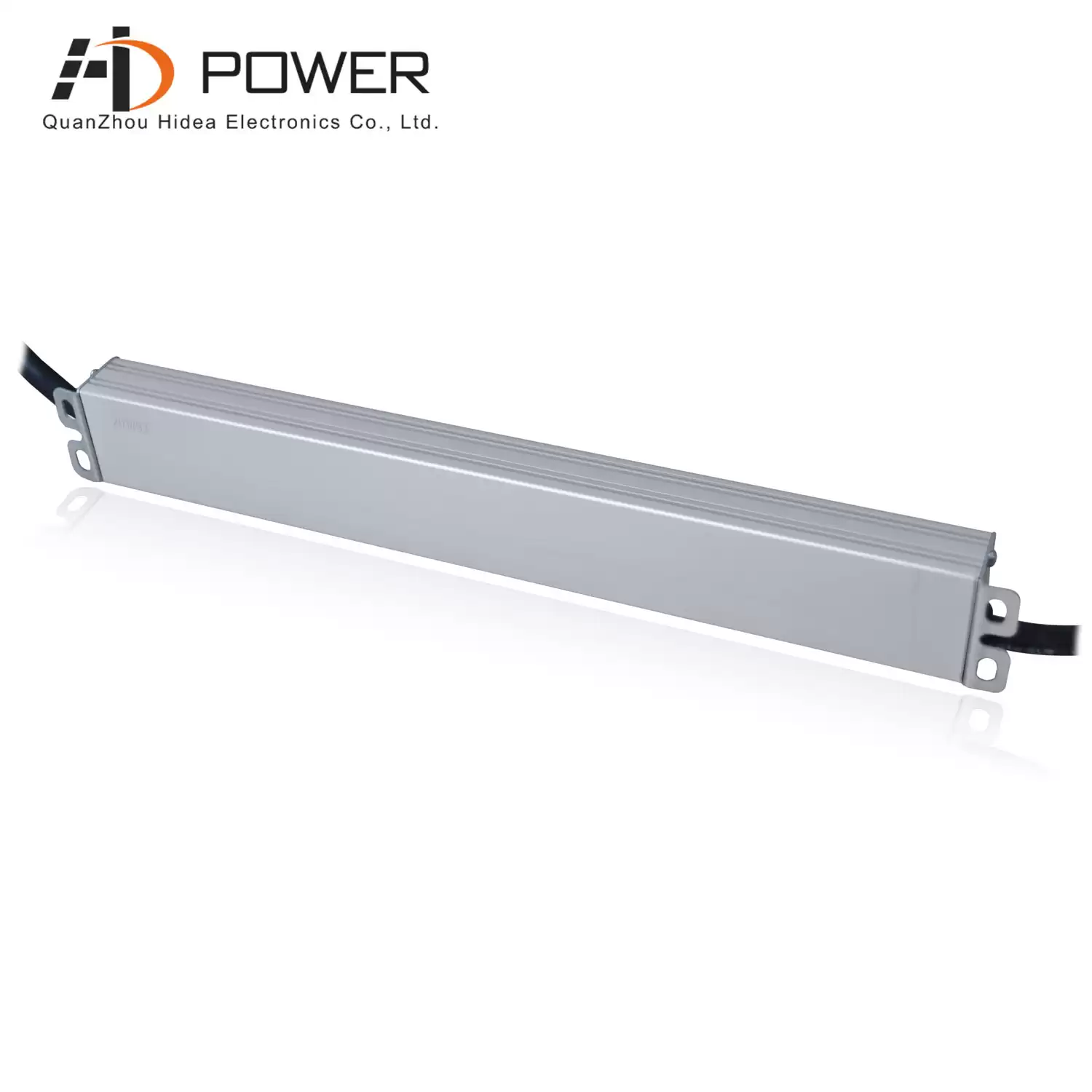

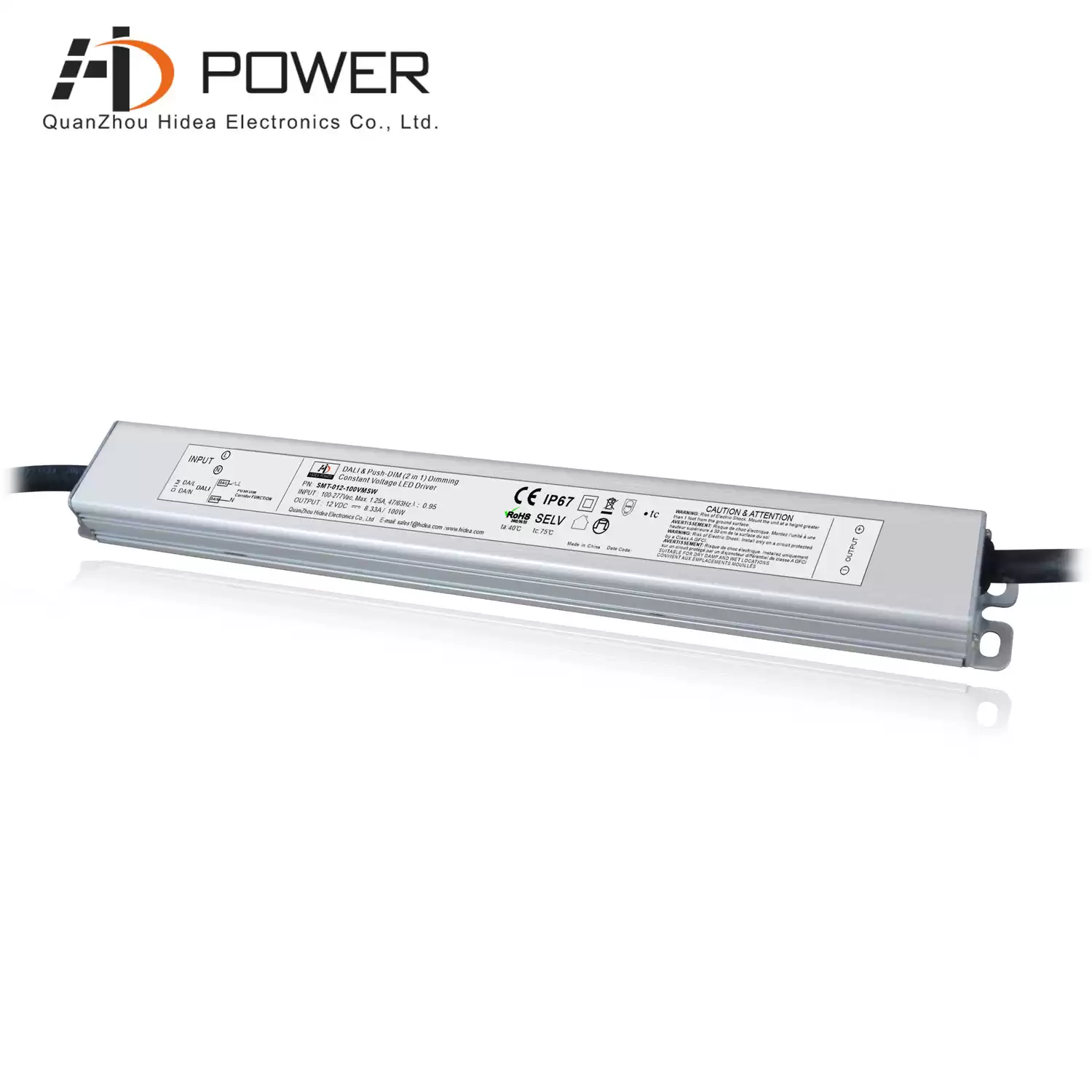

100W DALI & PUSH dimmable led driver The built-in dali interface dimming function conforms to the dali protocol, provides short circuit, overload, and overtemperature protection, 7-year warranty, and is suitable for intelligent lighting projects
Label
Specification
|
model
|
SMT-012-100VMSW
|
SMT-024-096VMSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Rated current
|
8.33Amp
|
4.0Amp
|
|
Rated power
|
100W
|
96W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC
|
0.98@120VAC
|
|
Efficiency(Typ.)@ full load(Typ.)
|
>88%
|
>88%
|
|
AC Current(Max.)
|
1.2A@100VAC
|
|
THD(Typ. ) @ full load
|
10%@120VAC
|
10%@120VAC
|
|
Inrush Current(Typ.)
|
4.1A (twidth=220us) @120VAC ; 35.2A (twidth=164us) @230VAC ;12.8A (twidth=960us) @277VAC ;
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Load
|
≤120% Hiccup mode ,recovers automatically after fault condition is removed or
|
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Protection Class
|
I
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 (EU) and UL8750 (US)
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC (EU) and I/P-O/P:1.88KVAC (US)
|
|
Isolation resistance
|
I/P-O/P:100M Ohms/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|
|
Others
|
Net Weight
|
0.53Kg
|
|
Size
|
330*32*23mm(L*W*H)
|
|
packing
|
360*270*175mm/30PCS/CTN G.W.:16.9KG/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
