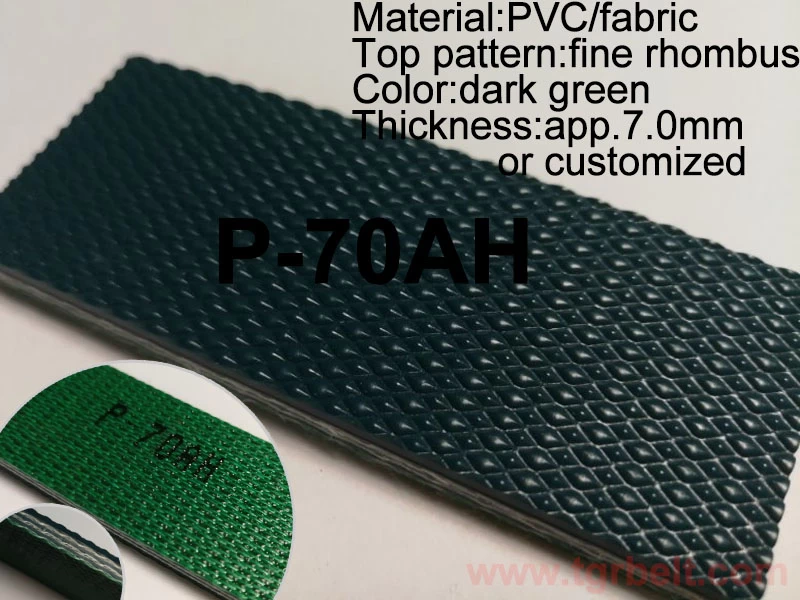

PRODUCT: PVC fabric conveyor belt,P-70AH
Technical datas
|
Type
|
P-70AH
|
|
Belt thickness
|
7.0mm
|
|
Color
|
dark green
|
|
Surface
|

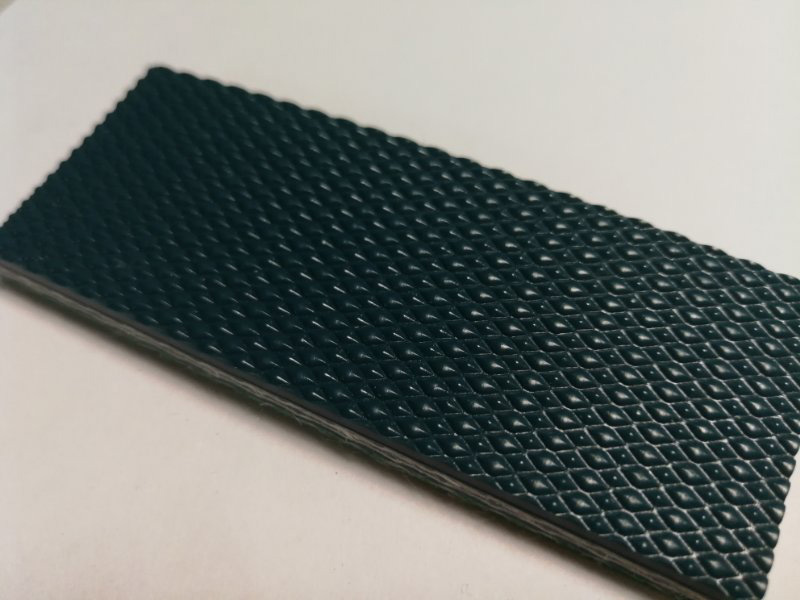

fine rhombus
|
|
Weight
|
7.3kg/m2
|
1.494 lbs./ft.2
|
|
Force at 1% elongation
|
50N/mm
|
280 lbs./in.
|
|
Temperature range
|
-15 to 80°C
|
5 to 176°F
|
|
Min. pulley diameter
|
350mm
|
13.78in.
|
|
Standard roll belt width
|
2000mm
|
78.74in.
|
Main feature
Dark Green Conveyor Belt for Calibration Machine of Granite Tiles is wear-resistant, rough top,low-noise fabric bottom.The thickness can be 7.0mm,9.0mm or tailor-made.
Joint system
The belt can be open roll,open with prepare end and truly endless,depends on your convenient installation.
Hot splicing with overlap is
always preferable.
Application
in calibrating machine,splitting machine,polishing machine and other machines in marble,granite,artificial stone,ceramics industries.
Other related industrial belts for stone machines
-PVC coating fabric conveyor belt for chamfer machines
-rubber coating conveyor belt for cross cutting machines
-rubber coating PU timing belts trim machines
