Overview
Sicon CMS is non-isolated, world class, redundant, scalable, 3 Phase Online UPS power protection system designed to cost effctively provide high levels of availability. Sicon CMS is a true modular uninterruptible power supply, its architecture can scale power as demand grows or as higher levels of availability are required, perfect integrating into today's data center designs. Sicon CMS online double conversion ups is industry-leading efficiency, availability, and performance for small, medium, large data centers and mission critical environments.
Breif introduction for Sicon CMS 380VAC 400VAC 415VAC 3 Phase UPS Products Range: 7 type system frame, 3 type ups module, which is designed basing on rational redundancy and projects requiement. system frame: 50kva, 100kva, 150kva, 250kva, 350kva, 500kva, 800kva. ups module: 10kva, 25kva, 50kva. Basing on these products, Sicon offer the most reasonable, cost-effective modular ups solution for projects.
Meanwhile, basing on rack-mount ups solution requirement, Sicon launched CMS/A Rack-Independent Technology Modular UPS basing on 25kva ups module with 100kva/200kva base unit in 2015, leading in Market.
ups install reference | more about sicon plant | sicon support

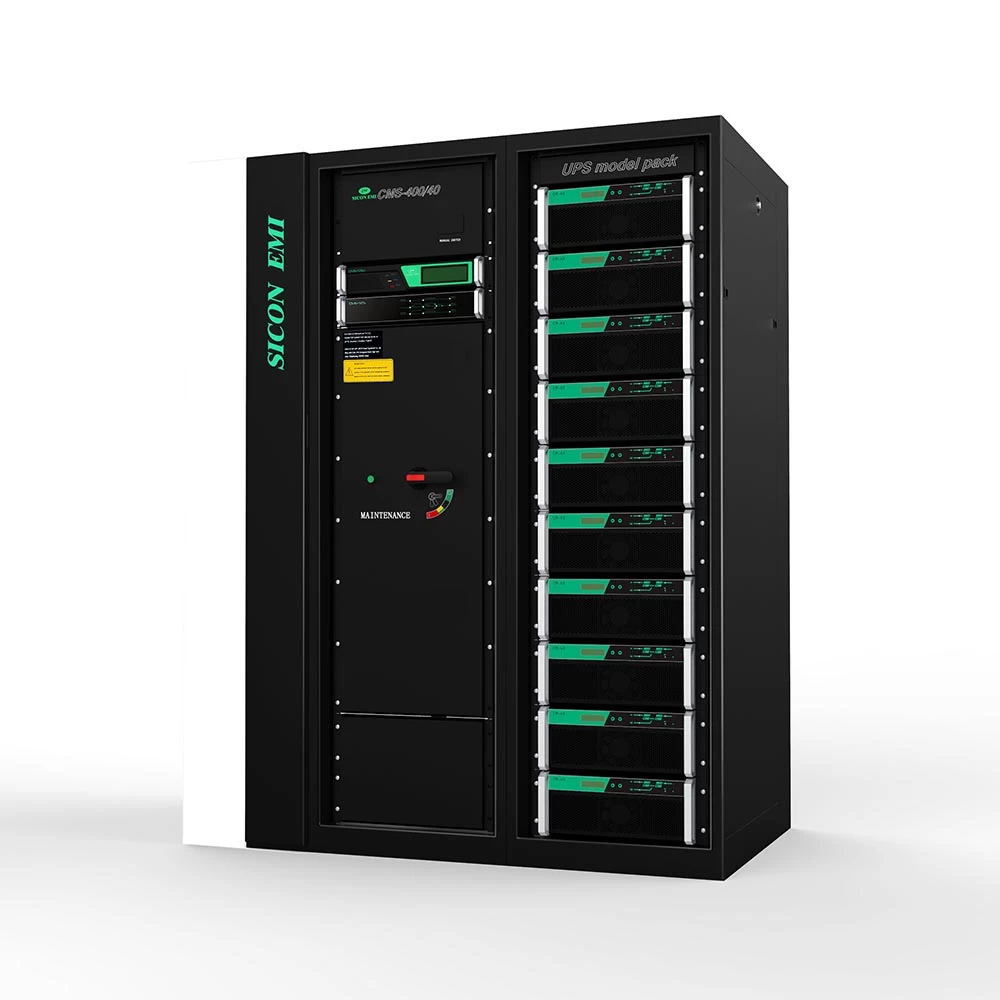

350/500/800kVA Sicon Modular UPS Features
3/3// Uninterruptible Power Supplies 50kVA- 100kVA -150kVA -200kVA -250kVA -300kVA -350kVA -400kVA -450kVA to -to 800kVA
UPS module: 50 kVA
System frame/chassis: 350kVA, 500kVA, 800kVA
Excellent power capability
350kVA single chassis, parallelable up to 1400kVA
500kVA single chassis, parallelable up to 2000kVA
800kVA single chassis, parallelable up to 3200kVA
Transformer Free UPS technology, lower space and weight
Online double Conversion (VFI-SS-111) · Rational redundant structure · N+X redundancy
High efficiency · AC/DC, DC/AC 95%, DC/AC 98% efficiency
Input low current harmonic distortion · THDI ≤ 3%
High input power factor · input PF ≥ 0.99
High output power factor · Output PF = 0.9
Static and Maintenance bypass switch
Short circuit and overload protection
RS232 serial ports and dry contacts
Multi-level decentralized control technology and Master-slave synchronization in sequency control
Each module automatically even shares the input and output current, all UPS modules share batteries
Selectable input/ output voltage/ frequency range
Split by-pass
Battery management:
Battery discharge management
Auto-transfer between floating and even charging
Temperature compensation
Optional SNMP, Modbus adapters
Optional configuration: GENSET, EPO, Transformer, Battery Bank, IPDS
2 year warranty
10 years spare parts support
high frequency ups
50kVA UPS module
4U with readable LCD screen · Isolated airflow with redundant fans · High power density · High efficiency · Autonomous Start-up · Cold start
Full functioned UPS, delivering a combination of converter, inverter, charger and controller
STS Module
Parallel of SCR and AC Contactor
Online replace without shutdown system · High reliablity and overload ability · Transfer time within 1ms · Self-diagnose, interlock
Application
Date Center ups solution
|
Products
|
Model
|
Contact Sicon
|
|
Sicon CMS 10kVA, Scalable to 50kVA, 380V 400V 415V
|
CMS-50/10
|
enquiry@scupower.com
|
|
Sicon CMS 10kVA, Scalable to 100kVA, 380V 400V 415V
|
CMS-100/10
|
enquiry@scupower.com
|
|
Sicon CMS 25kVA, Scalable to 150kVA, 380V 400V 415V
|
CMS-150/25
|
enquiry@scupower.com
|
|
Sicon CMS 25kVA, Scalable to 200kVA, 380V 400V 415V
|
CMS/A-100, CMS/A-200
|
enquiry@scupower.com
|
|
Sicon CMS 25kVA, Scalable to 250kVA, 380V 400V 415V
|
CMS-250/25
|
enquiry@scupower.com
|
|
Sicon CMS 50kVA, Scalable to 350kVA, 380V 400V 415V
|
CMS-350/50
|
enquiry@scupower.com
|
|
Sicon CMS 50kVA, Scalable to 500kVA, 380V 400V 415V
|
CMS-500/50
|
enquiry@scupower.com
|
|
Sicon CMS 50kVA, Scalable to 800kVA, 380V 400V 415V
|
CMS-800/50
|
enquiry@scupower.com
|
|
Sicon CMS 15kVA, Scalable to 90kVA, 208V 220V 3P5W
|
CMS-90/15UH5
|
enquiry@scupower.com
|
|
Sicon CMS 15kVA, Scalable to 120kVA, 208V 220V 3P5W
|
CMS-120/15UH5
|
enquiry@scupower.com
|
|
Sicon CMS 15kVA, Scalable to 150kVA, 208V 220V 3P5W
|
CMS-150/15UH5
|
enquiry@scupower.com
|
|
Sicon CMS 15kVA, Scalable to 90kVA, 208V 220V 3P3W+PE
|
CMS-90/15
|
enquiry@scupower.com
|
|
Sicon CMS 15kVA, Scalable to 120kVA, 208V 220V 3P3W+PE
|
CMS-120/15
|
enquiry@scupower.com
|
|
Sicon CMS 15kVA, Scalable to 150kVA, 208V 220V 3P3W+PE
|
CMS-150/15
|
enquiry@scupower.com
|
|
Sicon ERMS 6kVA, Scalable to 12kVA, 220V 230V 240V 1P3W
|
ERMS-12/6
|
enquiry@scupower.com
|
|
Sicon ERMS 6kVA, Scalable to 24kVA, 220V 230V 240V 1P3W
|
ERMS-24/6
|
enquiry@scupower.com
|
|
Sicon ERMS 6kVA, Scalable to 36kVA, 380V 400V 415V
|
ERMS-36/6
|
enquiry@scupower.com
|
