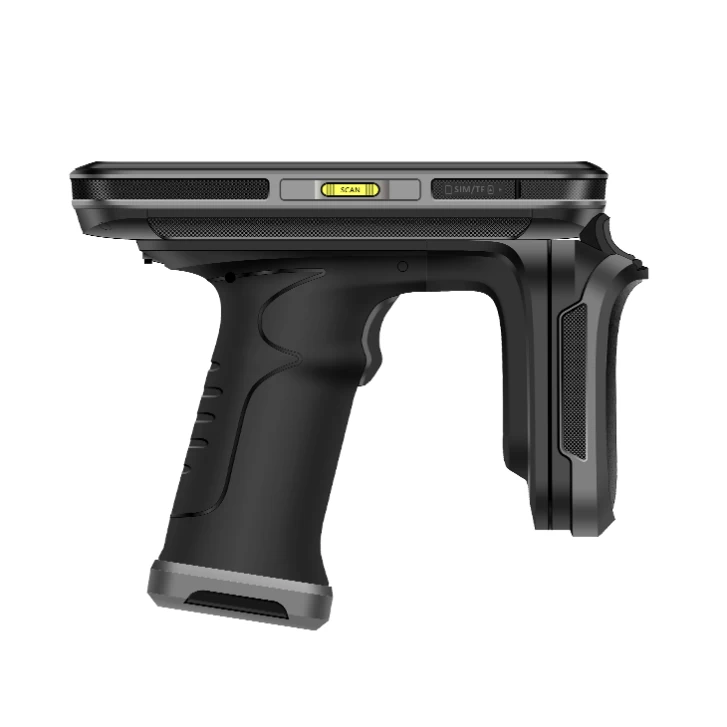

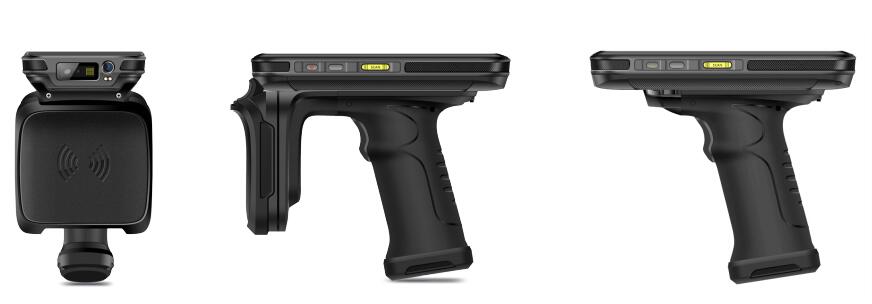

Data Collection Terminal WIFI Bluetooth Android Handheld Long Range UHF RFID Reader
High performance Handheld RFID uhf reader.
Truly provides long distance, multiple tags reader.
Well received for farm animal management, asset management and inventory system and etc…

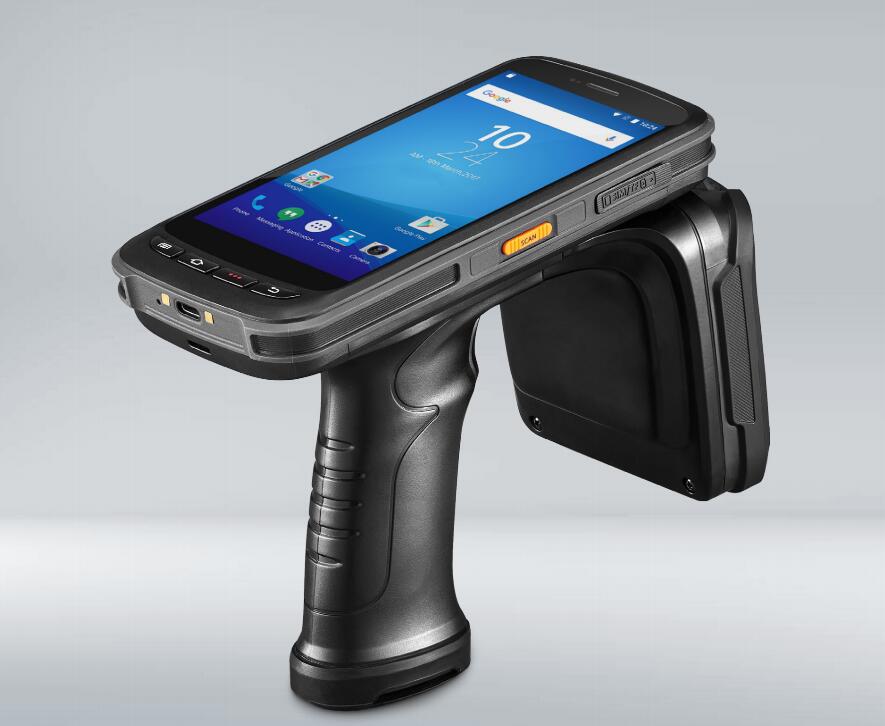

This device is an Android rugged mobile computer. It features powerful processor, 8000mAh battery and superb UHF RFID
capability. It can be equipped with R2000 linearly or circularly polarized antenna. That it can read tags in bulk from long
distance enables it to be deployed in asset management, retail, warehousing, fleet management and etc.
Specification
CPU: Cortex-A53 Quad-core 1.45GHz
RAM+ROM :2GB+16GB
Expansion Supports up to 128 GB Micro SD card
Operating System Android 6.0
Octa-core
CPU Cortex-A53 Octa-core 2.5GHz
RAM+ROM 3GB+32GB
Expansion Supports up to 128 GB Micro SD card
Operating System Android 8.1
Communication
Quad-core
WLAN IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal
antenna
WWAN (China)
2G: 900/1800MHz
3G: 900/1900/2000/2100MHz
4G: B1, B3, B5, B38, B39, B40, B41
WWAN(Europe)
2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1, B3, B5, B7, B8, B20, B40
WWAN(America)
2G: 850/900/1800/1900MHz
3G: 850/900/1700/1900MHz
4G: B2, B4, B7, B12, B17
WWAN (Others) Depending on the country's ISP
Bluetooth Bluetooth 4.0, BLE
GNSS GPS/AGPS, GLONASS, BeiDou, internal antenna
Octa-core
WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal
antenna
WWAN (China)
2G: 900/1800MHz
3G: WCDMA: B1,B8
CDMA2000 EVDO: BC0
TD-SCDMA: B34,B39
4G: B1,B3,B5,B8,B34,B38,B39,B40,B41
WWAN (Overseas)
2G: 850/900/1800/1900MHz
3G: B1,B2,B4,B5,B8
4G: B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B25,B40,B66
WWAN (Others) Depending on the country's ISP
Bluetooth Bluetooth v2.1+EDR,3.0+HS,v4.1+HS
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
Physical Characteristics
Dimensions 164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in
Weight 654g / 23.07oz
Display 5.2'' IPS FHD 1920x1080
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and
wet hands supported
Power
Li-ion, rechargeable, 8000mAh
Standby: over 500 hours
Continuous use: over 12 hours (depending on user
environment)
Charging time: 3-4 hours (with standard adaptor and
USB cable)
Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces USB 2.0 Type-C, OTG, Octa-core version supports
TypeC headphones
Audio Speaker, 2 microphones
Keypad 4 front keys, 1 power key, 2 scan keys, 1
multifunctional key
Sensors Gravity sensor, light sensor, proximity sensor
User Environment
Humidity 5%RH - 95%RH non condensing
Drop Specification Multiple 1.5m/4.9ft drops (at least 20 times) to the
concrete across the operating temperature range
Tumble Specification 1000 x 0.5m/1.6ft falls at room temperature
Sealing Host IP65 per IEC sealing specifications
ESD ±15KV air discharge, ±6KV conductive discharge
Developing Environment
SDK Software Development Kit
Language Java
Tool Eclipse / Android Studio
Data Collection
Camera
Camera 13MP Autofocus with flash
RFID (Optional)
UHF
Engine Based on Impinj Indy R2000
Frequency 865MHz-868MHz / 920-925MHz / 902-928MHz
Protocol EPC C1 GEN2 / ISO18000-6C

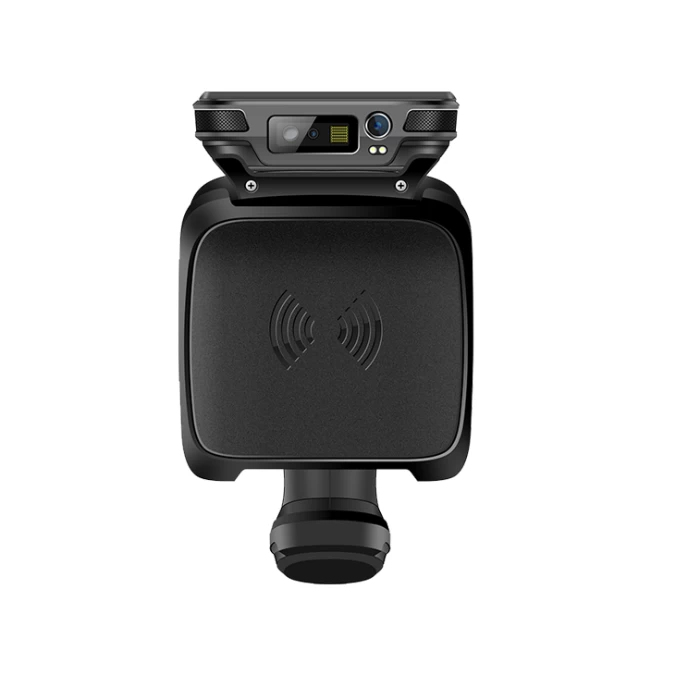

Antenna Linear polarization(1.8dBi); circular polarization (4dBi)
Power
1W (30dBm, +5dBm to +30dBm adjustable)
2W Optional (33dBm, for Lati America, etc.)
R/W range
>25m (circular polarization, indoors); >15m (circular
polarization, open outdoors, Impinj MR6 tag); >21m
(linear polarization, indoors); >7m (linear polarization,
open outdoors)
Reading rate ＞200 tags/s (circular polarization)
* Ranges and rates depend on tags and environment
Barcode Scanning (Optional)
1D Linear Scanner
(Quad-core) Zebra SE965 / Honeywell N4313
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11,
Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of
5, Codabar, MSI, RSS, etc.
2D Imager Scanner
(Quad-core)
Zebra: SE4710 / SE4750 / SE4750MR; Honeywell:
N6603
2D Imager Scanner
(Octa-core) Zebra SE4750/ SE4750MR
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39,
Datamatrix, QR code, Micro QR code, Aztec,
MaxiCode; Postal Codes: US PostNet, US Planet,
UK Postal, Australian Postal, Japan Postal, Dutch
Postal (KIX), etc.
Iris (optional)
Rate <150ms
Range 20-40cm
FAR 1/10000000
Protocol ISO/IEC 19794-6，GB/T 20979-2007
NFC (optional)
Frequency 13.56MHz
Accessories
Standard AC Adaptor, USB Cable, etc.
Optional Cradle, Holster , etc.
