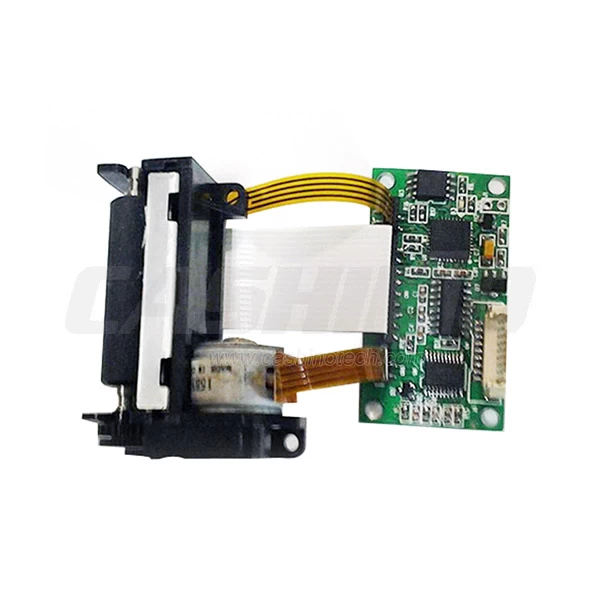

DB-100 37mm thermal printer driver board
Feature:
Controller board for TP-100 printer with serial interface
5-9V drive voltage
Specification:
Item No.
|
DB-100
|
Printing Method:
|
Thermal dot line printing
|
Paper Width:
|
37±05mm
|
Printing width:
|
24mm
|
Resolution:
|
192DPI
|
Printing Speed:
|
Up to 75mm/s
|
Barcode Supported:
|
I25,UPC-A,UPC-E,EAN-8, EAN-13,Codebar,Code39,Code93,Code128,Code11,MSI;
2D: QR CODE, PDF 417
|
Font:
|
ASCII(12x24)
|
Graphic printing:
|
Direct bitmap printing
|
Paper Sensor:
|
Photo-sensor
|
Head tempeture detection:
|
Thermistor
|
Communication Interface:
|
RS232/TTL/USB
|
Power supply :
|
5v-9v
|
Head Life:
|
50km
|
Operation condition:
|
5~45°C,20~90%RH(40°C)
|
Storage condition:
|
-40~60°C,20~93%RH(40°C)
|
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
