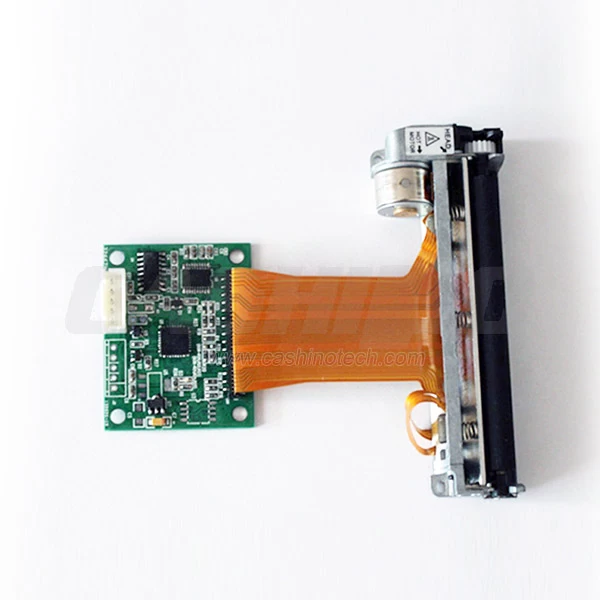

DB-723F 80mm thermal printer control board
Feature:
Controller board for TP-723F printer with serial interface
5-9V drive voltage
Specification:
| Item No. |
DB-723F |
| Printing Method: |
Thermal dot line printing |
| Paper Width: |
80mm |
| Printing width: |
72mm |
| Resolution: |
203DPI |
| Printing Speed: |
60mm/s(8.5VDC) |
| Barcode Supported: |
I25,UPC-A,UPC-E,EAN-8, EAN-13,Codebar,Code39,Code93,Code128,Code11,MSI;
2D: QR CODE, PDF 417
|
| Font: |
ASCII(12x24) |
| Graphic printing: |
Direct bitmap printing |
| Paper Sensor: |
Photo-sensor |
| Head tempeture detection: |
Thermistor |
| Communication Interface: |
RS232/TTL |
| Power supply: |
5V-9V |
| Head Life: |
50km |
| Operation condition: |
5~45°C,20~90%RH(40°C) |
| Storage condition: |
-40~60°C,20~93%RH(40°C)
|
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
