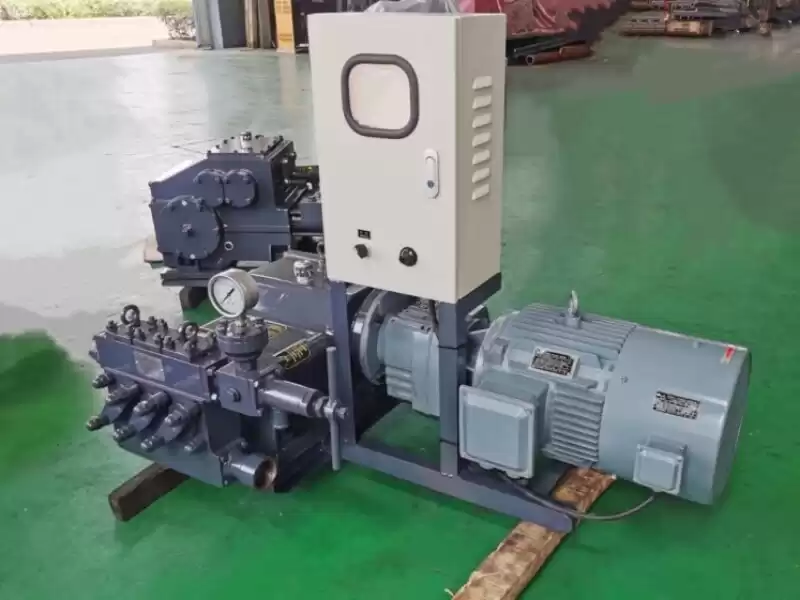

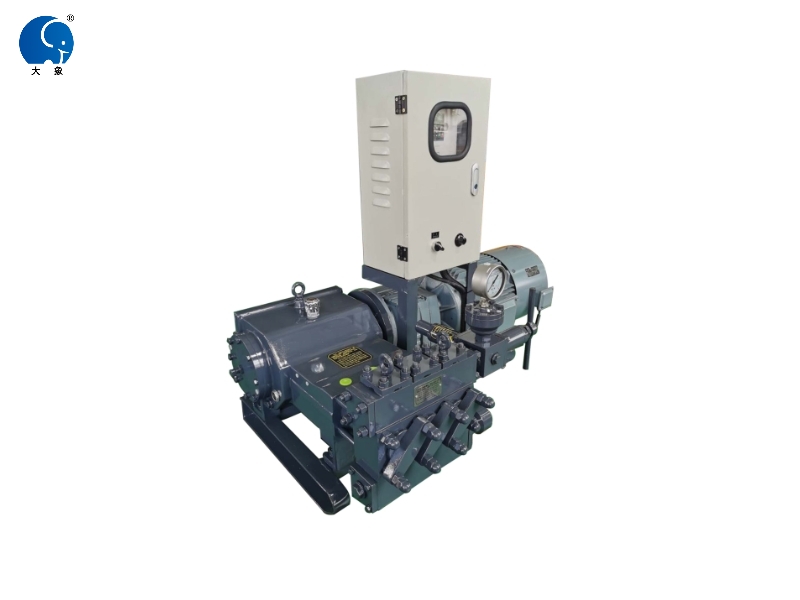

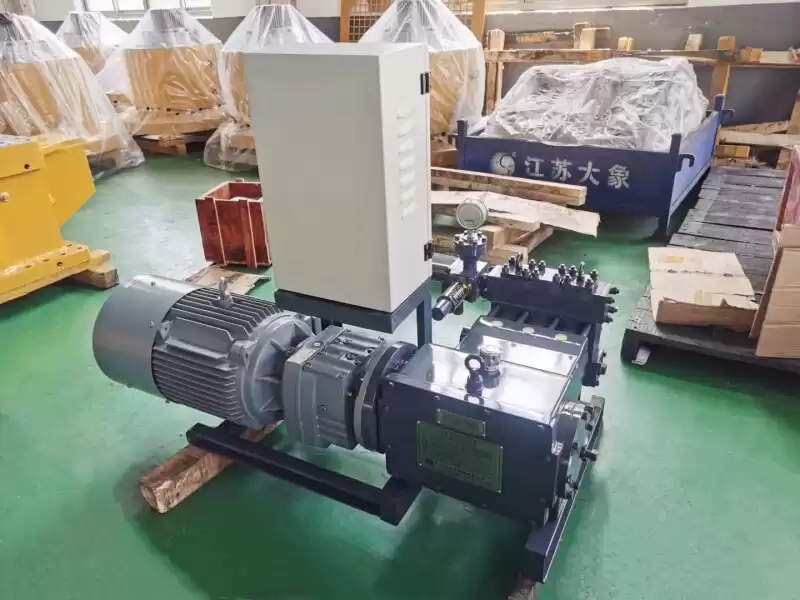

DBW-100 electric driven triplex mud pump is applied to geological and engineering prospecting, such as the railway, the water conservancy, the metallurgy, the build, geology industry and so on, which hole depth is within 1000m.
The flushing liquor used by the pump should not contain the chemical impurity that may corrode metal and rubber parts, meanwhile, the temperature is not allowed to exceed 50℃.
While using slurry, the recommended specific gravity of slurry is 1.03~1.12, and viscosity is 18~25S, and sand content is not over 4%, and the max sand diameter is no bigger than 2mm, and PH value is 7~8. There should be no mud pies,weeds and leaves in the slurry.
The pump adopts advanced structure and new material around the world, so it has advantages, such as reliable capability, long service life of the wearing parts, small volume, light weight, good decomposability and convenient movement etc.
Technical Parameters and Specifications:
| Type |
Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Stroke (mm) |
60 |
| Cyclinder Diameter (mm) |
55 |
| Flow ( L/min) |
100 |
| Pressure (Mpa) |
5 |
| Input Speed (r/min) |
240 |
| Input Power (KW) |
10 |
| Dimensions (mm) |
1237*753*948 |
| Weight (kg) |
350 |
| Motor Model |
RF77YVP160M4 |
| Motor Power (KW) |
11 |
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- * Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.
- * Production Team：guaranting the production time and the quality, never late for shipment.
- * Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
-
-
Design Team
We could always meet your design requirements.
-
-
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

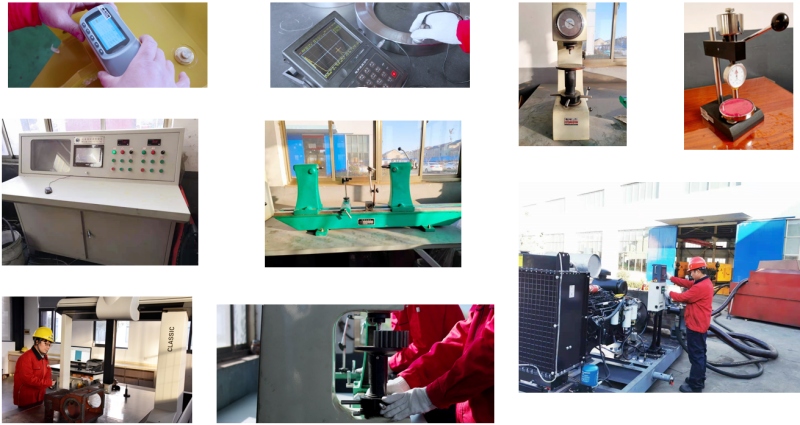

4- Advanced and professional testing and inspection equipment.
