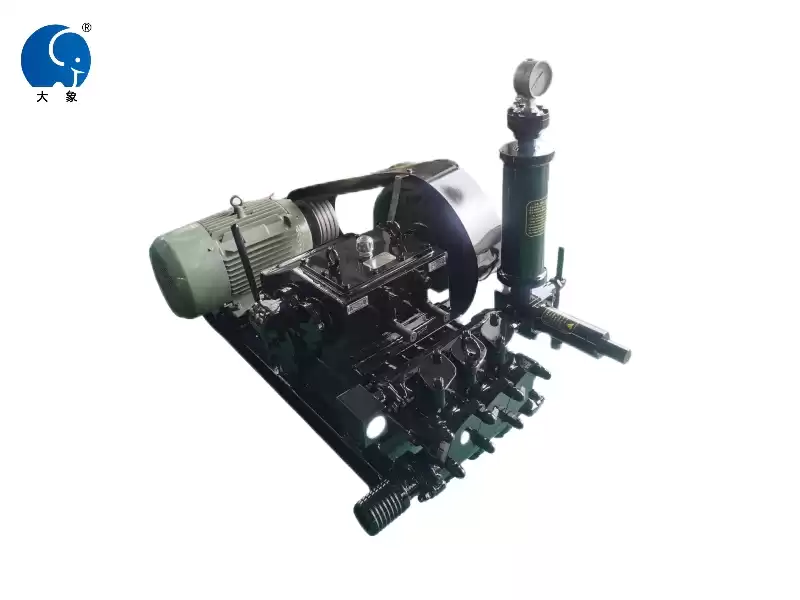

DBW-160 Motor Drive Mud Pump

DBW-160 electric piston mud pump is a kind of horizontal triplex reciprocating single acting piston pump.



DBW-160 drilling mud pumps are kinds of horizontal triplex reciprocating single acting piston pump, electric motor driven. It mainly used for conveying flushing fluid to borehole in geological core drilling. It can also be used for other purposes, such as grouting, drainage and long-distance water delivery. The pump has four kinds of flows and pressures.



The pump adopts advanced structure and new material around the world, so it has advantages, such as reliable capability, long service life of the wearing parts, small volume, light weight, good decomposability and convenient movement etc.



Technical Parameters and Specifications:

Type Horizontal Triplex Reciprocating Single Acting Piston Mud Pump
Stroke (mm) 70
Cyclinder Diameter (mm) 70
Flow ( L/min) 160      107         67          44
Pressure (Mpa) 2.7         4           6.5         10
Input Speed (r/min) 540
Input Power (KW) 9
Dimensions (mm) 1500*820*960
Weight (kg) 508
Motor Model YE3-160M-4
Motor Power (KW) 11



Advantages:

1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.

  • *  Professional Design Team:customizing the mud pump as per your requirements,such as the shape, color,etc.
  • *  Production Team:guaranting the production time and the quality, never late for shipment.
  • *  Sales and after-sales Team:1 Year Warranty; 24 Hours Online Service; Video Technical Support.
  • 2 - The Partners we cooperate.

3 - Adopting advanced structure and new materials.

With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.



4- Advanced and professional testing and inspection equipment.


Product Tags Wholesale Mud Pumps          Electric Triplex Piston Mud Pump          Adjustable Mud Pump          Mud Pump Equipment For Drilling          Electric Mud Pumps          Electric Motor Mud Pumps
