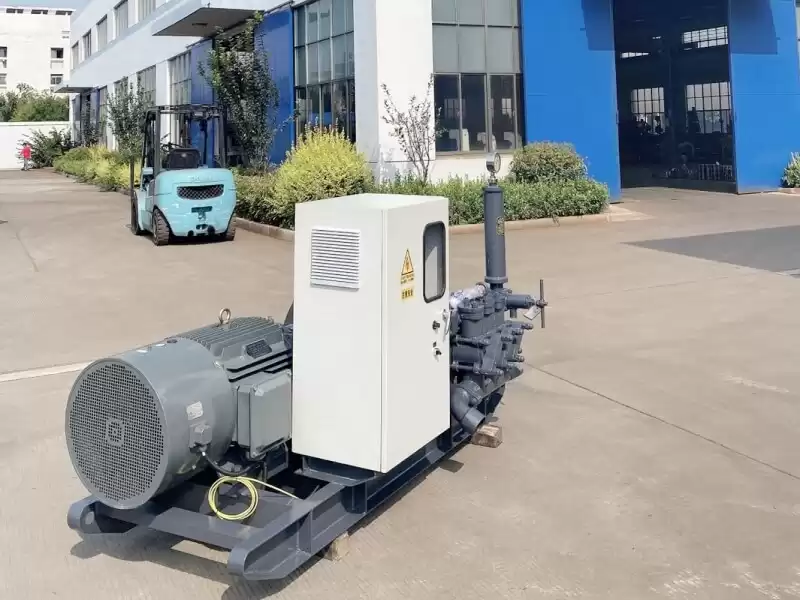

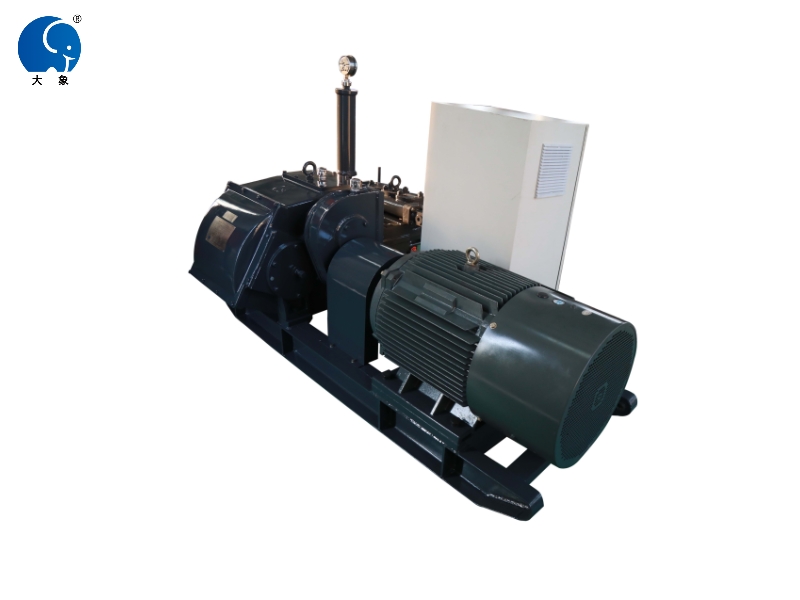

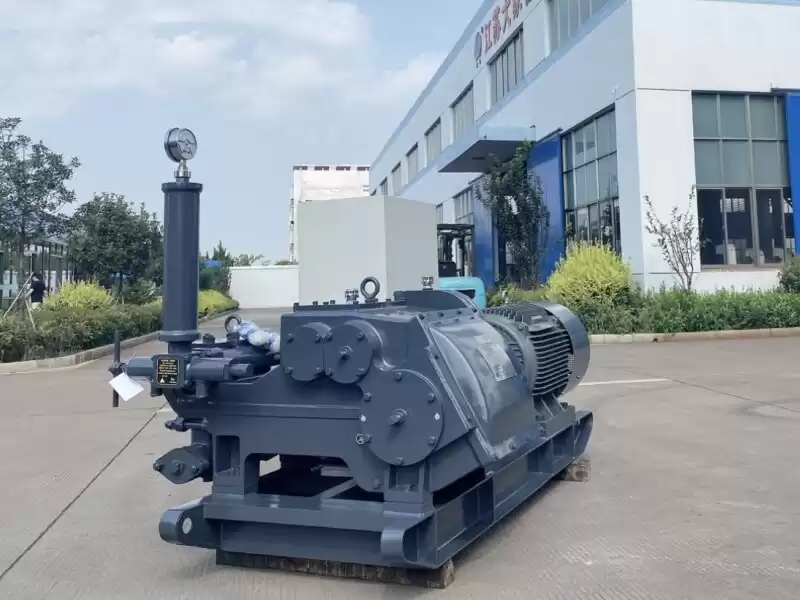

DBW-600 No-dig Mud Pump

DBW-600 Non-excavation mud pump is a kind of horizontal triplex reciprocating single acting piston pump.



DBW-600 Mud pump for core drilling is a kind of horizontal triplex reciprocating single acting piston pump, using varible frequency electric motor driven, transmission by coupling reducer. It is mainly used for conveying flushing fluid to borehole in geological core drilling. It can also be used for other purposes, such as grouting, drainage and long-distance water delivery. The pump has four kinds of flow and four kinds of pressure, all gears can be stepless regulated by frequency converter.



The pump adopts advanced structure and new material around the world, so it has advantages, such as reliable capability, long service life of the wearing parts, small volume, light weight, good decomposability and convenient movement etc.



Technical Parameters and Specifications:

Type Horizontal Triplex Reciprocating Single Acting Piston Mud Pump
Stroke (mm) 110
Cyclinder Diameter (mm) 100
Flow ( L/min) 600    415    280    195
Pressure (Mpa) 3.5      5       7.5      10
Input Speed (r/min) 550
Input Power (KW) 47
Dimensions (mm) 2065*1225*1325
Weight (kg) 1280
Motor Model YVF2  250M-4
Motor Power (KW) 55



Advantages:

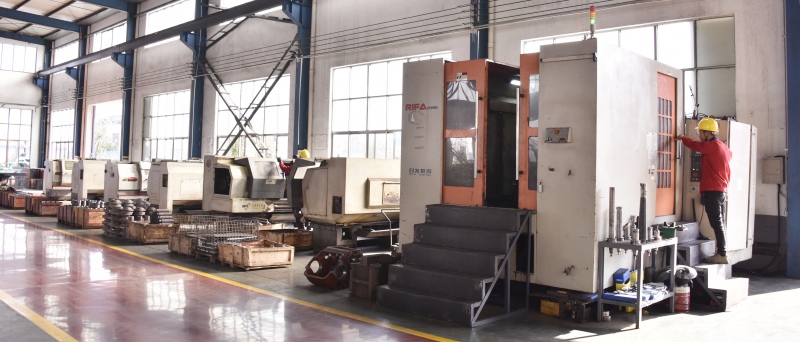

1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.

  • *  Professional Design Team:customizing the mud pump as per your requirements,such as the shape, color,etc.
  • *  Production Team:guaranting the production time and the quality, never late for shipment.
  • *  Sales and after-sales Team:1 Year Warranty; 24 Hours Online Service; Video Technical Support.
  • 2 - The Partners we cooperate.

3 - Adopting advanced structure and new materials.

With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

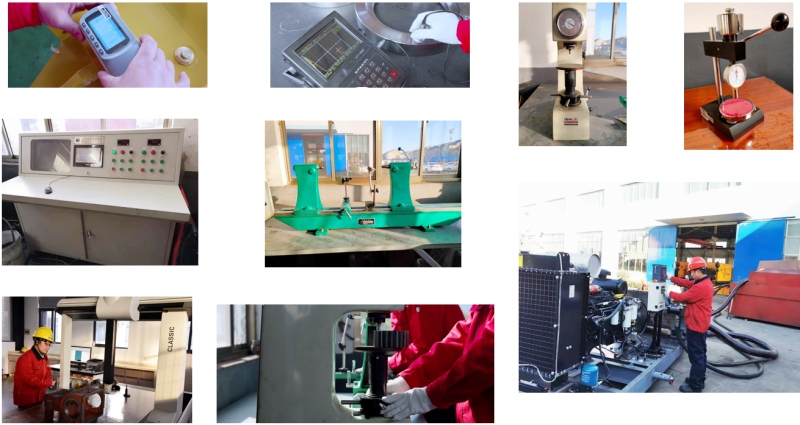

4- Advanced and professional testing and inspection equipment.


Product Tags ISO Mud Pump          Mud Water Pump          Pump Mud Drilling          Plunger Pump Mud          Mud Pump with CE          Small Drill Rig Mud Pump
