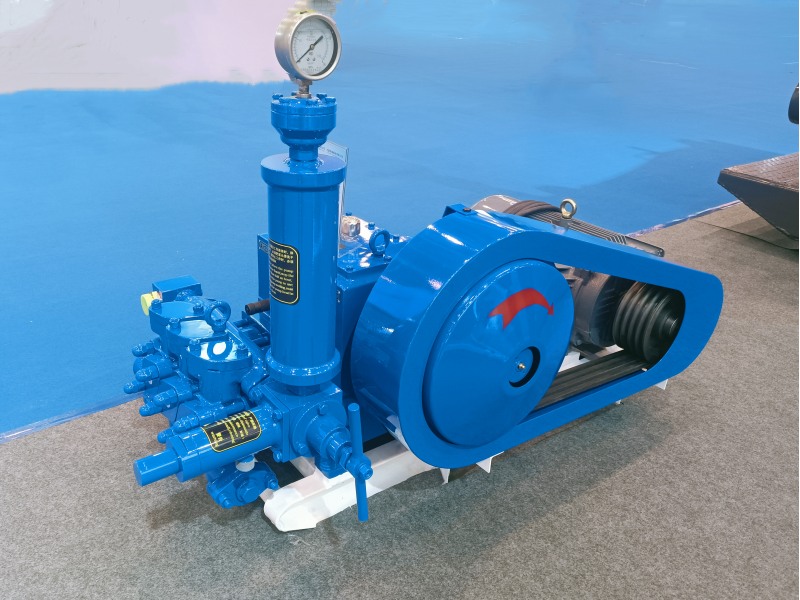

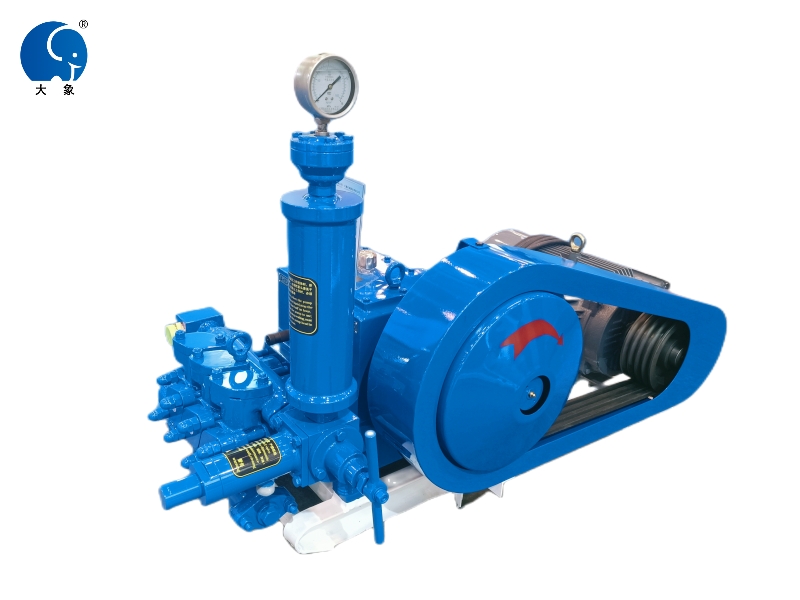

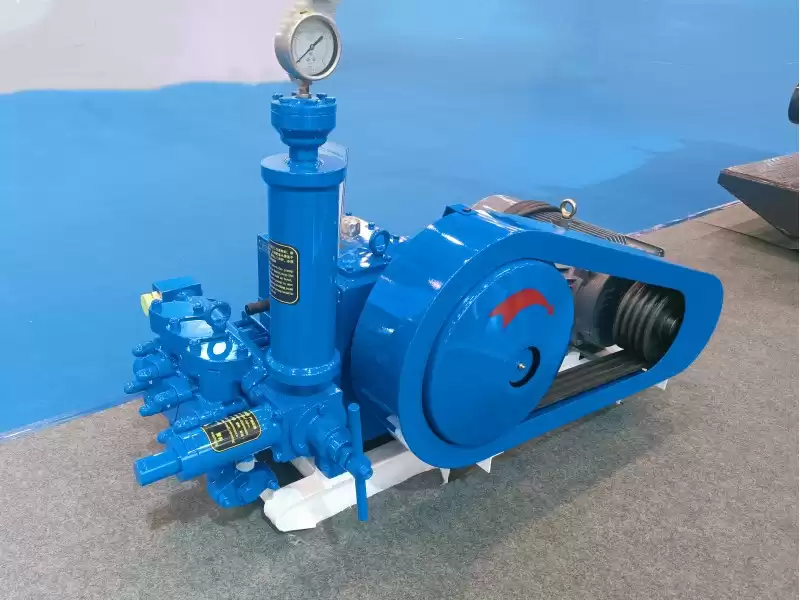

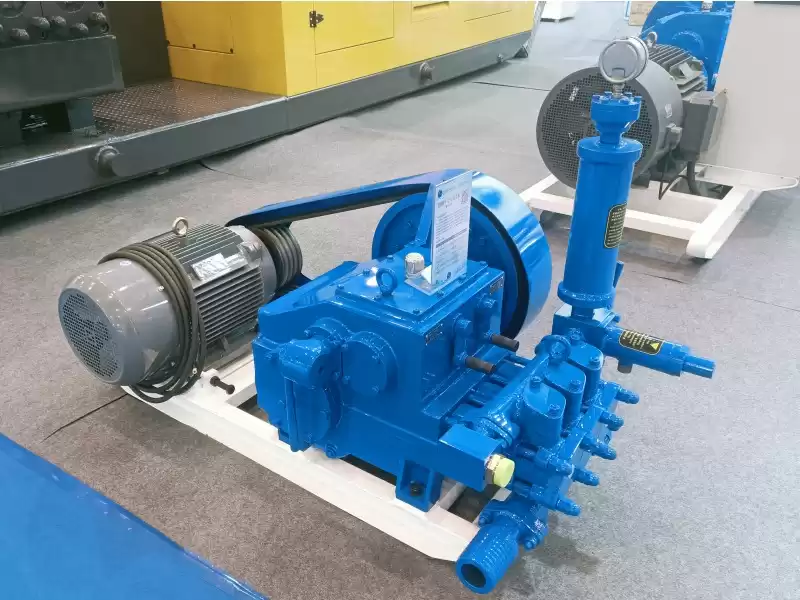

DBWF-250 piston mud pumps are kinds of horizontal triplex reciprocating single acting pump, electric motor driven. It mainly used for conveying flushing fluid to borehole in geological core drilling. It can also be used for other purposes, such as grouting, drainage and long-distance water delivery. The pump has four kinds of flows and pressures.
The pump adopts advanced structure and new material around the world, so it has advantages, such as reliable capability, long service life of the wearing parts, small volume, light weight, good decomposability and convenient movement etc.
Technical Parameters and Specifications:
| Type |
Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Stroke (mm) |
70 |
| Cyclinder Diameter (mm) |
75 |
| Flow ( L/min) |
250 158 100 69 |
| Pressure (Mpa) |
2.5 4 6 9 |
| Input Speed (r/min) |
727 |
| Input Power (KW) |
13 |
| Dimensions (mm) |
1560*830*970 |
| Weight (kg) |
560 |
| Motor Model |
YE3-160L-4 |
| Motor Power (KW) |
15 |
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- * Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.
- * Production Team：guaranting the production time and the quality, never late for shipment.
- * Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
-
-
Design Team
We could always meet your design requirements.
-
-
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.
4- Advanced and professional testing and inspection equipment.
