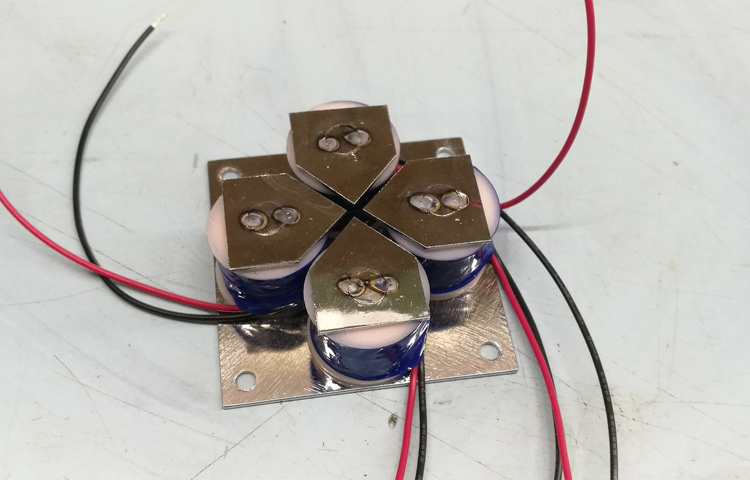

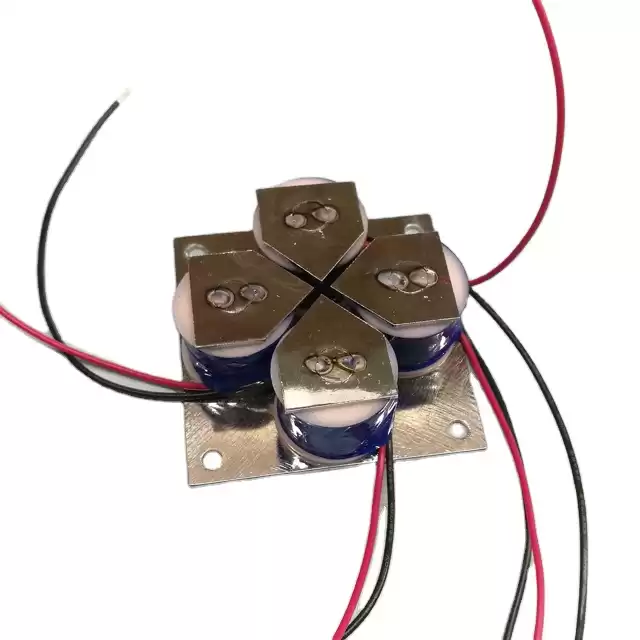

DC 12V 24V cores coil solenoid valve

Customizable mini centrifuge solenoid, agitator core coil solenoid valve, suitable for DC 12v 24v equipment power supply

Product Description

Brand	Landa	Model	HY2417
Rated Voltage (V)	DC12/24	Rated Power(W)	180
Work Model	Holding Type	Holding Force (N)	60
Stroke(mm)	0	Reset Time(s)	0.2
Service Life	500 Thousand Times	Certification	CE,ROHS,ISO9001
Material	Iron	Lead Wire Length(mm)	200
Install Style	screw	Tolerance of Dimension	gb/t1804-m
Water-proof	IP65	Insulation Class	B
Hi-Pot Test	AC 600V 50/60Hz 2s	Non-excitation Holding Force	0
Residual Magnefism	3N	Duty Cycle	100%
Working Temperature	-10°C-100°C	Thread Size(mm)	M4
Thread Depth(mm)	8	Payment Term	TT,PAYPAL
Sample Order	Yes	Warranty	1 Year
MOQ	10 pcs	Supply Ability	5000 pcs per Week
Delivery Time	7 Days	Port of Loading	Zhongshan
