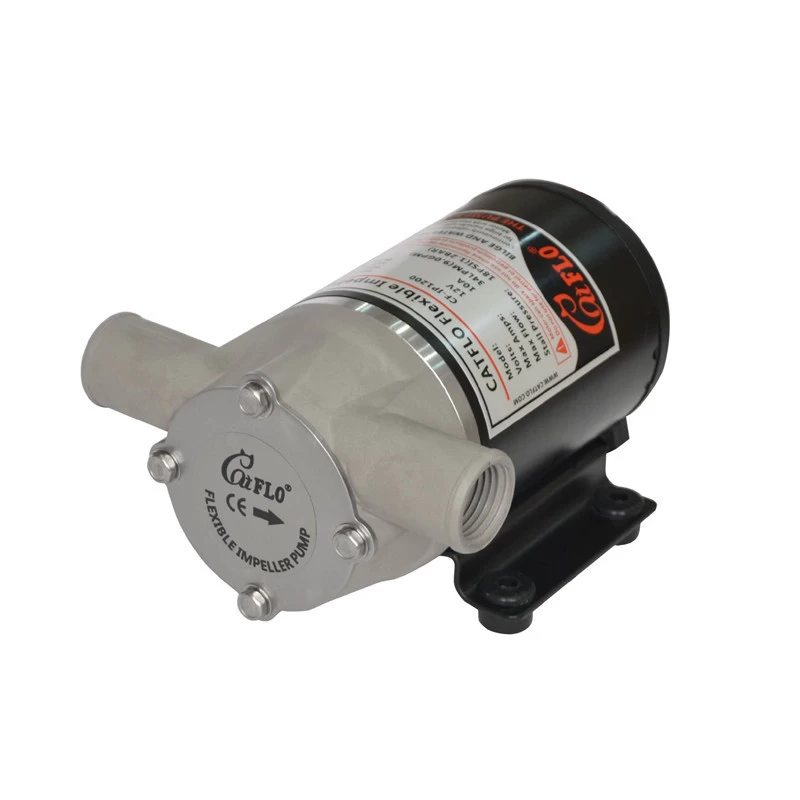

DC micro electric marine 12v brass flexible impeller pump for wash deck
FEATURES
· Good flow rate, continuously rated pump
· 8.0gpm (30lpm) at 10ft (3m) total head
· Self -priming up to 4ft (1.2m) allows
· Mounting above wet bilges
· Shower debris presents no problem to this bronze bodied, flexible impeller design
· Simple design means fewer wearing parts-all user serviceable
· MARINE (ignition Protection)
REMIND
· Should be installed in a dry and ventilated position
· Must not run dry, better with bilge controller panel to avoid running dry
APPLICATION
· Agriculture/Yacht / RV/Caravan pressurized water system
· Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
· Cleaning machine, Humidifier, Water purification, Medical apparatus
· Any other pressurization system
· Drain water on deck and wash deck

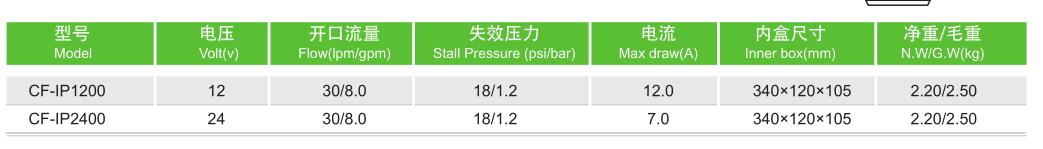

IMPELLER PUMP SPECIFICATION
|
Body Materials
|
Bronze
|
|
Impeller
|
Neoprene compound
|
|
Seal
|
Lip Type
|
|
Inlet/Outlet Ports
|
Marine 8 GPM Self Priming Impeller Bilge Pump - Replaces Water Supply Chain Provider
1/2"BSP*3/4’’Barb
|
|
Voltage
|
12v/24v dc
|
|
Amp Draw
|
Max.12.0(amp)
|
|
Type
|
self-priming bilge pump
|
|
Mode
|
Cheap 8.0 GPM 12V Industrial Self-Priming bilge Pump from China
Thermally Protected,High Quality Efficient Motor
|
|
Certifications Option
|
CE Approval
|
|
Liquid Temperature
|
140°F (60°C) Max.
|
|
Priming Capabilities
|
3.2 feet (1 m) suction lift
|
|
Max Flow rate
|
30.0lpm (8.0gpm)
|
|
Temperature Limits
|
Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 60°C).
|

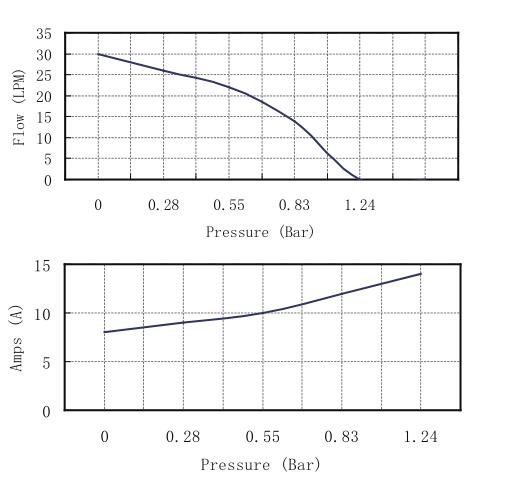

Technical data
