Landa push pull mini frame solenoid SQ1560T stroke up to 15mm, push pull type, spring return, force up to 20N, 10% duty cycle the power consumption up to 180w, widely use for game vending machine.
Product Description
|
Specifications
|
|
Brand
|
Landa
|
Product Name
|
open frame push pull solenoid
|
|
Model
|
SQ1560T
|
Rated Voltage
|
DC 12v 24v
|
|
Power
|
9-90w
|
Force
|
1-20N
|
|
Stroke
|
0-15mm
|
Duty Cycle
|
1-100%
|
|
Cable Length
|
200mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Push pull type
|
Weight(N.W.)
|
0.35kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
M3,2
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|
Body Size
|
60*38*30(mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Product Features
1. Push-pull type, linear motion, plunger spring reset, DC solenoid electromagnet.
2. DC Solenoid electromagnets are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
3. The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
4. Open frame structure with mounting holes, accepted custom as you needed.

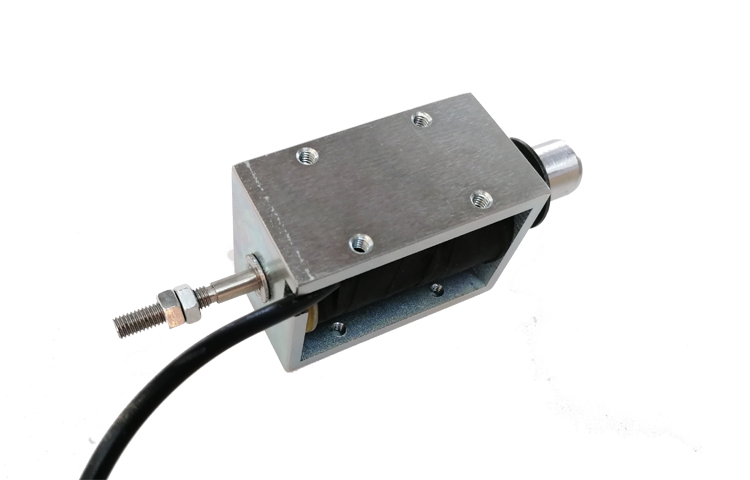

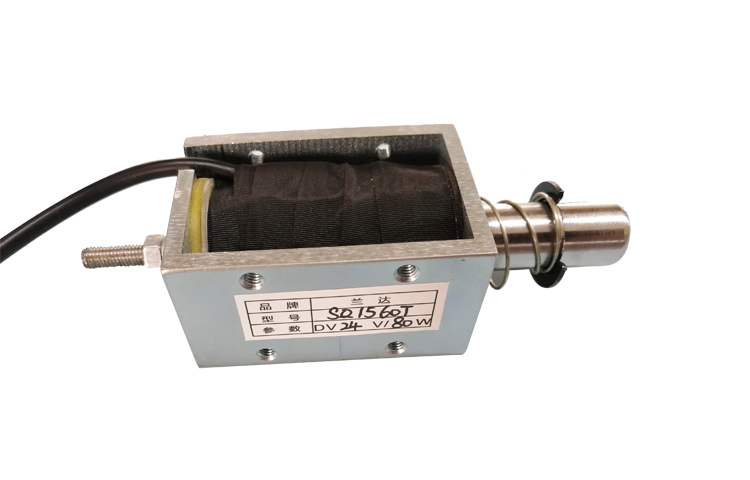

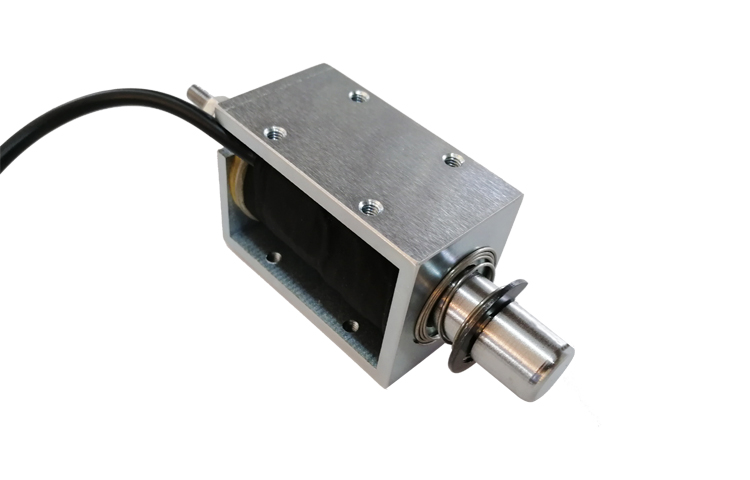

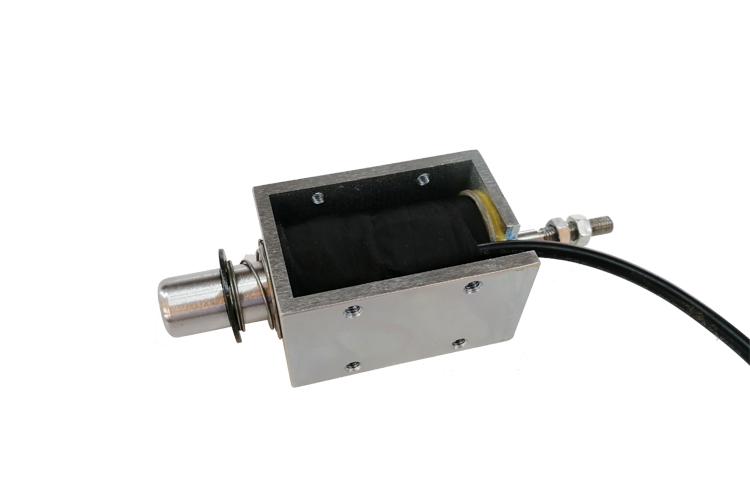

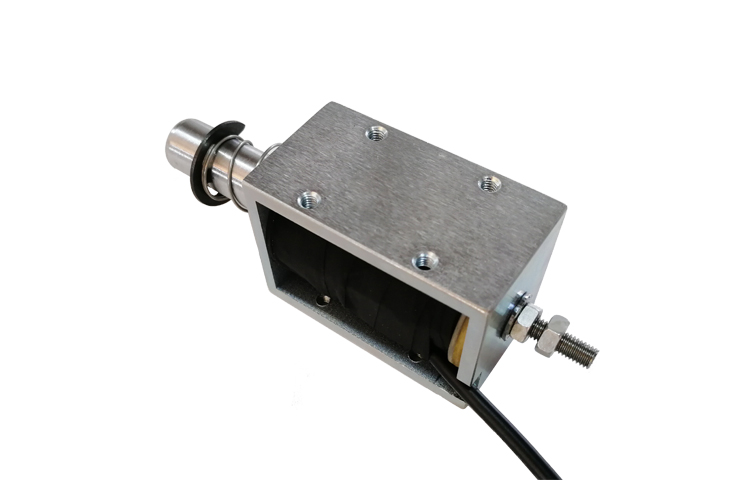

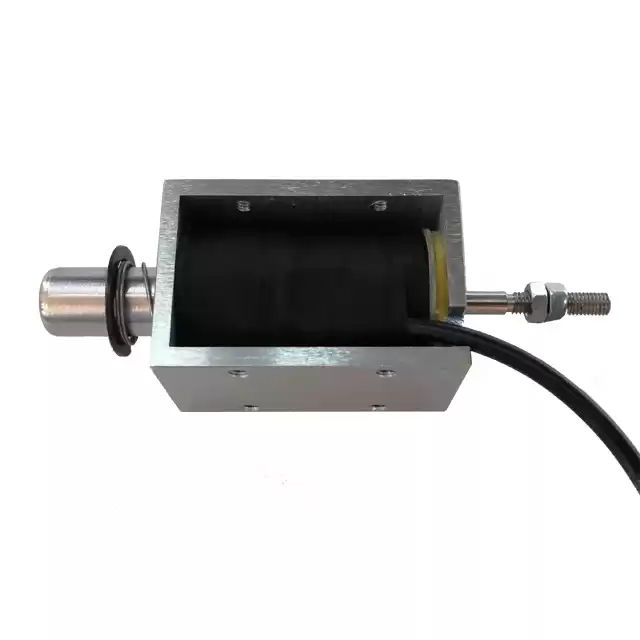

Detailed Images
