Dc 24v Round Shape Permanent Electromagnet

This kind of electromagnet is round and compact, IP65 waterproof, 24V DC. Widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.



Specifications

Brand Landa Product Name XH16060 permanent electromagnet
Model XH16060 Rated Voltage DC 24v
Power 65w Force 2800N
Waterproof Class IP65 Duty Cycle 10%
Cable Length 200mm Material Metal, Electronic Parts
Action Form Holding type Weight(N.W.) 4.2kg

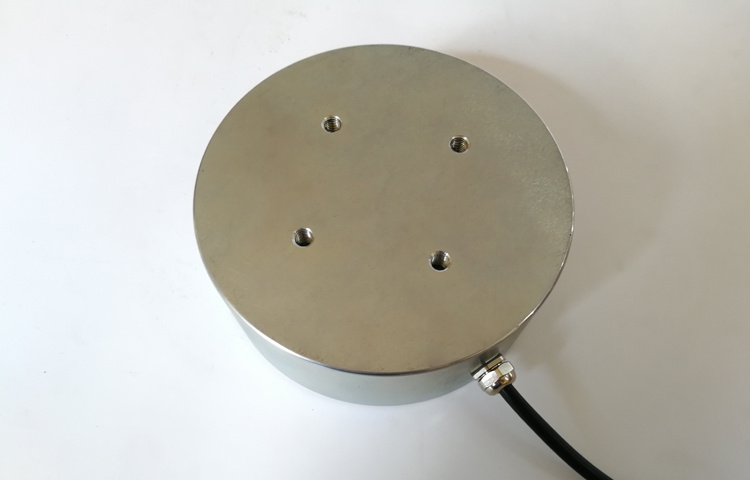

Install Style Screw Thread Size & Deepth(mm) M8,10
Hi-Pot Test AC 600V 50/60Hz 2s Insulation Class B
Packaging Details

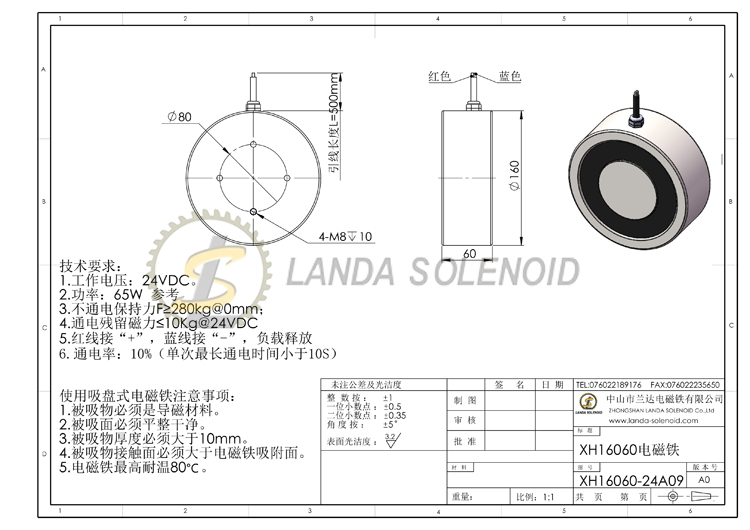

Body Size  D160*H60(mm) Carton Box Size(Standard) 350*310*180(mm), accepted custom


Product Feature

permanent electromagnet

1.Holding type, round shape, mini size, IP65 waterproof, DC solenoid electromagnet.

2.The electromagnet need to be energised to develop suction force, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.

4.Also offer custom shape and energise to release circular electromagnet.


Detailed Images

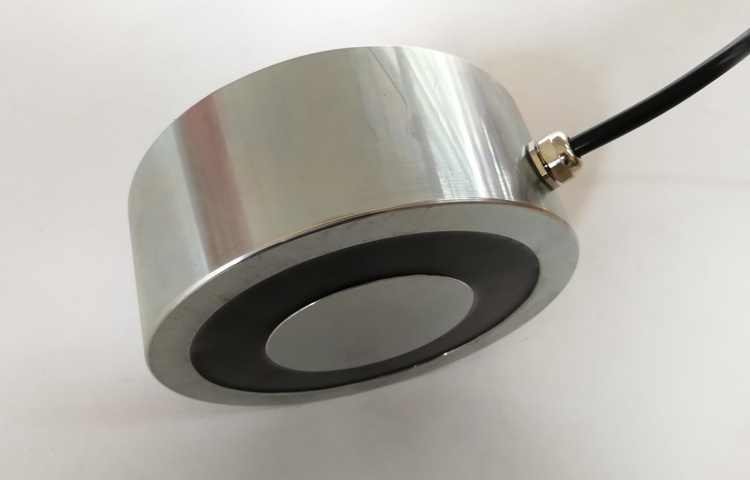

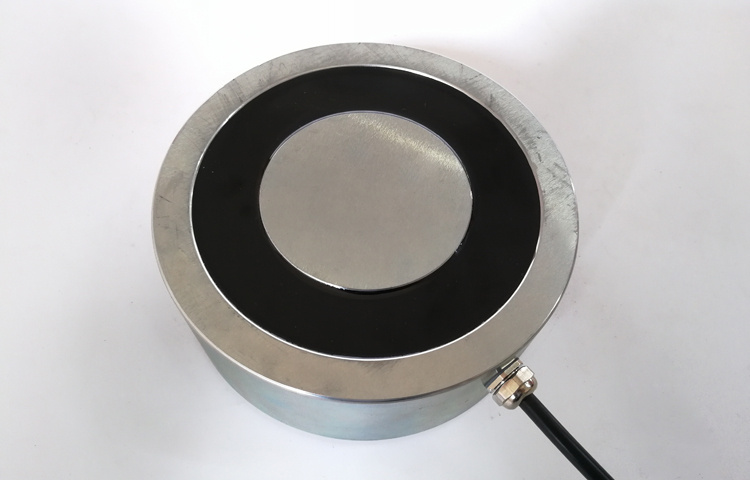

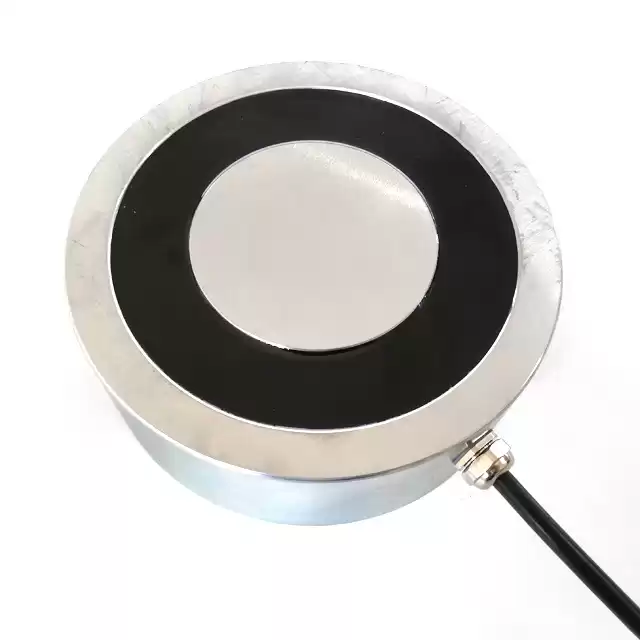

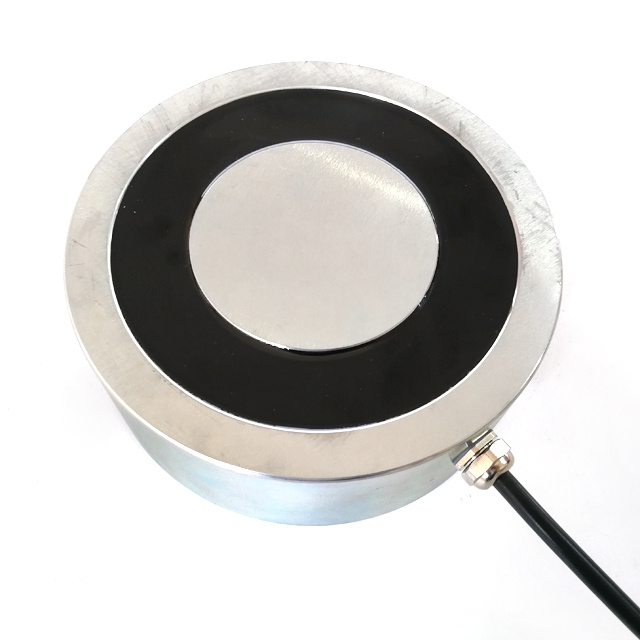

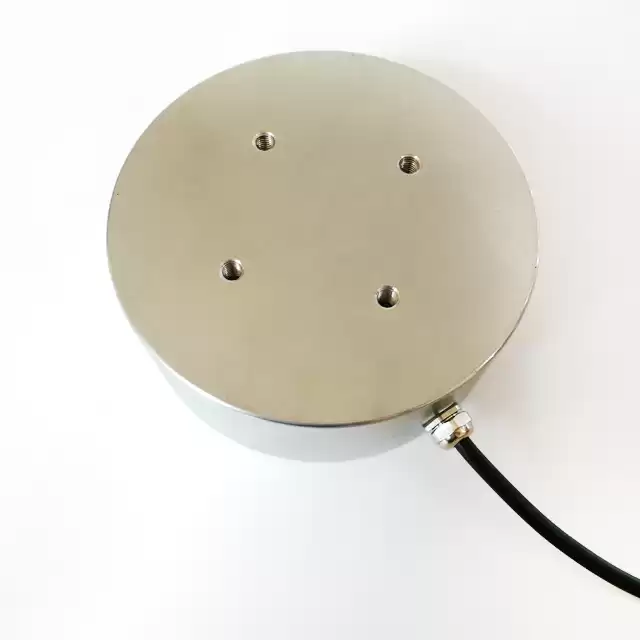

Permanent Electromagnet XH16060

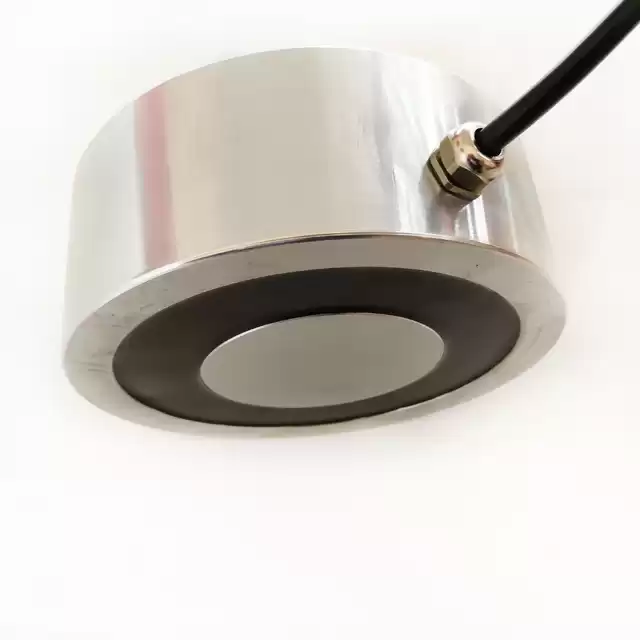

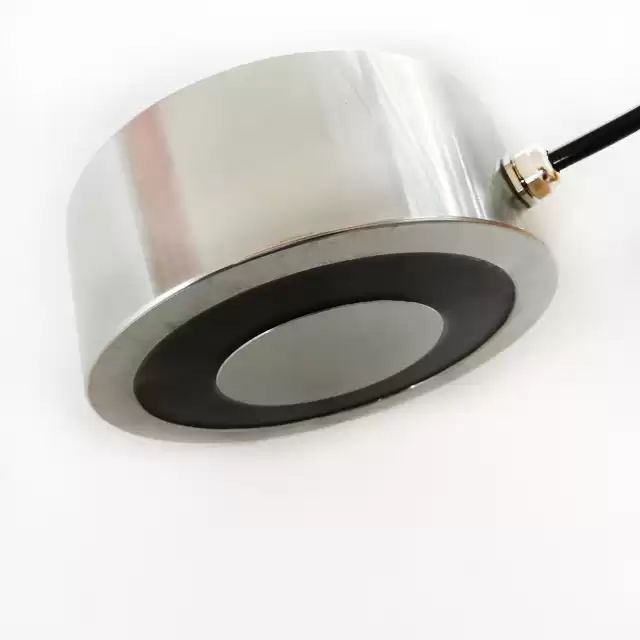

Dc 24v Permanent Electromagnet


Custom Shape Electromagnet
