Product Name

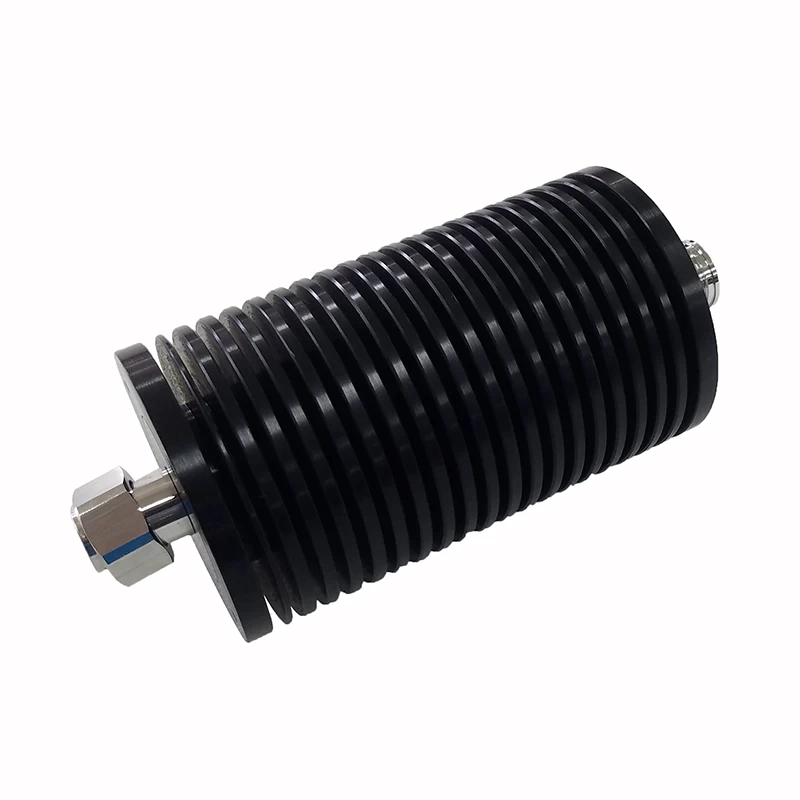

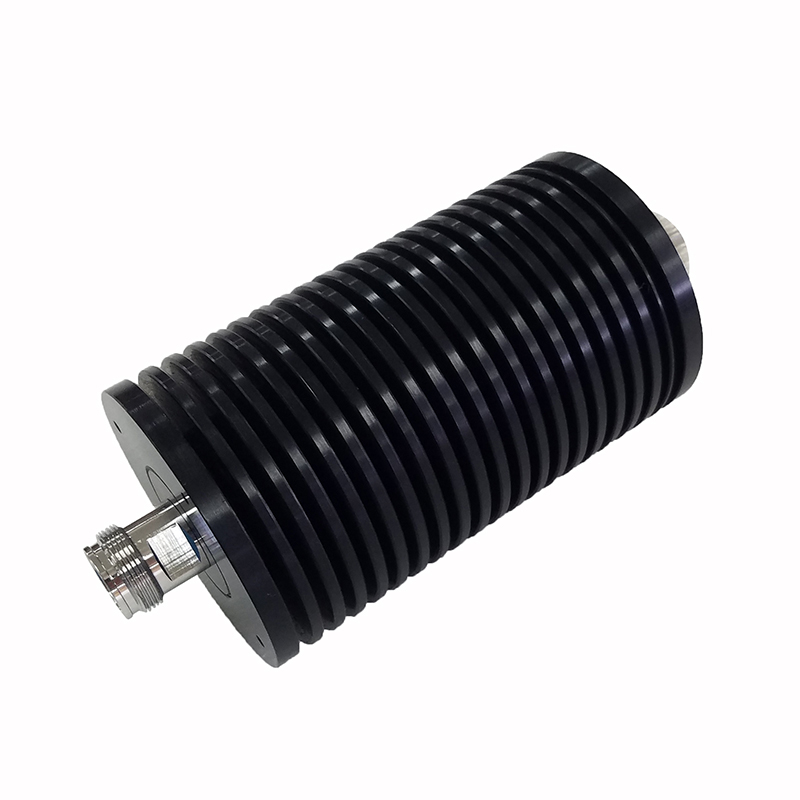

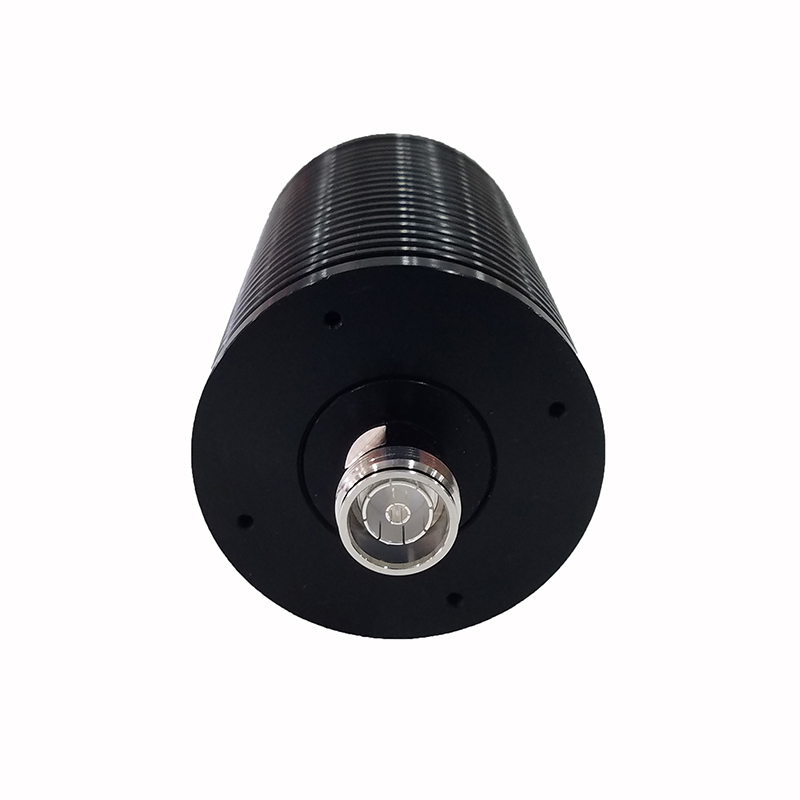

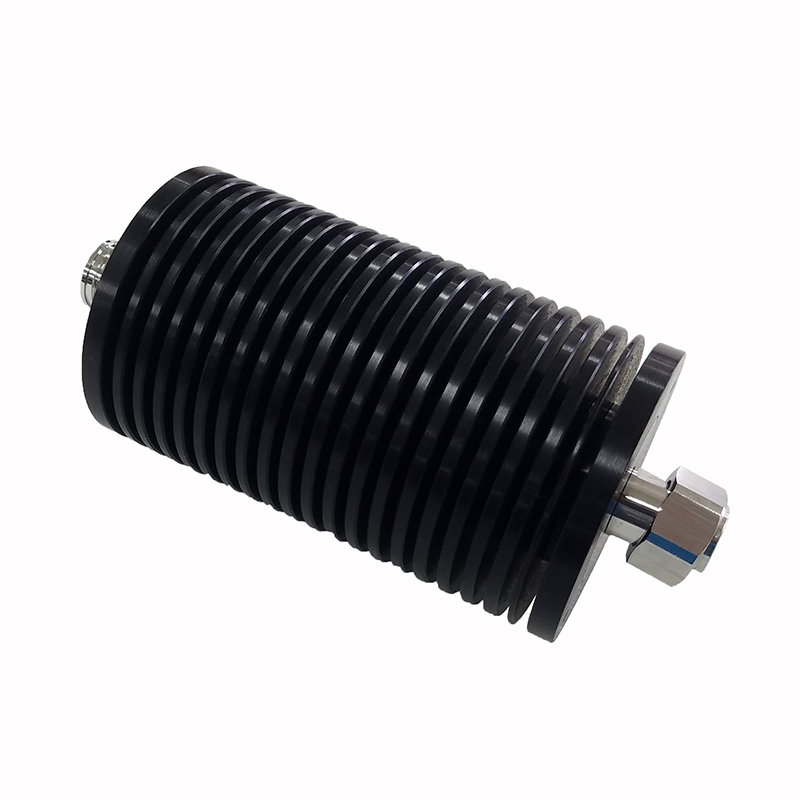

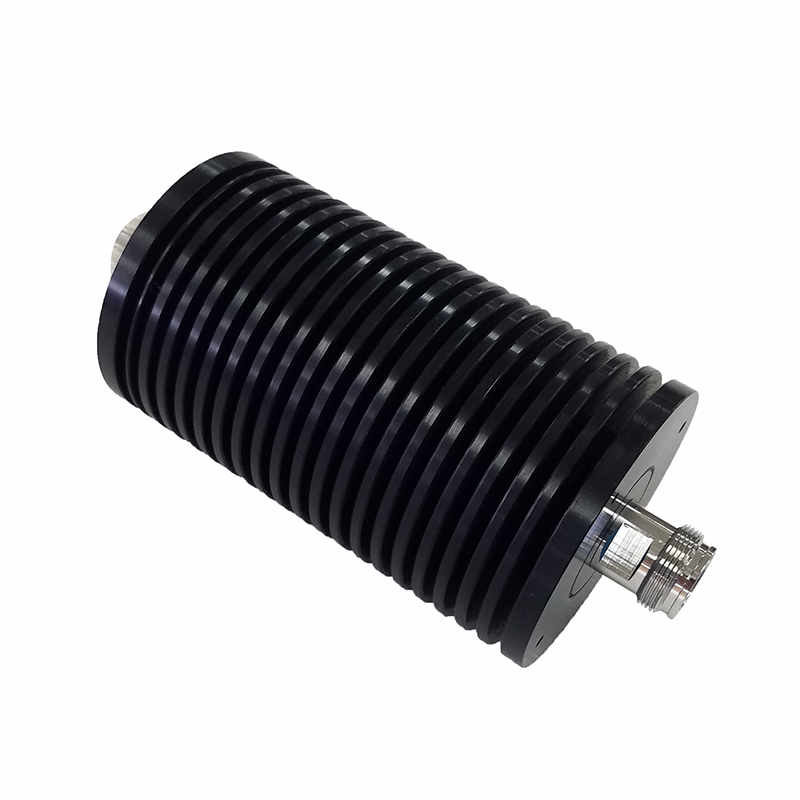

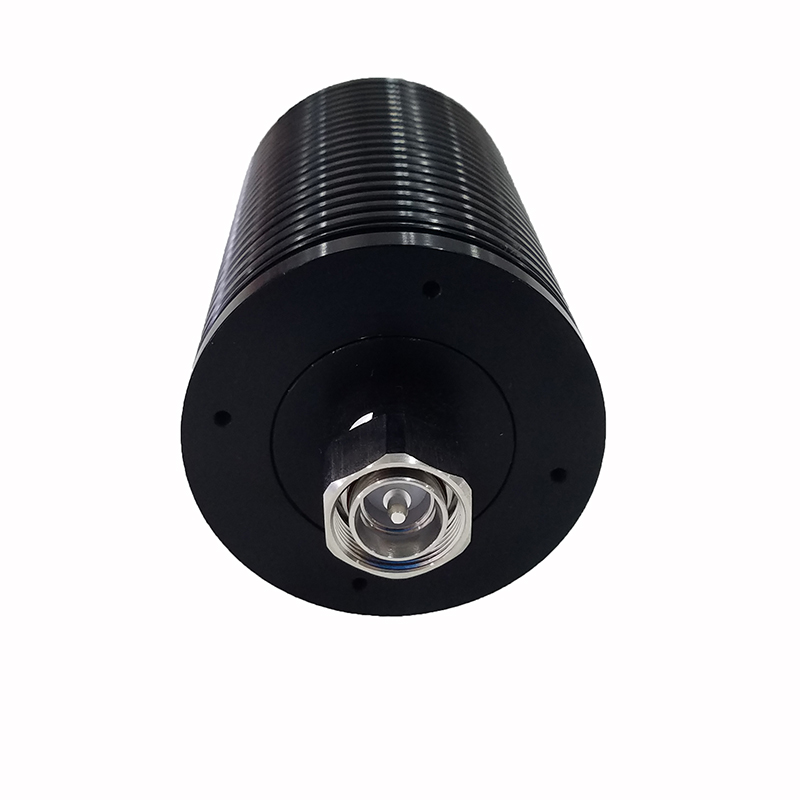

RF Attenuator (DC-3GHz, 100W, 4.3-10 M/F)
DC-3GHz RF Attenuator is wide frequency band(2G/3G/4G/LTE Coverage),100W RF Attenuator is high power and widely used in IBS &DAS system.
Product Features
◆ Wide Frequency Band DC-3GHz
◆ Low VSWR
◆Low Attenuation Accuracy
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications
|
Model No.
|
MLA-100-4MF-03
|
MLA-100-4MF-06
|
MLA-100-4MF-10
|
MLA-100-4MF-15
|
MLA-100-4MF-20
|
MLA-100-4MF-30
|
|
Freq(MHz)
|
DC-3GHz
|
|
Attenuation(dB)
|
3
|
6
|
10
|
15
|
20
|
30
|
|
Accuracy(dB)
|
±0.5
|
±0.5
|
±0.8
|
±1.0
|
±1.2
|
±1.5
|
|
VSWR
|
≤1.2
|
|
Average Power(W)
|
100
|
|
Impedance
|
50 ohm
|
|
Connector
|
4.3-10 M-F
|
|
Color
|
Black
|
|
Ambient Temp(deg)
|
-35~+75
|
|
Relative Humidity
|
5%-95%
|

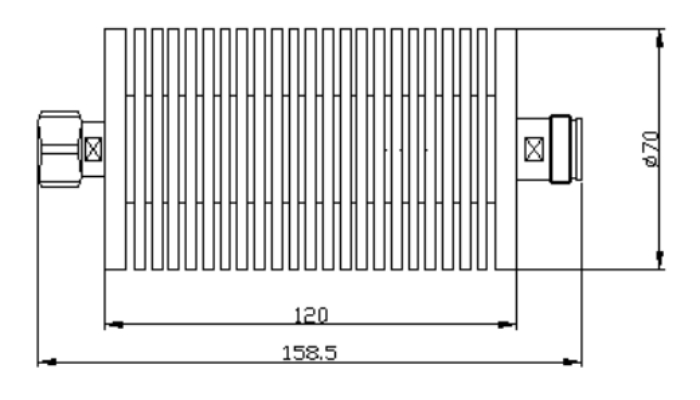

Mechanical Drawing
