Product Name

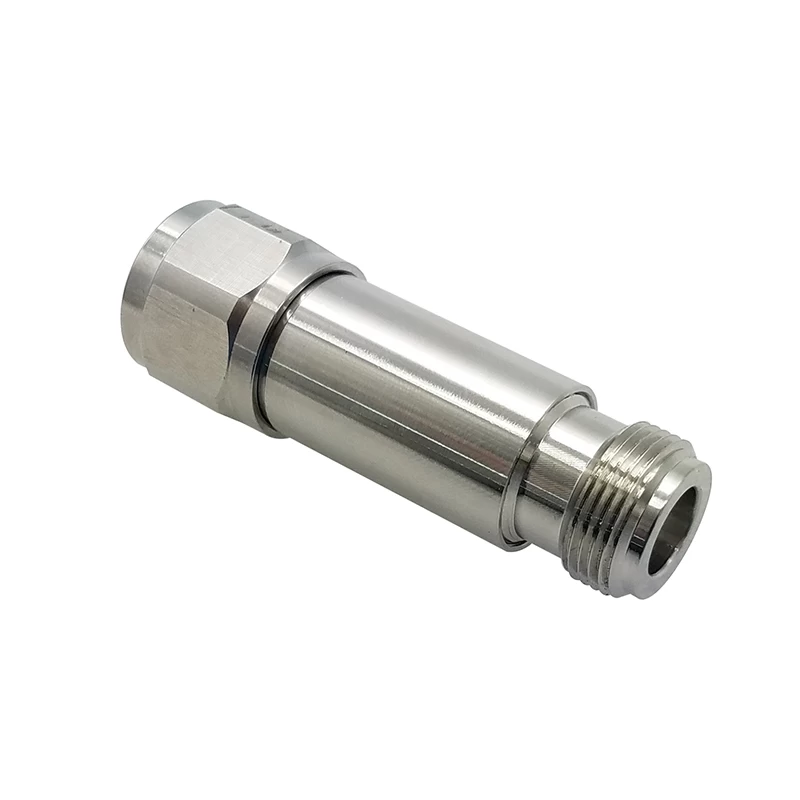

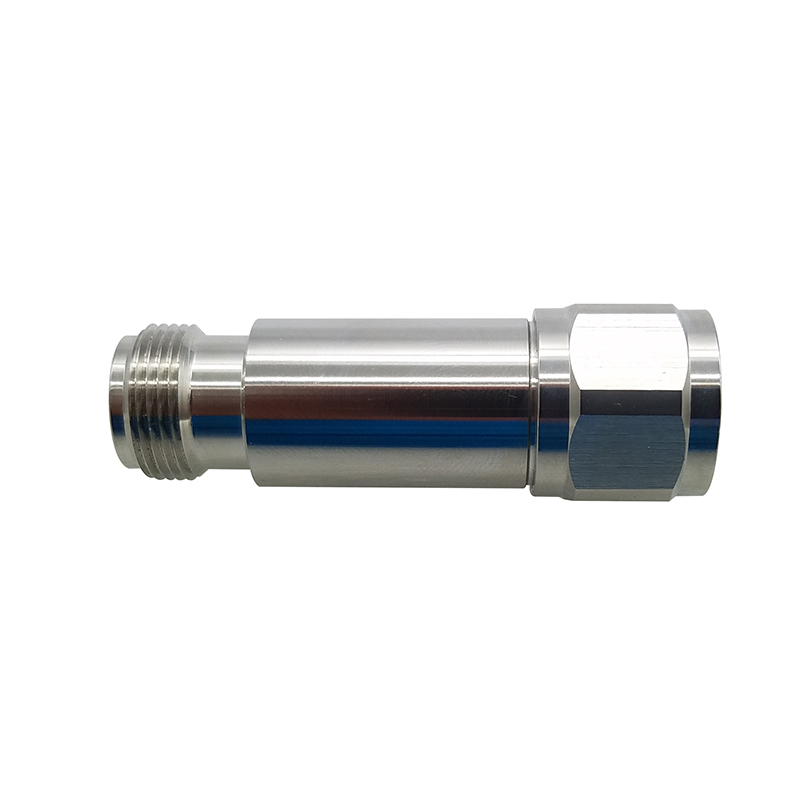

RF Attenuator (5W,DC-3GHz,N-male to N-female)
DC-3GHz RF Attenuator is low VSWR and stable technical.5W RF Attenuator is used in 2G/3G/4G/LTE .
Product Features
◆Wide Frequency Band DC-3GHz
◆Low Attenuation Accuracy
◆Low VSWR
◆Widely used in IBS &DAS
◆ Indoor Application
Technical &Mechanical Specifications
|
Model
|
MNA-3G-5-XX-N(xx refers to attenuation)
|
|
Power
|
5W
|
|
Frequency(GHz)
|
DC-3GHz
|
|
VSWR
|
≦1.20
|
|
Attenuation (dB)
|
5
|
10
|
20
|
|
Accuracy(dB)
|
±0.6
|
±1.0
|
±1.0
|
|
Impedance(ohm)
|
50
|
|
RF Connector
|
N/M-N/F
|
|
Working Temp(deg)
|
-55~+125
|
|
Color
|
Silvery White
|
|
Weight(kg)
|
0.15
|
|
Size(mm)
|
Φ18*58
|

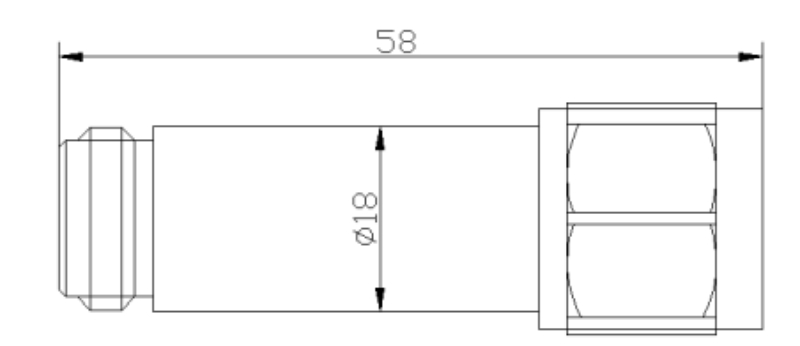

Mechanical Drawing
