Product Name
5W DC-3GHz RF Termination Load 4.3-10 male RF Load
Product Features
◆ Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ Widely used for In-building Solutions
It is an RF Termination that operates from DC to 3GHz. It can handle an average power of 5 watts. This 50-ohm termination has a VSWR of less than 1.20:1 with an 4.3-10 (M) connector.
Technical &Mechanical Specifications
|
Model No.
|
MNT-5-3G-41M
|
Freq(MHz)
|
DC-3GHz
|
VSWR
|
≤1.20
|
Power(W)
|
5
|
Impedance
|
50 ohm
|
Connector
|
4.3-10-male
|

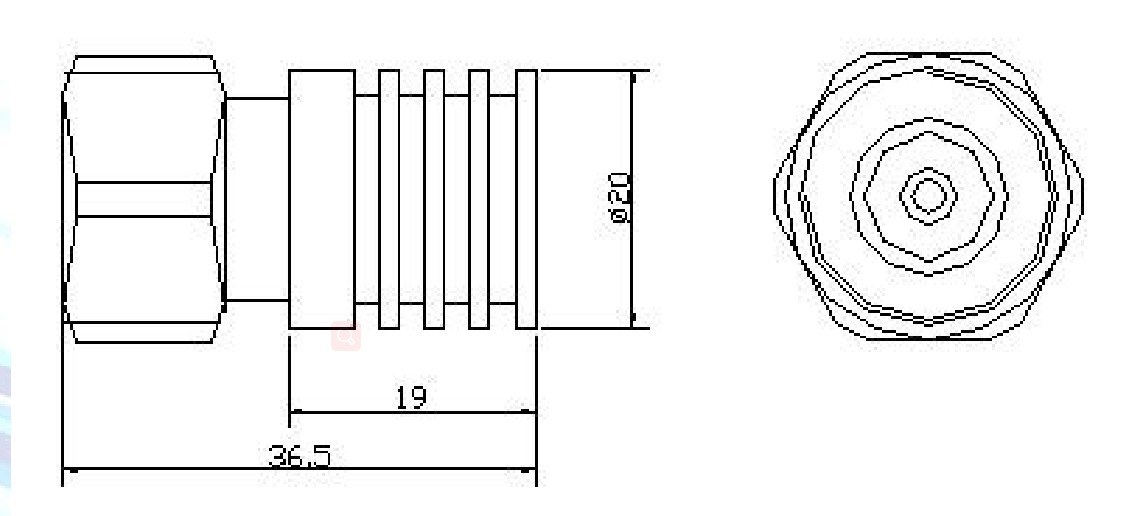

Mechanical Drawing
