Product Name

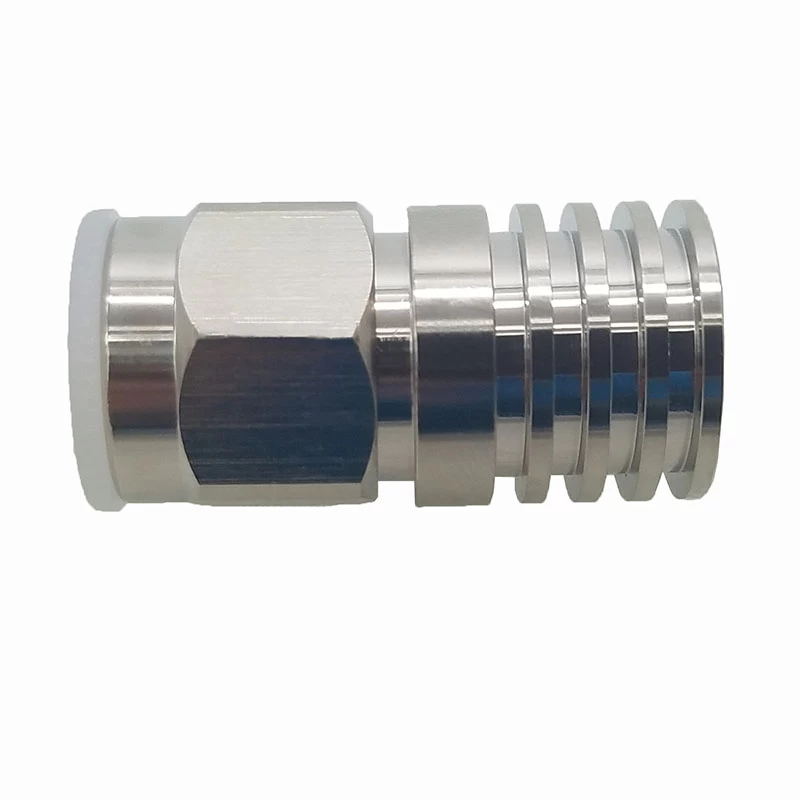

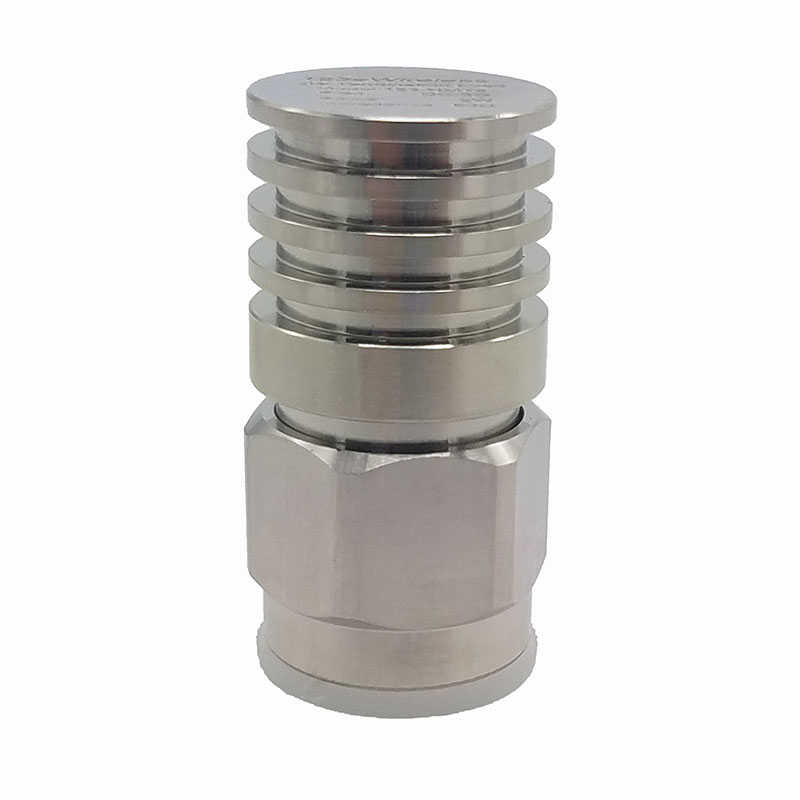

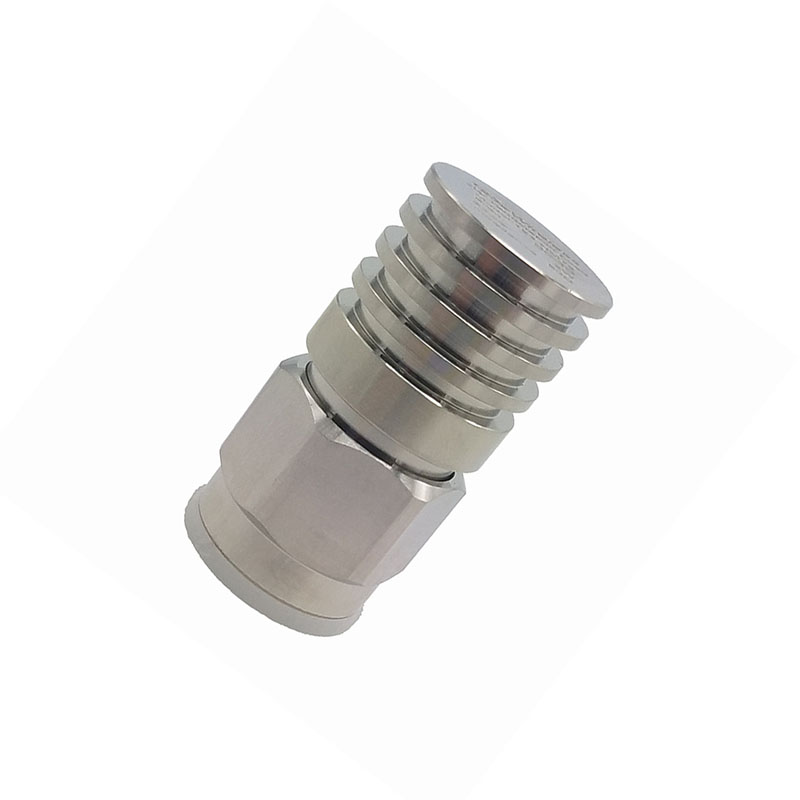

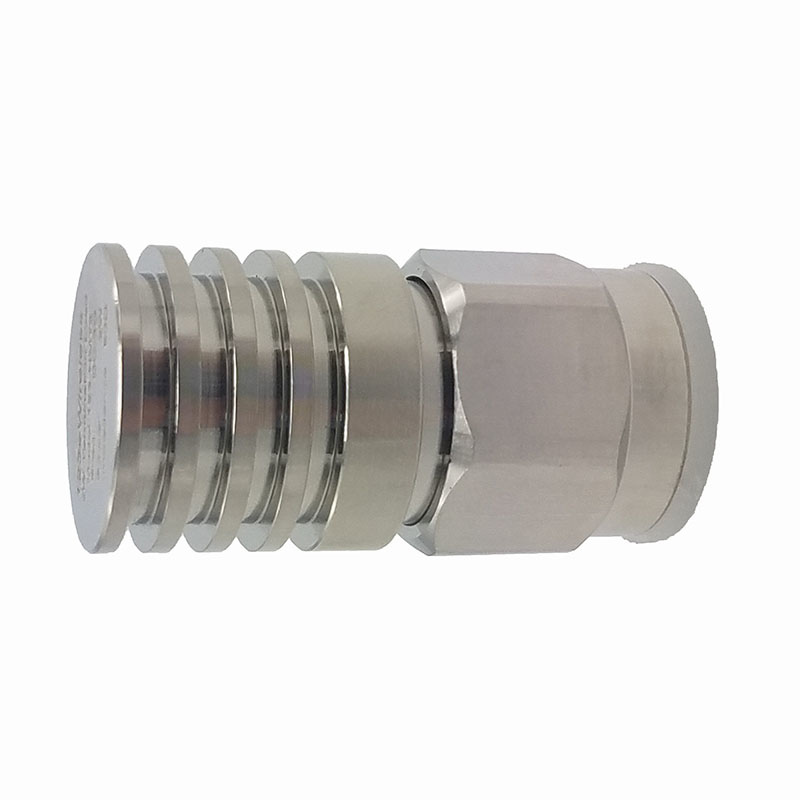

5W RF Termination Load DC-3GHz N male RF Dummy Load
Product Features
◆ Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆Widely used for In-building Solutions
It is an RF Termination that operates from DC to 3 GHz. It can handle an average power of 5 watts. This 50-ohm termination has a VSWR of less than 1.20:1 with an N (M) connector.
Technical &Mechanical Specifications
|
Model No.
|
MNT-5-3G-NM
|
Freq(MHz)
|
DC-3GHz
|
VSWR
|
≤1.20
|
Power(W)
|
5
|
Impedance
|
50 ohm
|
Connector
|
N-male
|

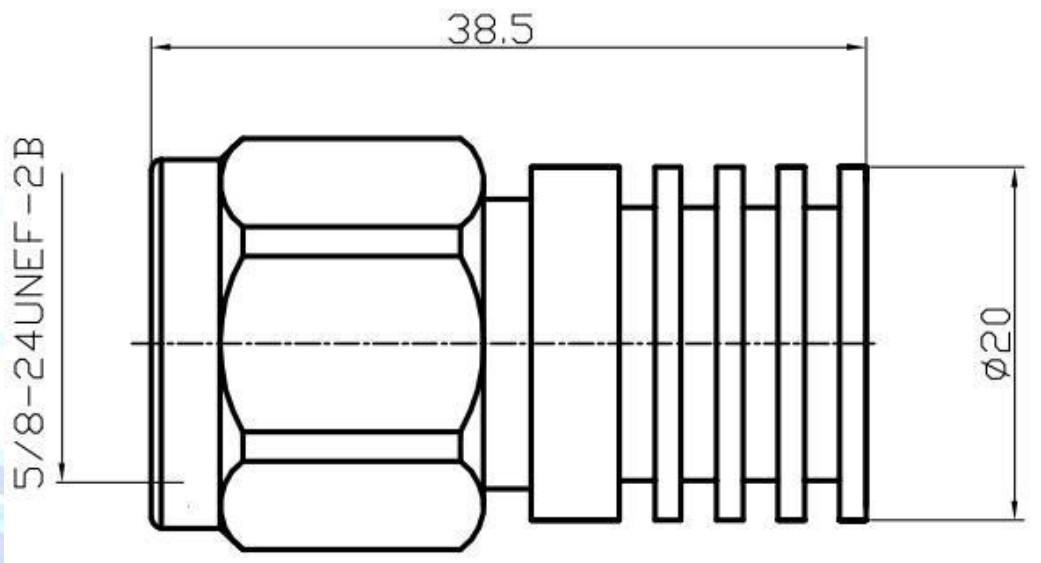

Mechanical Drawing
