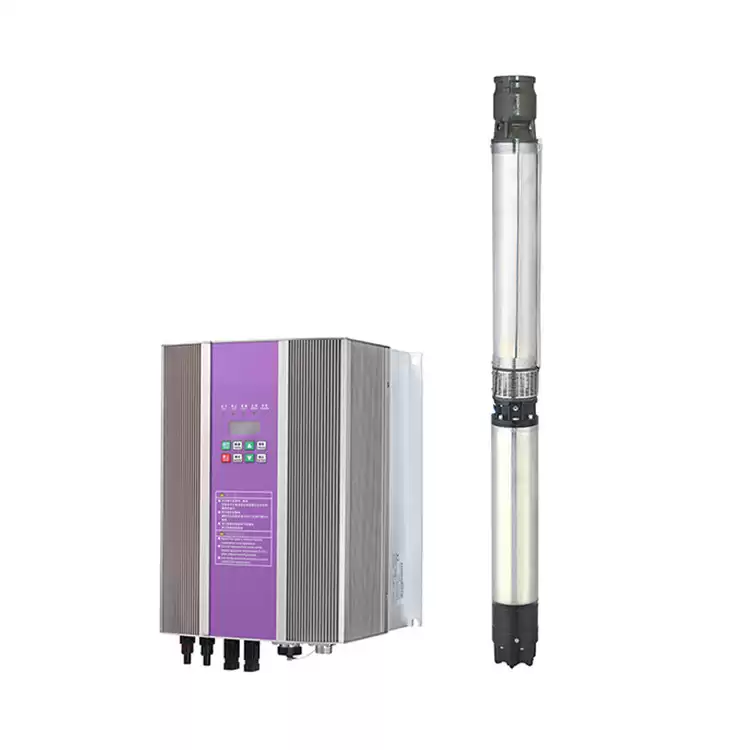

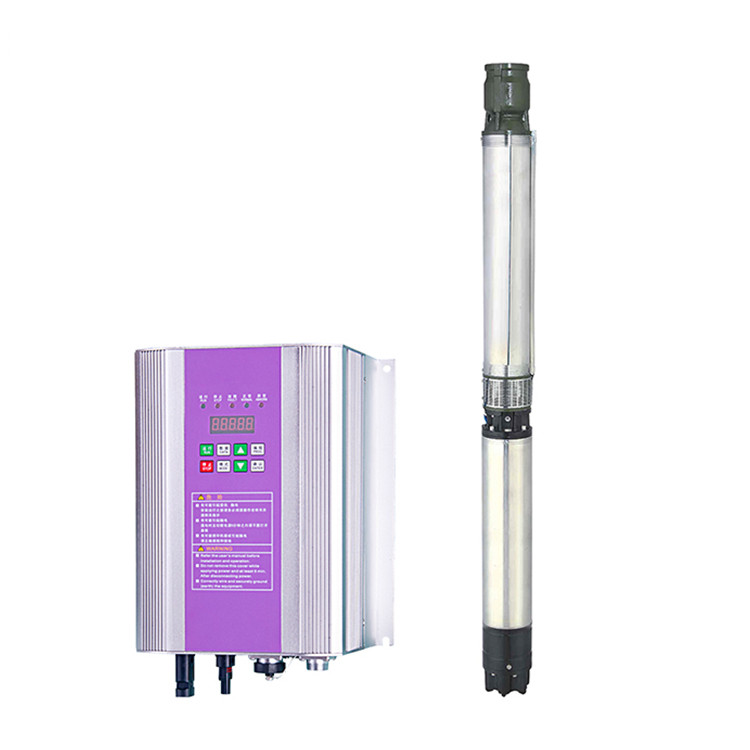

Solar Pump & Inverter for irrigation
Features
1. Hybrid AC Power with Solar Priority.
2. Built-in Remote Monitor Module
3. Support Multi-linkage System
4. IP65.Full Protection.
Item
|
Voltage
|
Best input voltage(DC)
|
Power
|
Max.Flow
|
Max.Head
|
Outlet
|
Cable
|
Solar panel
|
|
Open circuit voltage (VOC)
|
Power
|
|
DCPM6-24-48-550
|
48V
|
60V-90V
|
550W
|
6m³/h
|
24m
|
1"
|
2m
|
<100V
|
≥1.3*PUMP POWER
|
|
DCPM15-14-48-550
|
48V
|
60V-90V
|
550W
|
15m³/h
|
14m
|
1.5"
|
2m
|
<100V
|
≥1.3*PUMP POWER
|
DCPM21-14-72-750
|
72V
|
90V-120V
|
750W
|
21m³/h
|
14m
|
2"
|
2m
|
<150V
|
≥1.3*PUMP POWER
|
DCPM26-15-72-1100
|
72V
|
90V-120V
|
110W
|
26m³/h
|
15m
|
2"
|
2m
|
<150V
|
≥1.3*PUMP POWER
|
DCPM50-17-110-1500
|
110V
|
110V-150V
|
1500W
|
50m³/h
|
17m
|
3"
|
2m
|
<200V
|
≥1.3*PUMP POWER
|
DCPM21-14-72-750-A/D
|
110V-240V
|
80V-400V
|
750W
|
21m³/h
|
14m
|
1"
|
2m
|
<420V
|
≥1.3*PUMP POWER
|
DCPM26-15-72-1100-A/D
|
110V-240V
|
80V-400V
|
1100W
|
26m³/h
|
15m
|
2"
|
2m
|
<420V
|
≥1.3*PUMP POWER
|
DCPM50-17-110-1500-A/D
|
110V-240V
|
80V-400V
|
1500W
|
50m³/h
|
17m
|
2"
|
2m
|
<420V
|
≥1.3*PUMP POWER
|
|
More technical data details please contact GREYSTONE team,thank you!
|
1. A: Can I have sample order for solar water pump?
Q: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. A: Do we need to pay attention to the connection between the controller and the pump of this product?
Q: Yes, of course. The controller must match with the recommended solar pumps. Please do not use the controller for
other pumps. If the pump problem is caused by this reason, we do not bare any responsibility. For the perfect
performance and long-life working, the controller should be kept away from strike, shake, sunshine, salt mist, oil mist and etc.
3. A: What's the warranty?
Q: 2 years.
4. A: Any contact details?
Q: Please contact us by trade manager, Email, Whatsapp or Wechat. Surely call me when you need.
5. A: What are the uses of this solar water pump?
Q: It usually used in Solar Powered Water Pump for House using, and it is solar water pump with battery backup.
