DC Brush Coreless Model Airplane Universal Vibration Motor

The coreless motor has fast speed and small size, can be used as an accessory of quadcopter with propellers, which is suitable for making DIY models such as remote control aircraft.

About this item

• Dimension of the motor is 8 mm(D) x 20 mm(L) / 0.31" (D) x 0.78" (L).

• Shaft Diameter: 1.0 mm / 0.04" | Motor Diameter: 8 mm / 0.31" | Motor Length: 20 mm / 0.78".
• Rated Voltage Range: DC 3.0V  | Speed: 42000 ~ 46000 RPM (the actual speed may be high or low).
• Weight: 4.3 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
• Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.

DC Brushes Micro Motor 8D820

• Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.
• Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

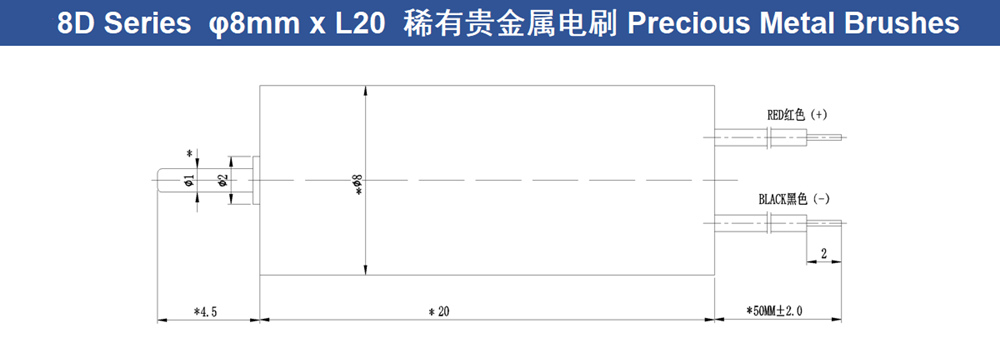

• Dimension with " * " in the drawing can be adjusted according to customer's requirement.

Feature

• Large speed range and large torque;
• Coreless motor, suitable for aeromodelling RC helicopter, micro UAV;
• The motor offers a strong vibration amplitude at 3v with low noise;
• Built to strict quality control standards, high strength and long life service;
• Reliable operation stability, strong self-adaptive ability, and the fluctuation of self-rotating speed can be controlled within 2%.

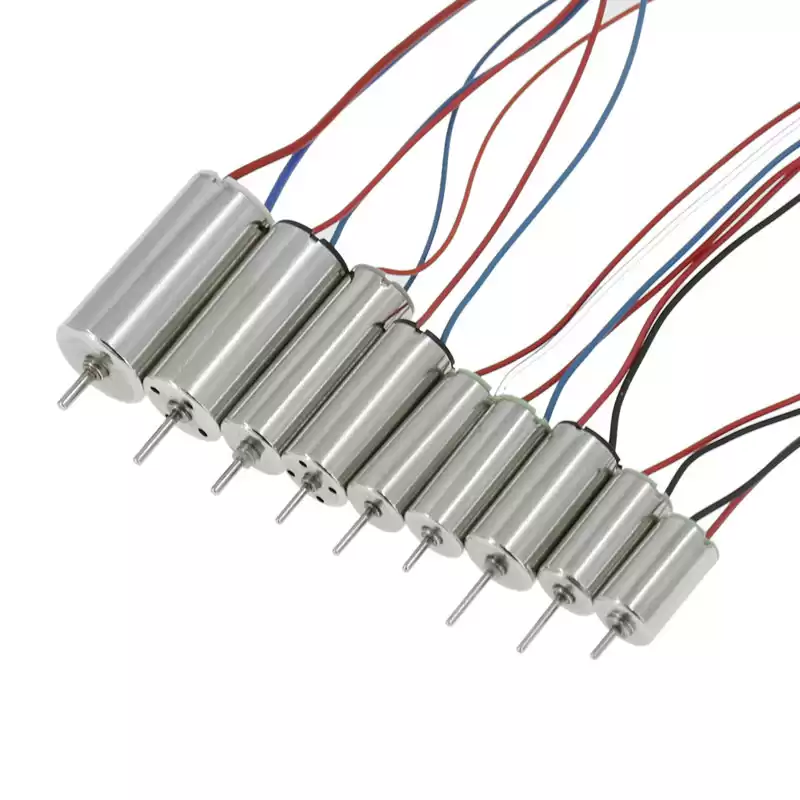

More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Application

High RPM DC Motors or coreless motor used in making flying toys such as RC Plane, RC Helicopter and Drones.The coreless motor is attached to propeller for the generation of thrust.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
