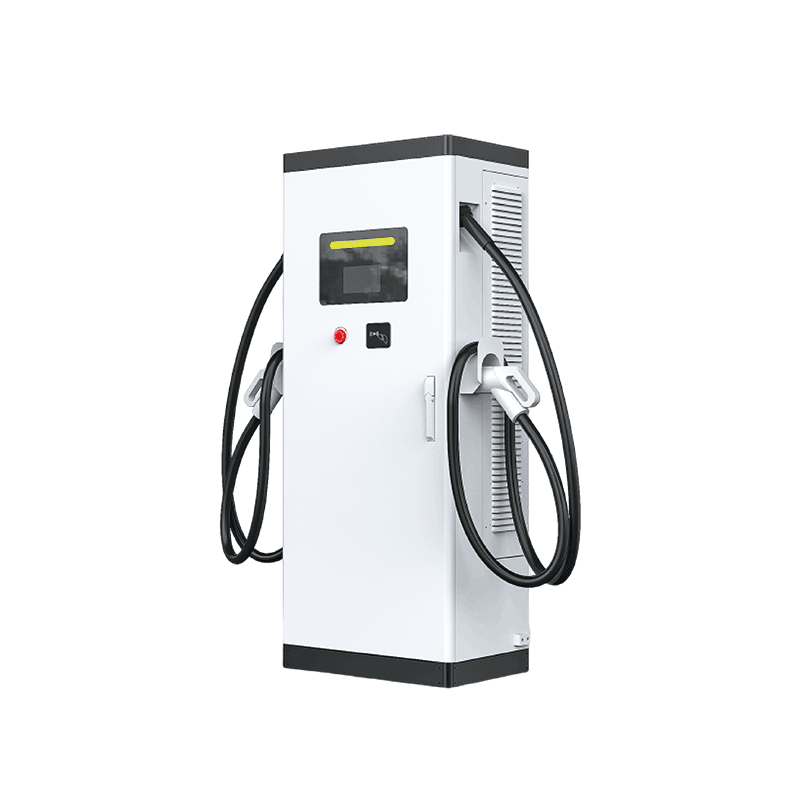

DC Electric Vehicles Charging Station Series

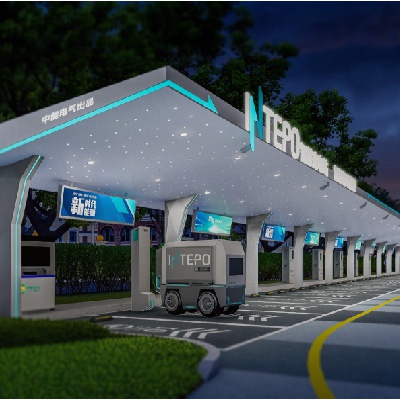

The DC fast charging pile is engineered to deliver rapid power replenishment for electric vehicles, dramatically reducing charging wait times. It offers high power output options ranging from 30 kW to 320 kW, making it ideal for highway service areas, large shopping mall parking lots, and commercial EV charging networks. This system enhances charging efficiency, supports multiple EV models, and promotes the adoption of sustainable transportation.

Facebook Twitter Pinterest LinkedIn 分享

Description

DC EV Charging Station Series Features

Versatile Connectivity
Supports 4G, Ethernet, or Wi-Fi connections.
User-Friendly Display
4.3-inch/7-inch touch screen for easy operation and clear display of charging status with signal lights.
Flexible Payments
Supports QR code and card payments.
Integrated Management
Features a dedicated operation and maintenance backend.
Comprehensive Safety Protections
Includes automatic shut-off, electronic lock, insulation detection, and various protection mechanisms.

Specifications

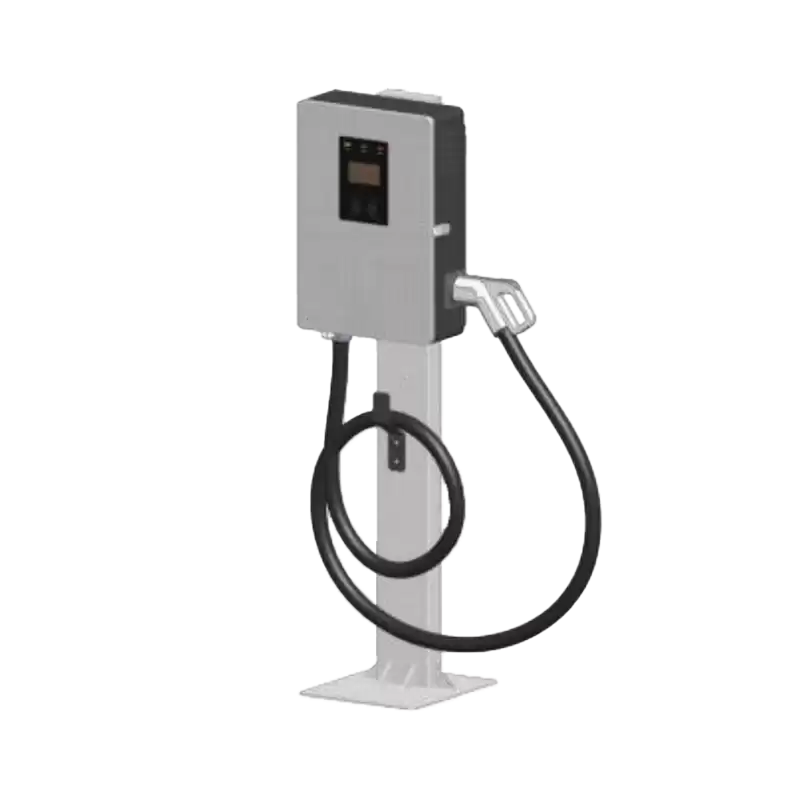

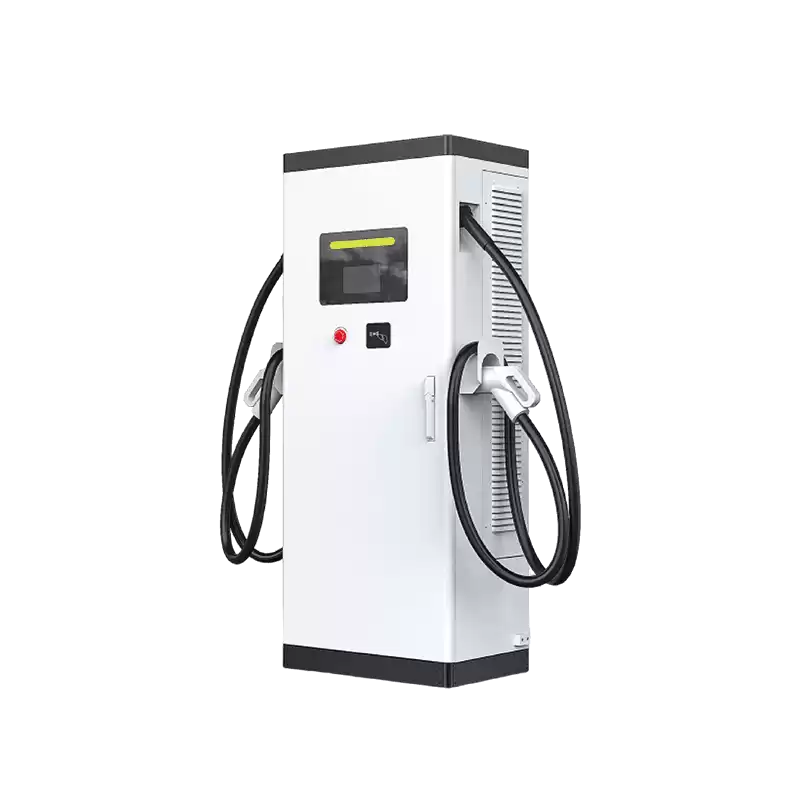

	30kW Wall-Mounted DC Charger	60kW Dual-Gun DC Charger	80kW Dual-Gun DC Charger	120kW Dual-Gun DC Charger	160kW Dual-Gun DC Charger	180kW Dual-Gun DC Charger	240kW Dual-Gun DC Charger	320kW Dual-Gun DC Charger
Rated Input Voltage	380Vac ± 15%	380Vac ± 15%	380Vac ± 15%	380Vac ± 15%	380Vac ± 15%	380Vac ± 15%	380Vac ± 15%	380Vac ± 15%
DC Output Voltage	200~1000V	200~1000V	200~1000V	200~1000V	200~1000V	200~1000V	200~1000V	200~1000V
DC Output Current	230A max	200A max	230A max	200A max	250A max	250A max	250A max	250A max
DC Output Power	30kW max	60kW max	80kW max	120kW max	160kW max	180kW max	240kW max	320kW max
Standby Power	15W	25W	25W	25W	25W	25W	25W	25W
Cabinet Dimensions	660480156mm	8804301700mm	8804301700mm	8804301700mm	8804301700mm	8804301700mm	9006001700mm	9006001700mm
Charging Efficiency	≥ 93%
Voltage Regulation	≤ ±1%
Ripple Factor	≤ ±0.5%
Harmonic THD	≤ ±5%
Operating Temp.	-20°C to 50°C
IP Rating	IP54
Cooling Method	Air-Cooling
