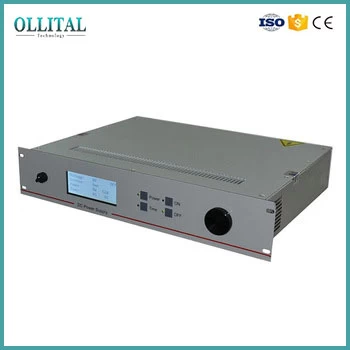

The DC-500-LD power supply is intended primarily for DC magnetron sputtering source. It is compact and over 90% efficient. And have low stored energy at the outlet. Special integrated circuitry enables arc suppression for arc-sensitive applications and arc control for sustained arc applications. Front panel controls switch regulation between constant power, current, or voltage while permitting the power to be ramped to the set point.
|
Input
|
AC220V +/-10% or AC120V+/-10% selectable
|
|
Output
|
Max. Output Power: 500W
|
|
Max. Output Voltage: DC600V
|
|
Voltage Resolution: DC 1.0V
|
|
Max. Output current: DC 0.8A
|
|
Current resolution: 1mA
|
|
Control Accuracy: +1%
|
|
Dimension
|
Case: W440mm X H85mm X D403mm
|
|
Front Face: W440mm X H85mm
|
|
Optional Accessories
|
You may order 2" High Vacuum Magnetron Sputter Source For
DIY RF & DC Sputtering Coater together with DC power supply
for immediate use
|
|
High Vacuum Quick Disconnect is included when you order
500W DC Sputtering power supply together with the
2" sputtering source.
|
|
High Vacuum Quick Disconnect with 0.75" ID (compatible
with HVMSS-SPC-2). Use this component to install the
HVMSS-SPC-2 sputtering tool onto the baseplate
(up to 1β thick) of a vacuum chamber with 1β diameter
through-hole
|
|
Warranty
|
One year limited with lifetime support
|
