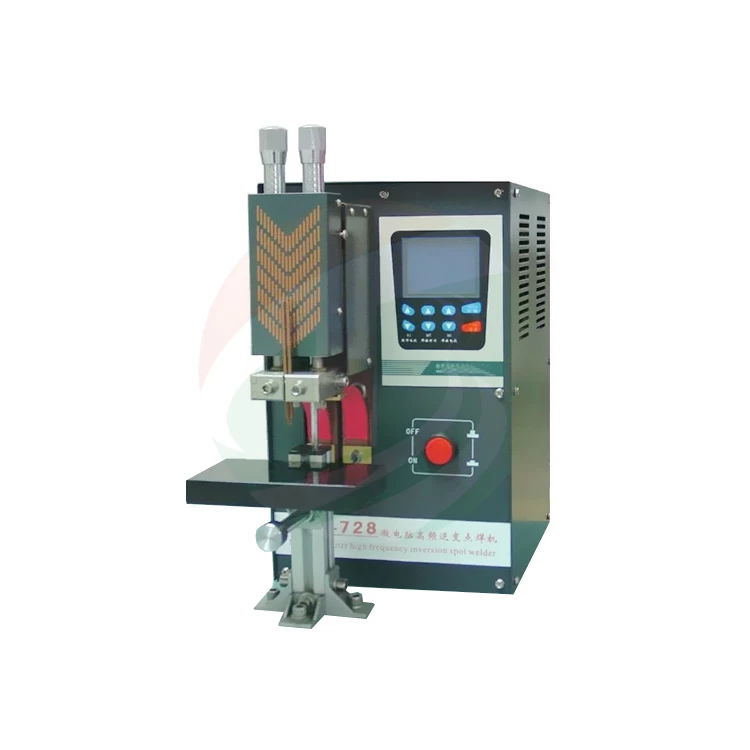

Double Point DC Spot Welding Machine for Mobile Phone Battery And 18650 EV Battery Pack
SPECIFICATIONS
1 TOB-W728 DC spot welding machine has two kinds type to choose, pneumatic spot welding machine with smaller shipping weight and volume, but need to connect air compressor. Foot spot welding machine without air supply but need with desk shipping together.
2 This DC double needle spot welding machine is specifically designed for professional Li-on Battery Research. It is mainly used for Welding pcb for mobile phone battery pack and EV battery pack for battery and Nickle tab weld.
|
Model
|
DC spot welding machine TOB-W728
|
|
Power Supply
|
110V-240V with transformer, Single Phase 50/60Hz
|
|
Max output power
|
10KVA
|
|
Warranty
|
One year limited with lifetime support
|
|
Advantages
|
1 Double pulse welding - pre welding and welding
2 Microcomputer control precision, Guarantee the evenness of each welding effect
3 Automatic count
|
|
Pre-welding current
|
0-99A
|
|
Welding time
|
0-30S
|
|
Welding current
|
0-99A
|
|
Welding stroke
|
25mm, the welding height can be adjusted
|
|
Operating
|
Foot switch and pneumatic model can be chosen
|
|
Control
|
The microcomputer chip control, LCD liquid crystal display, simple and precision
|
|
Welding thickness
|
0.03-0.5 mm Ni weld on Ni or metals
|
|
Weight
|
50kg
|
|
Dimension(L*W*H)
|
Foot switch model with desk : 800*580*1100mm
Pneumatic model : 400*370*220mm
|
PRODUCT DISPLAY
EV Battery pack use the DC spot welding machine from customers
