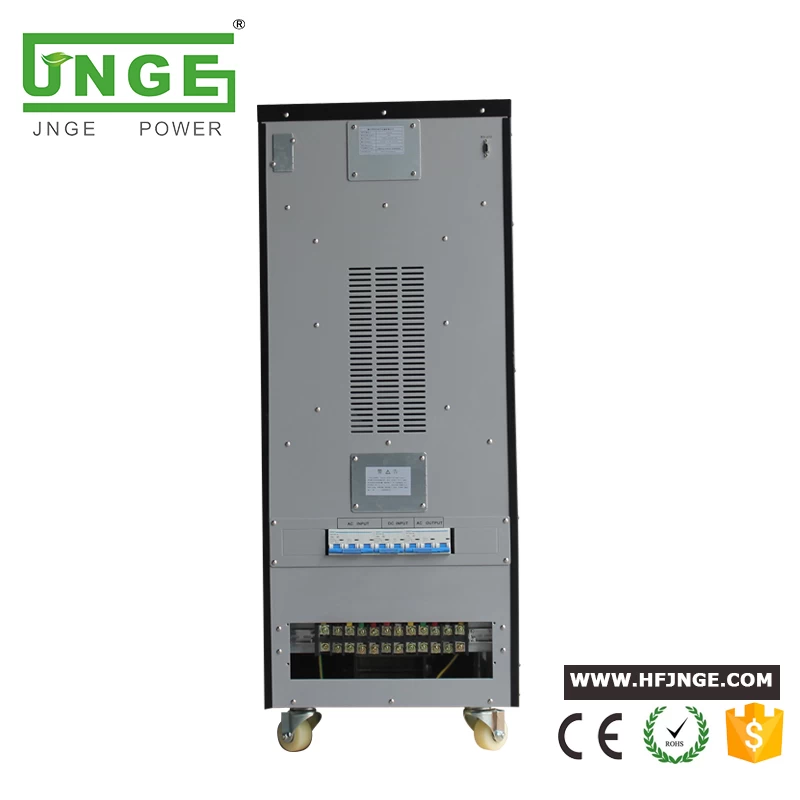

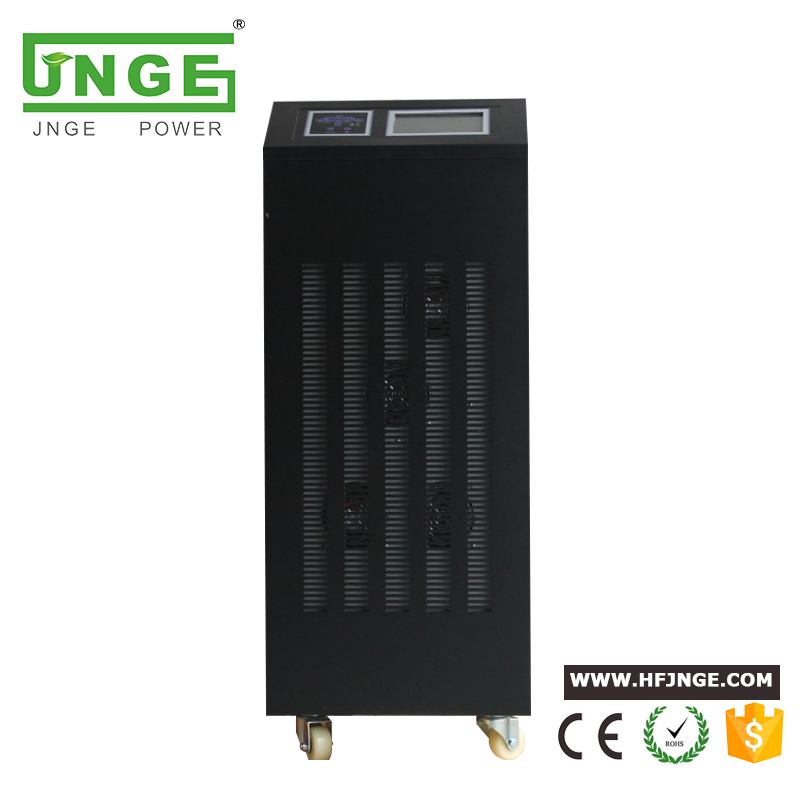

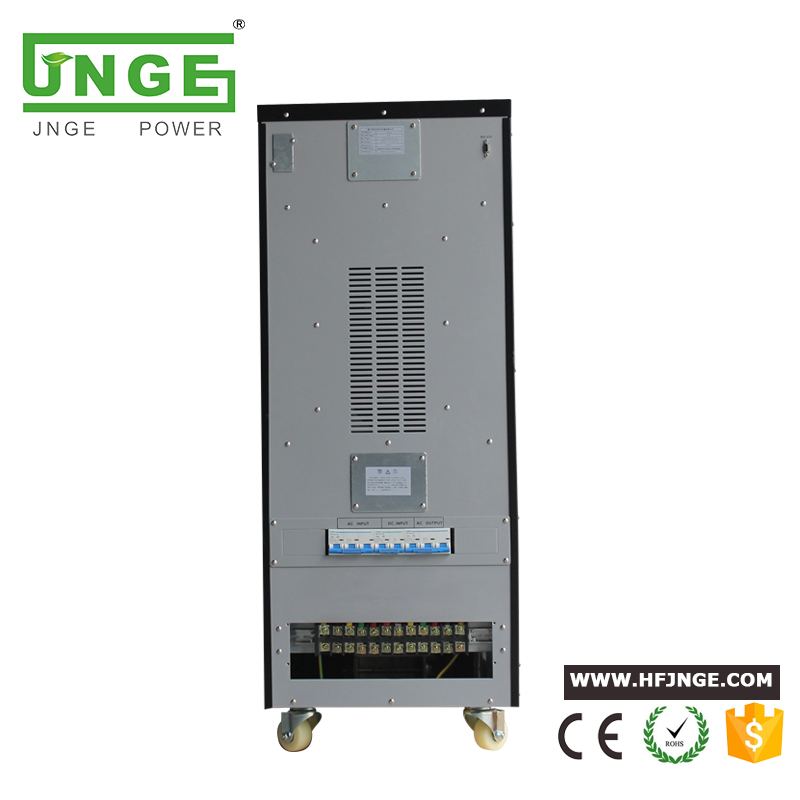

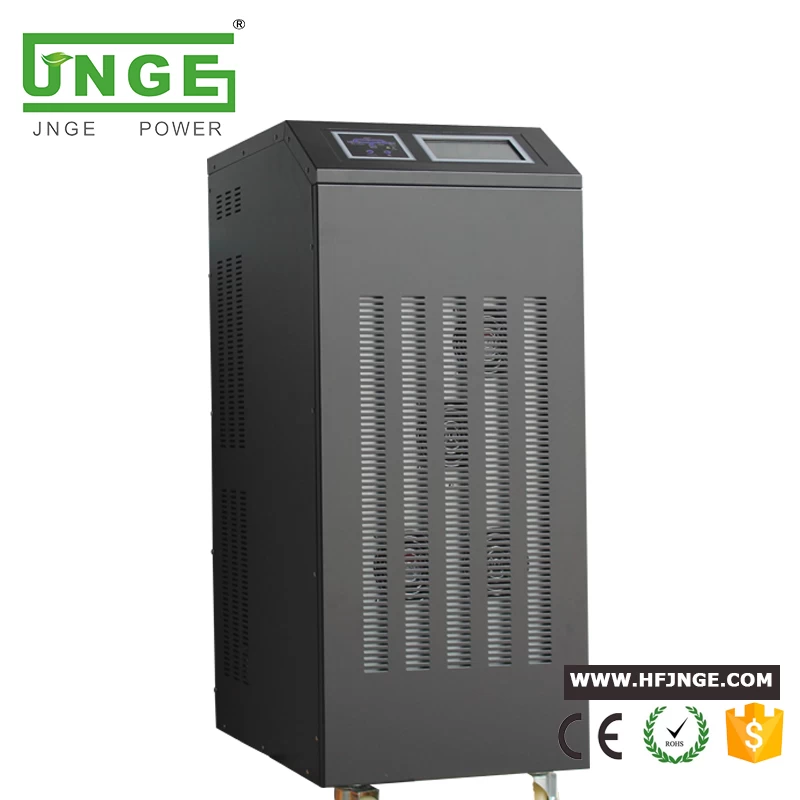

AC frequency inverter converter 50hz 60hz 380vdc to 380vac 8kw to 160kw three phase inverter
Features:
1.Three-phase frequency inverters are highly integrated digital technology to improve MTBF and reliability, DSP high-speed microprocessor control ensure more stable and reliable operation of equipment.
2.Strong information collection , signal processing ,detection and improve the protection system
3.One touch screen make the more easy setting then normal LCD.
4.Real-time clock and a memory, can record 256 event records and other setting information.
Specification:
|
Mode
|
CPN08
|
CPN10
|
CPN15
|
CPN25
|
CPN30
|
CPN40
|
CPN50
|
CPN65
|
CPN80
|
CPN100
|
CPN120
|
CPN160
|
|
Rated power
|
8kw
|
10kw
|
15kw
|
25kw
|
30kw
|
40kw
|
50kw
|
65kw
|
80kw
|
100kw
|
120kw
|
160kw
|
|
Battery Voltage
|
384VDC
|
|
Phase
|
Three-phase+N+G
|
|
Nominal voltage
|
380VAC±1%（Steady state load），380VAC±3%（Load fluctuation）
|
|
Input Frequency rage
|
50Hz±0.1Hz
|
|
Current peak ratio
|
3：1 MAX
|
|
Output waveform
|
Pure sine wave
|
|
Total harmonic distortion
|
Linear load < 3%; nonlinear load < 5%
|
|
Transient load voltage transients (from 0 to 100%)
|
＜±5%
|
|
Instant recovery time
|
＜10ms
|
|
Balance load voltage
|
＜±1%；＜±5%（Unbalanced load voltage）
|
|
Overload capacity
|
100%~110%:30s;110%~130%:10s;>130%:1s
|
|
Inverter efficiency
|
>89%
|
|
communication interface
|
RS232，（485、RemoteControl,Options）
|
|
Operating temperature
|
0～40℃
|
|
Relative humidity
(non condensing)
|
30%～90%
|
|
Operating altitude
（maximum）
|
＜1000Meters（every increased 1000Meters decrease power1%，highest5000Meters）
|
|
cooling method
|
Forced air cooling
|
|
NoisedB（Depending on load and temperature）Distance to machine1M
|
≤58dB
|
|
* the above data for reference, if there is a change in kind prevail.
|
