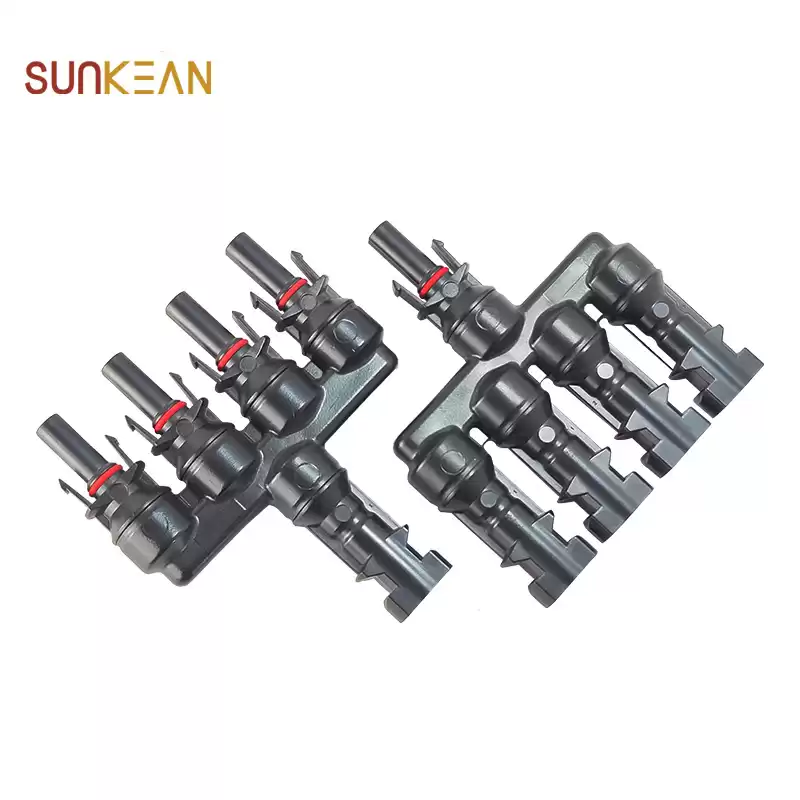

DC1500V 4in1 PV4.0 Branch Connector

TUV approved DC1500V 4in1 branch connector, can be used to connect solar panels in parallel or series


  • Rated Current35A
  • Rated Voltage1500VDC

DC1500V 4in1 PV4.0 Branch Connector

*TUV approved branch connector

*Compatible with MC4 connector

*Low contact resistance

*IP68 protection class

*Easy to install

*Stable connection & low maintenance cost

*Suitable for outdoor harsh environment

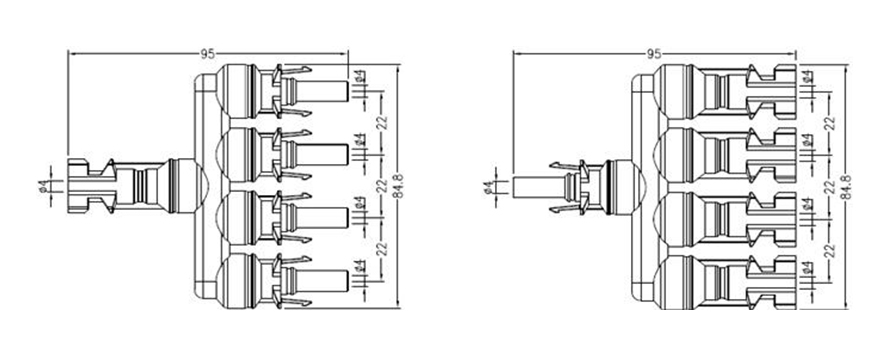

Solar branch connector 1500VDC 4in1:

T4 Branch Solar PV connector

Insulation material
PPE
Safety degree
II
Rated current
35A
Flame class
UL94-V0
Rated lmpulse voltage
12KV
Installation type
(F1)Outdoor,UV resistant(F1)
Rated voltage
1500VDC
Ambient temperature range
-40℃...+85℃(IEC)
Test voltage
8kV(50Hz,1min)
Upper limiting temperature
110℃(IEC)
Contact resistance
<0.35mΏ
Overvoltage category/Pollution degree
CATІІІ/2
Contact material
Copper,Tin plated
Rated lmpulse voltage
16kV
Degree of protection
IP68
Regulatory approval
TUV/CE(IEC62852:2014)


Packing & Delivery:

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Solar Panel Power Connectors


Application Scenario:


Global Exhibitions:


Company Profile:

SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules, solar cables, solar extension cables , solar panel for domestic use, Solar Panel Branch Connector, inverters etc solar products .

SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.


FAQ:

Q: How could i get the sample ?

A: We have different kinds of Solar PV connector,Solar Panel Wire Connectors,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.

Q: How long is the delivery time?

A1)For Sample: 1-3 Days;

A2)For small Orders: 3-10 Days;

A3)For mass Orders:15-20 Days;

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.


If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
