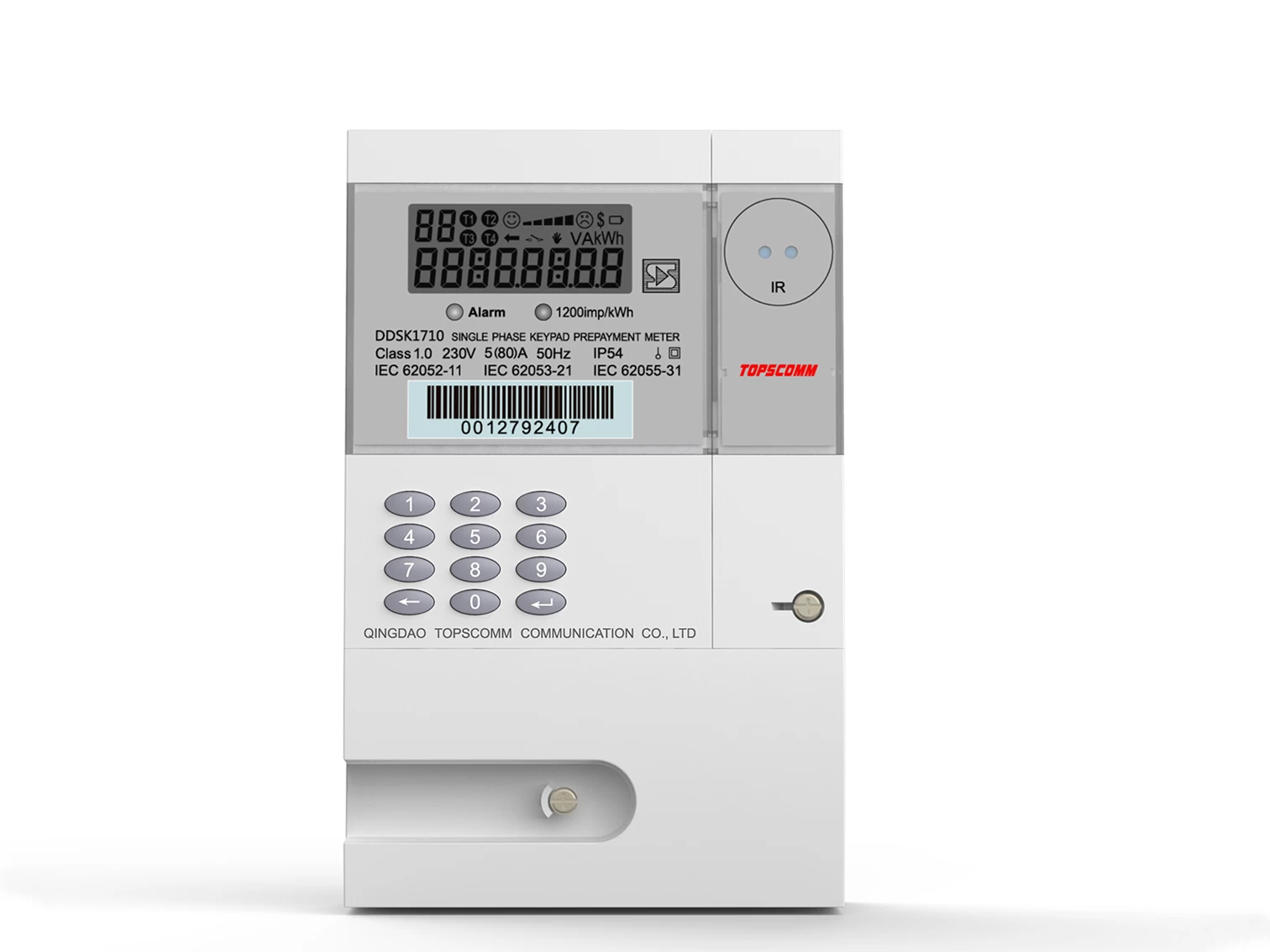

DDSK1710 Single Phase STS Keypad Prepayment Energy Meter

DDSK1710 is a multi-function single phase STS keypad prepayment energy meter, it uses Token as the data transfer medium, finally realized energy purchasing, loading and management purposes. This STS keypad prepaid meter has been widely used in commercial, industrial and residential metering applications.

Facebook Twitter Pinterest LinkedIn 分享

DDSK1710 Single Phase STS Keypad Prepayment Energy Meter is switchable between prepaid and post-paid mode as per the utility's actual need. It is easily expandable to split type together with a Customer Interface Unit (CIU) through PLC/RF or wired cable communication. The meter is also capable to be utilized in AMR/AMI smart metering system with hot-plug communication modules (GPRS/3G/4G/RF/PLC) .


Standards IEC 62052-11, IEC 62053-21, IEC 62055-31, IEC 62056-21
Accuracy
 Class 1.0
Rated Voltage
 220/230/240V
Operating Range
 70%-120%Un
Current
    Basic Current
 5A,10A
    Maximum Current
 60A, 80A, 100A
    Starting Current
 0.4%Ib
Frequency
 50 Hz or 60Hz
Power Consumption
    Voltage Circuit
 ≤1.5W,  10VA
    Current Circuit
 ≤1VA
Display
 LCD 7+0/6+2/7+1( Optional)
Communication
 GPRS/3G/4G/RF/PLC, Infrared, RS 485 etc.
Communication Protocol
 DLT/645, DLMS/COSEM
Protection Degree
 IP54
Operating Temperature
 -25℃-70℃
Humidity
 ＜95%
