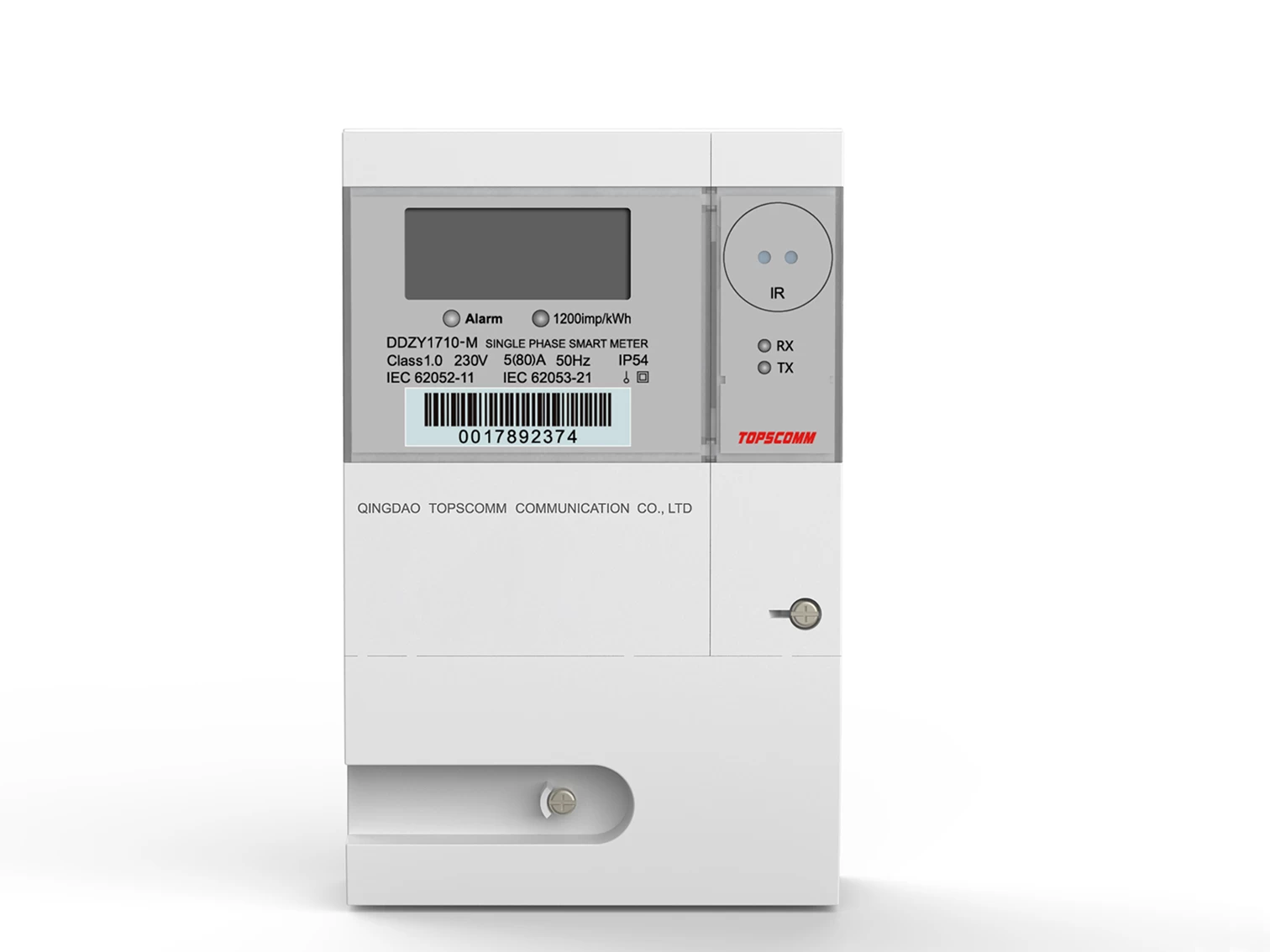

DDZY1710-M Single Phase AMI Smart Energy Meter
DDZY1710-M multi-function electric smart AMI energy meter is featured with characters of high accuracy and stability. It is equipped with replaceable communication modules (3G//4G/GPRS/RF/PLC ), is the core measuring instrument in the smart AMR/AMI metering system.
DDZY1710-M Single Phase AMI Smart Energy Meter complies with DLMS/COSEM open standard communication protocol, is easily compatible with the utilities' currently used systems and energy meters, has been widely used in AMR/AMI smart metering management system.
| Standards |
IEC 62052-11, IEC 62053-21, IEC62053-23, IEC 62056-21 |
|
Accuracy |
Active:Class 1.0 Reactive: Class 2.0 |
|
Rated Voltage |
220/230/240V |
|
Operating Range |
70%-120%Un |
|
Current |
|
|
Basic Current |
5A,10A |
|
Maximum Current |
60A, 80A, 100A |
|
Starting Current |
0.4%Ib |
|
Frequency |
50 Hz or 60Hz |
|
Power Consumption |
|
|
Voltage Circuit |
≤1.5W, 10VA |
|
Current Circuit |
≤1VA |
|
Display |
LCD 7+0/6+2/7+1( Optional) |
|
Communication |
GPRS/3G/4G/RF/PLC, Infrared, RS 485 etc. |
|
Communication Protocol |
DLT/645, DLMS/COSEM etc. |
|
Protection Degree |
IP54 |
|
Operating Temperature |
-25℃-70℃ |
|
Humidity |
＜95% |
