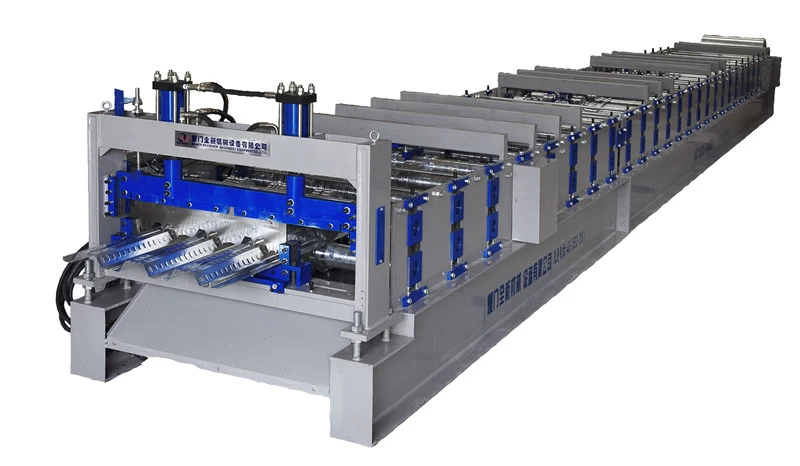

Decking Floor Roll Forming Machine

The metal deck produced by decking forming machine has high strength with big wave length. It adheres well to concrete. It widely used on high building which not only save your steel mold plate, but also reduce the weight of storey.



Product Description:
1. This machine is easy to manipulate with minimal start-up time
2. It is specially designed to provide superior fastening strength between steel plate and concrete
3. The closed deck sheet is thicker than the ordinary ones, which allows them to be more resistant to harsh conditions
4. Since plates are wholly covered by concrete, they are very resistant to fire


The main technical parameters are just for your reference.

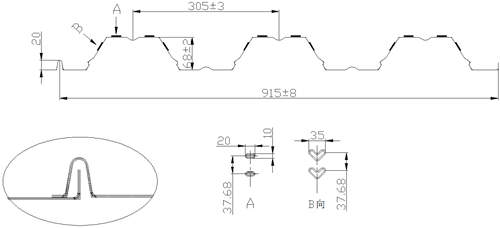

Profile drawing


Main Technical Parameters:

Technical Parameter

Description

Material Thickness

0.8-1.5mm

Material Width

1219mm

Effective Width

915mm

Forming Station

26steps

Motor power

37KW

Weight

17000KG



Machine Parts

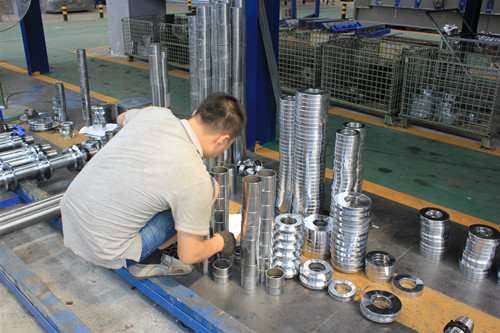

1. Floor decking machine rollers

Every machine has feeding material guide,

Machine body is made by H450 type steel by welding;

Our machine rollers are made from 45# steel with CNC lathes,hard Chrome Coated

Shafts Diameter=ф95mm,precision machined

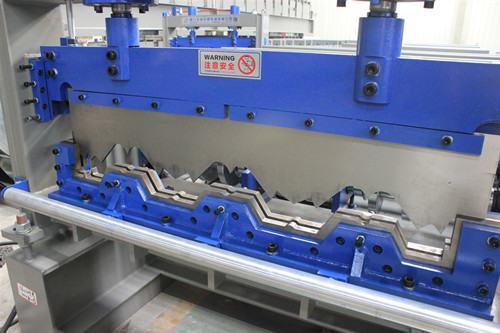

2. Floor decking machine post cutter

Hydraulic pressure range: 0-16Mpa
Hydraulic Motor:4.0KW
Cutting tool material: Cr12, Heat treatment

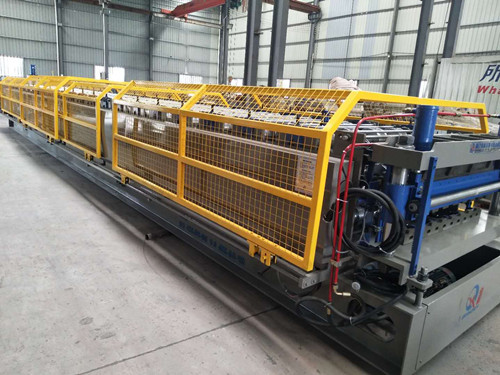

3.Floor decking machine protection cover ( For your option)

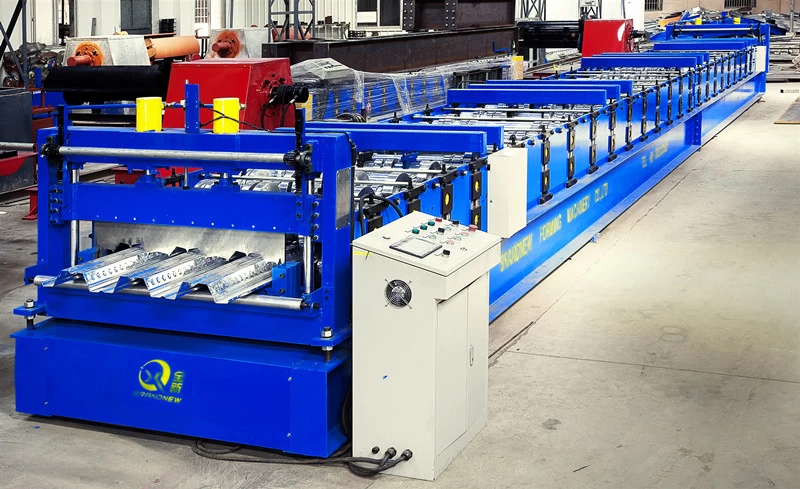

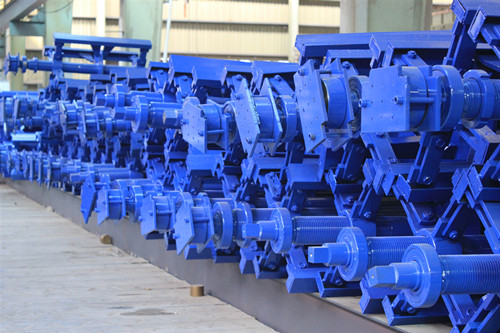

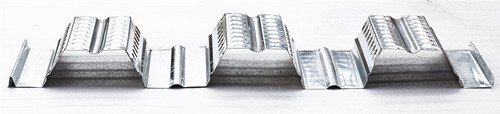

4. Product show

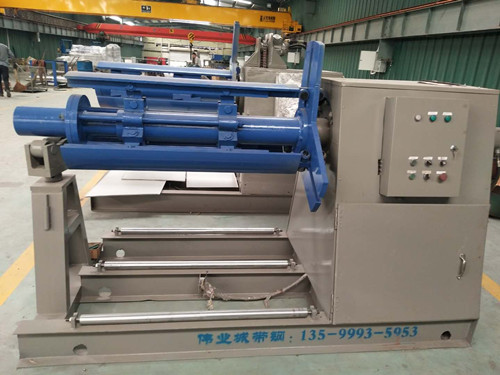

5. Uncoiler


With hydraulic uncoiler for option
