Product Name

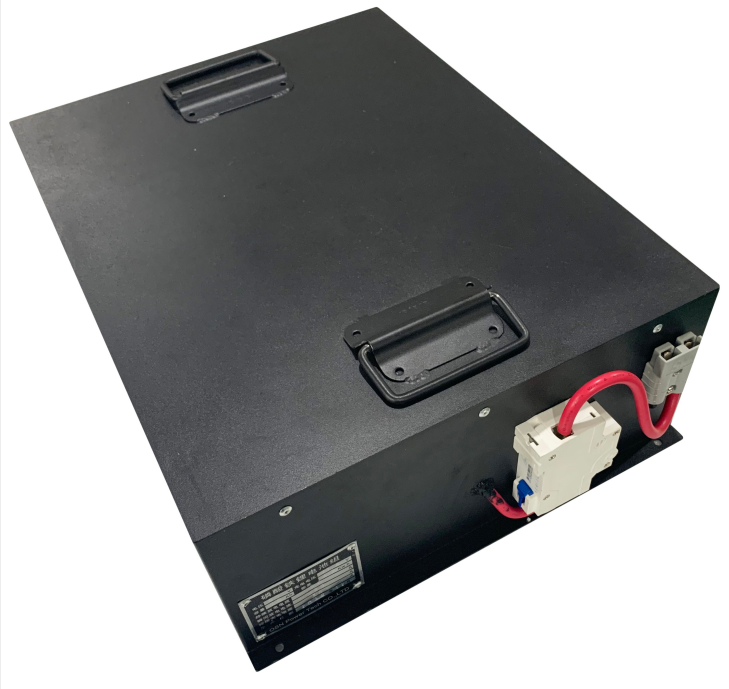

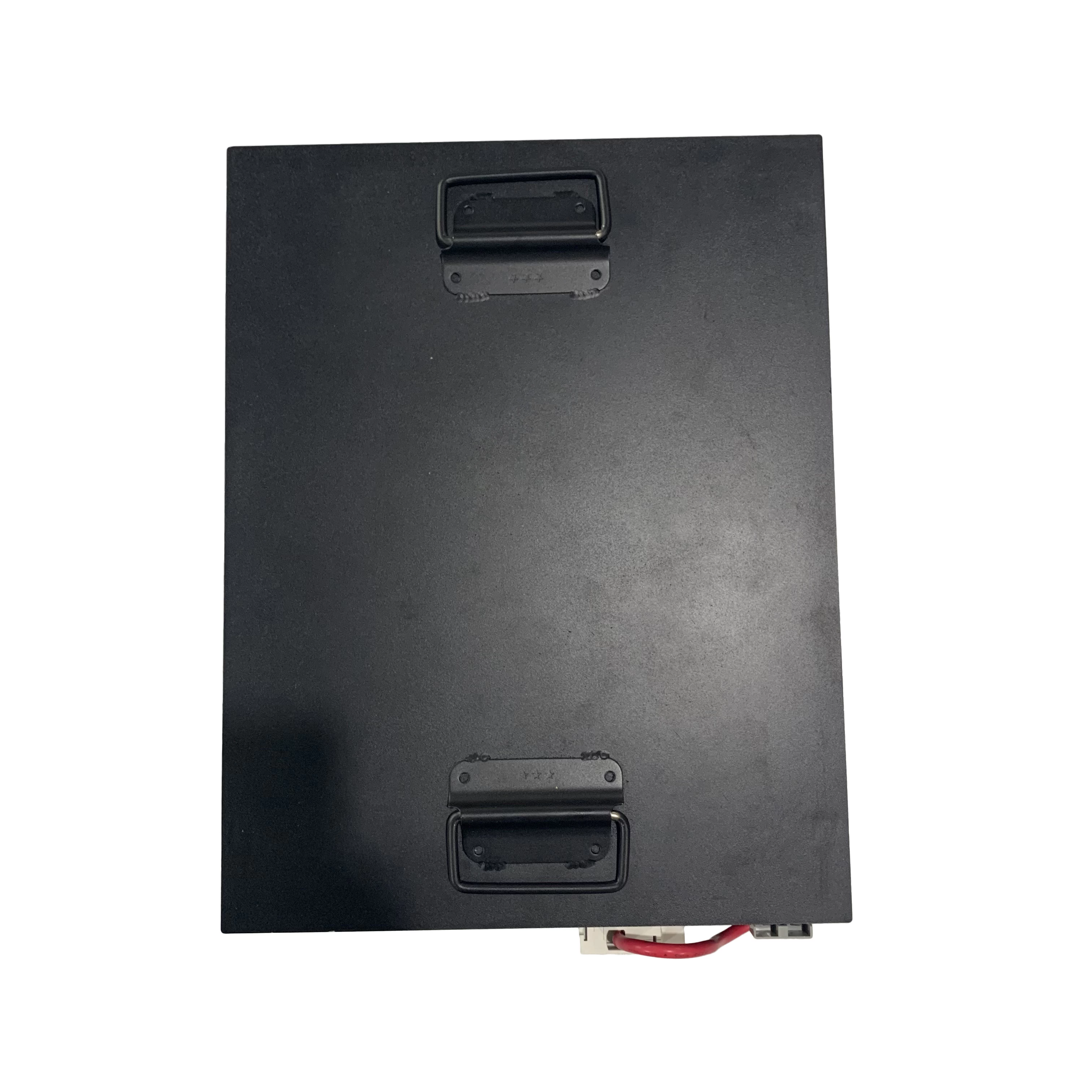

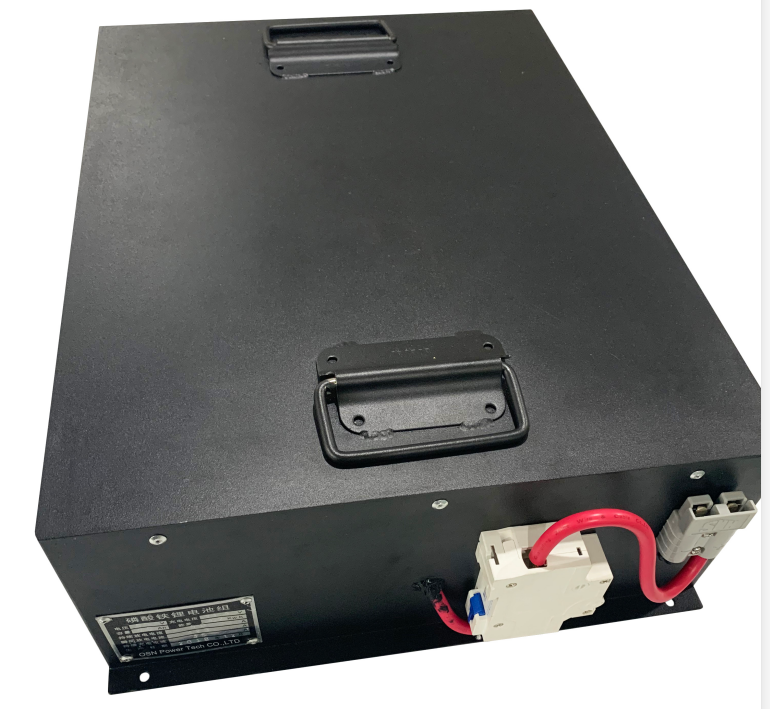

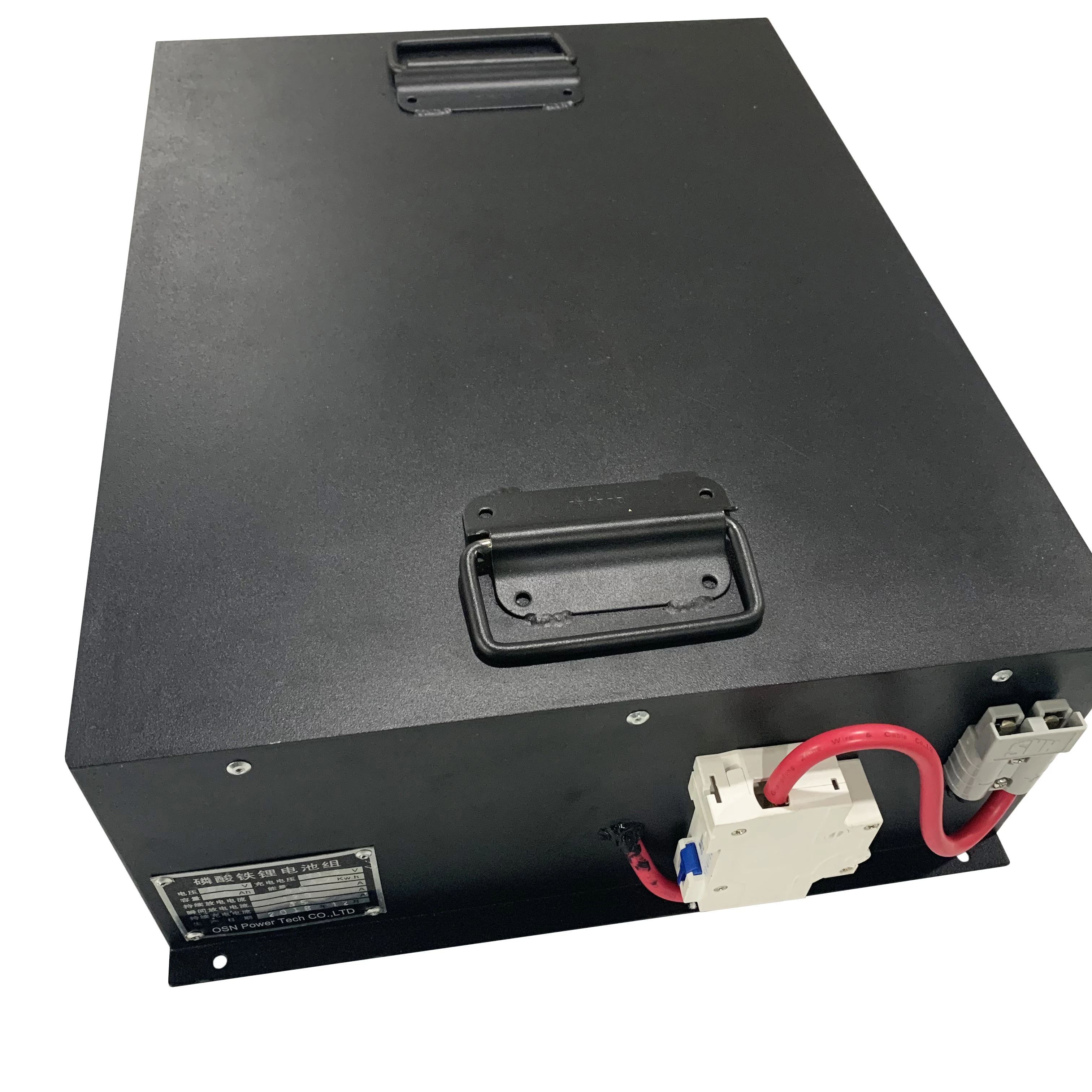

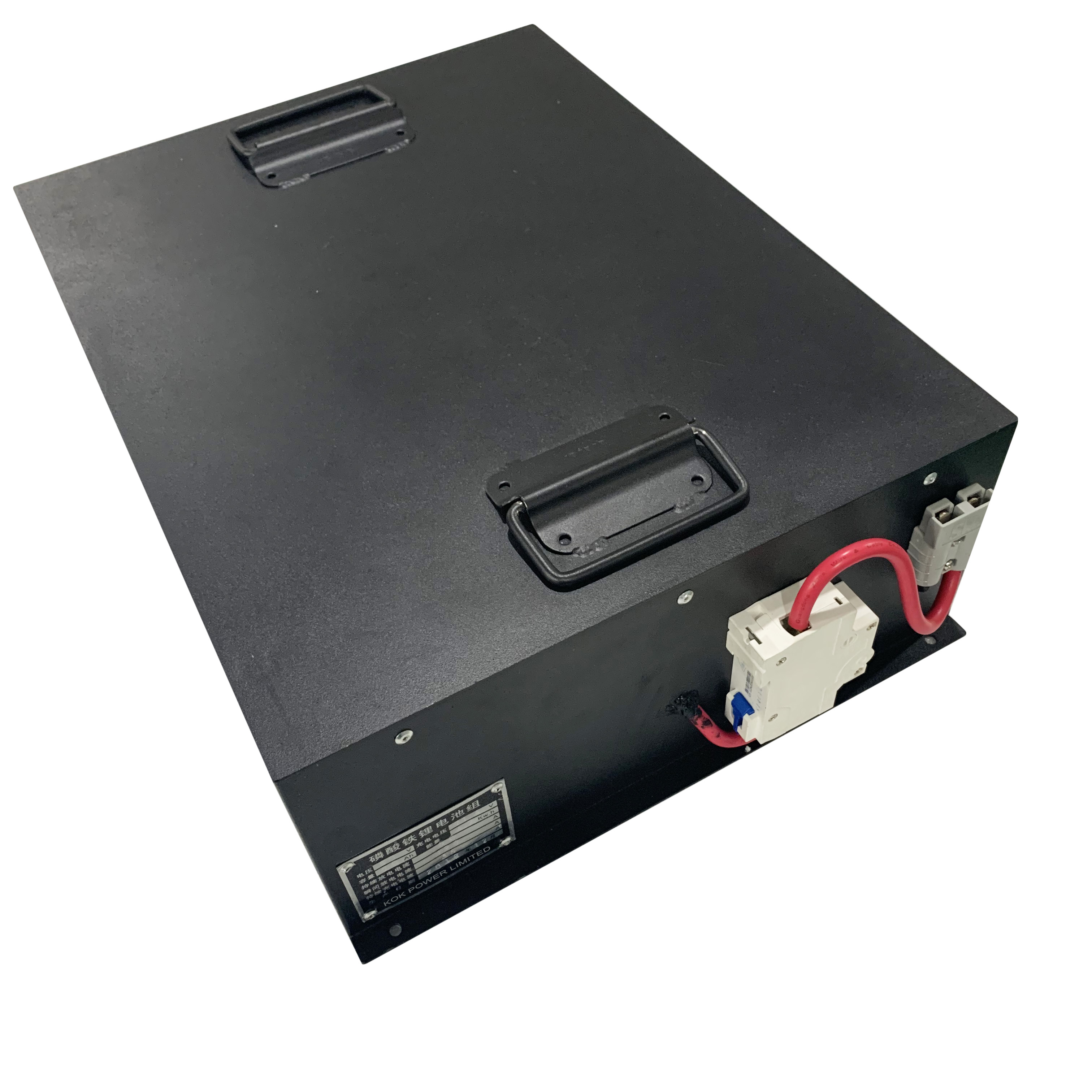

Deep Cycle 12 Volt 400Ah lithium Battery Pack
Highlights
-
High power / excellent abuse tolerance
-
Super Safety with built-in integrated BMS
-
High energy efficiency: the yield is more than 95%
-
LCD/Monitor/Bluetooth functions are optional
-

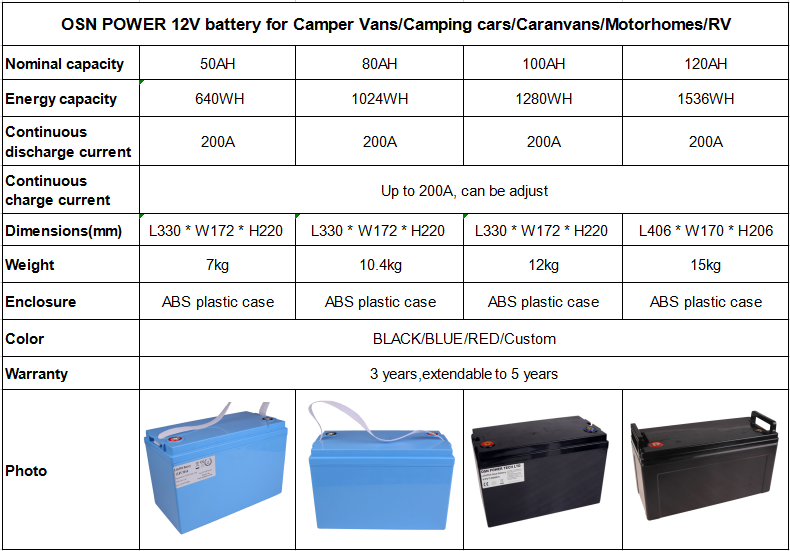

12V 50AH/80AH/100AH/120AH/200AH/300AH/400AH are optional
-
Super long life: 2500 cycles at 100% DOD,5000 cycles at 80% DOD
-
3 years warranty,extendable to 5 years
Datasheet
|
MODEL
|
OSN-4S4-L12400
|
|
PERFORMANCE
|
|
Rated Capacity
|
400 Ah
|
|
Nominal Voltage
|
12.8 V
|
|
Discharge Ending Voltage
|
8 V
|
|
Charging Limited Voltage
|
14.6 V
|
|
Max. Charging Current
|
200.0 A
|
|
Max. Continuous Discharging Current
|
200.0 A
|
|
Serial Connection
|
up to 4 units in series
|
|
Parallel Connection
|
up to 4 units in series
|
|
Containing Cell
|
3.2V 100AH
|
|
Design Life
|
More than 10 years
|
|
Cycle Life
|
5000 cycles @80% DOD (dependant on actual DOD, usage & temp.)
|
|
MECHANICAL SPECIFICATIONS
|
|
Dimensions (W*D*H)
|
L430*W380*H180mm
|
|
Weight
|
45±2kg (approx.)
|
|
Enclosure
|
Steel Stainless Case
|
|
Power terminal
|
Anderson Connector
|
|
OTHER
|
|
Operating Temperature
|
Charging: 0 to +45°C / Discharging: -20 to +60°C
|
|
Storage Temperature
|
-20 to +60°C
|
|
Warranty
|
5 years
|
More Features
-
OSN Power 12V camping car batteries are designed to drop-in replacement of lead acid batteries.
-
Compares to yield of 70% from old VRLA,AGM lead acid batteries, Our new technology LiFePO4 12V 100AH camping car battery deliver yield of more than 95%.
-
Built-in BMS with latest development makes sure best battery power performance and safe.
-
Tolerable connecting in series and parallel ,easy installation supports customers to get higher voltage and bigger capacity. Max up to 4 12V units in series(48V).
-
OSN Power offers a 3 years warranty,extendable to 5 years
Related Products
We are developing SMART BMS for 12V batteries ,any interest,
Please contact us at service@osnpower.com or +86-18575517952 for most suitable 12V battery solution for your Camper Vans or motorhomes applications.
