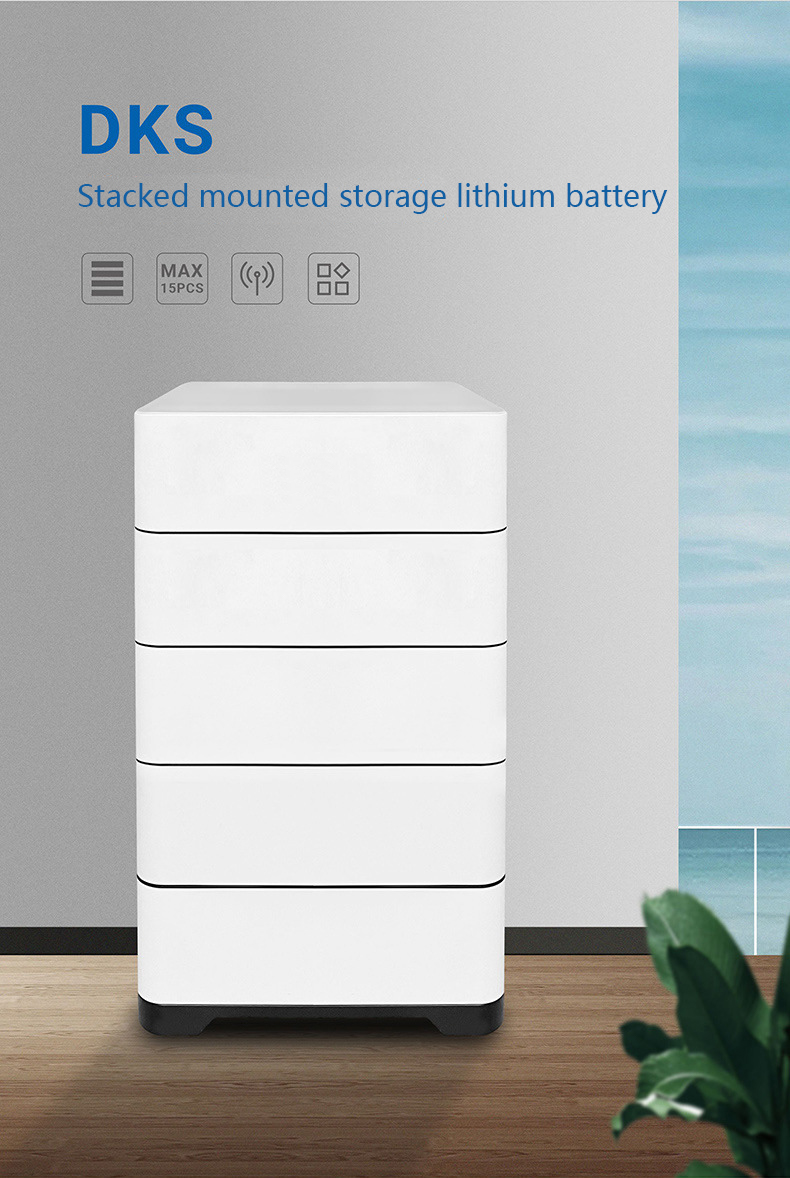

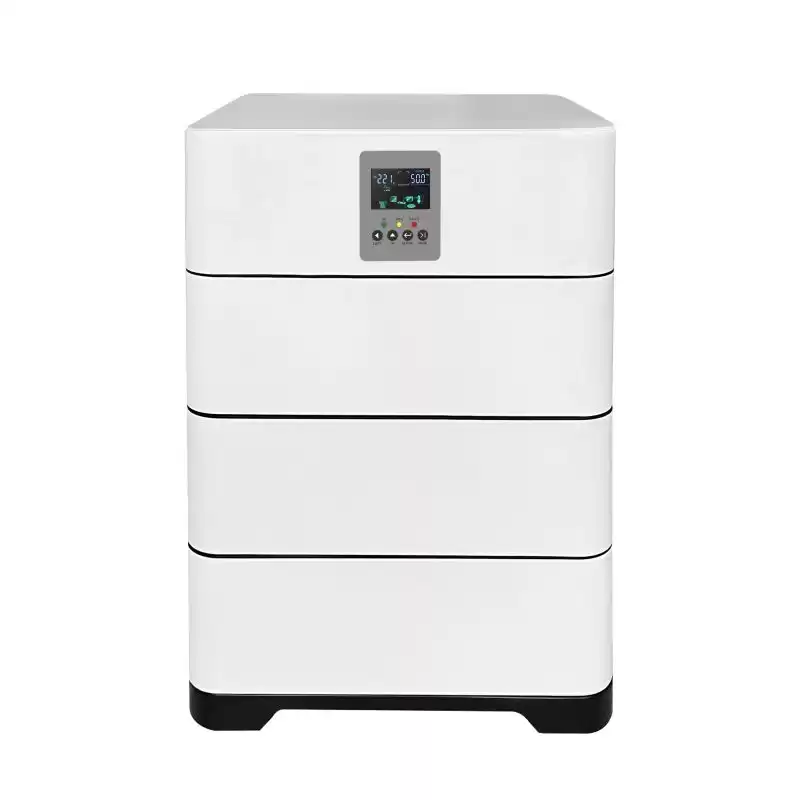

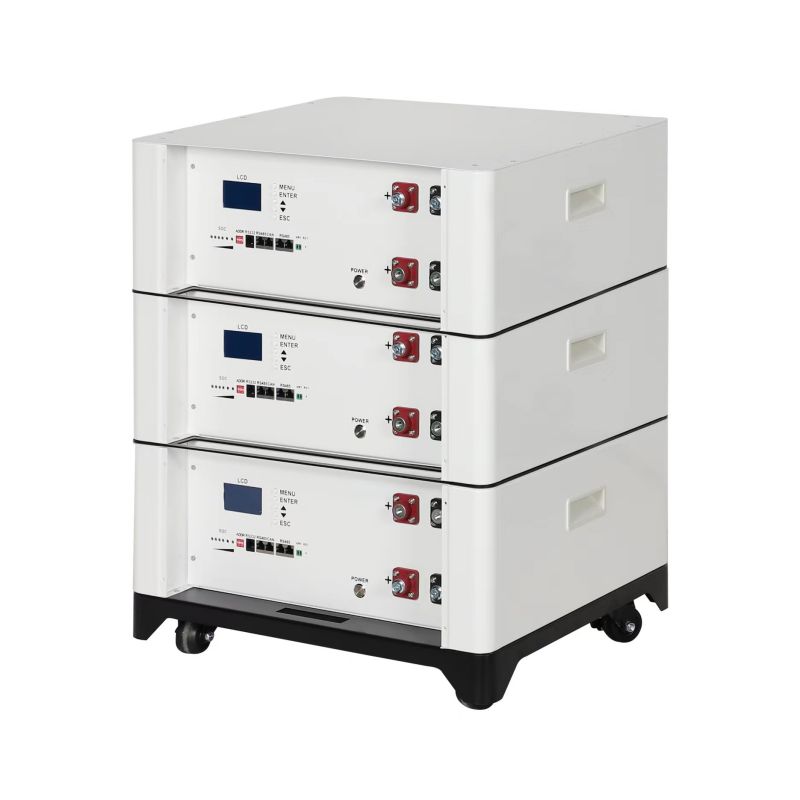

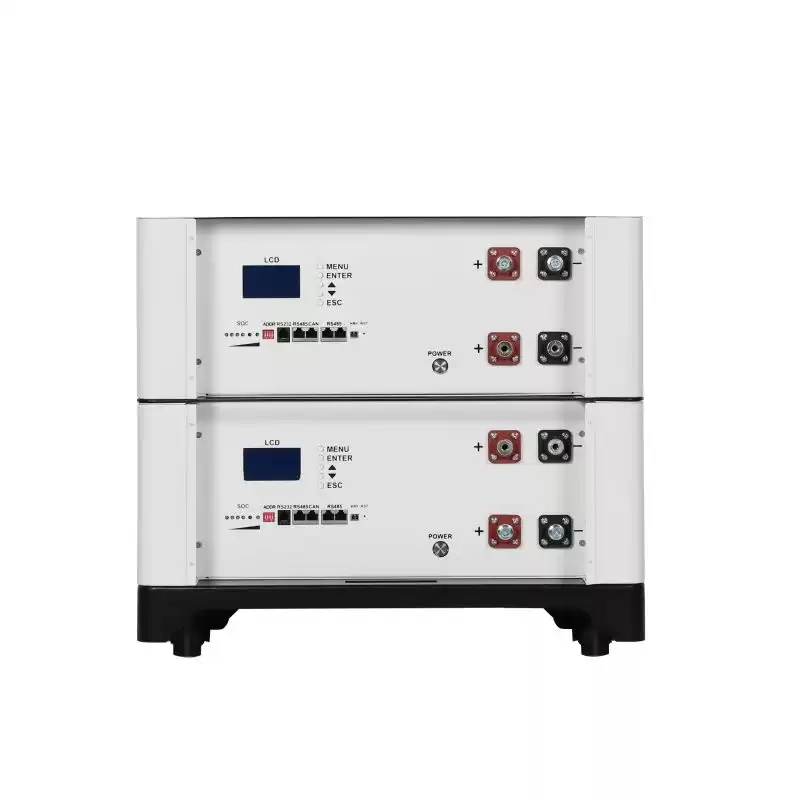

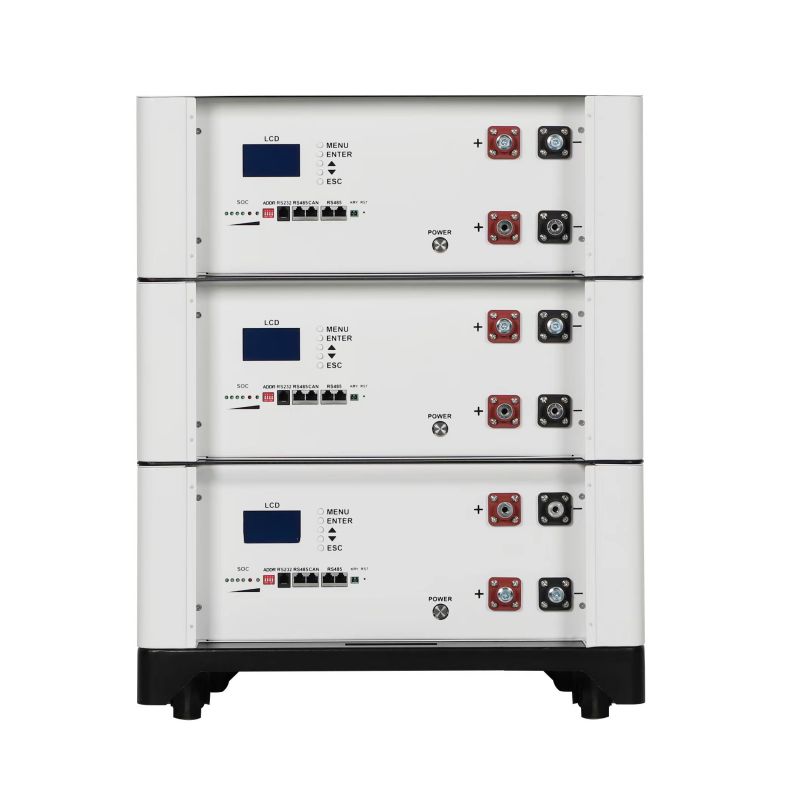

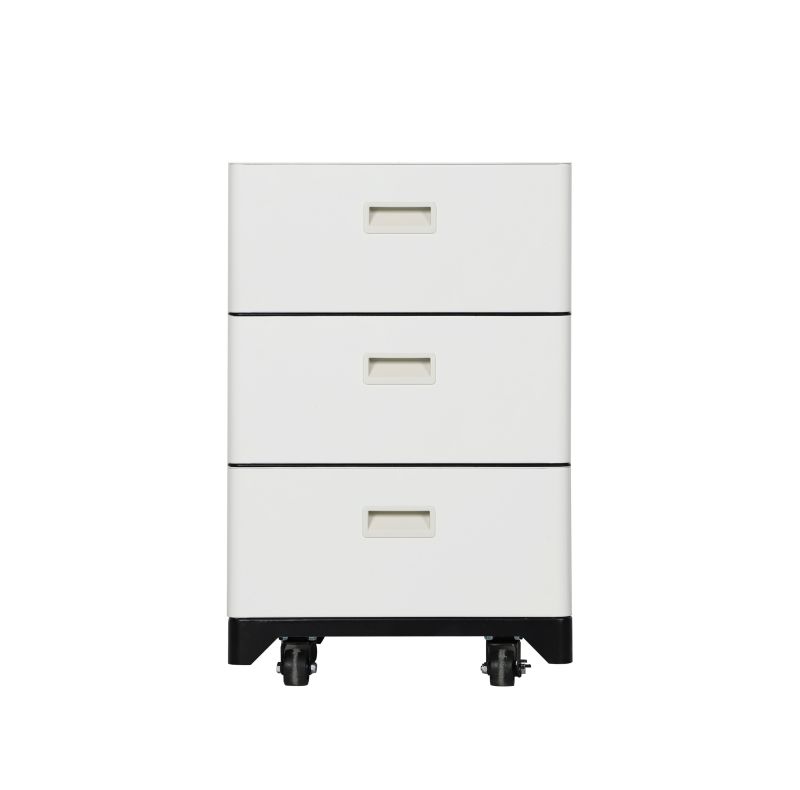

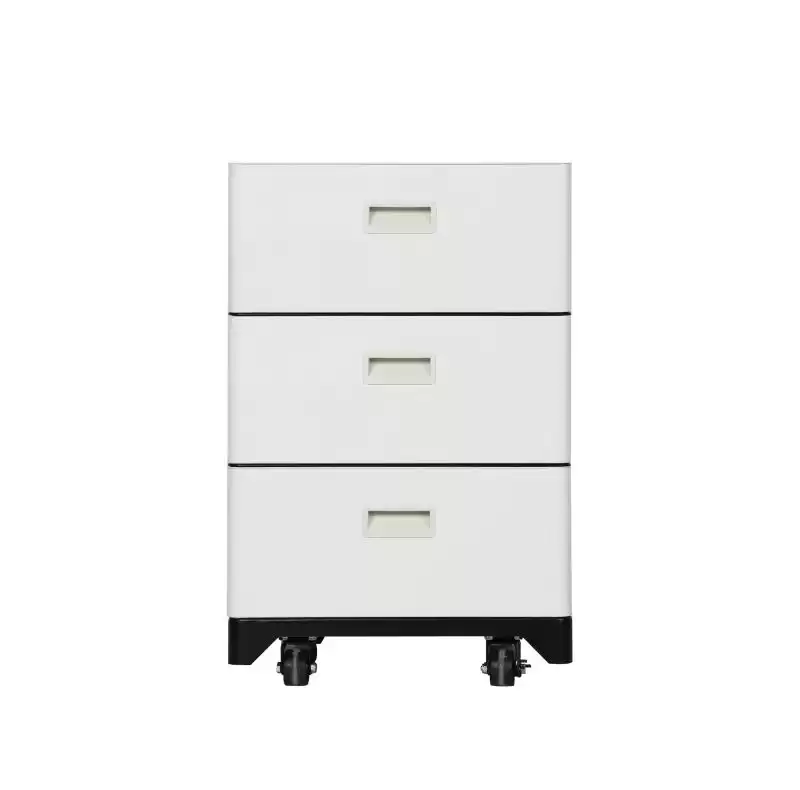

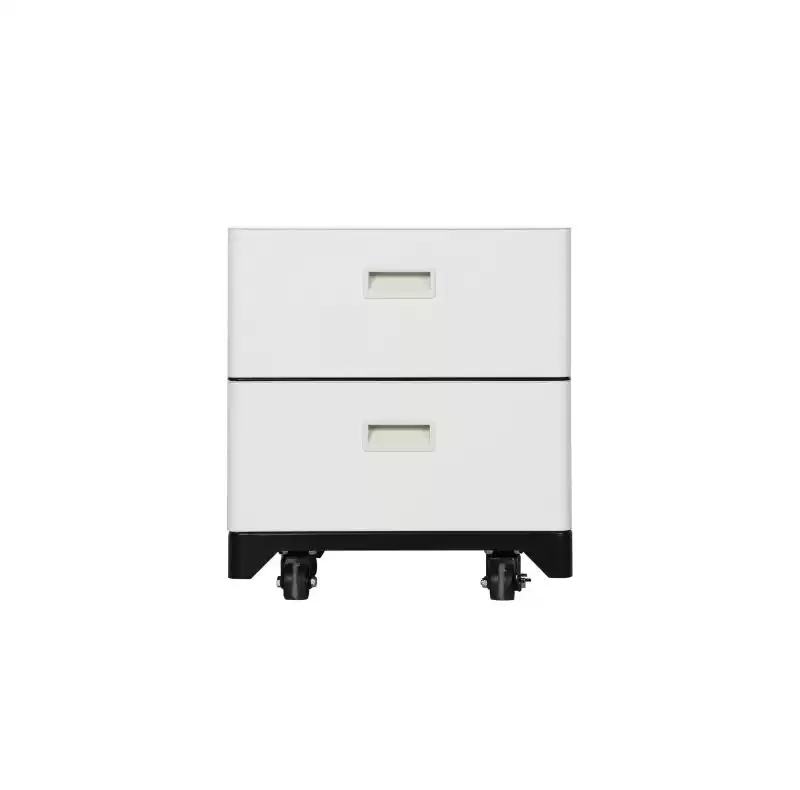

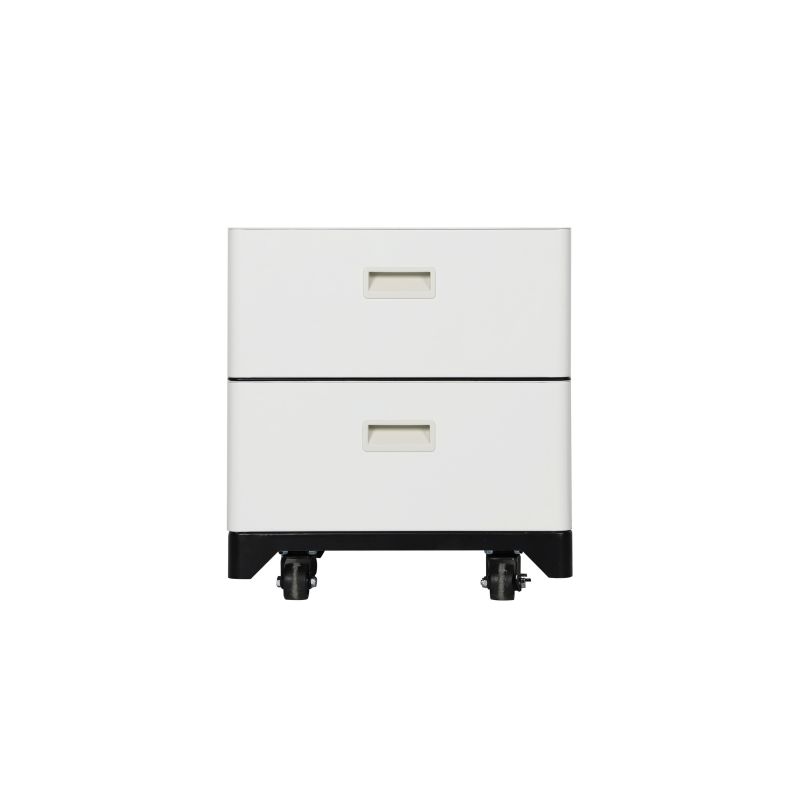

Deep Cycle LiFePO4 51.2V 100ah Lithium Battery Pack with Hybrid Inverter

High Voltage Solar Battery Stackable Lithium Ion Battery LiFePO4 48V 200ah 4packs 2.5kwh Per Pack Solar Energy Storage Battery

Products Description

Product Paramenters

Model	DKS48100		DKS48200
Specification	48V100Ah	51.2V100Ah	48V200Ah	51.2V200Ah
Combination	15S1P	16S1P	15S1P	16S1P
Capacity	4.8KWh	5.12KWh	9.6KWh	10.24KWh
Standard discharge current	50A
Max. discharge current	100A
Working voltage range	40.5-54VDC	43.2-57.6VDC	40.5-54VDC	43.2-57.6VDC
Standard Voltage	48VDC	51.2VDC	48VDC	51.2VDC
Max. charging current	50A	50A	100A	100A
Max. charging voltage	54V	57.6V	54V	57.6V
Cycle	3000~6000cycles @DOD 80%/25℃/0.5C
Working humidity	65±20%RH
Operating temperature	-10~+50℃
Working altitude	≤2500m
Cooling method	Natural cooling

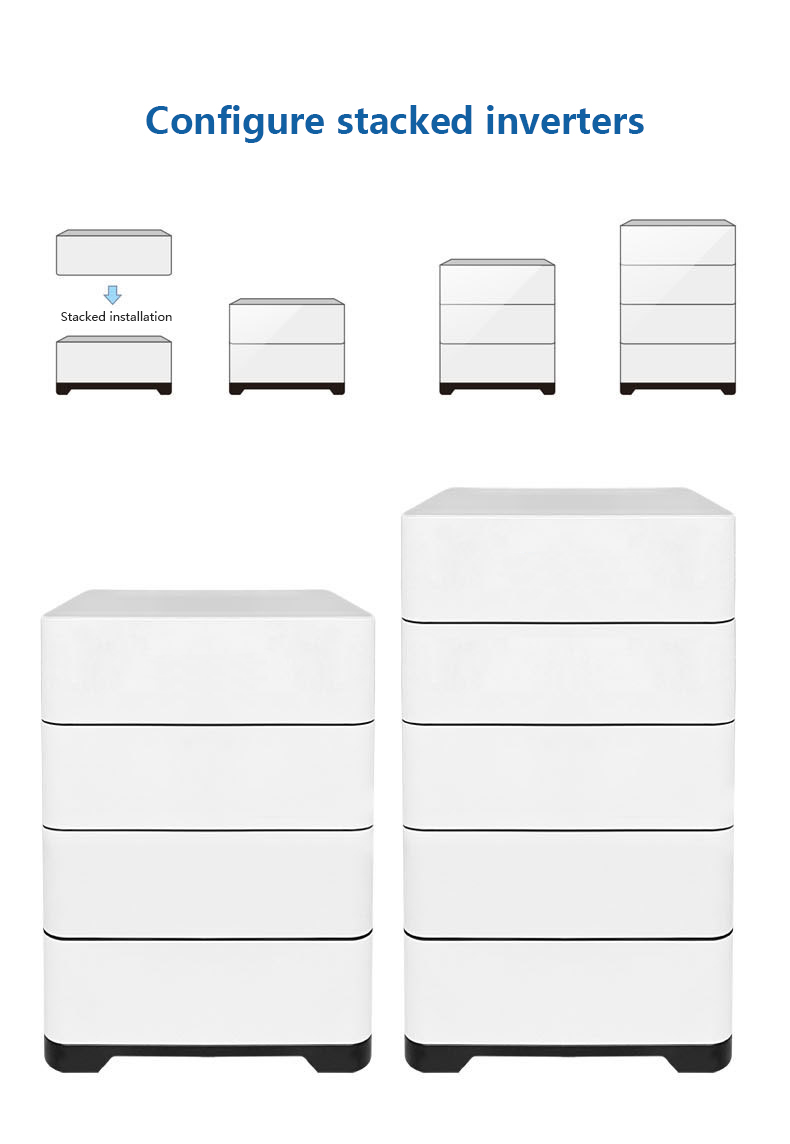

Installation	Stack installation
Protection level	IP20
Max of parallel	15PCS
Warranty	5~10 Years
Communication	Default：RS485/RS232/CAN Optional：WiFi/4G/Bluetooth
Certified	CE ROHS FCC UN38.3 MSDS
Product Size	400200460mm		400240460mm
Package Size	460230545mm		460270545mm
Net weight	50kg	53kg	102kg	106kg
Gross weight	55kg	58kg	112kg	116kg

Company Profile

Certifications
