Deep well submersible solar water pump system for agriculture
Specification of solar pump system
|
Ac pump model
|
pump power
(hp)
|
water flow
(m3/h)
|
water head
(m)
|
outlet
(inch)
|
voltage
(v)
|
|
R95-A-16
|
1.5hp
|
3.5
|
120
|
1.25"
|
220/380v
|
|
R95-A-50
|
5.5hp
|
4.0
|
360
|
1.25"
|
220/380v
|
|
R95-VC-12
|
1.5hp
|
5.5
|
80
|
1.5"
|
220/380v
|
|
R95-BF-32
|
5hp
|
7.0
|
230
|
1.5"
|
380v
|
|
R95-DF-08
|
2HP
|
10
|
50
|
2.0"
|
220/380V
|
|
R95-DF-30
|
7.5HP
|
10
|
200
|
2.0"
|
380V
|
|
R95-MA-22
|
7.5HP
|
16
|
120
|
2.0"
|
380v
|
|
R95-DG-21
|
10HP
|
20
|
112
|
2.0"
|
380V
|
|
4SP8-40
|
10HP
|
12
|
250
|
2.0"
|
380V
|
|
R150-BS-03
|
3HP
|
18
|
45
|
2.5"
|
380V
|
|
R150-DS-16
|
18.5HP
|
25
|
230
|
2.5"
|
380V
|
|
R150-ES-08
|
15HP
|
38
|
110
|
3.0"
|
380V
|
|
6SP46-7
|
15HP
|
66
|
78
|
3.0"
|
380V
|
|
6SP46-18
|
40HP
|
66
|
200
|
3.0"
|
380V
|
|
8SP77-5
|
25HP
|
120
|
100
|
4.0"
|
380
|
|
8SP77-10
|
50HP
|
68
|
198
|
4.0"
|
380V
|
Project pictures of solar water pump system

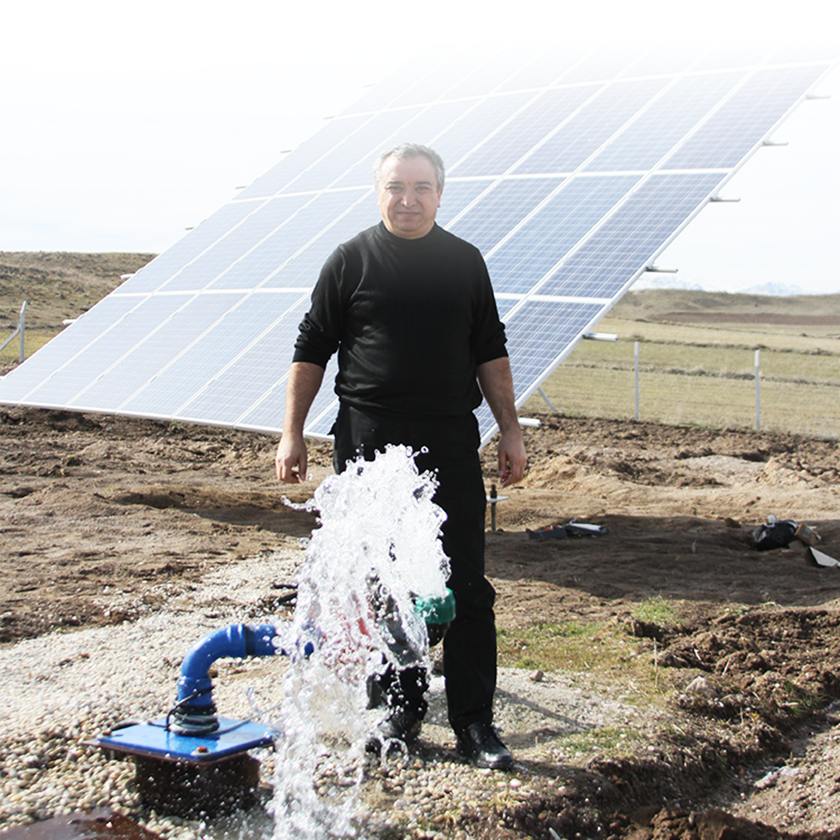

5.5hp AC solar water pumping system in the Middle East .
Water head : 35meter
Water flow : 15M3 water per hour

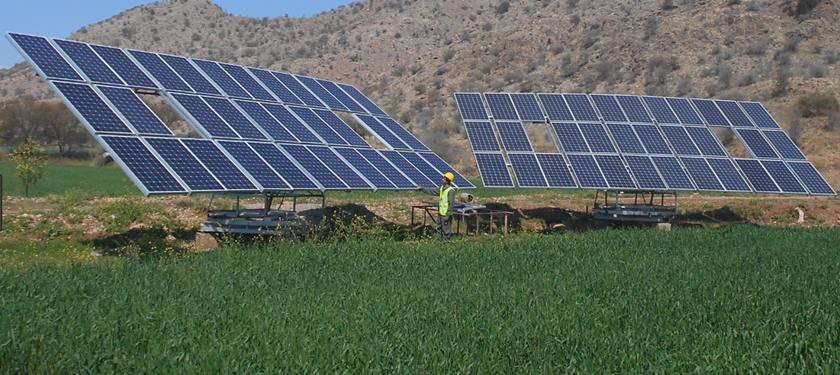

25hp AC solar water pumping system in Canada.
Water head : 18meter
Water flow : 55M3 water per hour

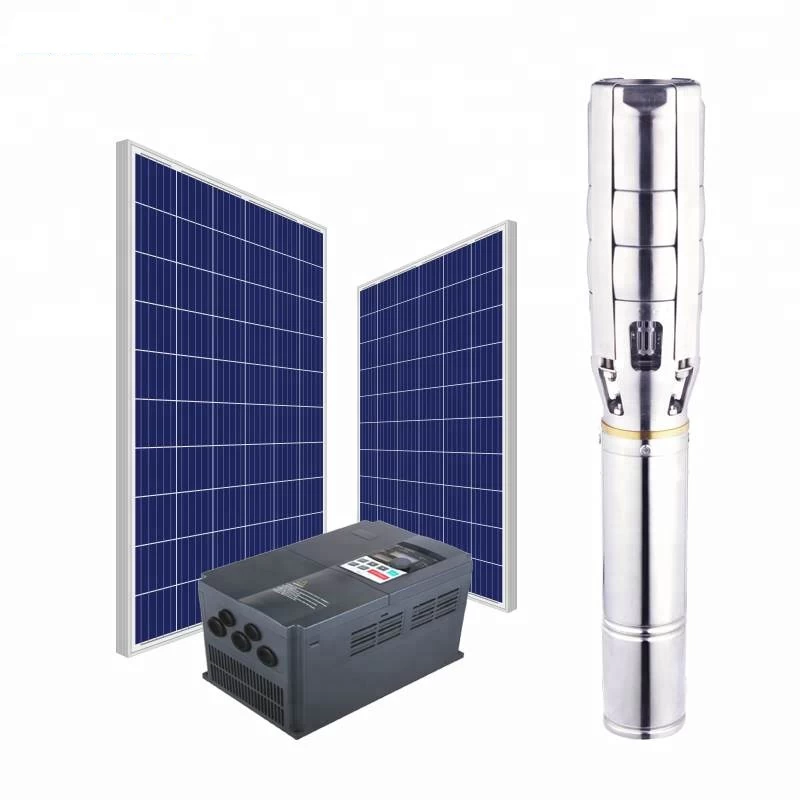

AC Solar water pumping system including ac water pump ,solar module ,MPPT pump controller ,solar mounting brackets ,dc combiner box and related accessories .
Daytime , solar panel array provide power for the whole solar water pump sytem operating ,the mppt pump controller converts the direct current output of the
photovoltaic array into alternating current and drives the water pump, adjust the output voltage and frequency in real time according to the
change of sunshine intensity to achieve maximum power point tracking .
Advantages of AC solar water pumping system :
1. High water head and large water flow for agriculture 、industrial ，and domestic water use .
2. The pump inverter also can connect local city grid and get power to operating pump at night .
3. Stainless steel material , permanent magnet motor ,100% copper wire ,long life time .
AC solar water pumpiing system application :
(1) Economic crops and farmland irrigation.
(2) Livestock water and grassland irrigation.
(3) Household water .
One-stop solution for solar water pumping system, solar power system.
