300L/H Deionized Water Equipment For Lithium Battery Cathode Materials Mixing Water Preparation
SPECIFICATIONS
1 TOB-DBW-300L/H Deionized Water Equipment is a water purifier widely used for Electronic industry, pharmaceutical industry, chemical industry etc. Ultrapure water preparation.
2 This Deionized Water Equipment adopts reverse osmosis membrane (RO) membrane as the core, supplemented by multi-stage pretreatment of membrane type pure water machine, using the current international advanced reverse osmosis technology and Mixed bed desalination process to prepare ultrapure water.
3 For Lithium battery lab research, theDeionized Wateris used for battery cathode materials mixing with water to improve lithium battery performance.
4 This Deionized Water machinecan also be used for lead-acid battery and solar cell producing and research.
|
Model
|
Deionized Water Equipment TOB-DBW-300L/H
|
|
Dimension
|
700*600*1500mm
|
|
Weight
|
150kg
|
|
Source voltage
|
AC 110V/220V, 50HZ
|
|
Power
|
1100W
|
|
Warranty
|
One year limited and lifetime support
|
|
Water output
|
300L/h
|
|
Water output
quality
|
Ratio of desalinization : ≥99.99％
|
|
Electrical resistivity : ≥10MΩ.cm
|
|
Conductivity : ≤0.1us/cm
|
|
Advantages
|
1 With low pressure and over pressure, Water shortage or water will power off auto.
2 Automatic program control, power on self test automatic protection,
automatic operation system
|
|
Configure
|
|
Name
|
Model
|
Quantity
|
Remark
|
|
5um Filter
|
Shell of tank
|
Φ130×H600mm
|
1
|
|
|
Filter material
|
5um filter element
|
1
|
|
|
Activated carbon
filtration
|
Shell of tank
|
Φ130×H600mm
|
1
|
|
|
Filter material
|
Sintering activated carbon
|
1
|
|
|
1um Filter
|
Shell of tank
|
Φ130×H600mm
|
1
|
|
|
Filter material
|
1um filter element
|
1
|
|
|
High pressure pump
|
CDL2-90
|
1
|
Stainless steel vertical
multi-stage pump
|
|
Reverse osmose membrane
|
YQS-4040
|
1
|
|
|
Pressure gage
|
0-150Psi
|
1
|
|
|
0-300Psi
|
2
|
|
|
Water inlet electromagnetic valve
|
DN-15
|
1
|
|
|
Irrigation solenoid valve
|
DN-15
|
1
|
|
|
Low pressure switch
|
DB0-6KG
|
1
|
|
|
High pressure switch
|
DB0-30KG
|
1
|
|
|
Full automatic control system
|
|
1
|
|
|
Non-return flap valve
|
DN-15
|
1
|
|
|
Waste water regulating valve
|
DN-15
|
1
|
|
|
Atmospheric valve
|
DN-15
|
1
|
|
|
Online water quality monitoring instrument
|
CM-230
|
1
|
|
|
Large capacity water purification
|
Φ170×H900
|
1
|
|
|
Nuclear grade polishing resin
|
NS-60
|
20L
|
|
|
Online water quality monitoring instrument
|
CM-230
|
1
|
|

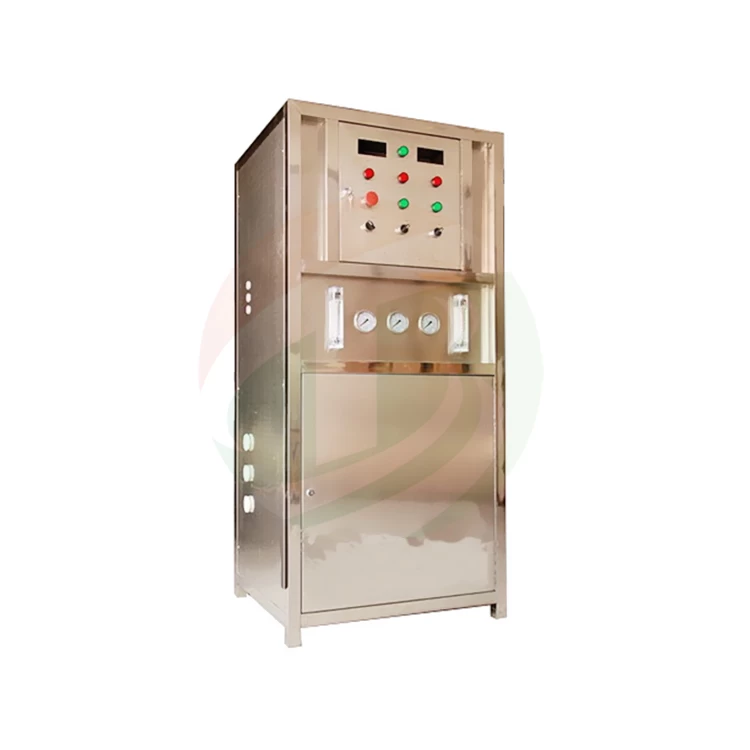

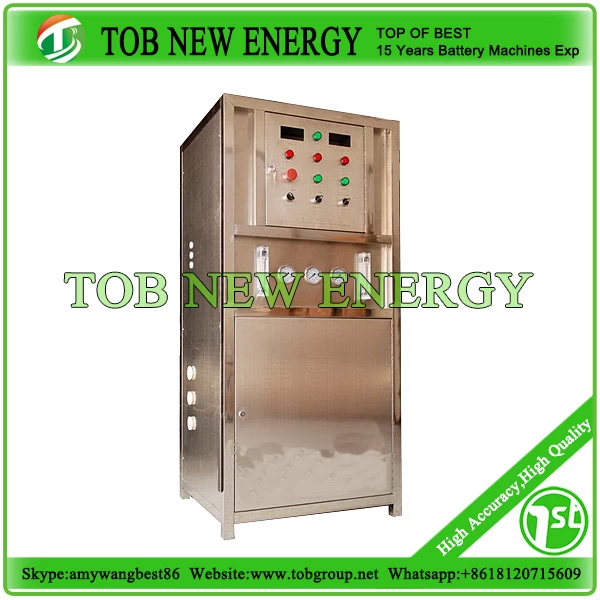

Product display
Accessories for Deionized water machine
