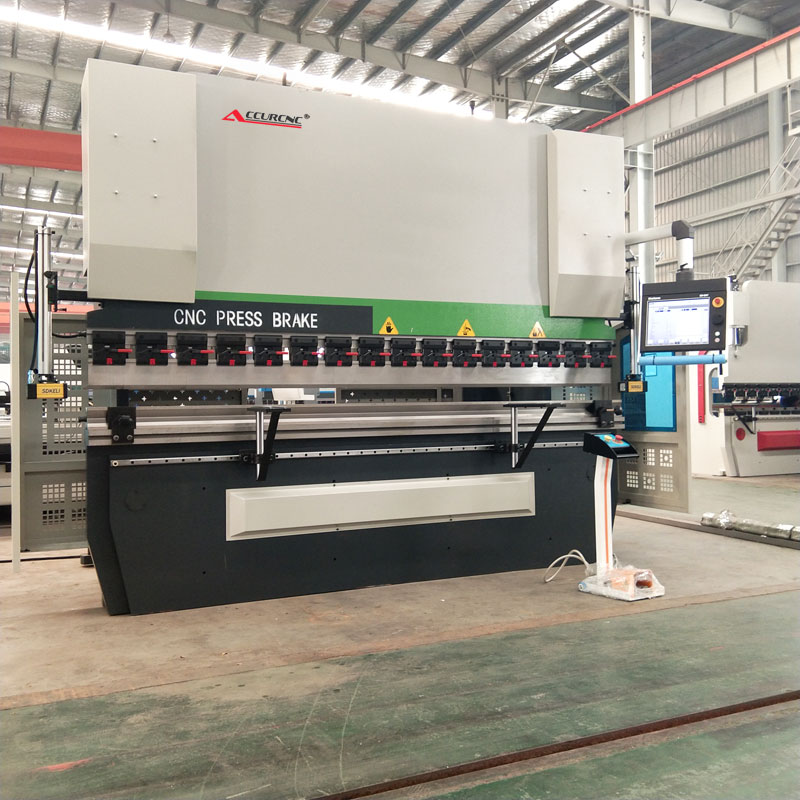

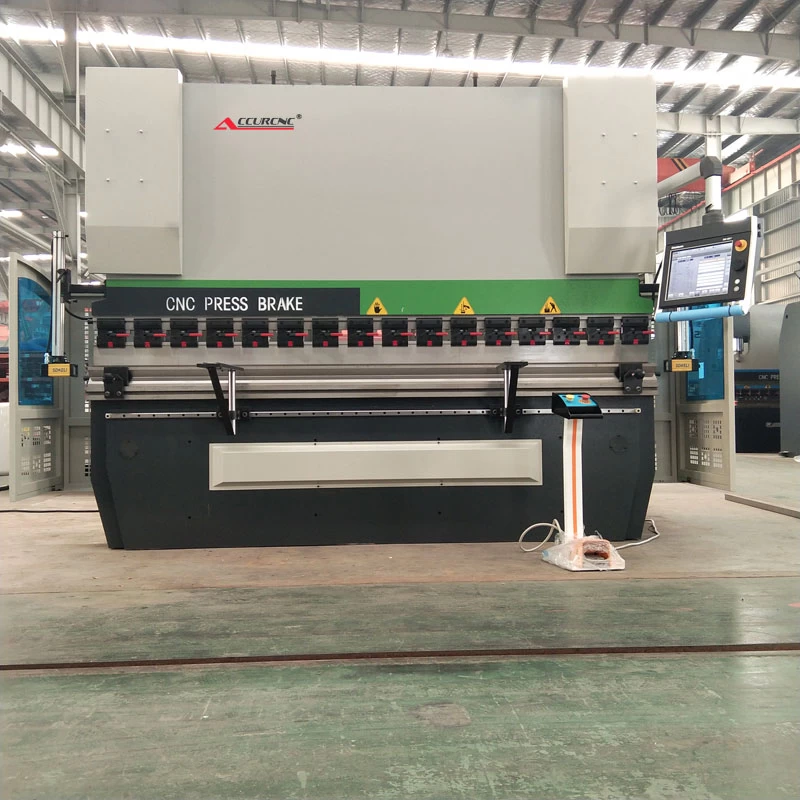

Delem DA66T CNC hydraulic stainless steel sheet Press Brake
Product Introduction
The whole machine is designed according to JB/T2257.2-92 "plate bending machine technical conditions" and GB/T14349-93 "plate bending machine precision", all the parts of this machine are using computer graphics, computer element analysis, computer aided manufacturing, PLSON use CAD, CAE, CAM software for machine structure design, and fully guaranteed the structural strength enough and rigid of each machine component.
The hydraulic press brake bending machine structure are composed by body frame, working table, slide block, main cylinder and backgauge.The advantage design and produce style can ensure the machine usage and high precision.
The main produce procedure as below(all process under strictly inspection)
Plate stock----physical and chemical inspection----Plate Pre-treatment (Rust-Cleaning) --- CNC flame Cutting-- Cutting the welded joint----Group Welding----Gas Shielded Welding---Ageing treatment----Milling Planer working----The Assembly of finished products.
The metal plate hydraulic press brake bending machine body, Slide Block, Working table and other main components are under one time clamping of large landing boring and milling machine to ensure several geometric accuracy of the main machine.
Main Features
1. Totally EU streamlined design. by welding robots & apparatus and stress relief process by annealing treatment.
2.Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.

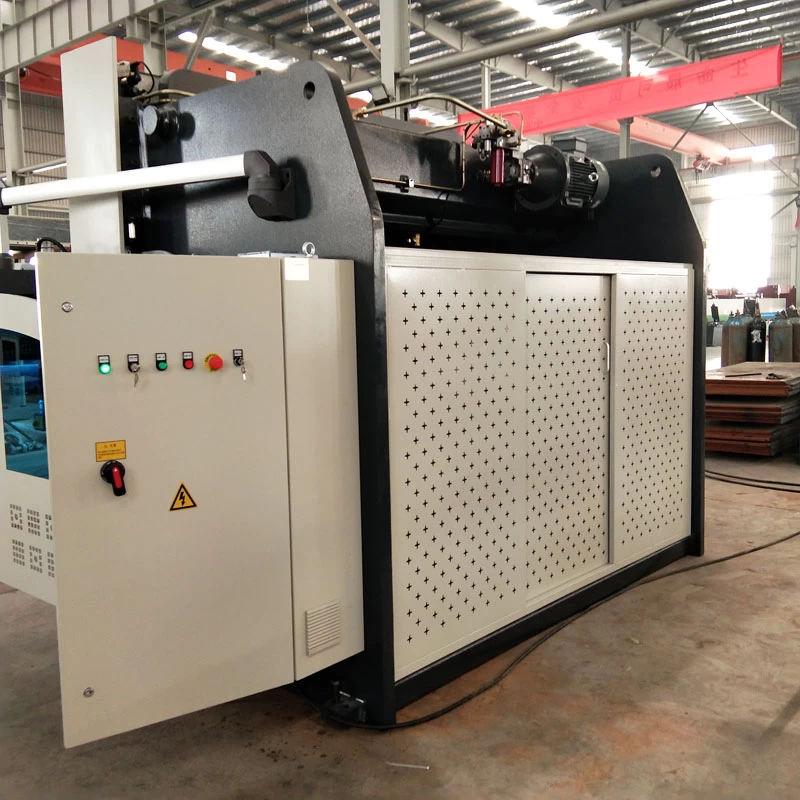

3.Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.
4.Travel limit protection, full machine guarding with safety interlocker.
5.Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
6.The stroke and distance of the back gauge is adjusted by the motor.
7.Single mode being designed for the machine and reversing and maintain time can be controlled by the time relays
8.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
9.Front arm material support. Foot pedal with emergency stop.

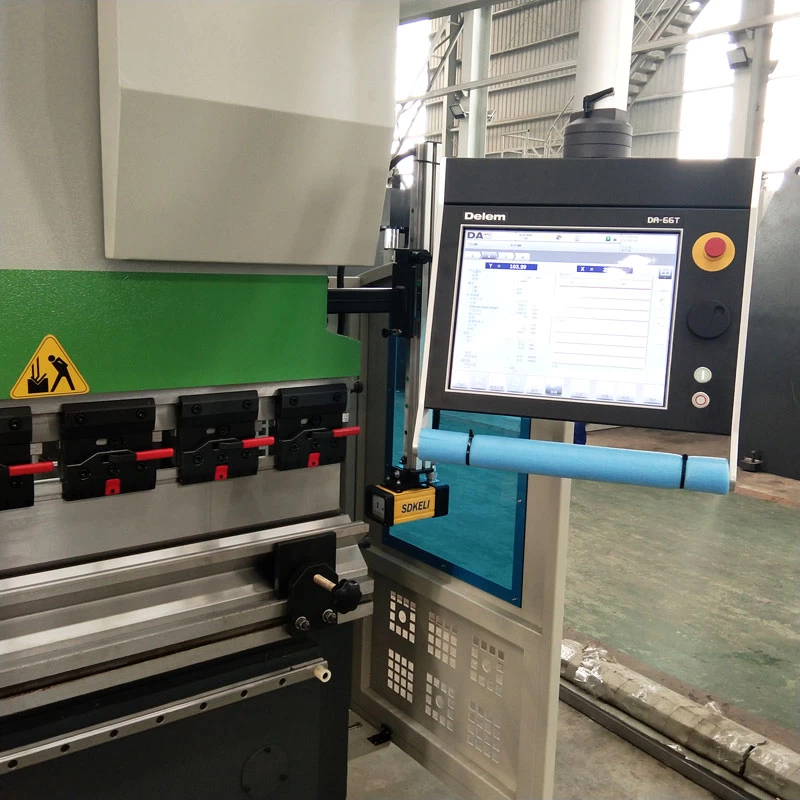

10. Control system: DA66T.
