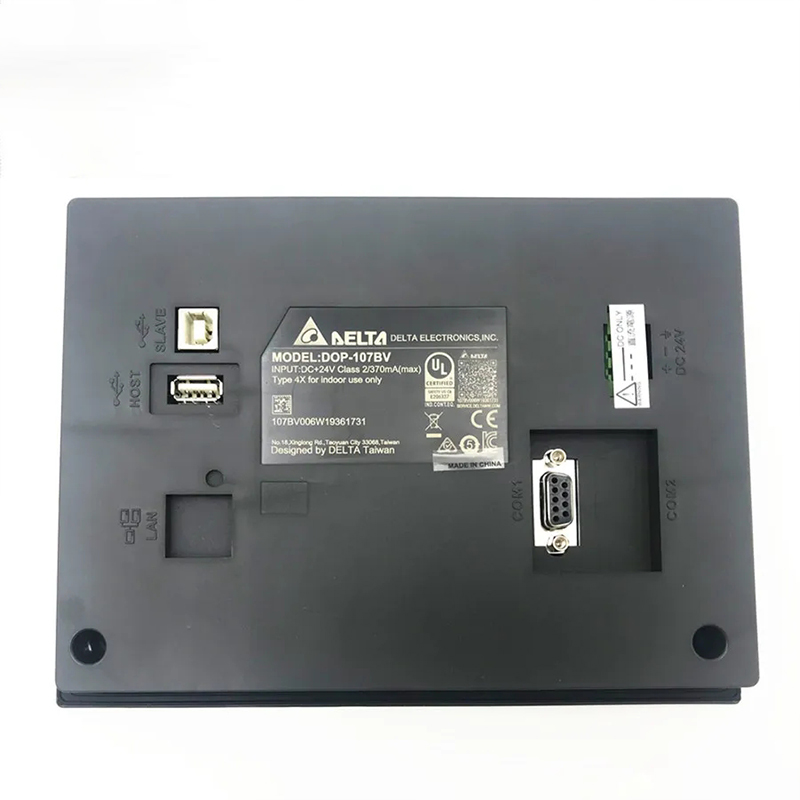

DOP-100 Series
Delta’s Human Machine Interface DOP-100 Series adopts the latest Cortex-A8 high speed processor and 65,536 color LCD display panel with high brightness and contrast. The DOP-100 Series supports multiple network functions, including FTP, E-Mail, VNC (Virtual Network Computing) Remote Monitoring, and NTP (Network Time Protocols) to meet customer requirements for cloud applications and smart manufacturing.
The Standard HMI is equipped with 2+ COM ports to meet most customer requirements. The Standard Ethernet Type offers an Ethernet port for fast connection with other equipment.
Specifications
| Model |
DOP-107BV |
| Display |
Panel type |
7" TFT LCD (65535 colors) |
| Resolution |
800 x 480 pixels |
| Backlight |
LED backlight (half-life under room temperature 25oC > 20,000 hours)*1 |
| Display range |
154.08 mm * 85.92 mm |
| Brightness |
400 cd / m² (Typ.) |
| CPU |
ARM Cortex-A8 (800 MHz) |
| Flash ROM |
256 Mbytes |
| RAM |
256 Mbytes |
| Touchscreen |
4-wire resistive touchscreen > 1,000,000 operated |
| Buzzer |
Multi-tone frequency (2 K – 4 KHz) / 80 dB |
| Network interface |
N/A |
| USB |
1 USB Slave Ver 2.0; 1 USB Host Ver 2.0 |
| SD |
N/A |
Serial
communication
port |
COM1 |
RS-232 (supporting flow control) / RS-485*2 |
| COM2 |
RS-422 / RS-485*2 |
| COM3 |
N/A |
| Auxiliary function key |
N/A |
| Calendar |
Built-in |
| Cooling method |
Natural cooling |
| Approvals |
CE / UL (please use shielding network cable and magnetic ring with the filter of
300 ohm / 100 MHz) |
| Panel waterproof level |
IP65 / NEMA 4 |
| Operation voltage*2 |
DC +24V (-15% to +15%) (please use an isolated power supply)
Supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation) |
| Leakage current |
500 VAC for 1 minute (between DC24V terminal and FG terminal) |
| Power consumption*2 |
8.6 W (Max)*3 |
| Backup battery |
3V lithium battery CR2032 × 1 |
| Backup battery life |
About 3 years or more at 25oC
(subject to operation temperature and condition) |
| Operation temperature |
0oC to 50oC (32oF to 122oF) |
| Storage temperature |
-20oC to +60oC (-4oF to 140oF) |
| Operating environment |
10% - 90% RH [0oC - 40oC], 10% - 55% RH [41oC - 50oC];
pollution degree: 2 |
| Vibration resistance |
Conforms to IEC61131-2: continuous vibration 5 Hz - 8.3 Hz
with amplitude 3.5 mm; 8.3 Hz - 150 Hz with amplitude 1G |
| Shock resistance |
Conforms to IEC60068-2-27:
11 ms, 15 G Peak, in X, Y, Z directions each for 6 times |
Dimension
(W) x (H) x (D) mm |
215 x 161 x 35.5 |
Mounting dimension
(W) x (H) mm |
196.9 x 142.9 |
| Weight |
Approx. 700 g |

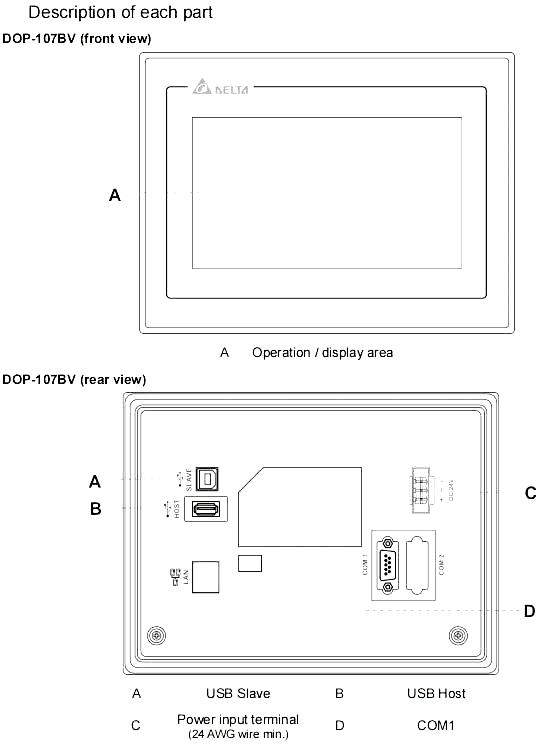

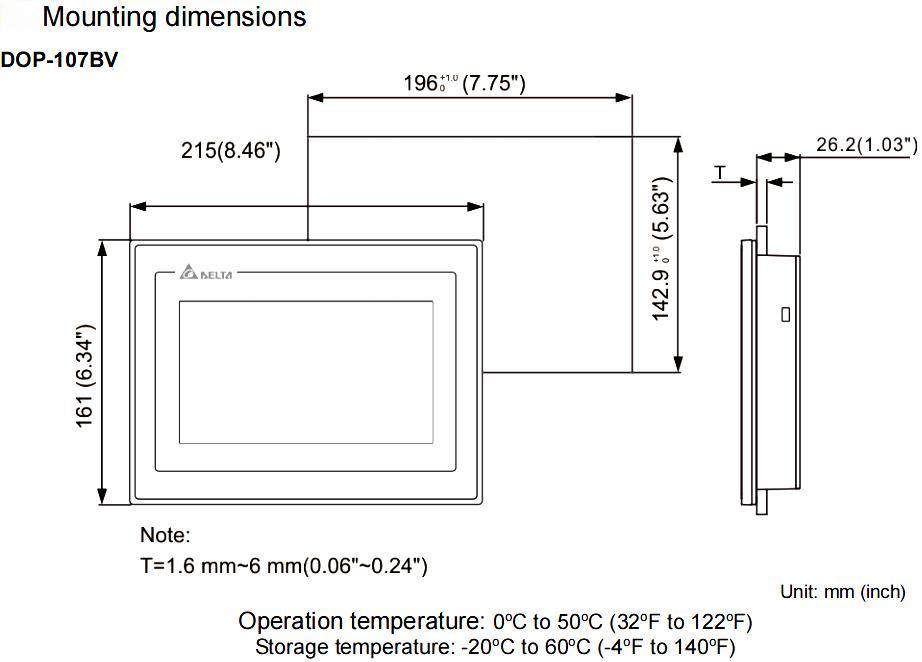

Components and mounting dimensions
