Specifications
| Model |
DOP-103WQ |
DOP-107WV |
DOP-110WS |
LCD
Module |
Display Type |
4.3" TFT LCD
（65535 colors） |
7" TFT LCD
(65535 colors) |
10.1" TFT LCD
(65535 colors) |
|
|
| Resolution |
480 x 272 pixels |
800 x 480 pixels |
1024 x 600 pixels |
| Backlight |
LED Back Light (less than 10,000 hours half-life at 25°C) (Note 1) |
LED Back Light (less than20,000 hours half-life at 25°C) (Note 1) |
LED Back Light (less than 30,000 hours half-life at 25°C) (Note 1) |
| Display Size |
95.04 x 53.856 mm |
154.08 x 85.92 mm |
225.52 x 128.10 mm |
| Brightness |
400 cd/m² (Typ.) |
450 cd/m² (Typ.) |
450 cd/m² (Typ.) |
| CPU |
ARM Cortex-A8 (800MHz) |
| Flash ROM |
256 Mbytes |
| RAM |
512 Mbytes |
| Touch Screen |
4-wire resistive touch screen
> 10,000,000 operated |
| Buzzer |
Multi-Tone Frequency (2 K ~ 4 K Hz)／80 dB |
|
| Ethernet Interface |
10/100 Mbps Auto sensing (with built-in isolated power circuit (Note 2)) |
|
| USB |
1 USB Slave Ver 2.0
1 USB Host Ver 2.0 |
|
| SD |
N/A |
SD * 1 |
Serial
Communication
Port |
COM1 |
RS-232 (supports flow
control) / RS-485(Note 2)) |
RS-232 (supports flow control) (Note 2)) |
| COM2 |
RS-422 / RS-485(Note 2) |
RS-232 (supports flow control) / RS-485(Note 2)) |
| COM3 |
N/A |
RS-422 / RS-485(Note 2)) |
| Function Keys |
N/A |
| Perpetual Calendar |
Built-in |
| Cooling Method |
Natural cooling |
| Safety Approval |
CE / UL (Please use shielding Ethernet cable and the magnetic ring with filter of
300 ohm/100 MHz) |
Waterproof Level of
Panel Display |
IP65(Not be evaluated by UL)/NEMA4/ Type 4X indoor use only |
| Operation Voltage (Note2) |
+24 VDC (-15% ~ +15%) (with built-in isolated power supply unit)
Supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation) |
| Voltage Endurance |
500 VAC for 1 minute (between charging (DC24V terminal) and FG terminals) |
Power Consumption (Note
2) |
5.8W (Max) (Note 3) |
8.4W (Max) (Note 3) |
11W (Max) (Note 3) |
|
| Backup Battery |
3V lithium battery CR2032 × 1 |
| Backup Battery Life |
About 3 years or more at 25°C but subjects to the temperature and the conditions during usage. |
| Operation Temperature |
0°C ~ 50°C |
|
| Storage Temperature |
-20°C ~ +60°C |
| Operating Environment |
10% ~ 90% RH [0 ~ 40°C], 10% ~ 55% RH [41 ~ 50°C]; Pollution degree: 2 |
| Vibration Resistance |
Conforms to IEC61131-2; Continuous: 5 Hz ~ 8.3 Hz 3.5 mm, 8.3 Hz ~ 150 Hz 1 G |
| Shock Resistance |
Conforms to IEC60068-2-27: 11 ms, 15 G Peak , X, Y, Z direction for 6 times |

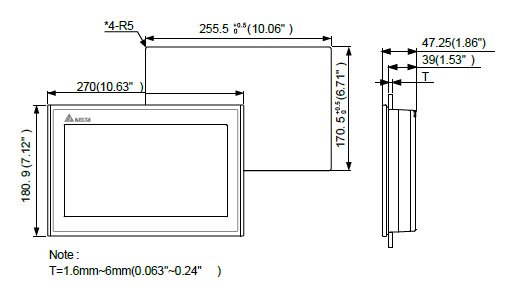

Dimension
(W) x (H) x (D) mm |
137 x 103 x 37.1 |
196 x 136 x 39 |
270 x 180.9 x 47.25 |
Dimension for
Installation
(W) x (H) mm |
118.8 x 92.8 |
186.8 x 126.8 |
255.5 x 170.5 |
| Weight |
Approx.280g |
Approx. 560 g |
Approx. 1.1 Kgs |
|
DOP-100 Series

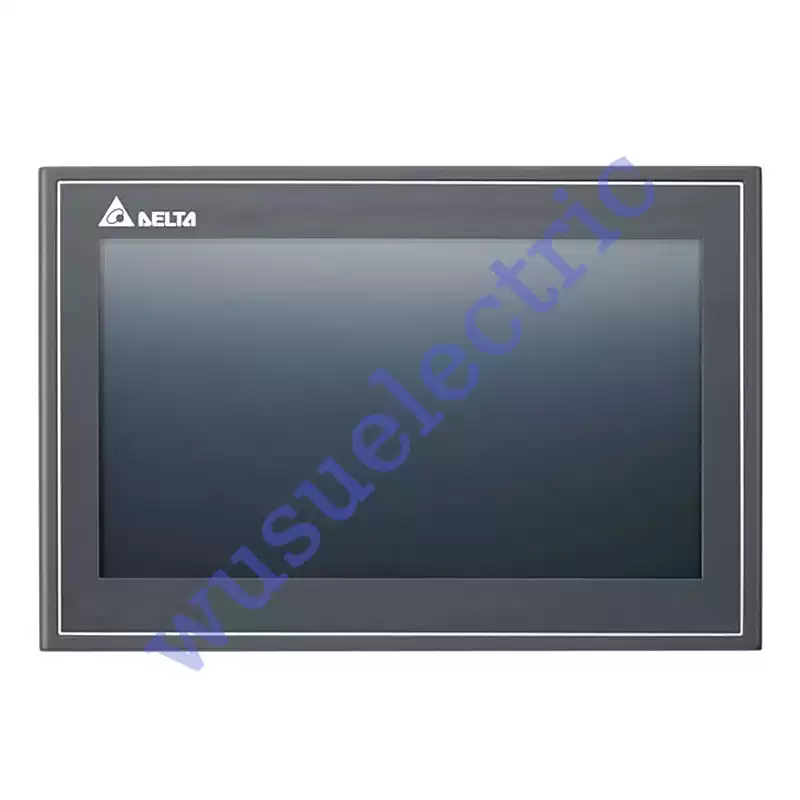

Delta’s Human Machine Interface DOP-100 Series adopts the latest Cortex-A8 high speed processor and 65,536 color LCD display panel with high brightness and contrast. The DOP-100 Series supports multiple network functions, including FTP, E-Mail, VNC (Virtual Network Computing) Remote Monitoring, and NTP (Network Time Protocols) to meet customer requirements for cloud applications and smart manufacturing.
|
 |
Advanced HMI
The Advanced HMI adopts a narrow frame and wide screen design. It is equipped with more than one COM port and an Ethernet port. Featuring a multilingual input function, it provides easy operation for global customers.
Advantage Products
