The 6 ~ 16 points extension offered by SS/SA/SX/SC series make the maximum digital I/O extension including the MPU reach 128 points. In addition, maximum 8 special modules (AD/DA/PT/TC/XA/RT) are extendable to DVP Slim series.
Specification
|
Model Item
|
DVP08SM11N / DVP08SM10N
|
DVP08SN11R/T |
DVP08SP11R/T |
DVP16SP11R/T |
DVP06SN11R |
| Power Supply Voltage |
24VDC (-15%~+20%) (the counter-connection protection towards the DC input power polarity is included) |
| Motion Specifications |
Within 5ms of the momentary power loss, the device will keep on operating |
| Maximum Power Consumption |
1W |
1.5W |
1.5W |
2W |
1.5W |
| Insulation Resistance |
Above 5 MΩ (500VDC between the ground and all the I/O points) |
| Noise Immunity |
ESD(IEC 61131-2, IEC 61000-4-2): 8KV Air Discharge
EFT(IEC 61131-2, IEC 61000-4-4): Power Line: 2KV, Digital I/O: 1KV, Analog &
Communication I/O: 1KV
Damped-Oscillatory Wave: Power Line: 1KV, Digital I/O: 1KV
RS(IEC 61131-2, IEC 61000-4-3): 26MHz~1GHz, 10V/m |
| Grounding |
The diameter of the grounding wire cannot be smaller than that of terminals L and N (if numerous PLCs are used at the same time, make sure that each PLC is grounded respectively to the ground poles) |
| Vibration/Shock Immunity |
International Standard Regulations: IEC1131-2, IEC 68-2-6 (TEST Fc)/ IEC1131-2 & IEC 68-2-27 (TEST Ea) |
| Operation/Storage Environment |
Operation: 0°C~55°C(temperature), 50~95% (humidity), pollution degree: 2;
Storage: -40°C~70°C (temperature), 5~95% (humidity)
|
Model numbers
| Model |
Input Unit |
Output Unit |
Dimensions
(mm) |
Weight
(g) |
| Point |
Type |
Point |
Type |
| DVP08SP11R |
4 |
DC Type
Sink/Source |
4 |
Relay |
25.2 x 90 x 60 |
141 |
| DVP16SP11R |
8 |
8 |
162 |
| DVP08SP11T |
4 |
4 |
Transistor |
136 |
| DVP16SP11T |
8 |
8 |
154 |
| DVP08SM10N |
8 |
100~120VAC |
0 |
None |
141 |
| DVP08SM11N |
8 |
DC Type
Sink/Source |
0 |
None |
162 |

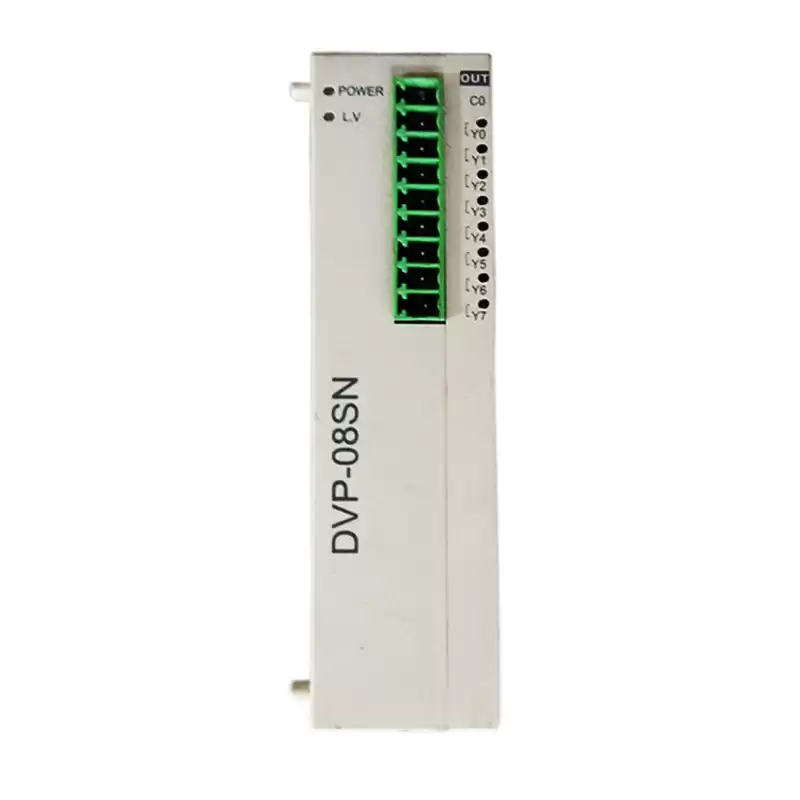

| DVP08SN11R |
0 |
8 |
Relay |
136 |
| DVP08SN11T |
0 |
8 |
Transistor |
154 |
| DVP06SN11R |
0 |
6 |
Relay |
200 |
