| Terminals |
Descriptions |
| PG 1 VP |
Output voltage for power: +5 V / +12 V ± 5% (use FSW3 to switch +5 V / +12 V)
Max. output current: 200 mA |
| PG1 DCM |
Common for power and signal |
PG 1 A1, ￣A￣1,
B1, ￣B￣1,
Z1, ￣Z￣1 |
Encoder input signal (Line Driver)
Open collector input: +5 V / +24 V *Note1
1-phase or 2-phase input
Max. input frequency: EMC-PG01L: 300 kHz; EMC-PG02L: 30 kHz |
PG2 A2, A2 ￣￣,
B2, ￣B￣ |
Pulse input signal (Line Driver or Open Collector)
Open collector input: +5 V / +24 V *Note1
1-phase or 2-phase input
Max. input frequency: EMC-PG01L: 300 kHz; EMC-PG02L: 30 KHz
PG OUT
AO, |
PG OUT AO, ￣A￣O,
BO, ￣B￣O,
ZO, ￣Z￣O, SG |
PG card output signals. Division frequency function: 1 ~ 255 times
Max. output voltage for Line driver: 5 VDC
Max. output current: 15 mA
Max. output frequency: EMC-PG01L: 300 kHz; EMC-PG02L: 30 kHz
SG: The GND of PG card is the same as the host controller or PLC, so a common
output signal is attained |
|

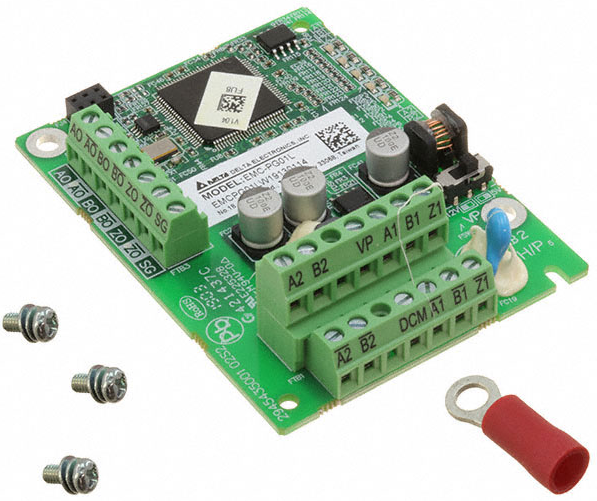

Encoder Card interface for use with DELTA C2000 Series AC Inverter Drives.
Input Frequency: 300kHz Maximum.
Suitable Encoders: Single-channel (A pulse), two-channel (A, B pulse) or three-channel (A, B, Z (R) pulse).
Includes repeater Output: 5Vdc, 15mA, 300kHz Maximum.
Suitable for Line Driver or Open Collector Encoders with external pull resistor fitted.

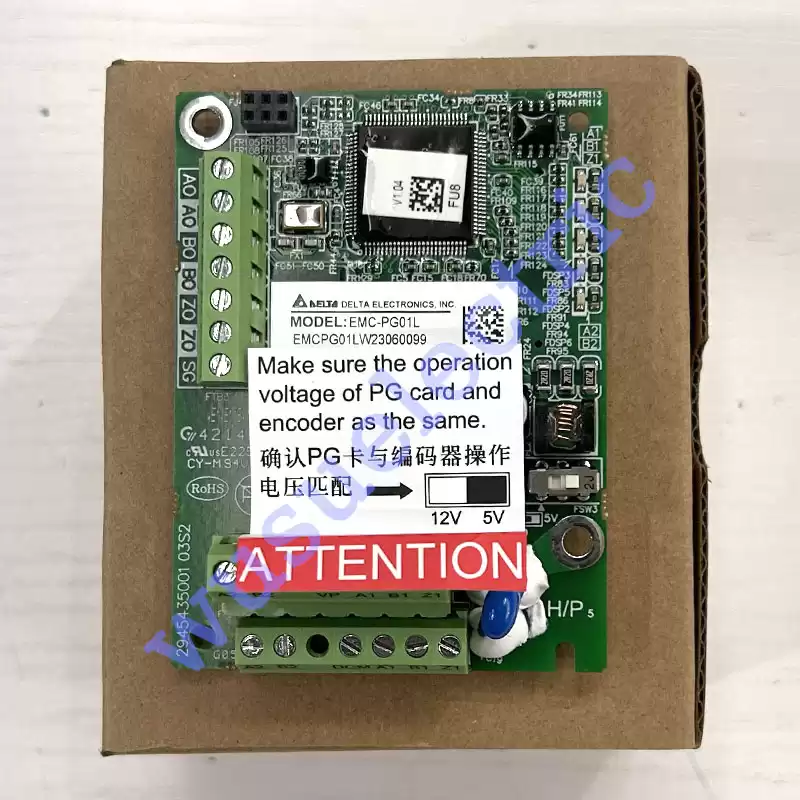

Output voltage for encoder power supply: 5.5V or 12V ± 5% ( For 24V external supply required)
Output Current: 200mA Maximum
Monitor: A channel, B channel, and Z pulse output.
Manufactured by DELTA

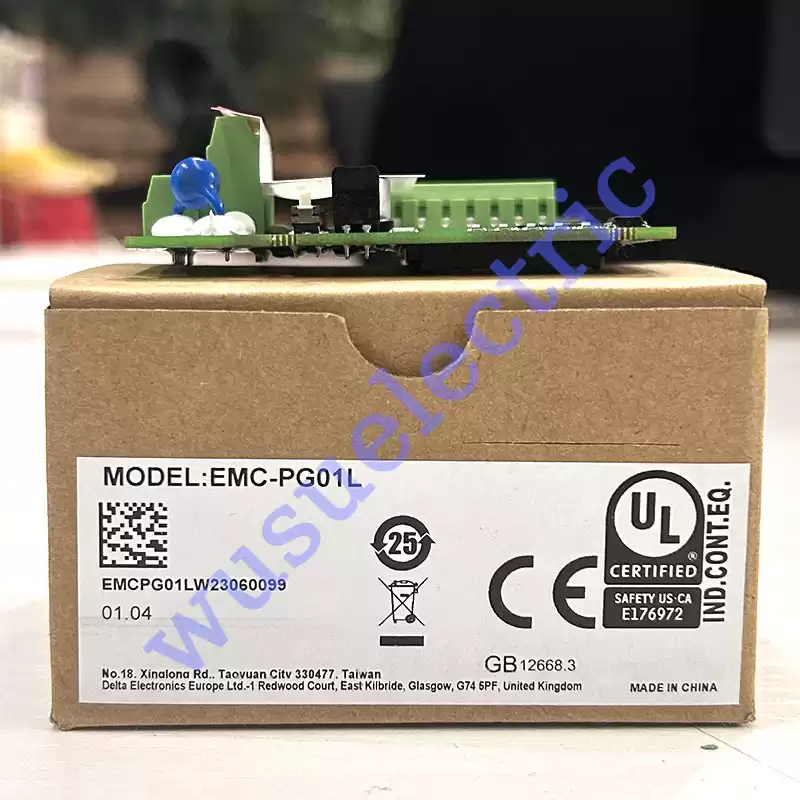

Manufacturers Part number: EMC-PG01L
|
 |
