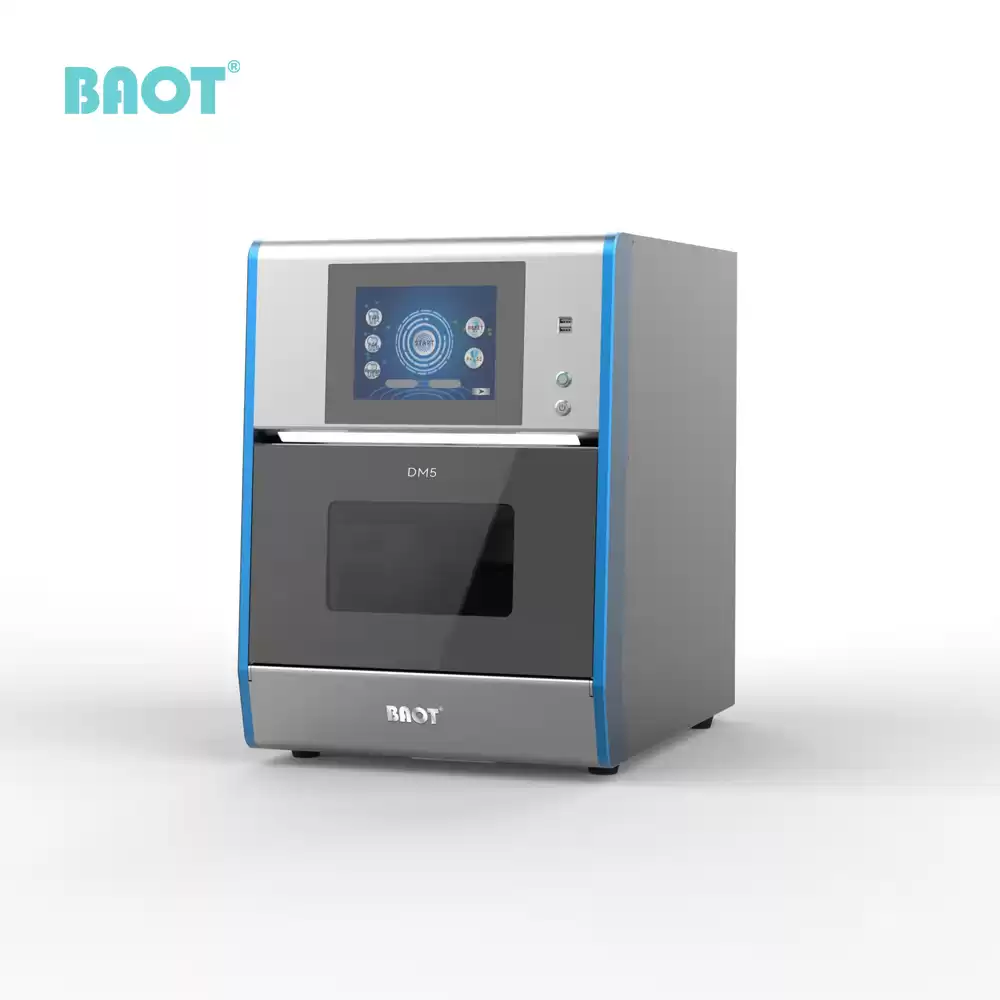

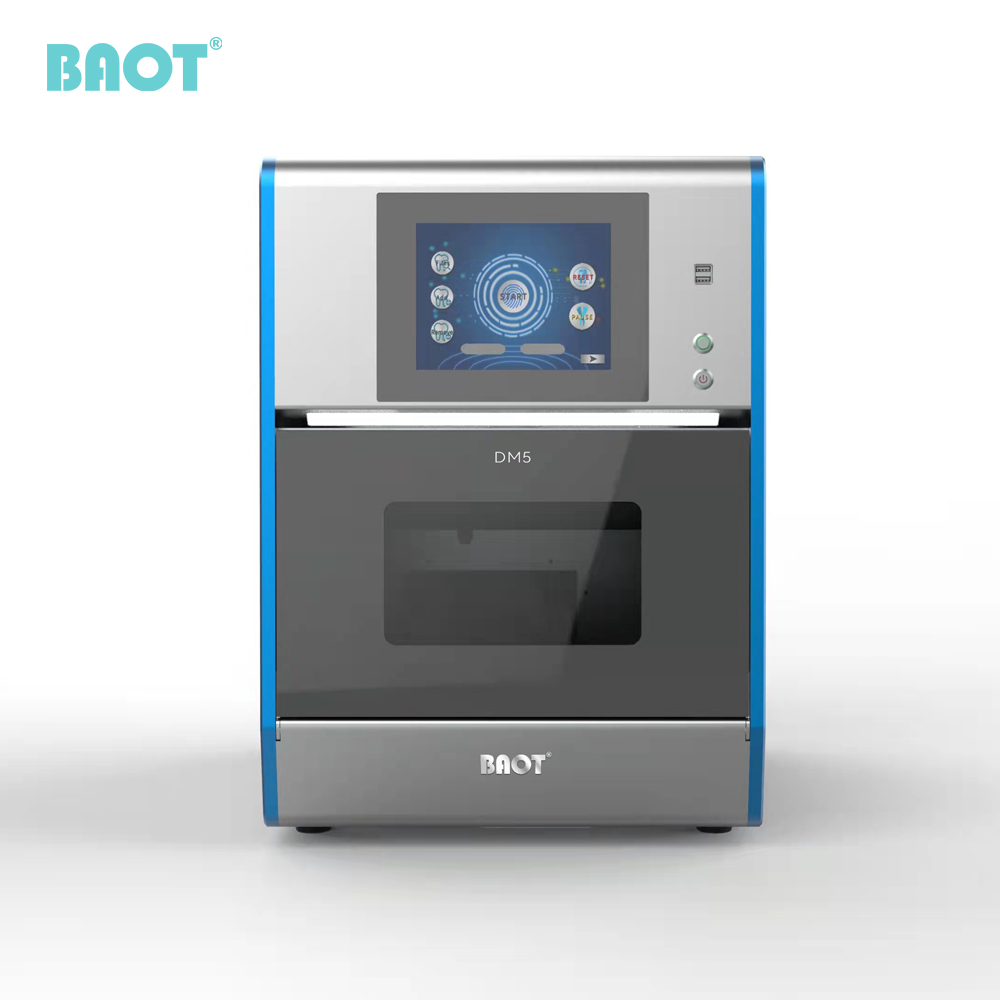

5-Axis Dental Milling Machine DM5

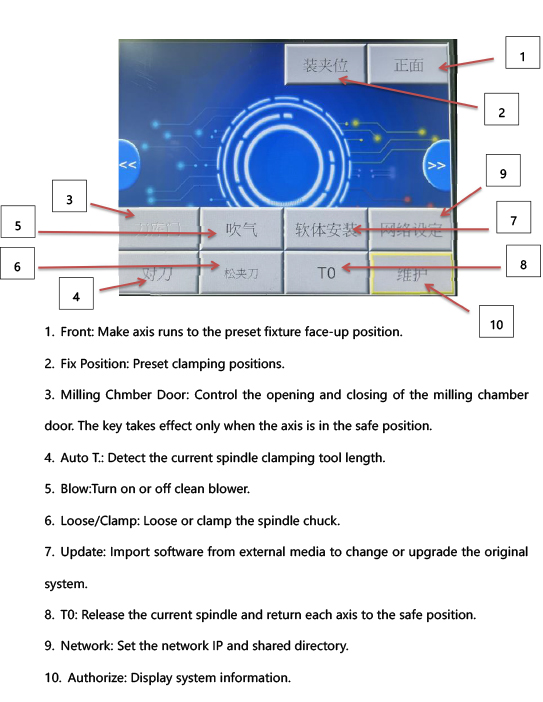

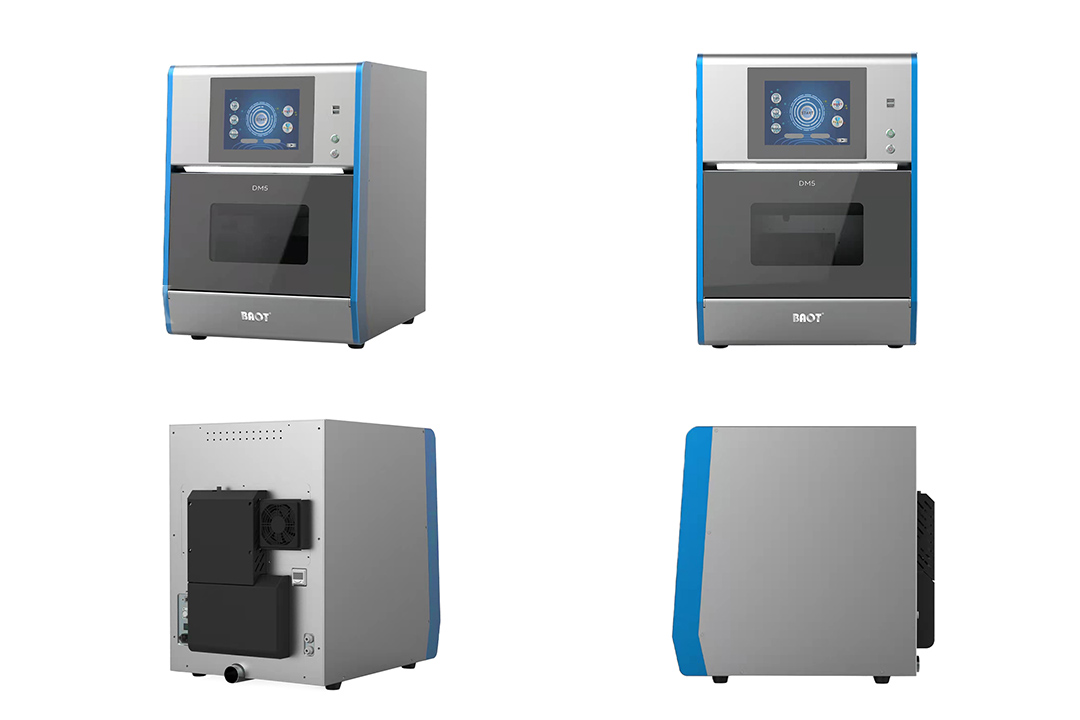

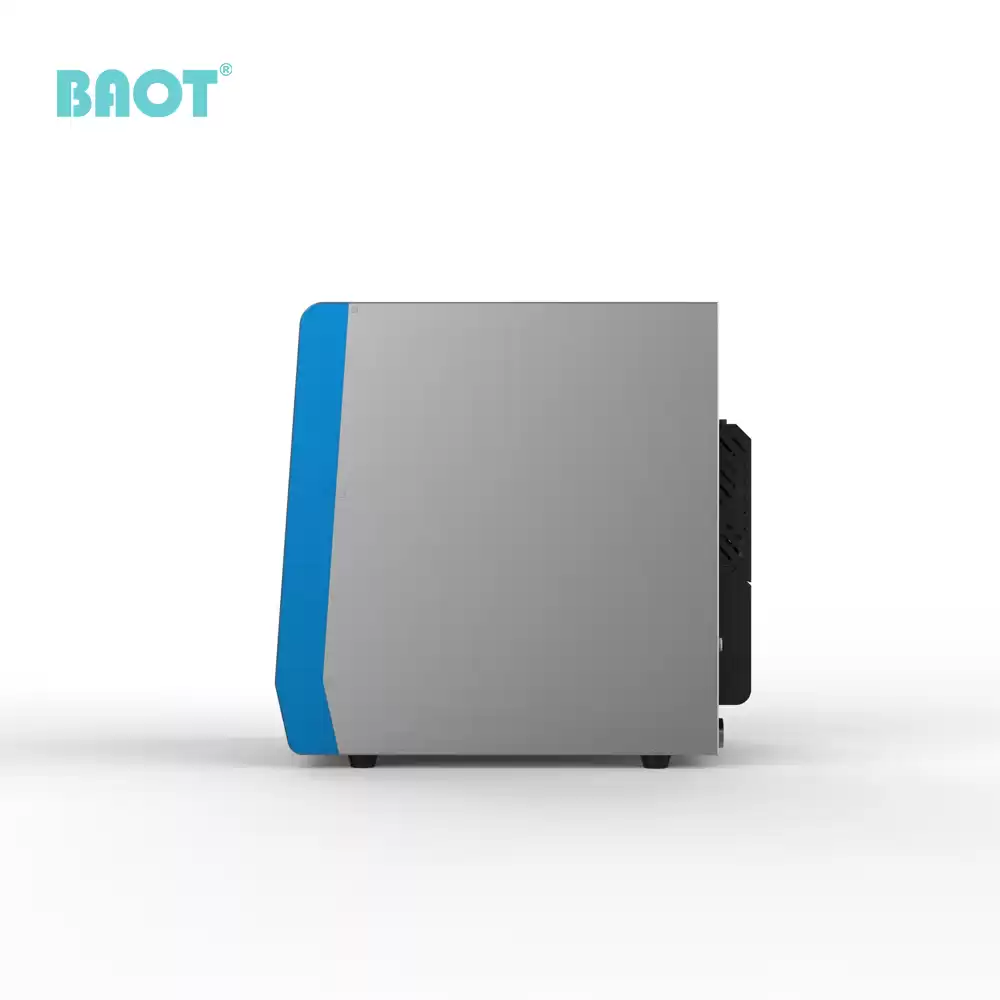

DM5 dental milling machine is a high-precision 5-axis product covering the processing of soft disc materials under the Numeric Series. The aluminum plate on both sides of the machine not only makes the appearance compact with more colorful decoration but also enhances the overall durability. At the same time, the layout of the front panel is optimized to make the operation more convenient.

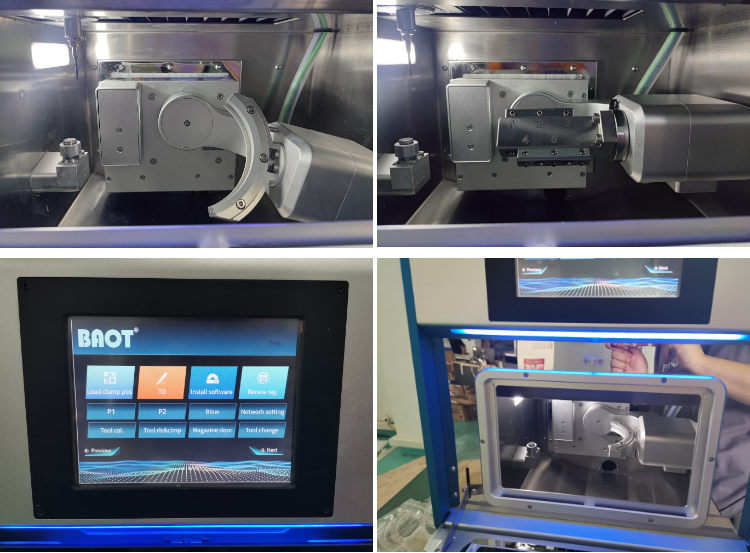

The milling chamber adopts cylinder actuator telescoping to protect the chamber and burs setting instrument from dust and debris to the maximum extent.
Advantages of Milling Machine DM5:
- Industrial full servo drive system
- A new telescopic tool magazine control system is designed to replace easily and help to reduce dust impact
- Stable milling, high-precision, high-frequency, high-speed spindle

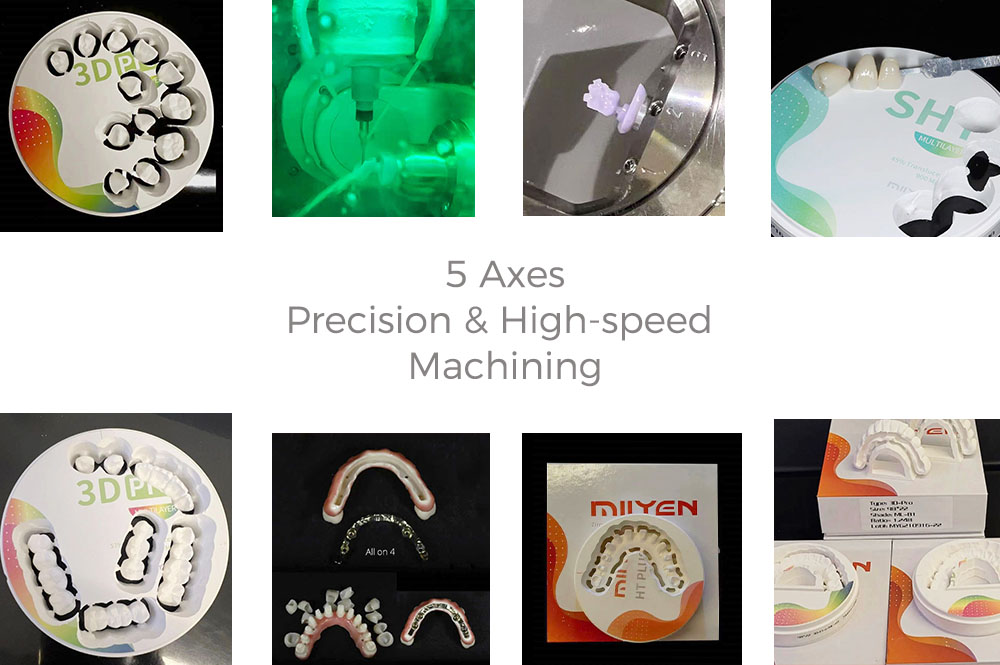

- The innovative auxiliary fixture enables each 98mm zirconia disc to mill 35-40 unit crowns
- Exquisite appearance design style and optimized processing strategy, leading the industry
- The car sealing strip with excellent performance is adopted, which is easy to replace
- No need for an external cooling system, lightweight and high speed
- Calibration using standard test files

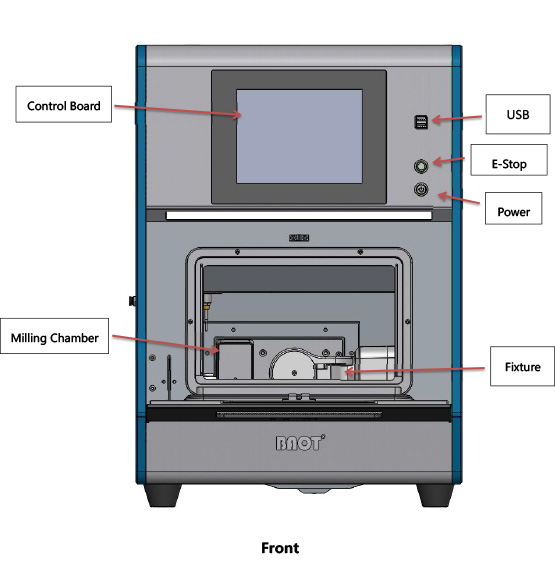

Description of BAOT DM5 Milling Machine
Specification of Milling Machine DM5
|
Specification
|
Description
|
|
Dimension（W x L x H）
|
610x425x585（mm）
|
|
Weight
|
105(kg)
|
|
Traversing Range
|
X：170mm
Y：110mm
Z：85mm
A：360°
B：±25°
|
|
Required Air Pressure
|
＞6bar（Free of oil & water）
|
|
Spindle Speed
|
Max.60000rpm
|
|
Power
|
Max.800W,220ACV
|
|
Device Driver
|
Full Servo drive
|
|
Ambient Temperature
|
15-35℃
|
|
Bur Specification
|
Quantity: 6
Diameter: 4mm
|

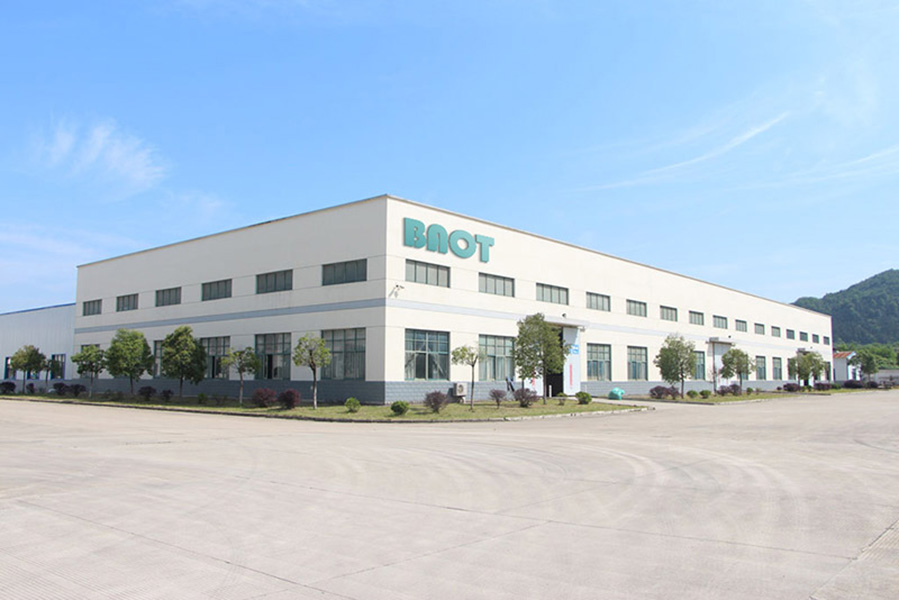

BAOT Biological Technology Co., Ltd. has been established for decades. We have strong R&D capabilities, which are driven by a group of scientists and engineers to ensure product portfolios catch up with the dentistry trends. Modernized production lines of dental materials and equipment, such as dental ceramic powder, zirconia blocks, lithium disilicate glass ceramics, press ingot, milling machines, etc. guarantee strict quality control and fast delivery.
