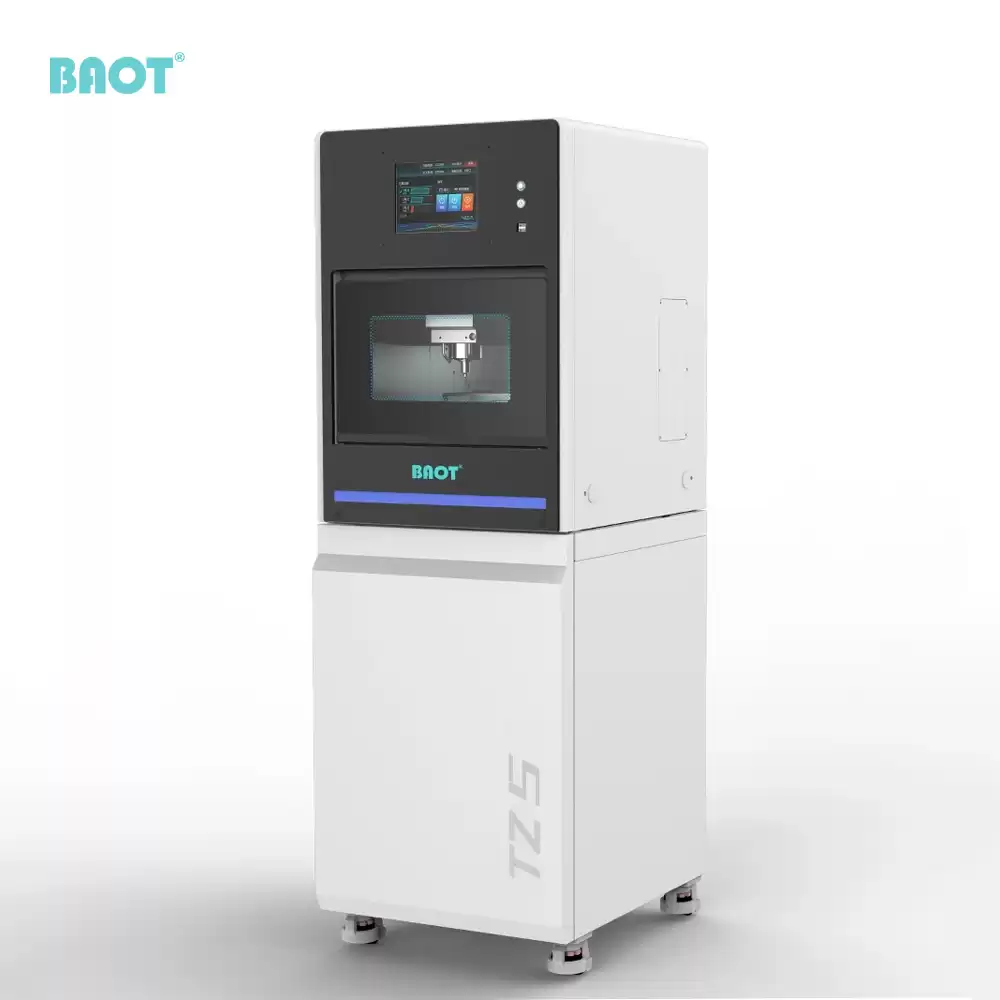

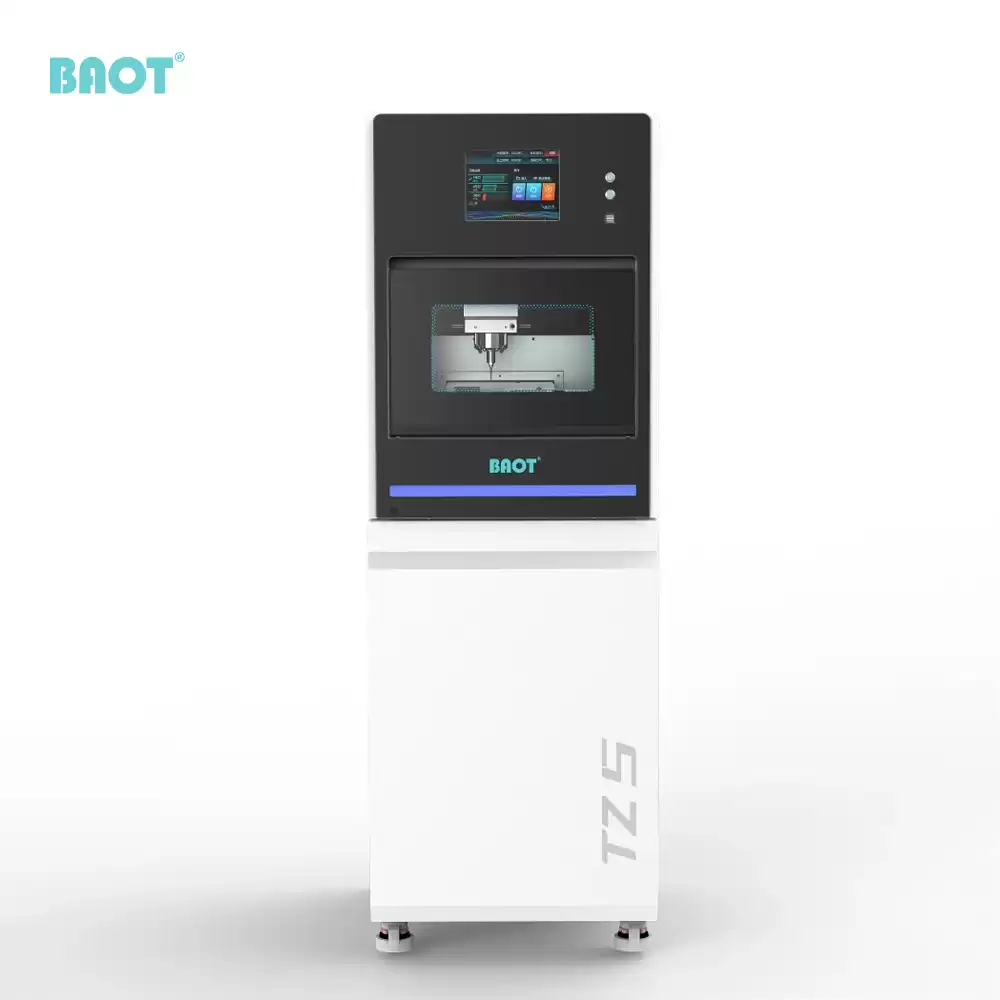

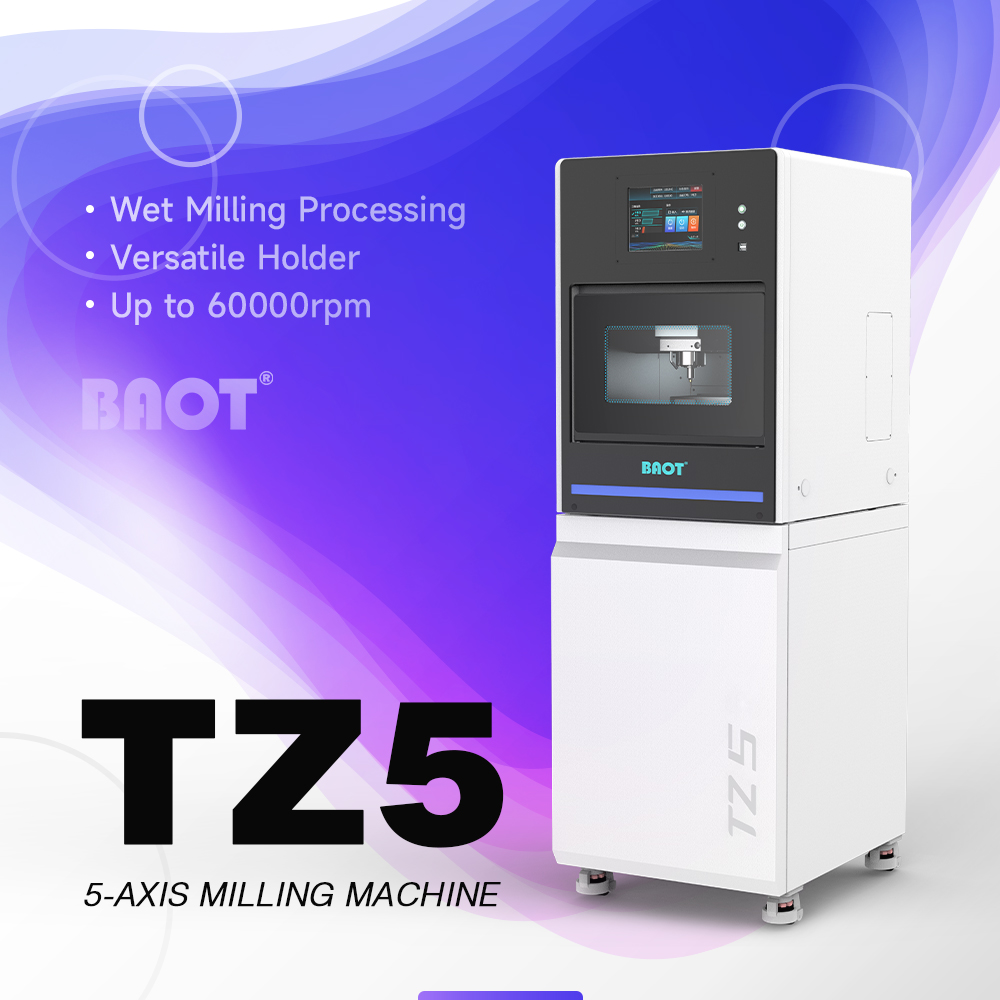

Dental Milling Machine TZ5 for Titanium Glass Ceramic
The TZ5 dental milling machine is an innovative and versatile device with high-precision five-axis linkage for various milling scenarios. Its industrial-grade servo drive system and precision lead screw guide rail ensure exceptional milling accuracy. The one-piece cast aluminum structure enhances stability, and features like an integrated cooling system and high-frequency spindle contribute to precise machining. With continuous milling after power failure and intelligent memory processing, the TZ5 offers efficient performance.
Additionally, we offer timely after-sales service and online remote maintenance support to provide comprehensive assistance for users.
Advantages of BAOT TZ5 Dental Milling Machine:

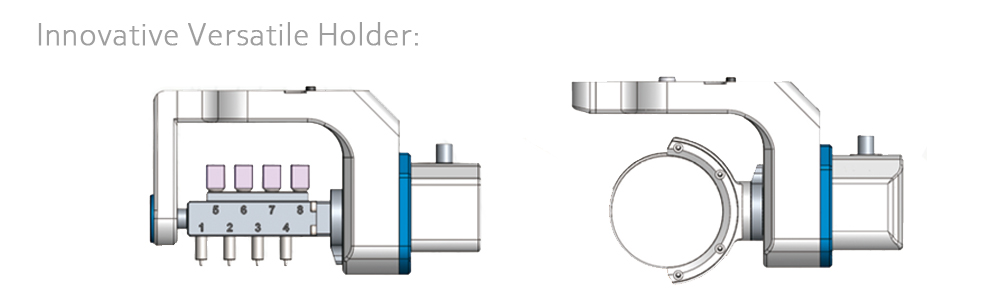

- Diverse Holders: Versatile metal holders for diverse milling.
- Precision Machining: High-precision five-axis machining, minimal post-grinding.
- Industrial Servo Drive: Industrial-grade full servo drive system.
- Precision Guide Rail: Precise lead screw guide rail for high milling precision.
- Cast Stability: Stable with a one-piece cast aluminum structure.
- Integrated Cooling: Integrated cooling and liquid circulation.
- High-Speed Spindle: High-precision, high-frequency, high-speed spindle.
- Timely Maintenance: Timely after-sales and online remote maintenance.
- Continuous Milling: Continuous milling after a power failure, intelligent memory.
BAOT TZ5 Dental Milling Mchine
| Weight |
193KG |
| Dimension(LxWxH) |
705 x 520 x 1590 mm |
| Milling Mode |
Wet Milling |
| Axis Quantity |
5 |
| Milling Range |
X:190mm/ Y:110mm/ Z:105mm, A:360°, B:±35° |
| Bur Specification |
Quantity: 8 Diameter: 4mm/6mm |
| Drive |
Full Servo Drive |
| Spindle |
Speed: 0~60000rmp, Power: 2.5KW |
| Cooling Method |
Water Cooled |
| Power Supply |
220V, 50Hz |
| Power |
3.5KW |
| Air Pressure |
0.45-0.7MPa |
| Processing Materials |
Titanium Column, Glass Ceramic, HPP, PMMA |
| Average Milling Time |
*PMMA Provisional PMMA tooth: 15-18 mins,
*Metal Abutment 15-20 mins,
*Glass Ceramic Full Crown: 25-30 mins, Inner Crown: 20-25 mins, Veneer: 20-30 mins, Inlay/Onlay: 25-40 mins, Bridge: 40-60 mins
|

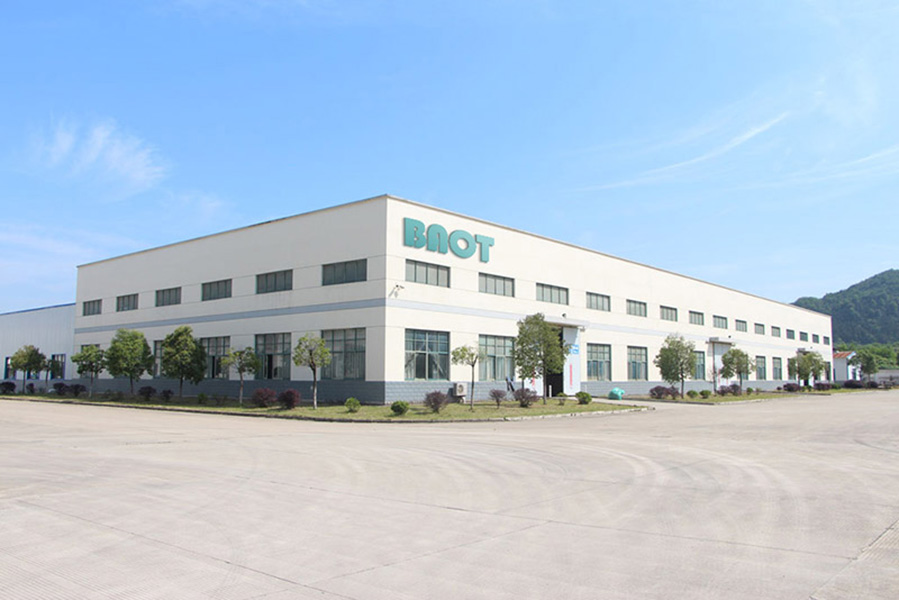

BAOT Biological Technology Co., Ltd. has been established for decades. We have strong R&D capabilities, which are driven by a group of scientists and engineers to ensure product portfolios catch up with the dentistry trends. Modernized production lines of dental materials and equipment, such as dental ceramic powder, zirconia blocks, lithium disilicate glass ceramics, press ingot, milling machines, etc. guarantee strict quality control and fast delivery.
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer based in China. With more than 20-year experience in materials and equipment, we specialize in manufacturing dental materials and equipment, such as dental porcelain, zirconia blocks, lithium disilicate glass ceramics, press ingot, milling machines, etc.
Q: Could we print our own logo?
A: Yes, we supply OEM/ODM service.
Q: What's the payment term?
A: We accept Western Union, credit cards, bank transfers, visas, etc.
Q: Can I get samples?
A: Yes, we accept the sample order.
Q: Can I customize products?
A: Of course, we can build a new mold to produce your products. Mold cost will depend on the quantity.
Q: How long is the delivery time?
A: Delivery time will be up to the purchasing quantity. Usually, It takes 3~5 days for a sample and 10~15 days for a mass order.
